Vitiligo Area Assessment by Manual Planimetry for Statistical Precision
Authors: Narasimhan H, Yadav C, Kachhawa D
Journal: Clinical Dermatology Open Access Journal. Article type: Letter to Editor. Published: 2021-05-27. DOI: https://doi.org/10.23880/cdoaj-16000241
Abstract
Vitiligo area severity index (VASI) is formulated as one of the successful tools used in dermatology to calculate the area of vitiligo which is gauged in hand units. Since the patches of vitiligo have irregular outlines with varying sizes in same patient, the accuracy of using hand units is still debated. Various methods have arrived in measuring the area of Vitiligo, but none prove precision for research purpose. Hence we extrapolate the “point-counting method” with the formula to calculate area of an irregular surface thus aiding in area calculation for statistical purpose.
Keywords: VASI, Vitiligo, Repigmentation
References
AREA OF IRREGULAR SURFACE CALCULATION: $\text{AREA} = \text{SIZE OF THE GRAPH} (\text{C} + 1/2\text{P})$ C $\rightarrow$ SQUARES WITH COMPLETE INVOLVEMENT P $\rightarrow$ SQUARES WITH PARTIAL INVOLVEMENT
$\text{FOR GRID } 0\cdot 5 \times 0\cdot 5 \rightarrow 0\cdot 25 \left(\text{C} + \frac{1}{2}\text{P}\right) = 0\cdot 25 (96) \longrightarrow 24\text{ cm}^2$ $\text{FOR GRID } 0\cdot 25 \times 0\cdot 25 \rightarrow 1/16 \left(\text{C} + \frac{1}{2}\text{P}\right) \text{ AND SO ON.}$ Math-Drills.com
Since the patches have irregular outlines with varying sizes in same patient, the accuracy of using Hand units is still debated. Hence newer tools have emerged such as the Vitiligo European Task Force (VETF), particularly to overcome the inter-subject variability [2]. Small patches that has irregular margins are difficult to measure with accuracy. Various planimetric methods have been described in texts, but none of them have a precise utilization in clinical practice.
The self-assessed VASI was studied as an improved tool compared to VASI [3]. But none of these tools has addressed the issue of measuring small patches with irregular margin. Some authors consider drawing an appropriate shape to the patch and using standard measurement. Manual planimetry has long been utilized to measure the surface of wounds [4]. This is the Manual Planimetry method using a graph paper. For the calculation purpose, we define small patches as those involving

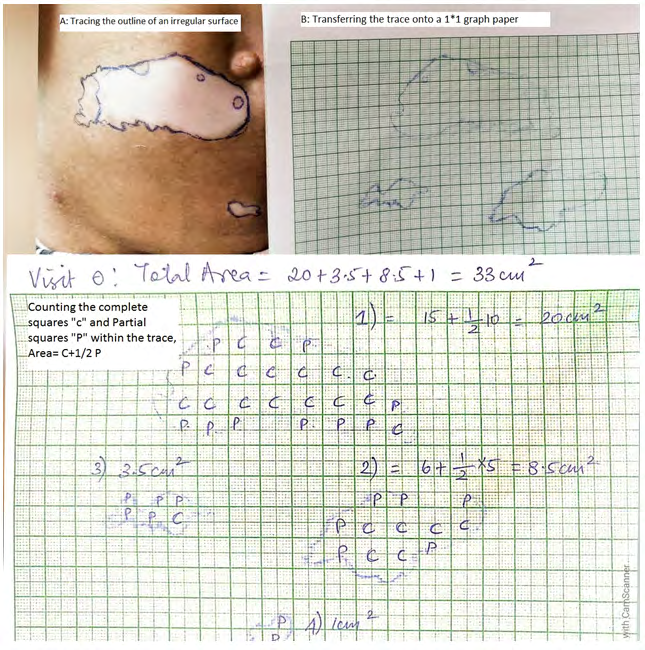

Figure 1

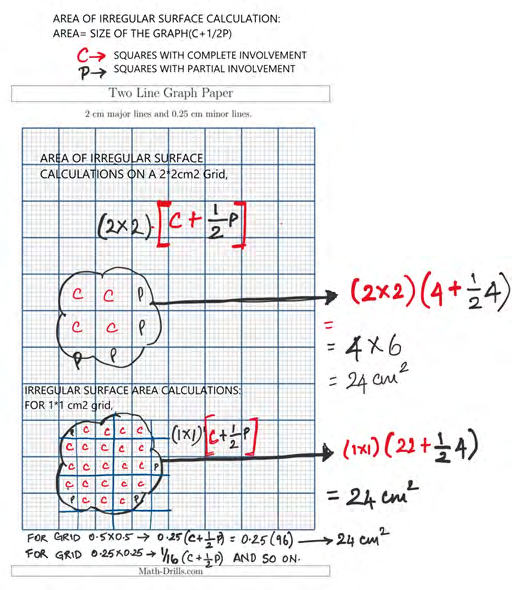

Figure 2
References
- Patvekar MA, Deo KS, Verma S, Kothari P, Gupta A (2017) Quality of life in vitiligo: Relationship to clinical severity and demographic data. Pigment Int 4: 104-108.
- Komen L, van der Kraaij GE, van der Veen JP, de Rie MA, Wolkerstorfer A (2015) The validity, reliability and acceptability of the SAVASI; a new self-assessment score in vitiligo. J Eur Acad Dermatol Venereol 29(11): 2145- 2151.
- Feily A (2014) Vitiligo Extent Tensity Index (VETI) score: a new definition, assessment and treatment evaluation criteria in vitiligo. Dermatol Pract Concept 4(4): 81-84.
- Jørgensen LB, Sørensen JA, Jemec GB, Yderstraede KB (2016) Methods to assess area and volume of wounds - a systematic review. Int Wound J 13(4): 540-553.
- Aydin F, Senturk N, Sahin B, Bek Y, Yuksel EP, et al. (2017) A practical method for the estimation of vitiligo surface area: a comparison between the point counting and digital planimetry techniques. Eur J Dermatol 17(1): 30- 32.
