Open Access Journal of Pharmaceutical Research Research Article 3 min read

Herbal Sunscreens and Photo Protection Compositions: A Patent Review

Singh S* and Sharma N*
* Corresponding author
ISSN: 2574-7797  10.23880/oajpr-16000145  Received: November 23, 2017  Published: December 02, 2017
 — views
 20 references
 1 figure
 2 tables
PDF
Keywords
Skin Erythema Sunscreen Photo Protection
Abstract

Solar ultraviolet type B radiations (UVB) is fundamentally liable to be absorbed by keratinocytes leading to production of free radicals or reactive oxygen species (ROS) which might cause skin erythema, sunburn, skin cancer and premature ageing. Herbal sunscreen guard skin from sun’s radiations which reduces sunburns with reduced risk of skin harms. Antioxidants quench free radicals and ROS which might aid photo-protection effect. This review compiled previously patented herbal photo protection compositions and sunscreens.

Introduction

Solar ultraviolet radiations at the earth’s surface encompass approximately 95-98 % UVA and 2-5 % UVB. The frequency of ultraviolet type B is fundamentally liable to be absorbed by keratinocytes leading to production of free radicals or reactive oxygen species (ROS) which might cause skin erythema, sunburn, skin cancer and premature ageing [1, 2]. Anti-oxidants quench free radicals and ROS which might aid photo-protection effect. Herbal sunscreen topical products guard skin from sun’s radiations which reduces sunburns with reduced risk of skin harms. This review compiled previously patented herbal photo protection compositions and sunscreens. Few herbal photo protectants have been represented in Figure 1.

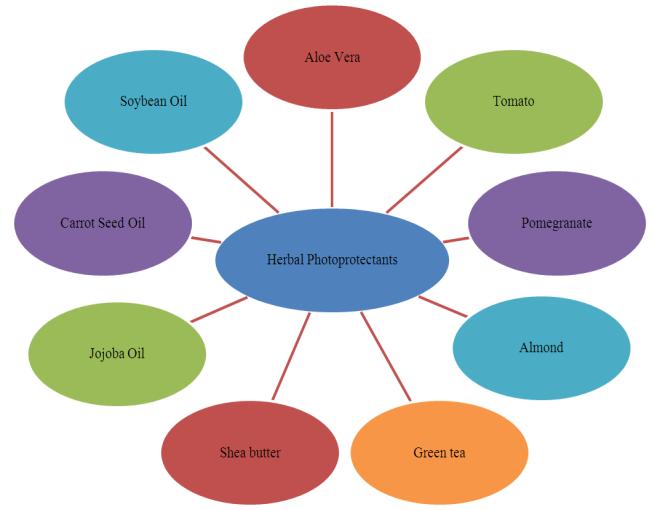

Figure 1: Examples of herbal photo protectants.
Click to enlarge
Figure 1: Examples of herbal photo protectants.

Ultimate Characteristics of Sunscreen Product

A high-quality sunscreen ought to absorb or riddle out the sunburn emission causing and must be non-toxic and non-irritating. It should be stable under air, light and moisture. Moreover, it must be moderately non-volatile, subsequently will not evaporate [3]. Herbal sun protection compositions and sunscreens patented for patented for sunscreen and photo protection activity has been listed in Table 1, 2, respectively.

Publication No./ Publication
Title of patentDisclosureReference
date/ Applicant
US 7311896 B2/ Dec 25, 2007/
Mmi Corporation		Natural sunscreen
compositions and processes for
producing the same		Extracts of Hedychium spicatum and/or
Alpinia galanga as natural sunscreen		[4]
US 20130243709 A1/ 19 Sep
2013/ James E. Hanson, Cosimo
Antonacci		Natural Sunscreen
Composition		UV-blocking component comprising of:[5]
· Natural extracts of milk thistle, white
willow, St John's wort, griffonia seed,
Galla chinensis, olive leaf, hops, gentian,
bilberry, chrysanthemum, coptis root,
magnolia bark, rhubarb, red clover, rose
hip, schisandra berry, valerian root and
grape seed.
· Natural oils of cinnamon bark, cocoa,
coffee, cognac, ravensara, tansy blue,
vanilla and yarrow.
· Nutrients i.e. vitamin D, folic acid,
riboflavin, pyridoxine, cyanocobalamine,
collagen or partially hydrolyzed collagen,
silk protein or partially hydrolyzed silk
protein, thymine, cytosine, adenine,
guanine, rutin, quercetin, azalein,
hyperoside, isoquercetin, kampferitin,
myricitrin, robinin, speraeoside,
xanthorhamin, icariin, truxrutin, vitamin
K and coenzyme Q.
US 20050042186 A1/ 24 Feb
2005/ Peter Zahner		All natural sunscreen lotionNatural topical sunscreen composition
includes 0.01% to 5% by weight of
biological melanin, 2% to 10% by weight
of green tea extract with polyphenol
content greater than 40% and 2% to 10%
by weight of either titanium dioxide
and/or zinc oxide.		[6]
US 5817299 A/ 6 Oct 1998/ E-L
Management Corp.		Non-chemical sunscreen
composition		Non-chemical sunscreen comprising
about 50% by weight of
proanthocyanidins, γ-oryzanol, ferulic
acid, titanium dioxide and scutellaria
extract.		[7]
WO 2012055678 A1/ 3 May
2012/ Unilever Nv, Unilever Plc,
Hindustan Unilever Limited		A stable sunscreen
composition		Discloses a stable sunscreen containing
zingerone as sunscreen stabilizer which
is a derivative of gingerol found in ginger.		[8]
Publication No./ Publication
Title of patentDisclosureReference
date/ Applicant
EP 0953337 A1/ 3 Nov 1999/
Ioannis Papadakos		Preparation of sun protection oilSun protection oil is prepared with
pure virgin olive oil in combination
with vitamins E and A.		[9]
US 20050112156 A1/ 26 May
2005/ Stefan Busch, Rolf Kawa,
Alfred Westfechtel		Sun protection compositionsNew sun protection compositions
with improved water resistance
have an effective content of diol
dimer fatty acid esters and dimer
diol dimer fatty acid esters.		[10]
WO 2014016349 A1/ Jan 30,
2014/ Biosynthis		Photo protective compositionPhoto-protective containing karanja
oil and ioned polyester.		[11]
US 20080138446 A1/ 12 June
2008/ Lavender Hill Projects Pvt
Ltd		Herbal compositionHerbal composition containing
extracts from Thuja, Poke, Sweet
violet, Red clover, Greater celandine
and Calendula.		[12]
US 7344728 B1/ Mar 18, 2008/
Perry Stephen C		Insect repellent with sun
protection factor		An insect repellent composition
which includes natural oils
(citronella and orange), synthetic
ingredients (D-limonene and phtalic
acid), sunscreen vitamin F and
volatile silicones.		[13]
EP 2144608 A1/ Jan 20, 2010/
Sytheon Ltd.		Sunscreen compositions and
methods		Sunscreen compositions comprising
of UV-B or UV-A/UV-B sunblock
active, meroterpene (Bakuchiol) and
dermatological acceptable carrier.		[14]
US 9173823 B2/ 3 Nov 2015/
Institut Biophytis Sas, Universite
Pierre Et Marie Curie		Preparation for sun protectionFood preparation containing
norbixin, or bixin intended to be
administered orally for protection of
mammalian skin against UV-
radiation.		[15]
WO 2003020236 A2/13 Mar
2003/ Hadasit Medical Research
Services & Development Limited,
Yissum Research Development
Company of The Hebrew
University of Jerusalem		The utilization of natural
pigments from lichens,
cyanobacteria, fungi and plants
for sun protection		Natural extract from fungus,
cyanobactria, plants, lichens or a
mixture having an ultra violet
absorbency in range of 220 nm to
425 nm.		[16]
US 5614197 A/ 25 Mar 1997/
ndustrial Farmaceutica Cantabria
S.A.		Polypodium extract as
,
photoprotectant		Sunscreen containing extracts from
ferns of Polypodium.		[17]
US 20090324522 A1/ 31 Dec
2009/ Western Holdings, Llc		Skin protectant compositionsA topical sunscreen synergistic
composition includes extracts of
hibiscus flower, ferula assa foetida
root, pear fruit, and green tea leaf.		[18]
US 4806344 A/ 21 Feb 1989/
Gaskin Frances C		Sun protectant composition and
method		The topical sunscreen composition
containing melanin as an active
ingredient. It also contains
sunscreens, vitamins and emollients.
These ingredients are rapidly
blended through ultrasound for 2-3
hours to enhance sun protective
factor.		[19]

Table 1: Herbal photo protection compositions patented for sunscreen activity.

US 6235271 B1/ 22 May 2001/
Ciba Specialty Chemicals
Corporation		UV-protection formulationSun protection agent comprising of
micronized organic UV absorber, an
oil-soluble, non-micronized UV
absorber and/or an inorganic micro
pigment; and polymeric hollow
sphere additive and/or xanthan
and/or polyvinylpyrrolidone.		[20]

Table 2: Herbal sunscreens patented for photo protection.

Conclusion

This patent review involves previously patented herbal photo protection compositions and sunscreens which are valuable to avert skin damage caused by acute or persistent exposure to solar UV radiations. This patent review was carried using the keywords herbal sunscreen, photo protection and photo ageing.

References

  1. Mishra AK, Mishra A, Chattopadhyay P (2011) Herbal cosmeceuticals for photo protection from ultraviolet B radiation: A Review. Trop J Pharm Res 10(3): 351- 360.
  2. Yusuf N, Irby C, Katiyar SK, Elmets CA (2007) Photo protective effects of green tea polyphenols. Photodermatol Photoimmunol Photomed 23(1): 48- 56.
  3. Korać RR, Khambholja KM (2011) Potential of herbs in skin protection from ultraviolet radiation. Pharmacogn Rev 5(10): 164-173.
  4. Mitra SK, Babu UV, Ranganna MV (2007) Natural sunscreen compositions and processes for producing the same. U.S. Patent 7311896 B2.
  5. Hanson JE, Antonacci C (2013) Natural Sunscreen Composition. U.S. Patent 20130243709 A1.
  6. Zahner P (2005) All natural sunscreen lotion. U.S. Patent 20050042186 A1.
  7. Manirazman AM (1998) Non-chemical sunscreen composition. U.S. Patent 5817299 A.
  8. Chavan MV, Kunjupillai B, Vaidya AA (2012) A stable sunscreen composition. World Intellectual Property Organization 2012055678 A1.
  9. Papadakos I (1999) Preparation of sun protection oil. European Union patent 0953337 A1.
  10. Busch S, Kawa R, Westfechtel A (2005) Sun protection compositions. U.S. Patent 20050112156 A1.
  11. Bernoud T, Ramiandrasoa P (2014) Photoprotective composition. World Intellectual Property Organization 2014016349 A1.
  12. Hilterman KA (2008) Herbal Composition. U.S. Patent 20080138446 A1.
  13. Perry SC (2008) Insect repellent with sun protection factor. U.S. Patent 7344728 B1.
  14. Chaudhuri RK (2010) Sunscreen compositions and methods. European Union patent 2144608 A1.
  15. Veillet S, Lafont R, Dioh W (2015) Preparation for sun protection. U.S. Patent 9173823 B2.
  16. Enk DC, Srebnik M, Lev O, Hochberg M, Dor I, et al. (2003) The utilization of natural pigments from lichens, cyanobacteria, fungi and plants for sun protection. World Intellectual Property Organization 2003020236 A2.
  17. Pathak MA, Gonzalez S, Fitzpatrick TB (1997) Polypodium extract as photoprotectant. U.S. Patent 5614197 A.
  18. Chevreau N (2009) Skin protectant compositions. U.S. Patent 20090324522 A1.
  19. Gaskin FC (1989) Sun protectant composition and method. U.S. Patent 4806344 A.
  20. Luther H, Stehlin A, Herzog B (2001) UV-protection formulation. U.S. Patent 6235271 B1.
