Review Article on Local and Spinal Anaesthesia

Historical Background

Pain control has not always been as efficacious as it currently is. Throughout our known history, people have attempted to manage pain using many different methods and techniques. Many of the techniques previously slowly evolved over time becoming more efficient and reproducible. Baron Larrey, Napoleon’s army doctor, noted the ease and relative patient comfort when amputating limbs that were nearly frozen during Napoleon’s invasion of Russia. In nineteenth century the British physician, Benjamin Ward Richardson, used the technique of spraying ether onto the surgical site, in order to desensitize it. A major breakthrough in modern local anesthesia was made in 1841 when Zophar Jayne, an American physician, created the framework for the modern hypodermic syringe. In 1860, Nieman isolated first local anaesthetic agent from leaves of Coca tree. Karl Koller published his first paper on the use of cocaine in eye surgery in 1884.

Surgeons did not quickly adopt the use of cocaine as an anesthetic. However, dentists began using it subcutaneously for tooth extraction. In 1855, Corning accidently administered cocaine intrathecally. In 1891, Quincke made use of spinal puncture in diagnosis. In 1898 August bier of Germany introduced the technique of spinal anesthesia and Pitkin popularized the method of introducing agent’s intrathecally. In 1905, first effective and widely used synthetic local anesthetic Procaine produced by Einhorn from benzoic acid and diethyl amino ethanol. The most recent major innovation came in 1949 when the Swedish pharmaceutical company Astra introduced Lidocaine to the market. Lidocaine, also known as Xylocaine, was the first non-ester local anesthetic available. Lidocaine proved to have even fewer side effects than procaine while instilling even deeper anesthesia. There are three main types of local anesthetics that are clinically used today. Lidocaine 2% with epinephrine 1:100,000, Bupivacaine 5% with epinephrine 1:200,000 is used for longer procedures. Mepivacaine is the most common local anesthetic, if the use of epinephrine is contraindicated. This anesthetic is used for short procedures and when vasoconstriction is less imperative. Another novel breakthrough in local anesthesia that has yet to catch on widely came in 2009, when an injectable form of phentolamine mesylate, a vasodilator that reverses local anesthesia, was introduced to the market. urrently, there is ongoing research on how to decrease the pain during the application of local anesthesia [3, 4, 5].

Local Anesthetic Agents

The clinically useful local anesthetic agents can be divided chemically into the amino-esters, e.g., procaine, chloroprocaine and tetracaine, and the amino-amides, e.g., lidocaine, mepivacaine, prilocaine, bupivacaine and etidocaine. Pharmacologically, these agents can be categorized as agents of low potency and short duration of action, e.g., procaine and chloroprocaine; agents of intermediate potency and duration of action, e.g., lidocaine, mepivacaine and prilocaine; and agents of high potency and long duration, e.g., tetracaine, bupivacaine and etidocaine [6].

Pharmacology of Local Anaesthetics

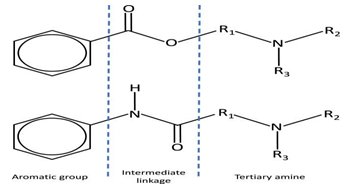

Local anaesthetic drugs are water-soluble salts of lipid-soluble alkaloids. The structure of local anaesthetics consists of three components: a lipophilic aromatic group, an intermediary link and a hydrophilic amine group Figure 1. The intermediary link categorises local anaesthetics into esters or amides Table 1 [7]. For example, increasing the length of carbon chains attached to either the aromatic ring, amide linkage or the tertiary amine offers higher lipid solubility, potency and increased duration of action.

Click to enlarge

Replacement of the tertiary amine by a piperidine ring increases lipid solubility and duration of action; the addition of a butyl group in place of the amine on the benzene ring of procaine gives tetracaine (amethocaine); and the addition of a propyl or butyl group to the amine end of mepivacaine results in ropivacaine or bupivacaine, respectively. Compared to bupivacaine, ropivacaine’s propyl group gives a lower lipid solubility that causes it to penetrate large myelinated motor fibres to a lesser extent, giving a more selective sensory blockade [8].

Bupivacaine exists in two enantiomers, which are mirror images of each other. Although structurally identical, enantiomers can exhibit clinical differences including potency and adverse effects. The discovery of a selective blockade of cardiac Na+ channels by the dextro- enantiomer of bupivacaine led to the creation and widespread use of two levo-enantiomers: levobupivacaine and ropivacaine [9]. These exhibit lower potency at myocardial Na+ and K+ channels and have less effect on myocardial electrical conduction and contractility compared to bupivacaine.

Enantiomers were historically classified according to their ability to rotate the plane of polarised light. For example, the prefix dextro indicates clockwise rotation and the prefix levoindicates anticlockwise rotation of polarised light. Alternatively, enantiomers may be classified by the order of atoms around the central carbon molecule. For example, in a rectus (R) configuration, atomic mass reduces in a clockwise direction whereas the opposite occurs in the sinister (S) configuration.

Pharmacological Properties of Local Anaesthetics

The speed of onset, potency and duration of local anaesthetics is dependant on the pKa, lipid solubility and protein binding, respectively.

pKa

The dissociation of amphipathic local anaesthetics is determined by their pKa and the pH of the tissue into which they are injected.

The pKa is the pH at which the ionised and un- ionised forms are present in equal amounts. For bases, such as local anaesthetics, the higher the pKa, the greater the ionised fraction in solution. The ratio of the two states is described by the Henderson–Hasselbalch equation: log [A–]/[AH] = pKa – Ph where [A–] is the ionised form and [AH] is the non-ionised form.

As rate of diffusion across the nerve sheath and nerve membrane is related to the proportion of non-ionised drug, local anaesthetics with low pKa have a fast onset of action, and local anaesthetics with a high pKa have a slow onset of action. For example, lidocaine (pKa=7.8) has a fast onset in comparison with bupivacaine (pKa=8.1), because at pH 7.4 a greater proportion of lidocaine exists in the non-ionised form. Inflamed and infected tissue is more acidaemic, and therefore more local anaesthetic exists in the ionised form, reducing the amount of un-ionised drug available to cross the nerve and provide analgesia. The pH of tissue can be affected by adjuvants, for example, some clinicians add bicarbonate to speed the onset of epidural anaesthesia.

Molecular Weight

The smaller the molecular weight, the more rapidly molecules diffuse through membranes.

Lipid Solubility

Lipid solubility and potency are closely related. The lipid solubility of local anaesthetics is expressed as the partition coefficient, which is defined as the ratio of concentrations when local anaesthetic is dissolved in a mixture of lipid and aqueous solvents. Greater lipid solubility enables more rapid diffusion through lipid membranes to reach their site of action, influencing the speed of onset, although—as outlined above—other factors are also important. In addition, greater lipid solubility gives a greater volume of distribution.

Protein Binding

Local anaesthetics with high protein binding to α1-acid glycoprotein have a longer duration of action and lower bioavailability. Hypoxia, hypercarbia, and acidaemia all decrease protein binding, and increase the risk of toxicity. Children younger than 6 months have less protein binding capacity.

Vasoactivity

The vasoactivity of local anaesthetics influences potency and duration of action. For example, more rapid absorption occurs after lidocaine administration compared to bupivacaine.

Levobupivacaine and ropivacaine have a bimodal vasoactive response. Both vasodilate at clinical doses and vasoconstrict at subclinical doses. Concentrations of adrenaline as low as 1:800,000 are sufficient to cause vasocontriction in tissues in the presence of local anaesthetics.

Metabolism and Clearance

Ester and amide local anaesthetic agents differ concerning their metabolism and allergic potential. Esters are hydrolysed rapidly in plasma by pseudocholinesterase to the metabolite para-amino benzoic acid (PABA), which can cause an allergic reaction. Plasma half-life varies from less than 1 min (chloroprocaine) to 8 min (tetracaine) and is prolonged in the presence of atypical cholinesterase. Cocaine, unlike other esters, undergoes hepatic hydrolysis followed by renal excretion [7].

In the liver, amide local anaesthetics undergo aromatic hydroxylation, amide hydrolysis and N-dealkylation [7]. Amide metabolism is much slower than plasma hydrolysis, and thus amide local anaesthetics are more prone to accumulation in the presence of hepatic dysfunction or reduced hepatic blood flow [7]. Prilocaine undergoes metabolism in the lungs. Amides have a very low allergic potential themselves, and an observed reaction may be caused by an additive such as the stabilising agent methylparaben. In addition, response to vasoconstrictor adjuvants may be mistaken for allergy.

Clearance values and elimination half-times for amide local anaesthetics represent mainly hepatic metabolism because renal excretion of unchanged drug is minimal. Accumulation of metabolites may occur in renal failure.

Lidocaine has a high hepatic extraction ratio: clearance is dependent on hepatic blood flow and is relatively unaltered by changes in hepatic enzyme activity. Owing to the efficiency of the drug in dissociating from plasma proteins, entering the hepatocyte, and undergoing metabolism, the rate limiting step is hepatic perfusion. This is important in critical illness, particularly in states of low cardiac output and reduced hepatic blood flow [10].

Spinal Anesthetic Agents

Lidocaine, tetracaine, and bupivacaine are the local anesthetic agents most commonly employed for spinal anesthesia. Lidocaine provides a short duration of anesthesia and is primarily useful for surgical and obstetrical procedures lasting less than one hour. Tetracaine and bupivacaine are used for procedures lasting 2 to 5 hours. Bupivacaine may be better than tetracaine for use in orthopedic surgical procedures since it appears to be associated with a lower incidence of tourniquet pain [11].

Ideal Characteristics of Local and Spinal Anesthetics

• Its actions must be reversible.

Anaesthesia & Critical Care Medicine Journal

• It should be non-irritating to the tissues.
• It should not produce any local reactions.
• It should be rapid in action
• It should have a low degree of systemic toxicity.
• It should have sufficient potency to provide complete local anesthesia.
• It should be of sufficient duration to be advantageous.
• It should have sufficient penetrating properties.
• It should not produce allergic reactions.
• It should be stable in solution and undergo bio transformation readily within the body.
• It should be either sterile or capable of being sterilized by heat without deterioration.
• It should be stable in light.
• It should be liquid and vaporizable at room temperature.
• It should have long shelf life.
• It should not produce any permanent damage.
• It should be non-addictive.
• It should be combined with other agents.
• It should have high therapeutic ratio.

Mechanism of Acton of Local Anaesthesia

Topical anesthetics reversibly block nerve conduction near their site of administration, thereby producing temporary loss of sensation in a limited area. Local anesthetics inhibit depolarization of the nerve membrane by interfering with both Na$^+$ and K$^+$ currents. The action potential is not propagated because the threshold level is never attained.

Although the exact mechanism by which local anesthetics retard the influx of sodium ions into the cell is unknown, 2 theories have been proposed. The membrane expansion theory postulates that the local anesthetic is absorbed into the cell membrane, expanding the membrane and leading to narrowing of the sodium channels. This hypothesis has largely given way to the specific receptor theory. This theory proposes that the local anesthetic diffuses across the cell membrane and binds to a specific receptor at the opening of the voltage-gated sodium channel. The local anesthetic affinity to the voltage-gated Na$^+$ channel increases markedly with the excitation rate of the neuron. This binding leads to alterations in the structure or function of the channel and inhibits sodium ion movement. Blockade of leak K$^+$ currents by local anesthetics is now also believed to contribute to conduction block by reducing the ability of the channels to set the membrane potential [12].

Mechanism of Acton of Spinal Anaesthesia

Spinal anesthesia blocks small, unmyelinated sympathetic fibers first, after which it blocks myelinated (sensory and motor) fibers. The sympathetic block can exceed motor/sensory by two dermatomes [13].

Indication of Local Anaesthesia

• Incision and drainage of incised abscess.
• Removal of cysts, residual infection areas, hydrophilic groups and neoplastic growths, ranula and salivary calculi.
• In treatment of tic douloureux by producing prolonged anesthetic with the combination of a local anesthetic agent and alcohol injection.
• In dentistry- extraction of teeth and fractured roots, odontectomy, treatment of alveolagia, alveolectomy, apicoectomy.

Contraindications of Local Anaesthesia

History of allergy to local anesthetic agent or history of allergy to any of the constituent of local anesthetic solution:

• Fear and apprehension.
• Presence of acute inflammation or supurative infection at the site of insertion of the needle.
• Infants or small children.
• Mentally retarded patients.
• Epilepsy.
• Hemodynamic unstability.
• Presence of methhaemoglobinemia.
• Presence of typical plasma cholinesterase [14].

Indication of Spinal Anaesthesia

It is most commonly used for surgeries below the umbilicus, however recently its uses have extended to some surgeries above the umbilicus as well as for postoperative analgesia. Procedures which use spinal anesthesia include:

• Orthopaedic surgery on.
• the pelvis, hip, femur, knee, tibia, and ankle, including arthroplasty and joint replacement.
• Vascular surgery on the legs.
• Endovascular aortic aneurysm repair.
• Hernia (inguinal or epigastric).
• Haemorrhoidectomy.
• Nephrectomy and cystectomy in combination with general anaesthesia.
• Transurethral resection of the prostate and transurethral resection of bladder tumours.
• Hysterectomy in different techniques used.
• Caesarean sections.
• Pain management during vaginal birth and delivery.
• Urology cases.
• Examinations under anaesthesia.
• Spinal anaesthesia is the technique of choice for Caesarean section.

Anaesthesia & Critical Care Medicine Journal

Contraindications of Spinal Anaesthesia

Prior to receiving spinal anesthesia, it is important to provide a thorough medical evaluation to ensure there are no absolute contraindications and to minimize risks and complications. Although contraindications are rare, below are some of them:

• Patient refusal
• Local infection or sepsis at the site of injection.
• Bleeding disorders, thrombocytopaenia, or systemic anticoagulation (secondary to an increased risk of a spinal epidural hematoma).
• Severe aortic stenosis
• Increased intracranial pressure.
• Space occupying lesions of the brain.
• Anatomical disorders of the spine such as scoliosis (although where pulmonary function is also impaired, spinal anaesthesia may be favored).
• Hypovolaemia e.g. following massive haemorrhage, including in obstetric patients.
• Allergy
• Relative Contraindication
• Ehlers Danlos Syndrome, or other disorders causing resistance to local anesthesia [15].
