Design & Demonstration of Pilot Scale Continuous Stirred Tank Bioreactor for Biogas Production

Introduction

Biogas technology provides an alternative source of energy to be utilized either as transportation fuel or as cooking fuel or for electricity generation mainly from organic wastes, viz cattle dung, kitchen waste, etc. Apart from this huge amount of lignocellulosic waste is also available for its effective conversion to biogas. The potential of jatropha de-oiled seed cakes for the generation of methane has long been recognized [1, 2, 3]. Biochemical methane potential (BMP) of various parts of jatropha plant has been investigated by Gunaseelan [4]. Studies on anaerobic digestion of J. curcas fruit shells (Hulls) indicate the production of about 2.5 L biogas with 70% CH4 at 4 g VS (volatile solid) [5]. It has been reported that jatropha de-oiled cake (JDOC) produced biogas yield of 355 L kg-1 [6, 7]. Although not very popular, but awareness about the usage of biogas is increasing day- by-day resulting in the number of biogas plants in the country, that too at community level (plants bigger than 15m3 capacity). At such a large scale, it becomes difficult to monitor all the operating conditions of the plant manually. Thus integration of plant operation and its remote monitoring has become a necessity in the present scenario. Automation systems have their unique advantages, like they help in raising plant availability and meeting the transparency requirements of the process. Operational efficiency and biogas yields are potentially raised through gathering various types of data, which must also be available for further processing. Information can include flow rates, pressures or fill levels as well as motor performance data or methane content. Some parameters must be monitored cyclically. It is important, for instance, to ensure that the fermentation process runs smoothly. If the bacteria in the fermenter are not "fed" for six hours, methane production drops significantly. Gas and energy production must also be documented along with the quantities of all feed materials. By constantly checking ingredients, operators can monitor and control the fermentation process to maintain the quality of the generated biogas. To achieve this, all subsystems must communicate simply and securely with each other. For this purpose, industrial Ethernet has become the standard for meeting the industrial sector's need for robust communication systems that can reliably transfer data over long distances. If talked in long run, integrated robust complete systems based on durable, flexible industrial solutions are the best investment for plant operators. Keeping in view the significance and necessity of automation in this technology, a fully automated Continuous Stirred Tank Reactor (CSTR) of 40m³ capacity was designed for jatropha waste and installed at the campus of University of Petroleum & Energy Studies, Dehradun (India) in 2013. This is the first fully automated digestor at pilot scale which can be monitored by remote sensing from all over the country.

Experimental Details

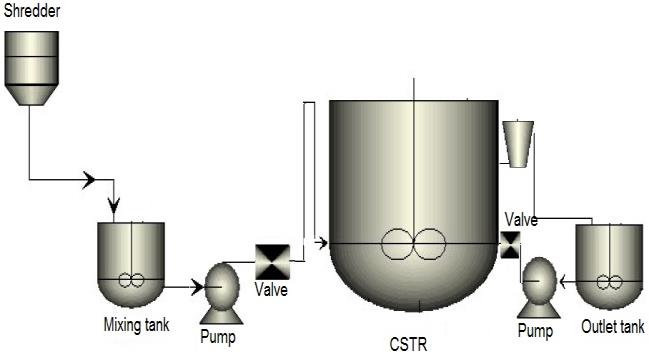

The CSTR was designed taking the concentration of slurry and biochemical methane potential of JDOC in consideration. The components of CSTR Biogas digester include 5 mm thick MS plate with angle support and fibres glass reinforced plastics (FRP) lining 1mm thick, 2 HP Flange mounted vertical stirrer system, 3 HP shredder, 1/2 HP screw slurry pump, and Remote monitoring system which allowed the constant monitoring of the operating parameters of the plant to understand its efficiency.

Click to enlarge

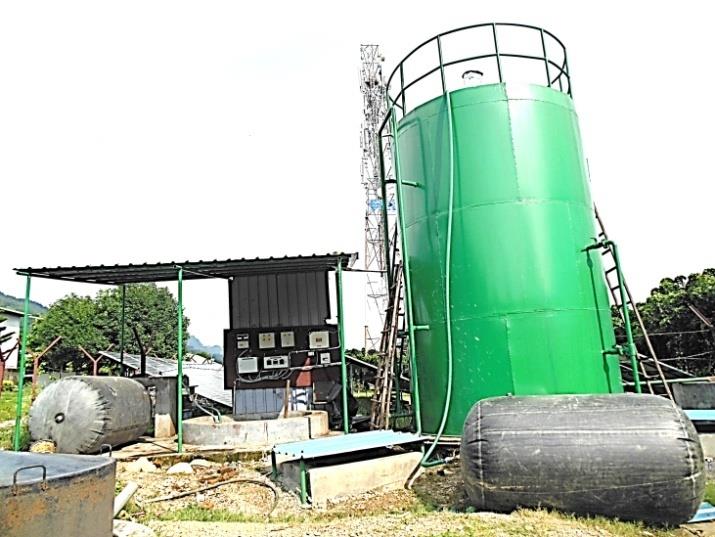

Actual plant constructed on this basis is shown in (Figure 2).

Click to enlarge

Click to enlarge

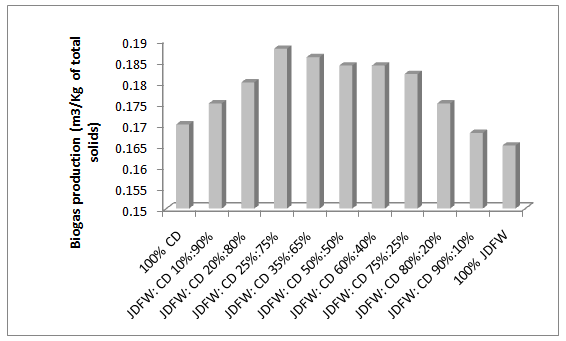

Figure 3: Ratio optimization of feed stock at lab scale Maximum production was observed in the mixture of JDOC and cow dung in a ratio of 25:75, but the objective was to shift the plant on JDOC up to the best possible extent. Hence, 75:25 ratio of JDOC and cow dung was chosen as an optimum ratio and fed in pilot scale plant, with a continuous monitoring of pH, temperature and gas production for 120 days.

Results & Discussion

Monitored data was stored in the automated system through remote sensing which was used to analyse the performance of the plant (Figure 4).

Click to enlarge

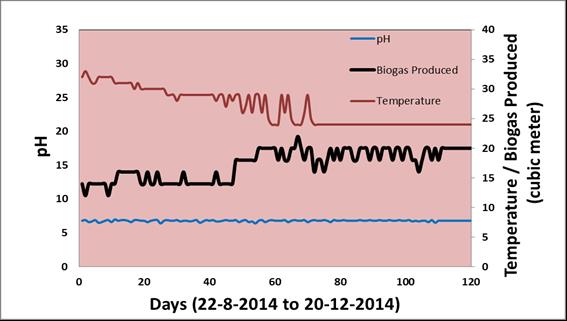

Figure 4: Operational results of pilot scale CSTR for 04 months Results indicate that initially production of biogas was lower which eventually increased with time. The possible reason for this is that initially decomposition of biomass was slow and it took around 15 days to start for gas production. Once the micro-organisms were grown properly, the process was zoomed up leading to increased production of biogas. Later stages show continuously higher production of biogas which is also due to decreased HRT. In CSTR, out coming slurry (already containing grown micro-organisms) was recycled to the digester, which helped in reducing the HRT from 15 to 5 days with the production of around 25m3 biogas/day.

Conclusion and Recommendation

Automated biogas plants are beneficial for community based digesters in the villages. Successful implementation of the process at pilot scale can recommend the technology to be adopted at industrial level as two major advantages are associated with the use of CSTR, i.e. it helps in the reduction of hydraulic retention time; and the operation can be monitored and guided for better performance optimizing the production of biogas.

Acknowledgement

Authors acknowledge the financial support provided by Ministry of New and Renewable Energy (MNRE), New Delhi, India (MNRE Sanction Order No: 19-1/2011- BE/R&D).
