Absorption of Crude Oil from Water Surface Using Shells of Periwinkle, Thales (Ngolo) and Oyster
Authors: Akaranta O, Chikwe TN, Anekwe-Nwekeaku OJ
Journal: Petroleum & Petrochemical Engineering Journal. Article type: Research Article. Published: 2024-07-25. DOI: https://doi.org/10.23880/ppej-16000392
Abstract
The Total petroleum hydrocarbon (TPH) of water contaminated with Bonny Light crude oil was determined before and after absorption using Ultraviolet (UV) spectroscopy and Gas Chromatographic (GC) analyses. Shells of periwinkle, thales (ngolo) and oyster were used as absorbents, each of the shells were ground into powdery form, sieved through a mesh of 50 microns and calcined at temperatures of 500, 600 and 700°C respectively. Results obtained from UV spectroscopic analyses showed that the TPH concentration of the oil contaminated water after absorption with uncalcined periwinkle, thales and oyster shells were 1410.0, 1371.0 and 1330.0 mg/l respectively. The higher the calcination temperature of the absorbents, the lower the TPH of the oil contaminated water after absorption making oyster shell calcined at 700°C the best absorbent. GC analyses gave the individual hydrocarbon components of the oil contaminated water before and after absorption thereby confirming the uptake efficiencies of the absorbents. The lower the TPH of the oil contaminated water, the higher the uptake efficiency of the absorbents which is directly proportional to the dilution factor and the amount of crude absorbed by the absorbents. The uptake efficiency of the absorbents follows the trend Oyster >thales> periwinkle. The process of calcination (high temperature heating) boosted the uptake efficiency of the absorbents by 45 percent.
Keywords: Crude Oil, Uptake Efficiency, Dilution Factor, Calcination, Temperature
Abbreviations
TOG: Total Oil and Grease; TPH: Total Petroleum Hydrocarbon; GC: Gas Chromatography; PAH: Poly Aromatic Hydrocarbons; SVOCs: Semi-Volatile Organic Compounds; VOCs: Volatile Organic Compounds.
Introduction
It is always said that it is better to prevent an oil spill than to think of a way of cleaning it up, however, most spills are preventable while others are not. Oil spillage could take place due to bad weather such as hurricanes, storms and earthquakes, while others might occur as a result of natural seepage, i.e., crude oil leaking up naturally from the ground into the surface environment. There are also other forms of mystery spills which might be difficult to prevent, however, stringent measures should be taken immediately they occur. On the other hand, those spills that are caused by intentional acts of violence, such as the vandalilization of oil pipelines and the crashing of tankers and barges, should be prevented as much as possible. Others like the blowing up of oil wells, spills caused by Government facilities and pliers such as oil- carrying naval boats could also be minimized [1-7].
Spilled oil can be removed from the water in a variety of ways. It can either be skimmed off the surface like (vacuum) with skimmers or burnt off [7-9]; it can also be absorbed with sorbent pads or dispersed with chemicals (dispersants). Further, it can be corralled with booms and filtered through pumps such as an oil/water separator to remove the oil that has mixed with water [6,10]. However, the most common clean up methods include absorption (sorbents), containment and recovery, dispersion, burning, bioremediation, hot and cold pressure washing, wave action and photoxidation [6,11,12].
This study is focused on absorption method in which sorbents are used to clean up oil spills.
For absorbents to be effective in combating oil spills, they should be both oleophilic (oil attracting) and hydrophobic. (water repellent). Although they may be used as the sole cleaning method in small spills, sorbents are most often used to remove final traces of oil or in areas that cannot be reached by skimmers [13].
Nevertheless, any oil removed from the sorbent materials after use must be properly disposed off or recycled [1]. There are three basic categories of sorbents namely: natural organic, natural inorganic and synthetic. Natural organic sorbents include peat, moss, straw, hay, sawdust, ground corncobs, feathers and other readily available carbon-based products [14]. Natural inorganic sorbents consist of clay, partite, vermiculite, glass wool, sand or volcanic ash [15]. Synthetic sorbents include man made materials that are similar to plastics, such as polyurethane, polyethylene and polypropylene and they are designed to adsorb liquids unto their surfaces like a sponge [10].
The aim of this study is to ascertain the effectiveness of natural organic materials such as shells of periwinkle, thales and oyster as absorbents in the clean-up of oil spill and also know the extent of cleansing that can be achieved by these absorbents through the knowledge of the concentration of the total petroleum hydrocarbon of the spilled system before and after oil spillage.This study is also aimed at having a knowledge of the best out of the three absorbents used.
Figure 1: Shells of Periwinkle.
Figure 2: Shells of Thales.
Figure 3: Shells of Oyster.
Materials and Methods
Source of Crude Oil
The crude oil used for this study is the Nigeria’s Bonny light crude. It was obtained at the Bonny Island as “dead sample”, because the crude oil causing spills on water bodies like lakes, oceans, seas and ponds are usually in their dead form. “Dead crude” refers to crude that is not pressurized (not mixed with pressurized gases). Crude samples were obtained with glass sampling bottles previously cleaned with xylene and dried in an oven [1,16].
Source(s) of Potential Absorbents
The absorbents used for this project (shells of periwinkle, oyster and thales (ngolo)) are extracts of common sea foods from the riverine areas of Niger Delta, Nigeria. The shells which were hitherto thrown away after the aquatic organism has been removed were collected in separate polyethylene bags and labelled appropriately and taken to the laboratory. Pictures of the shells of Periwinkle, thales and Oyster are shown in Figures 1-3 respectively.
Equipment and Media
Five hundred millilitre (500ml) separatory flasks, beakers, conical flask, xylene (solvent), concentrated sulphuric acid, silicone oil, thermostatic water bath, 50cc vials, weighing balance, carbon disulphide, benzene tetradecane solution, Core Laboratories cryoscope, AP Paar densitometer, Cacil CE 1021 (100 Series) ultraviolet spectrophotometer, 1000ml measuring cylinder, thermometer, 3400 varian star autosampler gas chromatographic liquid analyser and 50 microns sieve.
Laboratory Analyses
**Calibration** **of** **Ultraviolet** **Spectrophotometer:** A concentration of 10,000mg/l of the bonny light crude oil was prepared as the stock solution. Concentrations of 100mg/l- 50mg/l were prepared by pipetting 1.0ml, 2.0ml, 3.0ml, 4.0ml, and 5.0ml of the stock solution into 100ml volumetric flasks respectively. They were made up to mark with xylene and shaken. The absorbance of each standard concentration was determined using spectrophotometer at a wavelength of 420nm. The calibration curve was obtained by plotting absorbance values against the individual concentrations as shown in Figure 4. A calibration check with a concentration of 300mg/l was carried out using the same procedures with the standard and its absorbance determined [17].
**Ultraviolet Analyses:** For the ultraviolet (UV) analyses, 20ml of xylene (solvent) was weighed and added to the oil spilled sample after clean up by the absorbent. The mixture was transferred into the separatory flask with addition of two drops of sulphuric acid (to break down the moisture). The content was shaken vigorously for five minutes and was allowed to stand until separation was observed. The down layer (water) was eluted while the upper layer which is the extract (solvent containing the oil) was collected with an extract bottle [18]. The extract was analysed for oil and grease (total hydrocarbon content) using UV spectrophotometer (Cecil CE 1021; 100 Series) at 420nm. The absorbance and optical path length were obtained by the UV spectrophotometer while the concentration of the crude in water was calculated using the Beer Lamberts equation as shown in equation 1 using the slope of the calibration curve shown in figure 4 as the molar absorptivity constant (ɛ).
**Gas Chromatographic Analyses:** Gas chromatograph (Model no.: 3400 Varian Star) was utilized for total petroleum hydrocarbon (TPH) determination of the pure crude and water-oil mixture. The Gas Chromatograph was equipped with column of fused silica capillary (0.25 mm x 30 m x 0.25 mm), Helium gas (carrier gas) with a flow rate of 1.9 mL/min. Column temperature was formally set to periodically increase from 64°C to 191°C at 4.0°C/min and to 282°C at 6.0°C/min. It was held for 20 minutes at 274°C. A 1 litre sample was properly injected in split less modes. The quadrupole, ion exchanges and interface temperatures were held constant at 162°C, 153°C and 276°C respectively. Ionization was carried out in electrons impact mode at 67 eV and data were thereafter obtained by selected ion monitoring mode. The hydrocarbon content of the crude representing the total petroleum hydrocarbon (TPH) was identified based on selected ions, retention time comparison between sample and standard solutions. TPHs quantification was carried out using relative response factor of the target or specific TPH to internal standard. This was achieved using quantification ions and confirmation ions [19].
Reference Sample
Ultraviolet and gas chromatographic analyses of the Bonny light crude (without any of the absorbents used) was carried out, and this served as the reference sample. For the ultraviolet analysis, 40ml of xylene (solvent) was added to the sample, containing 20ml of the Bonny light crude weighing 2397 mg in 400ml of water. The mixture was transferred to the separatory flasks with addition of four drops of sulphuric acid (to break moisture). The content was shaken vigorously for four minutes and was allowed to stand, until separation was achieved. The down layer (water) was eluted while the upper layer which is the extract (solvent containing the oil) was collected with an extract bottle. The extract was analysed for oil and grease (Total hydrocarbon content) using UV spectrophotometer (Cecil CE 1021; 100 Series) at 420nm. The final concentration was calculated using the concentration/absorbance curve generated from the calibration plot which gave a concentration of 5993 mg/l.
Gas chromatographic analysis was carried out on the reference sample as well using a 3400 Varian star auto sampler gas chromatographic liquid analyser.
Absorption of Crude Oil from Water Using Shells of Periwinkle, Thales and Oyster
A sample of 20ml of bonny light crude oil weighing 2397 mg was transferred into a 1-litre beaker containing 400ml of water at 300C. The beaker walls were previously coated with silicone oil to prevent crude oil from sticking to the walls. The beaker content was shaken using a thermostatic water bath to simulate sea waves. Twenty-five grams (25g) of each of the uncalcined ground periwinkle shell (of 50 microns mesh size) was spread over the surface of the spilled water to sorb crude oil from the surface from where some amounts of the crude oil were seen to sink (due to impurities). The ground periwinkle shell was allowed contact with the crude oil for 7 minutes, after which, the ground periwinkle shell with the absorbed oil was carefully scooped off the surface with a spatula and introduced into a glass vial. The remaining sample was separated into two, for ultraviolet and gas chromatographic analyses. This process was repeated for ground samples of thales (ngolo) and oyster.
The same absorbents (periwinkle, thales and oyster) with the same mesh size of 50 microns was divided into three, each of which was calcined using an oven at temperatures of 500, 600 and 700°C respectively to remove volatile components in the absorbent and to envisage the effect of calcination on uptake efficiency of the absorbents. Each of the calcined absorbents weighing 25 g respectively was used to clean up a simulated oil-spilled water consisting of 20 ml of bonny light crude oil in a 400 ml water at 30°C [20-25].
Results and Discussion
Results
The results showing the total petroleum hydrocarbon content after absorption with shells of periwinkle, thales (ngolo) and oyster are contained in Tables 1-3 respectively, while the amount of crude oil absorbed at the different dilution factors is contained in Tables 4-6. Figure 4 shows the calibration plot for the estimation of the total petroleum hydrocarbon content, while Figures 5 and 6 contain charts showing the absorbances of calcined and uncalcined shells of periwinle and thales; Figures 7 and 8 show their absorption capacities in relatively smaller dilution factors.
Table 1: Concentrations of Simulated Oil Spill After Absorption with Periwinkle Shell using UV Spectroscopic Analyses.
[INLINE_TABLE:4:0]
Table 2: Concentrations of Simulated Oil Spill After Absorption with Thales Shell using UV Spectroscopic Analyses
Table 3: Concentrations of Simulated Oil Spill After Absorption with Oyster Shell using UV Spectroscopic Analyses.
Table 4: Uptake Efficiency, Dilution factor and Amount of Crude Absorbed by Periwinkle Shell.
Table 5: Uptake Efficiency, Dilution factor and Amount of Crude Absorbed by Thales Shell.
Table 6: Uptake Efficiency, Dilution factor and Amount of Crude Absorbed by Oyster Shell.

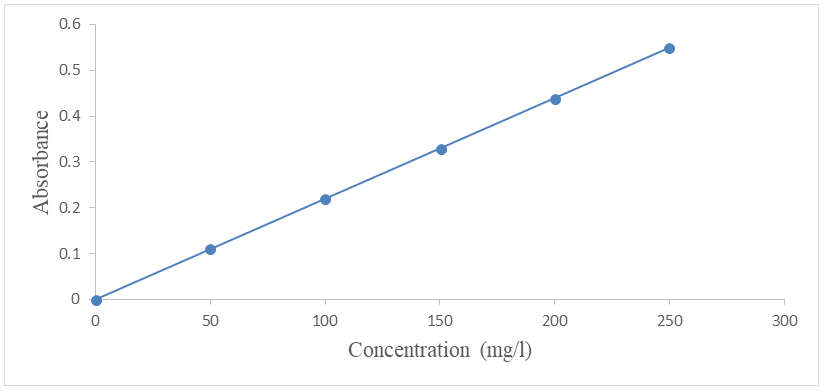

Figure 4: Calibration Plot of UV Spectrophotometer @ 420 nm.
Figure 5: Absorbance of spilled Water after Absorption with Periwinkle shells.
Figure 6: Absorbance of spilled Water after Absorption with Thales shells.
Figure 7: Pie chart showing Absorption capacity of Periwinkle Shells.

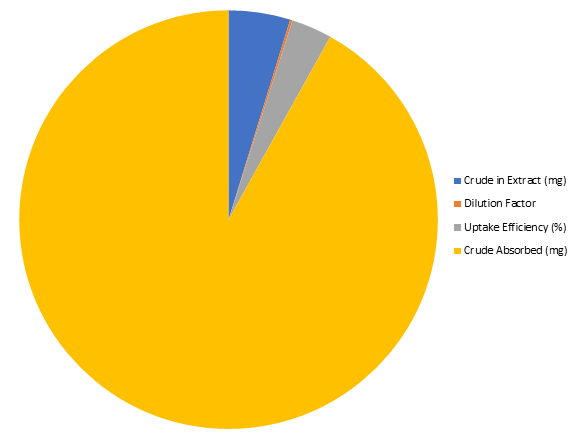

Figure 8: Pie chart showing Absorption capacity of Thales Shells.
Table 7 contains the distribution of the different hydrocarbons in the test crude oil before and after absorption. The gas chromatographic profile of the crude oil showed an array of hydrocarbon compounds, from methane to hexatriacontane (C36) hydrocarbons.
heptacosanes 2.547 2.520 2.410 2.310 2.490 2.470 2.470 2.377 2.364 0.010
octacosanes 2.470 2.400 2.120 2.100 2.395 2.390 2.320 2.281 2.250 0.010
nonacosanes 2.540 2.502 2.440 2.421 2.470 2.430 2.315 2.344 2.234 0.200
triacontanes 2.420 2.380 2.250 2.240 2.370 2.350 2.320 2.352 2.320 0.020
hentricontanes 2.320 2.270 2.220 2.210 2.245 2.230 2.200 2.221 2.150 0.001
dotriacontanes 2.150 2.080 2.020 2.010 2.075 2.070 2.030 2.061 2.056 0.010
tritriacontanes 1.620 1.593 1.520 1.420 1.592 1.590 1.500 1.489 1.487 0.007
tetriacontanes 1.340 1.214 1.140 1.130 1.251 1.250 1.227 1.189 1.187 0.002
pentatriacontanes 1.180 1.120 1.000 0.905 1.115 1.110 1.107 1.072 1.048 0.040
hexatriacontanes 6.420 4.330 3.270 3.220 5.964 4.130 3.900 5.460 2.520 1.420
Bear Lamberts Equation:
_A_ _Cl_ ε = (1) Where:
4 1 1 2.8 10 _Molar absorbtivityconstant_ _lmg cm_ ε − − − = = ×
A = Absorbance @ 420 nm wavelength L = Optical Length
_X_ _Dilution factor_ _Y_ = (2)
( ) % 100 _X_ _Y_ _UptakeEfficiency_ _X_ − = × (3)
( ) _Crude Absorbed by Absorbent mg_ _C_ _D_ = − (4)
Where: X = Crude oil Concentration before Absorption (mg/l) Y = Crude oil Concentration after Absorption (mg/l) C = Weight of Crude before Spillage (mg) D = Weight of Crude in Extract (mg)
Discussion
One of the basic factors that determines the cleanliness and environmentally friendliness of a crude oil contaminated site after remediation by absorption is the total petroleum hydrocarbon (TPH) concentration at the site. The lower the TPH concentration of the oil contaminated site after absorption the better the absorption capacity of the absorbents [19,26-28]. Total petroleum hydrocarbon (TPH) is typically defined as carbon chains in the range of C6 through C35, they include a variety of mixtures that may contain hundreds to thousands of hydrocarbon compounds including aliphatic (straight carbon chain) and aromatic (benzene ring) compounds. The concentration of TPH after a clean-up process serves as a key performance indicator for the effectiveness of the absorbents used especially in cases where volatile organic compounds (VOCs), semi-volatile organic compounds (SVOCs) and metals have either been screened out or fully evaluated. The diesel and gasoline risk- based level for TPH proffers three tiers that serves as a guide to verify the cleanliness of a spilled site after clean up [29- 35]. The three tiers include the gasoline range (C6-C12) with a TPH < 2500 mg/l, diesel range (C12-C28) with a TPH < 2610 mg/l and lube oil range (C28 – C35) with a TPH < 23000.
Tables 1, 2 and 3 unveils that the TPH of the oil spilled sample was below the acceptable gasoline range which is the lowest range indicating the effectiveness of periwinkle, thales and oyster as absorbents for treating oil spillage.
Tables 1, 2 and 3 shows the concentrations of the simulated oil contaminated water body after absorption with periwinkle, thales and oyster respectively. Each of the tables indicated the absorbance and optical lengths of the oil extract after absorption with the uncalcined absorbents as well as the absorbents calcined at temperatures of 500, 600 and 700°0C respectively. Figures 5 and 6 shows a pie chart indicating the absorbance of the remediated water after treatment with uncalcined and calcined periwinkle and thales shells respectively. The higher the temperature of calcination the higher the absorbance. The absorbance increases with increase in the concentration of hydrocarbon in water.
Calcination is the heating (to a very high temperature but below the melting point) of the material under study to remove volatile materials like carbon dioxide, water, sulphur dioxide etc. Calcination is the basic treatment carried out on the absorbent used for this study to deduce its effect on the uptake efficiency [36,37]. Several other past works have shown that treatment on the absorbent, such as increasing the contact time, loading weight, salinity, temperature and treating the absorbents with different concentrations of the solvent, led to a corresponding increase in their uptake efficiencies. The present study however did not concentrate its effort on finding out the effect of these treatments on the uptake efficiencies of the absorbents, rather focused on the most effective absorbent used (i.e. absorbent with the highest uptake efficiency) and the effect of calcinations on the uptake efficiency of the absorbent. Table 1 shows that the TPH concentration of the crude oil contaminated water after absorption with uncalcined periwinkle shell was the highest, it can also be observed from the same table that the TPH concentration reduced with increase in the calcination temperature of the absorbents used in the absorption process. The same trend was also observed in Tables 2 and 3 with the shells of thales and oyster respectively.Absorption using the shells of periwinkle, thales (ngolo) and oyster was carried out at constant conditions of contacting time (7 minutes), loading weight (25g) and temperature (30°C). However, the process of calcination increased the percentage uptake efficiency of the absorbents by 30%. Figures 7 and 8 shows a pie chart unveiling the absorption capacity of uncalcined thales and oyster shells respectively.
The effect of temperature on the sorption of oil was studied by heating the absorbents at various temperatures to know the effect of temperature on the uptake efficiency of the absorbents. Temperature can also be considered in terms of the water on which the spill occurs. The higher the temperature of the water, the easier it will be to clean up the spill. This is because most of the volatile components will be lost to evaporation due to the high temperature and the film of the oil droplets becomes lighter when the temperature is high [18]. For this study, the temperature of the water was maintained at 300C since it is the temperature easily attainable for rivers, seas, oceans, ponds and lakes. It can also be deduced from Tables 1, 2 and 3 that the higher the TPH concentration, the higher the absorbance and the lower the rate of absorption, this is in accordance with Berr-Lambart’s law. Results obtained showed that oyster shell calcined at 700°C left the oil contaminated water the lowest absorbance absorption hence regarded as the best absorbent.Better absorbents give lower absorbance after absorption.
The uptake efficiency, dilution factor, amount of crude absorbed by the uncalcined and calcined absorbents obtained from the shells of periwinkle, thales and oyster were shown in Tables, 4, 5 and 6 respectively. The uptake efficiency of an absorbent refers to the absorption capacity or oil cleaning ability of the absorbent it also refers to the percentage of TPH or total oil and grease (TOG) cleaned by the absorbents. On the other hand, the dilution factor refers to the ratio of the crude oil concentration in water before and after absorption as shown in equation 2 and it is directly proportional to the uptake efficiency of the absorbents hence the higher the uptake efficiency and dilution factor of an absorbent the better the absorbent to clean up oil contaminated water samples thereby bringing the TPH concentration of the oil contaminated sample to the barest minimum. Mathematically the uptake efficiency of an absorbent is the ratio of the difference in the crude oil concentration in water before and after absorption to the crude oil concentration in water before absorption as shown in Equation 3.
Results obtained from Tables 4, 5 and 6 shows that oyster shell calcined at 700 0C had the highest uptake efficiency and dilution factor while uncalcined periwinkle shell had the least uptake efficiency and dilution factor.
The amount of crude oil absorbed by the absorbent in (mg) is another parameter that confirms the uptake efficiency of the absorbents, it is the difference in the weight of the crude before spillage to the weight of the crude after absorption which is equivalent to the weight of the crude in the extract as shown in equation 4. The amount of crude absorbed by the absorbent is directly proportional to the uptake efficiency and dilution factor of the absorbents.
Gas chromatographic analyses were carried out on the crude oil before spillage as well as on the oil extract after absorption with the uncalcined and calcined absorbents obtained from the shells of periwinkle, thales and oyster respectively. Gas chromatography (GC) like Ultraviolet (UV) spectroscopy gives the TPH concentration of the crude but unlike UV spectroscopy, GC also gives the individual hydrocarbon content of the crude. Total Petroleum Hydrocarbon (TPH) refers to a mixture of hydrocarbons found in crude oil. There are several of these compounds hence it is not practicable to measure one separately however it is of great importance to measure the total amount (TPH) at a site [9,38,39]. TPHs are one of the most common groups of persistent organic contaminants, It is also worthy to note that not all the petroleum hydrocarbons occur in one sample, the TPH of a sample depends on the origin of the sample, it is therefore the sum of the volatile petroleum hydrocarbons, including poly aromatic hydrocarbons (PAH) and extractable petroleum hydrocarbon present in the sample however the GC measures the concentrations of the critical hydrocarbon in the crude [7,40]. Results obtained from Table 7 shows that the gaseous hydrocarbons from C1 to C4 and the heaviest solid hydrocarbon of C36 reduced with increase in the temperature at which the absorbents were calcined with the shell of Oyster calcined at 700°C giving the lowest TPH concentration thereby corroborating with the results obtained from UV
Spectroscopy. Results obtained from Table 7 shows that the absorbents do not completely take care of the liquid and solid fractions of the crude especially the water-soluble fractions and so should not be used as a sole cleaning agent during crude oil spill [41,42].
Conclusion
The Total petroleum hydrocarbon (TPH) concentration of crude oil contaminated water after absorption is a key performance indicator that shows the cleanliness and environmental friendliness of the water. The shells of periwinkle, thales and oyster are very good absorbents because of their ability to reduce the TPH of the oil in water to an appreciable extent as indicated by their uptake efficiencies. The uptake efficiencies of absorbents are affected by their loading weight, contact time, mesh size, temperature of environment as well as the temperature at which the absorbents were heated before use which is also known as calcination. Results obtained showed that oyster shell has the highest uptake efficiency while periwinkle shell had the least absorption capacity. The uptake efficiency of the absorbents increases with increase in the temperature of calcination, all other factors remaining constant.
Acknowledgements
The authors gratefully acknowledge the staff of Technology Partners Institute and Core Lab Nigeria Limited, Port Harcourt, Nigeria.
References
1. Harrison RM (1996) Pollution causes effects and control. 3rd(Edn.), Royal Society of Chemistry, United Kingdom, pp: 501.
2. Osuji LC, Adesiyan SO, Obute GC (2004) Post impact assessment of oil pollution in Agbada west plain of Niger Delta, Nigeria: Field reconnaissance and total extractable hydrocarbon content. Chemistry and Biodiversity 1(10): 1569-1577.
3. Osuji LC, Adesiyan SO (2005) The Isiokpo oil-pipeline leakage: Total organic carbon/organic matter contents of affected soils. Chemistry and Biodiversity 2(8): 1079- 1085.
4. Sousa AM, Periera MJ, Matos HA (2022) Oil-in-water and water-in-oil emulsionsformulation and demulsification. Journal of Petroleum Science and Engineering 210: 11004.
5. Gbayisemore OO, Edwin-Wosu NL, Osuji LC (2022) Ecological evaluation of natural resources: A baseline study of sustainable livelihood capital in parts of the Ilaje riparian community, Ondo State, Nigeria. Asian Journal of Environment and Ecology 19(4): 72-88.
6. Zhang W, Liu Y, Tao F, An Y (2023) An overview of biomass- based oil/water separation materials. Separation and Purification Technology 316: 123767.
7. Sam KS, Onyena AP, Zabbey N, Odoh CK, Nwipie GN, et al. (2023) Prospects of emerging PAH sources and remediation technologies: insights from Africa. Environmental Science and Pollution Research 30(14): 39451-39473.
8. Bartha T, Scapo G (1992) Method of cleaning up petroleum oil soils. US5112495A.
9. Sayed K, Baloo L, Sharma NK (2021) Bioremediation of total petroleum hydrocarbons (TPH) by bioaugmentation and biostimulation in water with floating oil spill containment booms as bioreactor basin. International Journal of Environmental Research and Public Health 18(5): 2226.
10. Rink GR, Rosiania RL, Smith DR, Johnmass TC, Hegeman JR, et al. (1999) Methods of ameliorating oil spills in marine and inland waters. US5863440.
11. Tarrasevich Y, Verlinskaya RM, Nesterova MP, Gorniskil AB (1986) Production and properties of modified puffed perlites for removal of petroleum from waste surfaces, Sov. J Water Chem Technology 86: 34-39.
12. James BR, Yang SH (1995) Clay oil flocculation and its natural cleaning in Prince Williams Sound (PWS) following the Exxon Valdez oil spill. Special Technical Publication, USA.
13. Maja MR, Dragen MJ, Petar MJ, Zoran PL, Helga TF, et al. (2003) Recycled woot based non-woven material as oil sorbent. Environmental Science and Technology 37(5): 1008-1012.
14. Kemnetz S, Charles AC (1998) Composition of matter useful as an oil spill flocculating agent. US5725805A.
15. Schwarzenbach R, Gswhnd PM, Imbden DM (1993) Environmental organic chemistr., John Wiley and Sons Inc, USA, pp: 1313.
16. Kajita L (1997) Method and composition for clarifying wastewater. US5670435.
17. Silverstein RM, Clayton BG, Morrill TC (1991) Spectrometric identification of organic compounds 5th(Edn.), John Wiley and Sons, London, UK, pp: 15-36.
18. Singh BI, Pandey BP (1991) Physical characteristics of natural films formed at a crude oil-water interface. Indian Journal of Technology 29: 443-447.
19. Chikwe TN, Mac-Arthur OO (2019) Comparative Phytoremediation Characteristics of Water leaf, bitter leaf and Vetiver grass in the clean-up of Crude oil Contaminated water Samples. Nigerian Research Journal of Chemical Sciences 7: 156-167.
20. Environmental Protection Agency (1999) Understanding oil spills and oil spill responds.
21. Ayoku BD, Osuji LC, Onojake MC (2020) Behavioral responses of Afican catfish (Clariasgariepinus) exposed to different chemicals. Chiang Mai University Journal of Natural Sciences 19(2): 16-25.
22. Essiene MS, Hart AI, Osuji LC, Onojake, MC (2022) Ecological assessment of streambed sediments and freshwater fish species of Ede-Onyima Lake in Okarki- Engenni, Rivers State, Nigeria. Journal of Basic and Applied Research International 28(5): 1-15.
23. Ogunwa K, Achugasim O, Osuji LC, Akaranta O (2022) Cross-linked starch from Icancinatrichantha Oliv. Tuber as an additive in water-based drilling mud. Petroleum and Coal 64 (2): 288-301.
24. Ngoka CA, Osuji LC, Hart AI (2022) Acute Toxicity of Aqueous Methanol on Juvenile tropical freshwater fish (Oreochromis niloticus). Advances in Research 23(4): 37-48.
25. Udoka NA, Onyedika G, Oguzie EE (2023) Periwinkle Shell Composite Materials in Adsorption. Science Research 8(4): 89-102.
26. Ike DC, Ibezim-Ezeani MU, Akaranta O (2021) Cashew nutshell liquid and its derivatives in oilfield applications: an update. Green Chemistry Letters and Reviews 14(4): 620-633.
27. Keyi SK, Eke WI, Nagre RD, Mensah I, Akaranta O (2023) A comprehensive review on waste valorization of cashew nutshell liquid: Sustainable development and industrial applications. Cleaner Waste Systems 6: 100116.
28. Cruz T, Maranon A, Hernandez C, Alvarez O, Ayala- Garcia C, et al. (2024) Exploring the potential of cashew nutshells: A critical review of alternative applications. BioResources 19(3): 1-37.
29. Iheonye C, Osuji L, Onyema M (2019) Characterization and correlation of aliphatic hydrocarbons in oil polluted waters of Bonny Local Government Area of Rivers state, Nigeria. Journal of Scientific Research and Reports 25(3): 1-6.
30. Zhang T, Li Z, Lu Y, Liu Y, Yang D, et al. (2019) Recent progress and future prospects of oil-absorbing materials. Chinese Journal of Chemical Engineering 27(6): 1282- 1295.
31. Onojake MC, Eromosele GOO, Osuji LC (2021) Profiling of polycyclic aromatic hydrocarbons and diagnostic ratios of Kpite oil spill impacted sites in Rivers State, Nigeria. Pollution 7(1): 17-24.
32. Ilechukwu I, Osuji LC, Okoli PC, Onyema MO, Ndukwe GI (2021) Assessment of heavy metal pollution in soils within the vicinity of hot mix asphalt plants in Rivers State, Nigeria. Environmental Monitoring and Assessment 193: 461-475.
33. Badmus BA, Osuji LC, Onojake MC (2022) Comparative investigation of some molecular biomarker signatures of weathered crude oils and automotive gas oil. Petroleum and Coal 64(3): 665-678.
34. Sutar R, Wu X, Latthe SS, Shi B (2023) Efficient separation of oil-water emulsions: competent design of superwetting materials for practical applications. Journal of Environmental Chemical Engineering 11(6): 111299.
35. Onojake MC, Nkanta ME, Osakwe JO, Akpuluma DA, Ohenhen I, et al. (2024) Organic geochemical evaluation of crude oils from some producing fields in the Niger Delta basin, Nigeria. Journal of Petroleum Exploration and Production Technology pp: 1-13.
36. Sayed SA, Zayed AM (2003) A study on using some local clay in treatment of liquid oil spill. 1st International Conference on New Trends in Chemistry and their application. Cairo University Beni-Swef, Egypt.
37. Ezeudu EC, Oli CC, Enenche ED, Anekwe OJ (2021) Immobilization potential of cow manure for heavy metal remediation from refuse dump soil. International Research Journal of Pure and Applied Chemistry 22(2): 44-45.
38. Chikwe TN, Ogbole SN (2019) Remediation of Simulated Oil Contaminated Sites using Shells of Clams and Oyster- Total Petroleum Hydrocarbons of Simulated Oil Contaminated Sites before and after Remediation. Nigerian Journal of Chemical Research 24(1): 57-67.
39. Mishra P, Kiran NS, Ferreira LFR, Yadav KK, Mulla SI (2023) New insight into the bioremediation of petroleum contaminants: A systematic review. Chemosphere 326:
138391.
40. Daniel IE, Nna PJ (2016) Total Petroleum Hydrocarbon Concentration in Surface of Water of Cross River Estuary, Niger Delta, Nigeria. Asian Journal of Environment & Ecology 1(2): 1-7.
41. Chikwe TN, Ogbole SN (2019) Characterization of Adsorbents from Animal Source (Shells of Clam and Oyster) using Infrared Spectrometric Technique. Nigerian Research Journal of Chemical Sciences 6: 245- 254.
42. Doerffer JW (1992) Oil spill response in the marine environment. Pergamon Press, United Kingdom, pp: 391.
Figure 1: Shells of Periwinkle.
Figure 2: Shells of Thales.
Figure 3: Shells of Oyster.
Figure 4: A calibration check with a concentration of 300mg/l was carried out using the same procedures with the standard and its absorbance determined [17].
Figure 5: Absorbance of spilled Water after Absorption with Periwinkle shells.
Figure 6: Absorbance of spilled Water after Absorption with Thales shells.
Figure 7: Pie chart showing Absorption capacity of Periwinkle Shells.
Figure 8: Pie chart showing Absorption capacity of Thales Shells.
Concentrations of Simulated Oil Spill After Absorption with Periwinkle Shell using UV Spectroscopic Analyses.
Concentrations of Simulated Oil Spill After Absorption with Oyster Shell using UV Spectroscopic Analyses.
Uptake Efficiency, Dilution factor and Amount of Crude Absorbed by Periwinkle Shell.
Uptake Efficiency, Dilution factor and Amount of Crude Absorbed by Thales Shell.
Uptake Efficiency, Dilution factor and Amount of Crude Absorbed by Oyster Shell.
Hydrocarbon Content of The Test Crude before / After Absorption by Absorbents Using Gas Chromatographic Analyses.
