Petroleum & Petrochemical Engineering Journal Research Article 12 min read

Geochemical Assessment of the Biodegradation Levels of Some Crude Oils from Bayelsa State, Nigeria

Oraegbunam CI*, Osuji LC and Onojake MC
* Corresponding author
ISSN: 2578-4846  10.23880/ppej-16000243  Received: November 25, 2020  Published: December 16, 2020
 — views
 29 references
 5 figures
 2 tables
PDF
Keywords
Biomarker n- alkanes Biodegradation Hopanes Crude oil Gas Chromatography
Abstract

Coastal swamp crude oil samples obtained from Clough creek, Azuzuama and Tebidaba oil fields were analyzed to obtain their biodegradation rankings. The studied samples were fractionated by column chromatography into saturated and aromatic hydrocarbons. The saturated hydrocarbons were analyzed using Gas Chromatography-Mass Spectrometry (GC-MS). Some diagnostic ratios such as C30αβhopane/(Pr+Ph), (Pr+Ph)/(nC17+nC18) and C29αβ25norhopane/C30αβhopane were used in assessing the biodegradation rankings. Though biodegradation was evident in the studied samples, their individual levels were compared based on these ratios. Assessment of the crude oil samples using C29αβ25norhopane/C30αβhopane ratio show that the oils from AZU ST and TEB12 are more degraded when compared to oils from WELL 2. Consequently, (Pr+Ph)/ (nC17+nC18) ratios show that TEB 12 is the most degraded while WELL 2 is the least degraded. AZU ST was also shown as the most degraded oil using C30αβhopane/(Pr+Ph) diagnostic ratio.

Introduction

Crude oil, a non-renewable source of energy is a complex mixture containing mostly hydrocarbons with varying proportions of organometallic compounds and non-hydrocarbon constituents. Crude oil contain numerous “chemical fossils” or “biomarker molecules” which are resistant to biodegradation and whose origin in the crude oil is related through transformation to organic molecules produced by living organisms [1].

Bacteria destroy alkanes, isoprenoid and biomarkers in source rock and crude oil; this bacterial activity effect on petroleum is termed Biodegradation. The process of microbial biodegradation in the oil reservoir has a dramatic effect on the fluid properties of hydrocarbons [2] as a result of temperature limits [3]. The loss of normal alkanes and acyclic isoprenoids (phytane and pristane) defines the starting process of biodegradation. Although a high biodegradation resistance is evident in terpanes and steranes, research has proved that under a severe process of weathering, these biomarkers can degrade to a certain degree (extensive microbial degradation) [4, 5]. Wherein, the Pr/n-C17 ratio increases when the n-alkane level decreases [6].

Biomarker origin is traced back to formerly living organisms. Biological markers (Figure 1) as it is termed are found in sediments and rocks whose carbon structure is traced to living organisms. Biomarker fingerprinting has been adopted by petroleum geochemists in characterizing crude oils to ascertain parameters including their level of biodegradation [7].

Several studies have been carried out successfully in the Niger Delta region using geochemical tools to characterize oils based on their standard biomarker ratios [8, 9, 10]. This paper examines the biodegradation rankings in oil samples obtained from Bayelsa State, Nigeria.

Below are structures of some aliphatic biomarkers resident in crude oil.

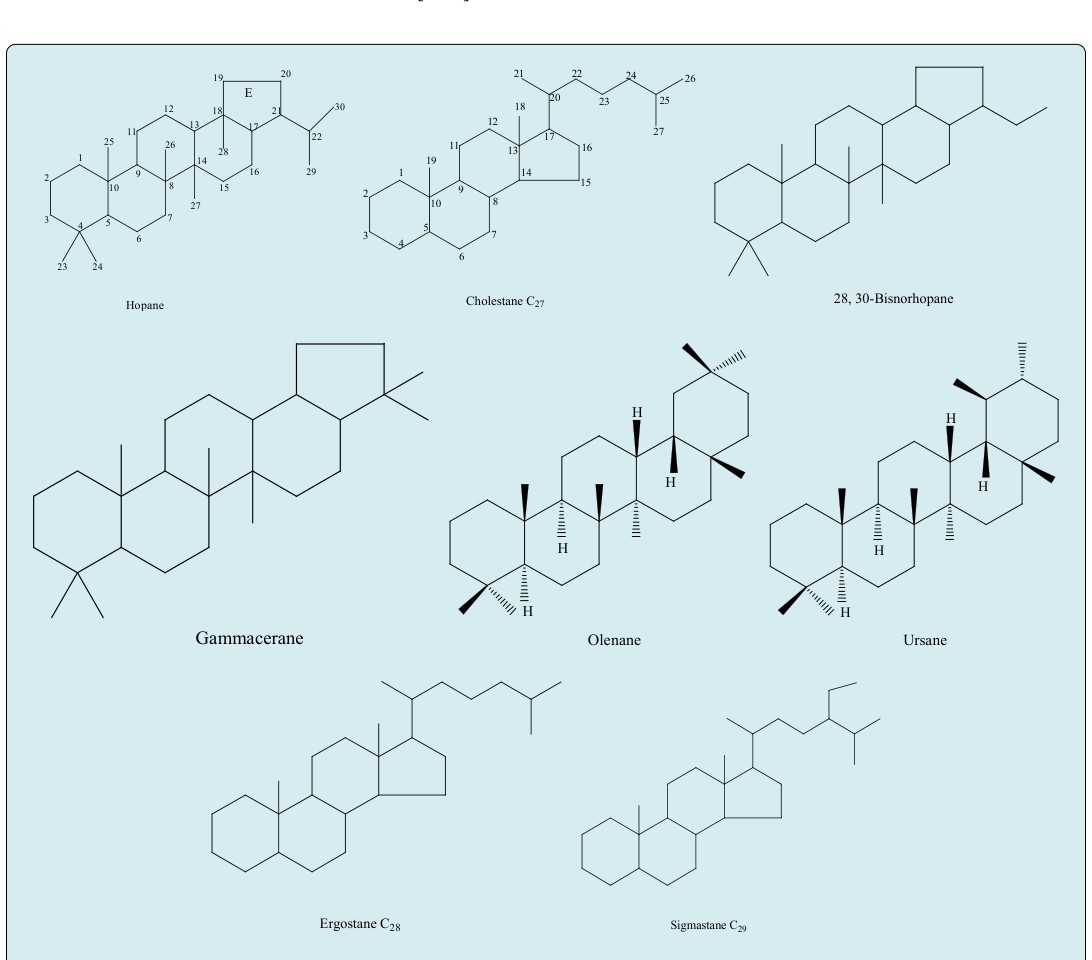

Figure 1: Molecular structures of some biomarkers found in crude oil.
Click to enlarge
Figure 1: Molecular structures of some biomarkers found in crude oil.
Figure 2: Map showing Study area.
Click to enlarge
Figure 2: Map showing Study area.

Description of Study area

Bayelsa state (Figure 2) is located in the Niger Delta region of southern Nigeria. A prolific area that houses one of the largest deposits of crude oil and natural gas in Nigeria. The geographical location is situated within latitudes 4°15′ North and 5°23′ south and longitudes 5°22′ West and 6°45′ East. Bayelsa is surrounded by the Atlantic ocean on the southern and western sides and states; Delta and Rivers on the northern and eastern regions respectively. Bayelsa State is located within the plains of the lower delta, assumed to have emanated via the Holocene of the quaternary period by the sedimentary deposits accumulation. The distinctive feature of the geological setting in bayelsa is the Sedimentary alluvium. The studied area formed due to numerous tributaries of River Niger in this plain and abandoned beach ridges; geological alterations still exist. Consequently, coastal beaches and tidal flats, flood plains are features that defines bayelsa as a lowland region. Characteristic features such as lagoons are also unique features of the bayelsa state. There are numerous streams of varying volumes and velocities in this unified area. These include Rivers Ekoli, Nun, Koluama, Brass etc. Most communities in Bayelsa state are surrounded by water thereby making access by road a bit difficult. This is characteristic of its estuarine and marine settings.

Materials and Methods

Sample Collection, Preparation and Analysis

The studied samples were collected from wellheads at Azuzuama, Tebidaba and Clough Creek fields in Bayelsa State, Nigeria (Figure 2) and are representatives of the oil bulk. They were labeled: AZU ST, WELL 2, TEB 12, TEB 08 and CCST respectively. These samples were retained in a glass vials and stored in a refrigerator for preservation until when needed for analysis.

30 mg of the oil sample was transferred to a 2ml bottle with Teflon lined plastic cork, and diluted with 1 ml dichloromethane. The oil samples were fractionated and subjected to Gas Chromatography-Mass Spectrometry analysis. Abrakasa S [11] outlined the procedures used for the fractionation of oil samples. The saturated fractions were subjected to Gas Chromatography analysis using HP389OGC serial II, separation performed in a silica capillary column (30 m x 0.25 mm id.) coated with 0.25 µm, 5 % phenyl methyl silicone (HP-5) by HP (Agilent United Kingdom). Hydrogen gas was used as carrier gas at 2 ml/min with a spilt/splitless injector, the temperature at 50°C for 2 mins then progressed at 4°C/min to 300°C at which it is held for 20 mins (Table 1).

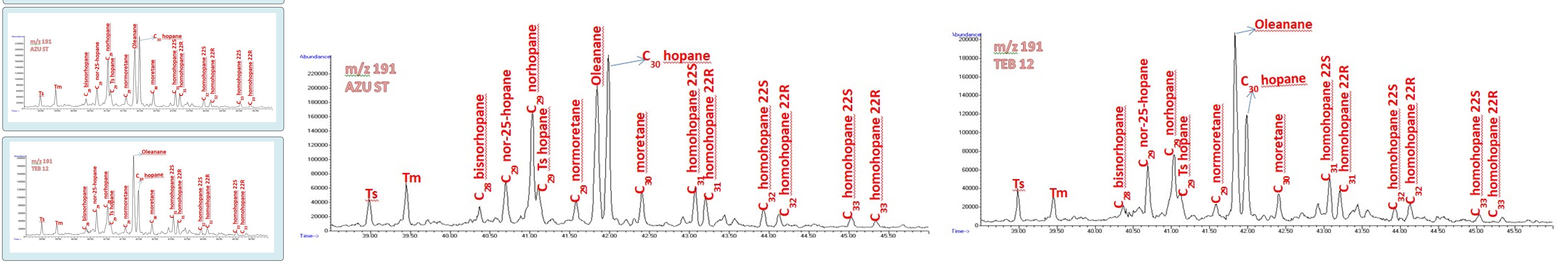

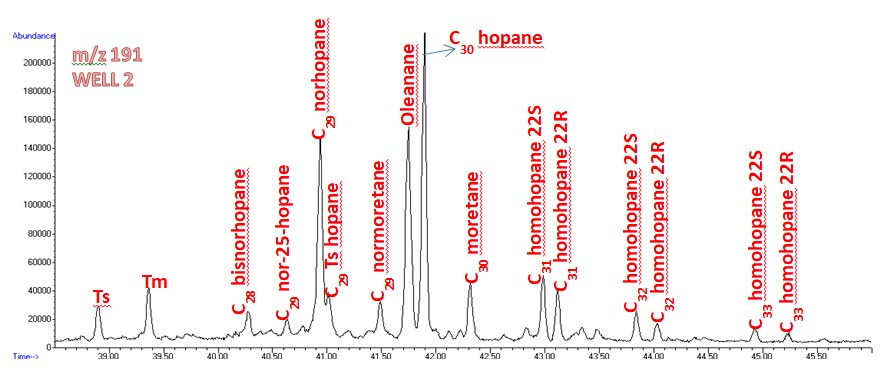

Procedures and conditions for the GC-MS analysis were carried out as described by Onojake MC [12] at Giolee Global Resources Limited, Port Harcourt (Figures 3-6).

WELLSPrPh(Pr+Ph)/(nC +nC
17 18		C Hopane/ (Pr+Ph)
30		C Norhopane /C Hopane
29 30
AZU ST31.511.91.151.590.81
CCST22.2769.930.810.480.78
TEB 1230.5883.311.260.540.81
TEB 0816.6897.981.030.410.73
WELL 246.3725.140.640.840.43

Table 1: Biodegradation parameters using Gas Chromatography- Mass Spectrometry.

Figure 3: Biodegradation assessment using (Pr+Ph)/(nC17+nC18).
Click to enlarge
Figure 3: Biodegradation assessment using (Pr+Ph)/(nC17+nC18).
Figure 4: Biodegradation assessment using C30Hopane/ (Pr+Ph).
Click to enlarge
Figure 4: Biodegradation assessment using C30Hopane/ (Pr+Ph).

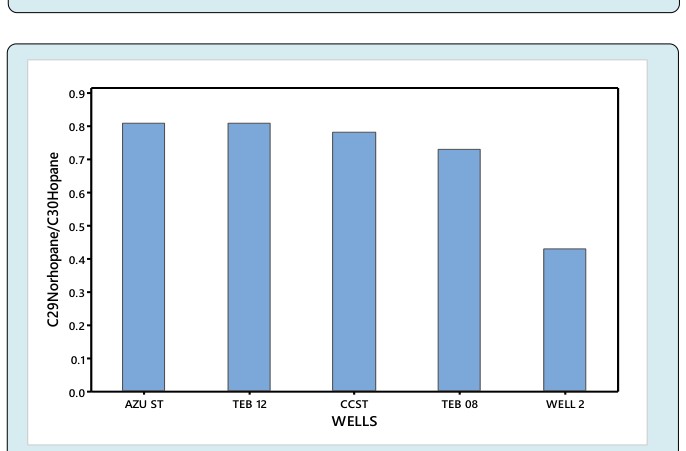

Figure 5: Biodegradation assessment plot using C29Norhopane/ C30Hopane.
Click to enlarge
Figure 5: Biodegradation assessment plot using C29Norhopane/ C30Hopane.

Results and Discussions

Biodegradation is the effect of bacterial activity on petroleum. Bacteria destroy normal alkane patterns, isoprenoid and biomarkers from crude oils and source rocks. Biodegradation occurs under the following conditions due to access to meteoric water with dissolved oxygen, water temperature below 70-80°C and in absence of hydrogen sulphide [13]. The results of biodegradation are the loss of long-chain and unbranched components, like n-alkanes which are most susceptible to biodegradation.

The process of Biodegradation of petroleum hydrocarbons is a complex process and depends on the nature and the amount of the hydrocarbons present. These Petroleum Hydrocarbons varies in their vulnerability to microbial attack. The vulnerability of petroleum hydrocarbons to microbial degradation can be mostly ranked in the following order: normal paraffins > branched paraffins > small aromatics > cyclic alkanes [14, 15]. High molecular weight compounds, such aromatics and most biomarkers are resistant to microbial degradation [16]. Microorganisms especially bacteria are the most potent agents in petroleum degradation, and they act as main degraders of crude spill oil in the environment [17, 18]. Numerous bacteria have been shown to feed entirely on hydrocarbons [19]. Some researchers such as Floodgate G [20] enumerated over twenty-five species of hydrocarbon degrading bacteria and fungi that were isolated from marine environment.

The biodegradation of petroleum-derived aromatic hydrocarbons and petroleum hydrocarbons in different marine environment particularly the biodegradation of alkyl aromatics in marine environment, which occurred prior to detectable biodegradation of n-alkane profile of the crude oil [21, 22]. Some of the identified microorganisms found to be involved in biodegradation of the alkyl aromatics in the crude oils are: Arthrobacter, Burkholderia, Mycobacterium, Pseudomonas, Sphingomonas, and Rhodococcus, fluorescens, P. aeruginosa, Bacillus subtilis, Bacillus sp., Alcaligenes sp., Acinetobacter lwoffi, Flavobacterium sp., Micrococcus roseus, and Corynebacterium sp.

The past two decades ago has recorded successfully the studies on the biodegradation effect on the compositions of crude oil. The removal of normal alkanes in the course of crude oil degradation was reported by Winters JC [23] and these results were supported by the research work of Milner CWD, et al. [24]. Though Gas- Chromatography alone was used in this early research, it still documented the information on the removal rate of isoprenoids and normal alkanes. Nevertheless, with the invention of Gas Chromatography-Mass spectrometry, biodegradation effect on the distributions of biomarkers on oil samples has been recorded [25]. The sequence of biomarker degradation as stated by Wang Z, et al. [26] are in the following order: Diasteranes > C27 steranes > tricyclic terpanes > pentacyclic terpanes > norhopanes (C29Ts) - C29αββ steranes. Steranes degradation: C27 > C28 > C29 and Terpanes degradation: C35 > C34 > C33 > C32 > C31. Abrakasa S [27] stated that Coastal swamp/Offshore oils are more degraded when compared to crude oils from the Greater Ughelli, Northern and Central swamp depobelts.

Various diagnostic ratios have been examined to estimate biodegradation levels in the studied samples (Table 1) and the oil-oil correlation effect with respect to biodegradation. The (Pr+Ph)/(nC17+nC18) is a very sensitive biodegradation diagnostic ratio that increases as biodegradation trend progresses, the reason being that (Pr+Ph) show more resistance to biodegradation when compared to normal alkanes (nC17+nC18). Moderately degraded oils can be monitored using this diagnostic ratio [27]. The cross plot of Pr/Ph vs (Pr + Ph)/(nC17 + nC18) presented as figure 3, shows evidence of biodegradation in all the studied oils. The figure shows that WELL 2 is the least degraded oil while TEB 12 is the most degraded with respect to alkanes. Normal alkane degradation is best expressed by (Pr+Ph)/(nC17+nC18). The order of degradation using this diagnostic ratio is as follows: TEB 12 > AZU ST > TEB 08 > CCST > WELL 2.

Hopanes biomarkers are resistant to biodegradation [4]. The ratio of C30Hopane/(Pr+Ph) is another diagnostic ratio used in determining the biodegradation levels in crude oil samples. This diagnostic ratio increases with respect to biodegradation. It is assumed that during biodegradation, Pristane and Phytane decreases; remaining the stable hopanes which are resistant to biodegradation [27]. Figure 4 shows that AZU ST is the most degraded oil while TEB 08 is the least degraded oil. The ranking of degradation using C30Hopane/(Pr+Ph) follows the order: AZU ST > WELL 2 > TEB 12 > CCST > TEB 08.

The diagnostic ratio C29Norhopane/C30Hopane can be used for both organic source input and biodegradation assessment. High C29Norhopane/C30 Hopane ratio is indicative of marine organic matter rich in evaporates and carbonates (anhydride, gypsum, halite and calcite) deposited under a reducing condition [28]. Applying same parameter to biodegradation, Figure 5 shows the biodegradation assessment using C29Norhopane/C30Hopane ratio. This diagnostic ratio infers a 25-norhopane increase through de- methylation by microrganisms during biodegradation. 25– norhopanes are significantly resident in degraded oil and can be used in biodegradation assessment [29]. This diagnostic ratio also increases with respect to biodegradation. Figure 5 shows a close correlation in all studied samples, except WELL 2 with a ratio of 0.43 (Table 1). Biodegradation ranking based on this ratio infers that AZU ST and TEB 12 are the most degraded oils in terms of the 25-Norhopanes predominance while WELL 2 ranks the least degradation. The 25–Norhopanes are reliably used in assessment of degraded oils. TEB 12 > AZU ST > CCST> TEB 08 > WELL 2; show the ranking order of degradation using C29Norhopane/ C30Hopane (Note: TEB 12 and AZU ST have similar value). M/z 191 reconstructed chromatograms for studied samples presented as Figure 6 show their different levels of biodegradation.

Conclusion

This research evaluated the different degrees of biodegradation using various biodegradation diagnostic ratios for the studied samples. The results of bulk property, biomarker analysis of crude oils suggest that all studied samples showed different levels of biodegradation. The (Pr+Ph)/(nC17+nC18) and C29Norhopane/C30Hopane diagnostic ratios show that among the coastal swamp oils, TEB 12 and AZU ST are the most degraded while WELL 2 ranks the least degraded. These diagnostic ratios may be useful in profiling oils at different biodegradation levels.

Acknowledgement

Dr. Selegha Abrakasa and Mr. Cashmoney Anyamalem are highly appreciated by the authors for their immense contributions and qualitative assistance in the course of this work. Authors express sincere appreciation to Nigerian Agip Oil Company (NAOC) for granting us access to the crude oil samples.

Nomenclatures

AZU STAzuzuama Well 5 Tubing
CCSTClough Creek Well 5 Tubing
TEB 12Tebidaba Well 12
TEB 08Tebidaba Well 8
WELL 2Tebidaba Well GSS
PrPristane
PhPhytane
