Method Transfer and Full Method Validation, Partial Validation in cGMP Environment

Sai Raghuveer Chava1*, Jingbo Liu2 and Sajid Bashir2

characteristics for the analytical method which are utilized in pharmaceutical analysis.

Keywords: Validation Methods; Analytical Methodology; cGMP; ICH Guidelines

Introduction

The method validation is a process by which the testing laboratory performs a range of different steps following the method intended application to meet the ICH Q2 (R1). The method validation following ICH Q2(R1) Method Transfer and Full Method Validation, Partial Validation in cGMP Environment typically recommends evaluating the following analytical characteristics of a method: Accuracy, Precision, Specificity, Detection Limit, Quantitation Limit, Linearity, Range and Robustness. A limited number of analytical characteristics will be required for validation based on the type of method and its use in the project [1].

Ann Adv Biomed Sci

Validation

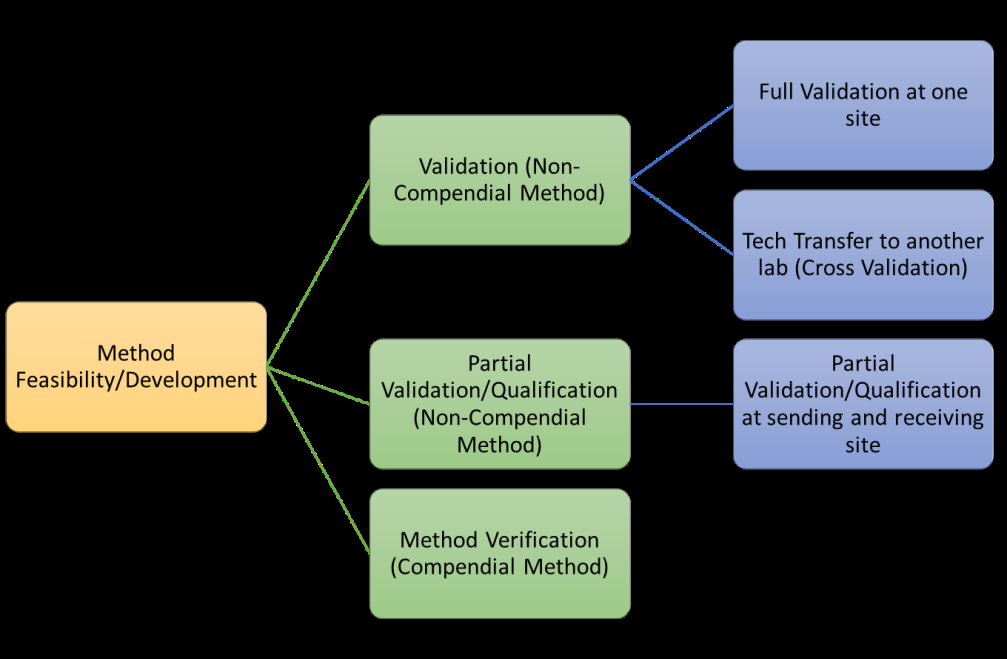

Method Transfer refers to the transfer of previously validated or qualified, a non-compendial method to different laboratories or sites for the testing same type of sample. Method Transfer can be performed using different strategies. The “sending” laboratory (the laboratory from which the method is being transferred) may perform the full validation and partial validation may be performed on the “receiving” laboratory (the laboratory to which a method being transferred) to show the feasibility and correlation between the results. Both “sending” and “receiving” laboratory may have different strategies for the method transfer, but the final goal is to In the USP, method verification is defined as an evaluation of whether a Compendial method is suitable for the intended use of the raw material or product analysis as required by a manufacturer. Thus, method verification is specific to the laboratory executing the test and to the sample type being tested. Specific details regarding method verification may be found in USP General Chapter <1226> entitled “Verification of Compendial Procedures” [3] (Figure 1).

qualify or validate the method appropriately following ICH guidelines [2].

Method Verification of Compendial Methods

Click to enlarge

Method Validation

Analytical method validation is highly dependent on the understanding of the following terms before validation: 1. Spiking: Spiking of a known analyte is very low to be injected in a method like HPLC because the peak contained in the chromatogram may be very small, which may not provide very accurate reading as desired. 2. Average/Mean: Average result , is calculated by summing the individual results and dividing the sum by the number (n) of individual values.

The average result, =

3. Standard Deviation: The standard deviation is a measure to check the accuracy of the average value. It is a measure of the random error which we cannot control. It is calculated as below.

Standard deviation, S= √( ̅) ( ̅)

4. Relative Standard deviation: The relative standard deviation (RSD) is expressed in percentage and obtained by multiplying the standard deviation by 100 and dividing the result by average.

Relative standard deviation, RSD = 100

Sai Raghuveer Chava, et al. Method Transfer and Full Method Validation, Partial Validation in cGMP Environment. Ann Adv Biomed Sci 2019, 2(2): 000143.

Validation is a protocol guided demonstration of the key attributes of a method. The listed parameters are provided below. The characteristics of the analytical method should be within the prescribed limit and defined standards to confirm its accuracy and authenticity.

- Accuracy: Accuracy is well-defined as a measure of the trueness of the analytical method. It is the closeness of test results to the true value. Accuracy is generally determined from the percent recovery of a known amount of analyte added to a blank or a sample.

- Precision: Precision is a measure of the degree of repeatability and reproducibility of the analytical method under normal operating circumstances. The precision of an analytical method is the degree of agreement among individual tests when the procedure is applied to multiple portions of a homogeneous sample. The precision is expressed as the standard deviation (SD) and relative standard deviation (RSD) or the coefficient of variation (CV).

- Precision
a) Repeatability: Repeatability is to evaluate the variation experienced by a single analyst under the same operating condition over a short interval of time.
b) System Suitability: A set of empirically determined parameters that are set to assure that the entire method is functional prior to acceptance of any given set of test results.
c) Intermediate Precision: Intermediate precision evaluates the variation in a laboratory on different days, instruments, and analysts

- Specificity: Specificity determines the presence or absence of interference from complex mixtures. It is determined by comparing the analyte in the presence of impurities, degradants, matrix, and known excipients.

- Linearity: Linearity is the ability of an analytical test method to provide test results that are directly proportional to the concentration of an analyte in samples within a given range.

- Limit of Quantitation (LOQ): Limit of quantitation is the lowest amount of analyte in a sample which can be quantitatively determined with suitable precision and accuracy.

- Limit of Detection (LOD): Limit of detection is the lowest amount of analyte in a sample that can be reliably detected but not necessarily quantitated as an exact amount. Detection limit or limit of detection (LOD) can be determined from signal-to-noise ratio (S/N) of a sample of known concentration and/or the standard deviation of the response and the slope of the calibration curve.

**Conclusion**

An overview of the fundamental principles, design criteria, outline of process is given within the framework of risk management solution designed to facilitate risk-based qualification, process validation, and change control activities within GMP and Pharmaceutical regulatory compliance environments as well as the variance used therein.

**Acknowledgment**

The authors are grateful to the National Science Foundation (NSF) Centers of Research Excellence in Science and Technology (NSF CREST, HRD-0734850, and CBET MRI-0821370) at the Texas A&M University-Kingsville. The Robert C Welch (AC0006) Departmental Grant is also duly acknowledged. In addition, the supervisory staff at Emergent BioSolutions for their advice and assistance in the preparation of this report. Note: S. Chava conceived the project, S. Bashir edited the manuscript and J. Liu checked the figure.

**References**

1. O'Donnell K, Greene A (2006) A risk management solution designed to facilitate risk-based qualification, validation, and change control activities within GMP and Pharmaceutical regulatory compliance environments in the EU, Part I: fundamental principles, design criteria, an outline of the process. Journal of GXP Compliance 10(4): 12-26.
2. Graham AT, Lee CJ, Powell LH, Smallshaw HR, Ulman ST (2015) Implementation of ICH Q3D elemental impurities guideline: challenges and opportunities. Pharmaceutical Technology 39(3): 1-3.
3. Ermer J, Miller JHM (2006) Method validation in pharmaceutical analysis: A guide to best practice [1st Edition], John Wiley & Sons, New York, USA, pp: 11-40.
