Relations between Visual Axis and Upper Extremity Motion during Eating in Healthy People: Correspondence of Eye Movement Pattern and Velocity Curve

Participants

Participants were 12 healthy volunteers (4 men, 8 women) who were 20 - 49 years old (mean 28 years; standard deviations, SD 11 years). They had normal vision sufficient for obtaining a driving license, color sense, right hand dominance, and affiliated psychic function. None had any disease or injury to impair daily living activities.

Ethical Considerations

All participants gave their informed consent to the experimental procedures, which were approved by the Ethics Committee of Yamagata Prefectural University of Health Sciences (1103-15), Yamagata, Japan.

Instrumentation and Data Acquisition

Exploratory eye movements were recorded using an eye tracker (EMR-8B; nac Image Technology, Inc., Tokyo) with a sampling frequency of 30 Hz, which detects infrared reflections from corneas [13, 14]. The eye tracker consisted of an eye camera head unit and a controller attached to the head of a participant. A pupil camera and a field camera were installed in the eye camera head unit. The visual axis position was attached to a picture from the field camera with a controller. The field camera of the head unit did not have a distortion of glasses and used glasses of 62 deg diameter by which a wide image was obtained. The detection precision of upper extremity motion at the desk of a participant was 0.2 deg heartily in 40 deg inside of a circle in a cycloduction axis. The upper extremity motion of the participant used a three-dimensional electromagnetic motion tracking system (Liberty; Polhemus Inc., Colchester) and recorded it with sampling frequency of 100 Hz. This system consisted of a three-dimensional electromagnetic motion tracking system (3DPS). The precision was 0.76 mm. A digital video camera (NV-GS300; Panasonic Inc., Osaka) was used to monitor participant’s motion with 30 frames per second. These data were recorded using a digital motion picture waveform real- time synchronous recording system (The Teraview; Gigatex Co. Ltd., Osaki).

Procedure

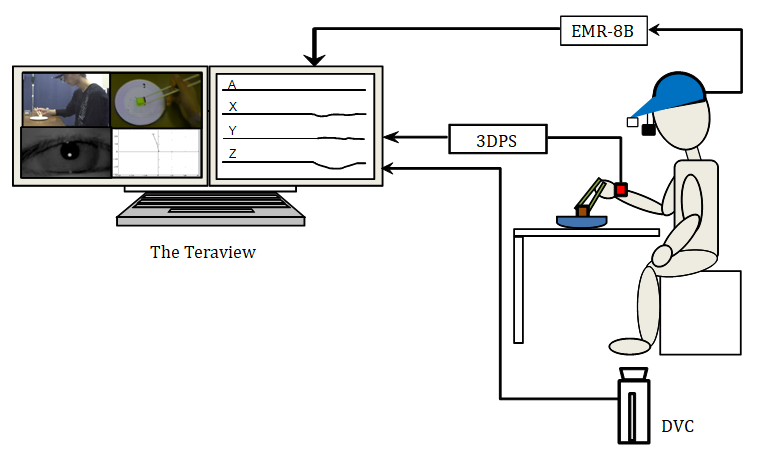

The test room illumination was 652 lux. Room temperatures were around 24℃. Participants sat on a chair of 40 cm height. A front table of 80 cm depth, 120 cm width, and 70 cm height with the shoulder flexed to 0‐20 deg of flexion and the elbow flexed to 70‐90 deg of flexion (Figure 1).

Click to enlarge

Participants held eating implements at the start of the eating task. The eating implements were a spoon (stainless steel, 18.0 cm full length) or chopsticks (disposable wooden, 19.5 cm full length).

The eye camera head unit was put on participant’s head. Furthermore, participant’s right styloid process of the radius was affixed a 3DPS holding the eating implement. A plate (15.0 cm diameter, 3.0 cm depth, white color) was put 30 cm front from the table edge. The experimental food was a piece of sponge cake (2.0 cm3, 1.4‐1.6 g). Instructions for participants were to “eat the food in the same way you eat in daily life”. The eating motion, speed, and accuracy were unrestricted.

Eyes of a participant were masked to prevent intervention of prior visual information. Visual masking was removed at the start of the eating task. The experimental task was finished, when the food was in a mouth of the participant. Participants were advised that “you can spit out the food after putting in your mouth if you do not want to swallow the food.” A bowl was prepared beside the participant. Participants were examined of 10 trials with a spoon and chopsticks.

Data Analysis

Motion Phases Phases of eating tasks were divided into two phases using video data. During phase 1, eating implements (a spoon or chopsticks) moved and picked up the food. The phase ends before eating implements begins to move to the mouth of a participant. In phase 2, eating implements moves to the mouth and arrives at the mouth.

Classification of eye movement From a visual axis position attached to a picture from the field camera, we pursued the visual axis during the eating task. The eye movement was classified in terms of saccadic eye movement (SEM), smooth pursuit eye movement (SPEM), fixation, and others. The SEM defined eye movement of angle speed greater than 50 deg/s. The SPEM defined eye movement to follow food of angle speed less than 50 deg/s. The fixation defined that eye movement inactivity continued longer than 0.10 s [15]. Therefore, the eye mark was stopped at the same position more than three pictures of the field camera. In phase 2, CVP defined the position at which the visual axis was removed from food.

The upper extremity motions were analyzed with used 3DPS data. The plate-to-mouth distance was measured as the difference between the task-starting position and the task- ending position using the 3DPS (distance). The distance and the speed were calculated from the 3DPS position [16]. The upper extremity during the eating motion was calculated the amplitude and time when the upper extremity motion of a participant reached the maximum velocity (MV).

Statistical analysis

The analyzed CVP and MV time data compared the spoon with chopsticks. Statistical processing used Student t-tests for which a significance level of 0.05 inferred as significant.

Eye movement pattern by difference of eating implements

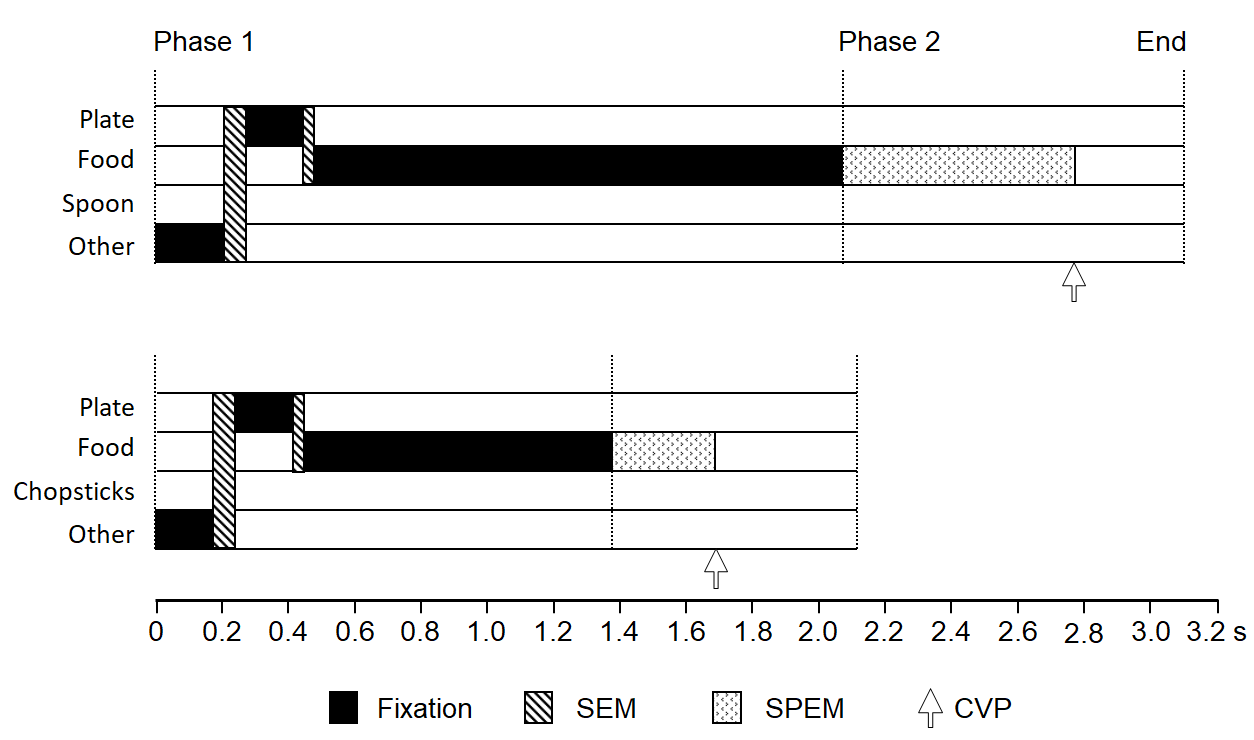

In Figure 2, even if eating implements differed, the eye movement patterns were similar. We chose food for which eating motion was possible using either of the two implements. In the studies, the eye movement pattern obtained when subjects drank juice with a spoon presented SEM immediately before CVP. It was an almost identical duration with the start time of horizontal manipulation of a spoon by a hand [11]. The role of SEM is rapid eye movement to catch an object in peripheral vision in the fovea centralis retinae. However, SPEM is smooth eye movement to continue tracking an object moving in space slowly in the fovea centralis retinae [17]. Juice is more easily affected by gravity than the sponge cake because of the gradient of the spoon. Therefore, it is easier to spill juice than sponge cake. We infer that juice necessitates a horizontal motion to be highly precise during eating motion in comparison with sponge cake. This report presents the speculation that SEM occurred in fovea centralis retinae, for which the resolution was high, to watch it over a spoon bowl.

The SPEM shortest times of eating motion using a spoon and chopsticks were 0.45 s and 0.19 s, respectively. Usually, the simple reaction time is the shortest during deliberate motions of humans. A simple visual reaction time is about 0.20 s and the simple visual reaction time is shortened by exercise [18]. This time is equivalent in indispensability time from visual information processing to a motion start. However, it is assumed that P300 of the event related potential appears in about 0.30 s after stimulation because a subject tries a task with care to target stimulation. The appearance time of P300 is delayed by a difficult task. Therefore, we speculate that SPEM during eating motion presented an active affiliation discrimination mechanism after the visual cortex.

Velocity curve in eating motion and reproducibility

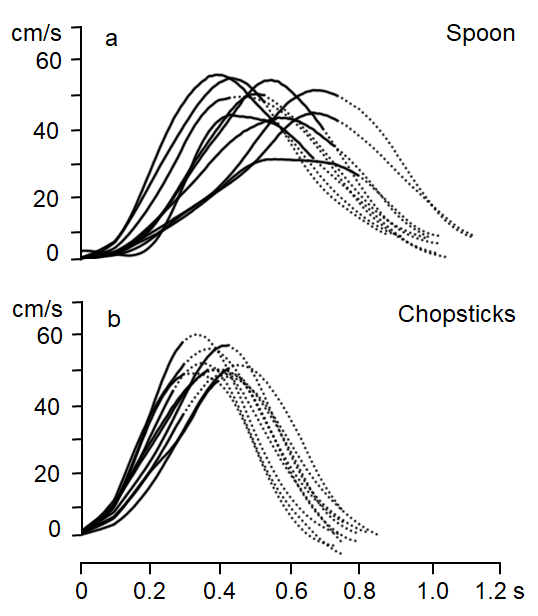

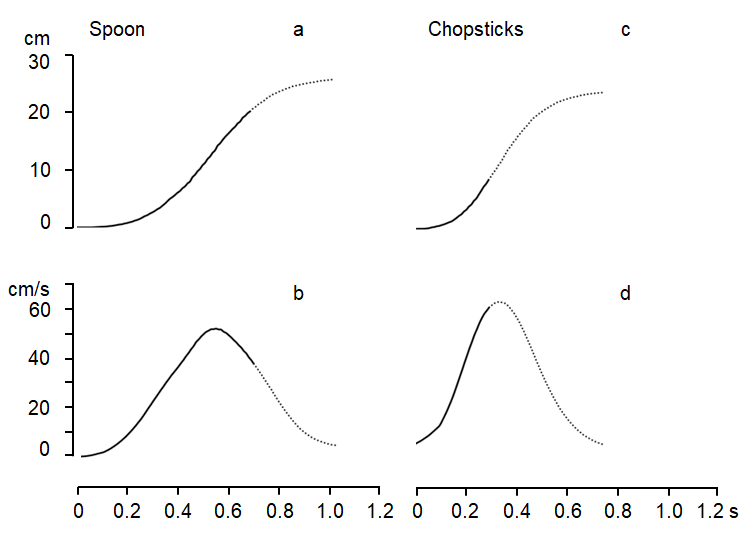

In Figure 3, the velocity curve of eating motion using a spoon and chopsticks showed a bell shape. This shape resembled that described in a report of eating motion with a spoon using a three-dimensional movement analysis device [1]. In addition, the velocity curve showed a bell shape in eating motion using chopsticks. This is similar to the motion of drinking water in a glass [19, 20, 21, 22]. These results suggest that the speed transition of eating motion shows a bell-shaped velocity curve irrespective of eating implements and foods. The velocity curve MV is wider with a spoon in comparison to that with chopsticks, but the reproducibility is good in Figure 4. In the upper extremity motion that did not prescribe motion speed of eating motion, patterning of motion speed was shown, and resembled that of an experiment using a monkey with a random manipulation utensil [23]. By this experiment, the trained monkey moved with elbow flexion and extension in 0.40 s. The results suggest that the firing rate of a cerebellar Purkinje cell expressed muscle action of a single joint movement or force. This study conducted our experiments at voluntary speed. It was 0.98‐1.83 s using the spoon, 0.58‐1.59 s using the chopsticks, each of which was slower than the report described above. However, this study suggest that it was an expression of kinetic data (position and speed) learned in the cerebellum by resemble the spoon and chopsticks, and having a bell-shaped velocity curve. In other words, the eating motion in itself is automated by past learning and suggests that the motion program to a mouth is already decided by the motion baseline.

Relationships between MV and CVP

In Table 2, which shows data of a velocity curve of eating motion using a spoon, most subjects turned the visual axis to food to the maximum velocity of upper extremity motion. However, the visual axis for subjects of 75% removed from food significantly earlier than MV using the chopsticks. The period during which the visual axis was located on food was 0.19‐0.55 s (Table 3). Monitoring by visual information is unnecessary if upper extremity motion is automated. However, the fact remains that the visual axis tracks the food for several hundred milliseconds. In contrast, the monitoring system of quick motion shows a bell-shaped velocity curve. It is speculated that this does not revise motion within the operation [24]. The CVP and the MV differed between those obtained when using the spoon and when using chopsticks. The reason that this difference occurs is the difference of somatosensory information obtained through eating implements. Eating motion with a spoon necessitates holding a spoon ball horizontally to avoid dropping food, and carrying it to the mouth. In contrast, we can use positional information for food obtained somatosensorily from the tips of chopsticks when we control food with chopsticks. When we pick up an object with our fingers, the central nervous system (CNS) predicts appropriate power based on information from vision. Then it outputs the information. The pinch of an object is continued afterwards by biofeedback, mainly somatosensory feedback [25, 26]. Results of this study suggest that food pinching was controlled in eating motion using chopsticks by a similar regulatory mechanism. Additionally, this study speculate that CNS extends a visual monitoring period in eating motion with a spoon compared to chopsticks and that it prevents dropping of food. Result of robot-assisted eating and caregiver-assisted eating revealed that the visual axis was observed on a spoon during eating from the plate to the mouth [14, 27].

These results suggest that visual guiding of upper extremity motion until CVP is necessary for efficiency during eating. This finding provides a basis for occupational therapists and physiotherapists to assist people who need guidance in eating motions.

Study limitations

This study was conducted with healthy subjects as a synchronization analysis of visual axis and upper extremity motion using a spoon. Results show that eating motions of a healthy subject were automated. The CVP was used during eating motion in all trials of all subjects. However, no comparison was made with a handicapped subject in eye- hand coordination. Therefore, it remains unclear whether CVP is related to dropped food from eating implements. In the future, we would like to investigate eating motions and eye-hand coordination with a handicapped people.
