Synthesis and Study of New Derivatives of Diphenylcarbazide on the Base of N1`, N1`-Dioctoxymethylchlorazone Ether

Introduction

As it is known, one of the main causes of environmental problems at the end of unforeseen accidents during technological processes in the oil and gas and petrochemical industries are corrosion of steel process equipment. Therefore, as in other industries, one of the main methods of corrosion protection of steel technological equipment in the oil and gas and petrochemical industries is the use of ecologically effective inhibitors. Synthesis and research of new nitrogen-containing organic compounds that meet all the requirements of ecological safety and which are low-cost in the field of organic and petrochemical synthesis are considered as one of the topical issues of the era.

In this regard, as noted in the literature [1], organic compounds containing high quantity of nitrogen atoms possess effective inhibitory properties. Based on the results of our studies [2, 3, 4], it has been proved that in fact, various functional groups and organic compounds with high nitrogen atoms have an anti-corrosive effect.

C8H17OCH2Cl (α-chloroctoxymethyl) and N1`N1`-dioctoxymethyl chlorazone ethers [2, 3] for the synthesis of the new derivative of diphenylcarbazide (compound B-1) were obtained according the methods described in literature. The composition and structure of these ethers were determined by known methods. The results obtained are in line with the indicators given in the literature [2, 3]. In view of the foregoing, we have synthesized a new derivative of diphenylkarbazide B-1, based on the chlorazone ether of the two-CH2OC8H17 group. Carrying out the reaction of diphenylcarbazide with N1`N1`-dioctoxymethylchlororazone ether according to the procedure described in the literature [2, 3], a new, unknown in the literature diphenylcarbazide derivative N1-(N1`N1`-dioctoxymethyl)azone-N2-(N1`N1`-dioctoxymethyl)azone-N4-(N1`N1`-dioctoxymethyl)azone-N5(N1`N1`-dioctoxymethyl)azone)diphenylcarbazide, compound B-1 (Figure 1).

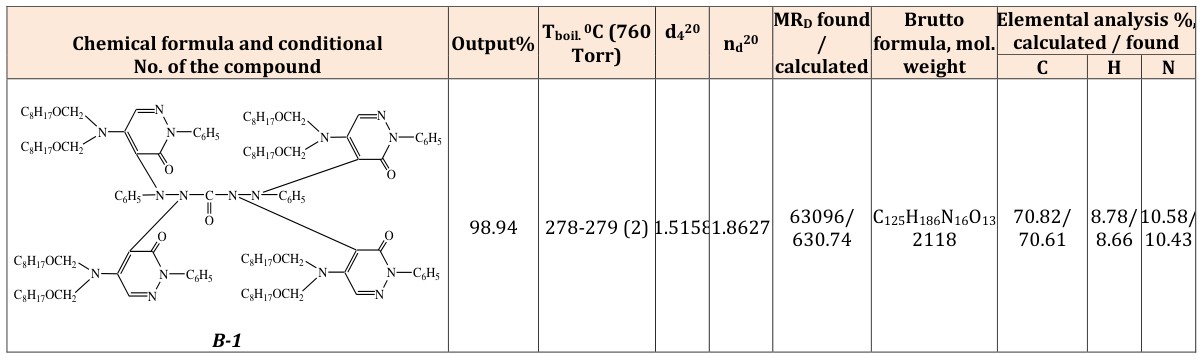

The output of the synthesized new B-1 compound of the diphenylcarbazide, its physical and chemical constants, and the element analyzes are given in Table 1.

Research has been carried out to determine the corrosion rate and inhibitory efficacy of this compound in a highly aggressive environment. According to the study, the inhibitory effect of this compound at the lowest 0.5, 1.0, 1.5 mg/l density was 99.96-100%. Determining the inhibitory efficiency of the new derivative of the synthesized diphenylcarbazide (compound B-1) has been investigated in accordance with method specified in "gravimetric".

Click to enlarge

Conclusion

Synthesis of N1-(N1`N1`-dioctoxymethyl)azone-N2- (N1`N1`-dioctoxymethyl) azone-N4-(N1`N1`- dioctoxymethyl)azon-N5-(N1`N1`- dioctoxymethyl)azonedi-phenylcarbazide compound (B-1) The synthesis tube is filled with 2g ZnCl2 catalyst and 0.01 g/mol diphenylcarbazide, and 50 ml of C2H5OH alcohol is added and at 700C is mixed until complete dissolution of diphenylcarbazide. Then, 0.04 g-mol N1',N1' -diocoxymethylchlorazone ether was added to the mixture from a dropping funnel at regular intervals and stirred for 6 hours at 76 °C. After the reaction is complete, 100 ml of 10% NaOH solution and 100 ml of distilled water are added to the mixture. Then, 25 ml of diethyl ether is added to the reaction mixture and mixed. The mixture is filled into a separation funnel, and after the organic layer is separated from the water layer, diethyl ether in the organic layer is distilled off by a water pump.

After being deposited on CaCl2, an organic layer is pumped into vacuum. The composition and structure of the new derivative of diphenylcarbazide (compound B-1) on the basis of N1`N1`-dioctoxymethyl chlorazone ether was determined by IR and magnetic mass spectra [13].

In the IR spectrum of the synthesized N1-(N1`N1`- dioxtoxymethyl)azone- N2-(N1`N1`-dioctoxymethyl)azone- N4-(N1`N1`-dioctoxymethyl)azone-N5-(N1`N1`- dioctoxymethyl)azonediphenylcarbazide (B-1) compound there are -C-O-C- simple ether group 1050, 1080 cm-1; CH2 group 2950 cm-1; CH3 group 1380, 1460, 2960, 3030 cm-1; C-N bond 1310-1350 cm-1; N-N group 900, 1580 cm-1; C=C bond 1680 cm-1 in the azone group; C = C bonds 1440, 1465, 1500, 1510, 1590-1600 cm-1 in benzene nuclei; C6H5 group 700-780 cm-1.

The molecular mass of that compound in the magnetic mass spectrum corresponds to the molecular ion of 2118 m/e.

Summary

For the first time we synthesized a new diphenylcarbazide derivative N1-(N1`N1`- dioctoxymethyl) azone N2(N1`N1`dioctoxymethyl)azoneN4(N1`N1`dioctoxymeth yl)azoneN5(N1`N1`dioctoxymethyl)azonediphenylcarbazi de com-pound B-1. The inhibitory effect of this compound in the most aggressive environment in the laboratory conditions was determined. The effectiveness of this compound was 99.96-100%, even at the lowest densities of 0.5, 1.0, 1.5 mg/l. One can assume that this new diphenylcarbazide derivative by 100% protects steel processing equipment in the most aggressive environments in the oil and gas and petrochemical industries, and it is important to ensure economic and environmental safety. 100% corrosion protection and great economic and environmental importance can be considered scientifically sound.
