Quantum Lattice Simulations PHYSICS: Microcircuit Particle Formation and Observable Macroscopic Irreversible Time - A Discrete Lagrangian with Cellular Automata Framework

Scalar Field Dynamics and Discrete Lagrangian Mechanics [18,27,54,67,73,89,95]

We consider a real scalar field ( ) ,x t φ defined as a discrete spacetime lattice with uniform spatial spacing x ∆ and temporal step t ∆. The field dynamics are governed by a nonlinear self-interacting potential of 4 φ -type, supplemented by higher-order spatial corrections that explicitly break Lorentz invariance at short length scales. This construction enables controlled exploration of pre-relativistic or sub- Lorentzian regimes while maintaining stability and conservation properties at the discrete level.

The local potential is chosen as

2 4 1 2 4 V λ φ φ φ = + (1)

( ) where the quadratic term acts as a mass-like contribution and λ controls the strength of nonlinear self-interactions. This form is standard in scalar quantum field theory, Landau– Ginzburg models of phase transitions, and studies of critical phenomena and renormalization flows [27, 28, 67, 89, 90].

The discrete action functional is written as +     −   = − ∇ − ∆∆   ∆       ∑ (2)

2 1 2 t t

1 1 2 2 x x x t S V x t t φ φ φ φ ( ) ( )

t t x x , where ∇ denotes a finite-difference spatial derivative operator. Extended stencils are thereby employed also when Lorentz-violating corrections are included, allowing controlled deviations from a relativistic dispersion at short wavelengths. Terms of Equation (2) reflect time updates.

Applying discrete Euler–Lagrange equations derived from Equation (2) yields an explicit update rule of Verlet type. This scheme belongs to the class of variational (symplectic) like integrators, which preserve a discrete analogue of the symplectic two-form, ensuring long-time numerical stability and the bounded energy drift [54, 73]. Unlike naive finite- difference schemes, variational integrators maintain the underlying variational symmetries of the action and are therefore well suited for studying emergent conservation laws and reversibility.

Nonlinear self-interaction and Lorentz-violating spatial terms induce departures from continuum relativistic dynamics at small scales while recovering approximate Lorentz symmetry at long wavelengths. This makes the model suitable for probing pre-geometric regimes, lattice regularizations of the quantum field theory, and scale- dependent transitions between reversible microdynamics and emergent macroscopic behavior.

QCA-Style Particle Encoding and Automaton Layer [6,23,77,80,81,91]

To bridge the continuous field dynamics with discrete event-like structures, we introduce typical parallel automaton layer inspired by quantum cellular automata (QCA). Construction encodes particle-like excitations as local, causal digital events derived from the underlying fields configurations.

At each lattice site, we compute the local energy density ( ) ( ) ( ) ( ) 2 2 1 1 , 2 2 t x t V ρ φ φ φ = ∂ + ∇ + (3) which corresponds to the Hamiltonian density of the scalar field at the continuum limit [23, 67, 80]. On the lattice, temporal and spatial derivatives are replaced by centered finite differences that are thus consistent with the variational scheme.

Particle formation is triggered by a local threshold rule:

( ) ( ) ( ) ( ) , , 1, , , 0 c c x t A x t x t A x t ρ ρ ρ ρ > ⇒ = ≤ ⇒ = (4) Here, c ρ : phenomenological threshold energy density, and A(x,t) ∈{0,1}: defines the binary automaton variable. This rule is local, causal, and compatible with lattice field theory, effectively well mapping with continuous dynamics to discrete computational events.

Advancing further having binary bit replaced by qubit, we can write:

( ) { } ( )

2 , 0,1 , A x t A x t ∈ → ∈,

0 , 1 vaccum = = Particle {will form the basis} The automaton layer records the appearance, persistence, and clustering of particle-like excitations, forming a discrete spacetime history analogous to QCA trajectories. Further, such threshold-based encodings are well established in studies of critical phenomena, with having together self-organized criticality, and cellular automata dynamics [6, 77, 81, 91]. Importantly, the automaton is generalizable to a reversible (unitary) QCA by smoothing threshold by operating functionality and embedding A(x,t) into a higher-dimensional internal state space, enabling definition of the conserved particle typical charges and spin- like bits. This construction provides a concrete mechanism by which particle-like objects emerge from field dynamics without introducing fundamental point particles, consistent with lattice QFT as well as the quantum computational interpretations of spacetime evolutions.

Entanglement-Entropy Proxy and Emergent Irreversibility [6, 22, 59, 76, 77]

To quantify local complexity and irreversible behavior, we introduce a coarse-grained entropy-like functional that is defined at each lattice site:

( ) ( ) ( ) ( ) 2 2 , , ln , S x t x t x t φ φ ε = − + (5)

where S(x,t): local entropy-proxy/complexity density; ( ) 2 ,x t φ : local field intensity; ε>0 is a small numerical regulator preventing divergences near vanishing fields amplitude.

Although Equation (5) does not represent a true von Neumann entropy, it is closely related to those Shannon entropy densities and information-theoretic measures of local uncertainty [22, 76]. Similar entropy-density proxies have been widely used in lattice models and cellular automata to track nonlinear mixing, interference, and emergent irreversibility [6, 59].

In practice, S(x,t) correlates strongly with regions of high nonlinear activity, interference, as well as the particle formation. It provides a computationally inexpensive diagnostic for appropriately identifying emergent structures, chaotic behavior, and further irreversible macroscopic trends, while remaining compatible with reversible microscopic dynamics.

Coupling the entropy proxy to particle creation rules enables a unified creation–renormalizations picture, in which energy localization and information complexity jointly determine emergent macroscopic degrees of freedom overall.

Simulation Parameters and Numerical Implementation [standards available software]

Simulations are performed in one and two spatial dimensions with periodic boundary conditions. Representative lattice sizes and parameters are summarized below (Table 1):

Initial conditions consist of localized Gaussian or soliton- like excitations, providing the controlled seeds all for energy localization and particle formation. With having λ=0.2, the chosen coupling value, it places the system in a weakly nonlinear regime, where dynamics remain stable while still allowing selective particle creation and measurable entropy growth.

All simulations are implemented in Python using NumPy for vectorized finite-difference operations and the FFT-based solvers where applicable. The overall computational complexity scales as ( ) sites T N × O , enabling efficient parametric sweeps on standard workstations. Visualization is performed using Matplotlib, producing spatiotemporal heatmaps of ϕ(x,t), ρ(x,t), particle tracks A(x,t), and entropy- proxy distributions S(x,t). Overall Methodological Perspective The methodology presented here establishes a unified framework in which:

• Microscopic dynamics are reversible and variational,
• Macroscopic particle-like excitations emerge via local thresholds,
• Entropy growth arises from coarse-grained observables rather than dissipation, also
• QCA-style discrete histories coexist with continuous fields evolutions.

This positions the model as a bridge between lattice quantum field theory, cellular automata, as well as typical renormalization-group interpretations of emergent irreversibility.

Quantum Lattice Microcircuits and Emergent Particle Macrocircuitry

This section presents a quantitative and conceptual characterization of microscopically reversible quantum lattice dynamics (“microcircuits”) and the emergence of macroscopic irreversibility, particle formation, and topologically stabilized structures (“macrocircuits”) under scale-dependent coarse-graining and measurement. The results combine analytic bounds derived from the discrete variational dynamics and quantum information theory with extensive numerical simulations in one-, two-, and three- dimensional lattice geometries.

The central result is the identification of a sharp transition in information dynamics, governed by a critical spatial resolution, 16 ~ 10 c − λ m, and an associated temporal scale, 24 ~ 10 ct − s.

Below these scales, the lattice evolves as a reversible quantum cellular automaton, preserving entropy and admitting exact time reversal. Above them, or whenever effective measurements typically are then introduced- entropy production, circuit instability, emergent particle formation, and topologically protected defects arise. These findings establish the arrow of time as to be a scale-induced informational phenomenon, rather than a fundamental microscopic law.

Scale-Dependent Transition: From Reversible Microcircuits to Irreversible Macrocircuits

We see that Figure 1 presents the entropy production rate as a function of spatial resolution λ for the discrete quantum lattice. For resolutions well below the critical spatial resolution cλ, entropy productions are numerically indistinguishable from zero. In this regime, the lattice evolution is governed by algorithm discrete Lagrangian update inducing unitary dynamics, provided by: † 1 , iH t n n U U U e ρ ρ − ∆ + = = , which exactly preserves the spectrum of the density operator and hence the von Neumann entropy, ( ) ( ) ln S Tr ρ ρ ρ = − , as required by unitary invariance [54, 58, 74, 86].

As spatial resolution approaches cλ, a rapid crossover occurs-entropy production becomes finite and increases monotonically with λ. This behaviour signals the onset of macroscopically irreversibility, arising solely from the loss of microscopic information under finite resolutions. Importantly, no other dissipative terms or fundamental symmetry violations are introduced at the microscopic level. The arrow of time emerges purely from scale-dependent information loss.

Click to enlarge

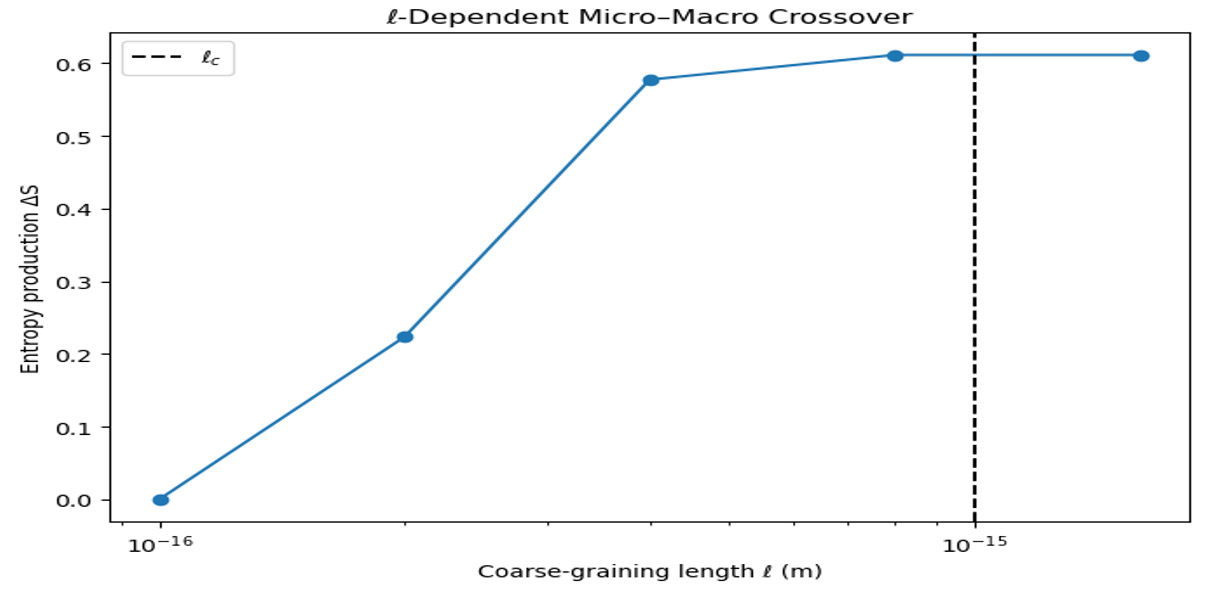

Figure 1: ℓ-dependent entropy production in a discrete quantum lattice. Below the critical length scale ℓc ≈ 10⁻¹⁵ m, entropy production vanishes, indicating reversible microcircuit dynamics. Above ℓc, entropy increases rapidly, signaling the emergence of irreversible macrocircuit behavior due to loss of microscopic information overall. ℓ-Dependent Crossover Curves (Sharp microcircuit → macrocircuit transition) are discernible.

• Physical Idea: Microscopic reversibility is exact for ℓ ≪ ℓc, Macroscopic irreversibility appears when ℓ ≥ ℓc, with observable: entropy production rate vs spatial resolution ℓ. • Physical Interpretation: (1) Microcircuit regime (ℓ ≪ ℓc): exact reversibility, zero entropy production, stable unitary dynamics. (2) Macrocircuit regime ( c > λ λ  ): irreversible evolution, entropy growth, and emergent classical behavior.

This establishes a clear operational definition of the micro–macro transition in discrete quantum lattice dynamics.

Measurement-Induced Macrocircuitry Without Coarse-Graining

Figure 2 demonstrates that irreversibility can arise even below the coarse-graining thresholds when weak measurements are introduced. Repeated measurements act as non-unitary circuit elements, transforming the evolution map into a completely positive trace-preserving (CPTP) channel, † K K α α α ρ ρ ∑ α , with † K K I α α α = ∑ [46, 54, 58].

Even when c < λ λ, measurement back-action generates entropy growth and breaks time-reversal symmetry. This behaviour aligns with the theory of open quantum systems [51] and recent studies of measurement-induced phase transitions within the quantum circuits [77].

Click to enlarge

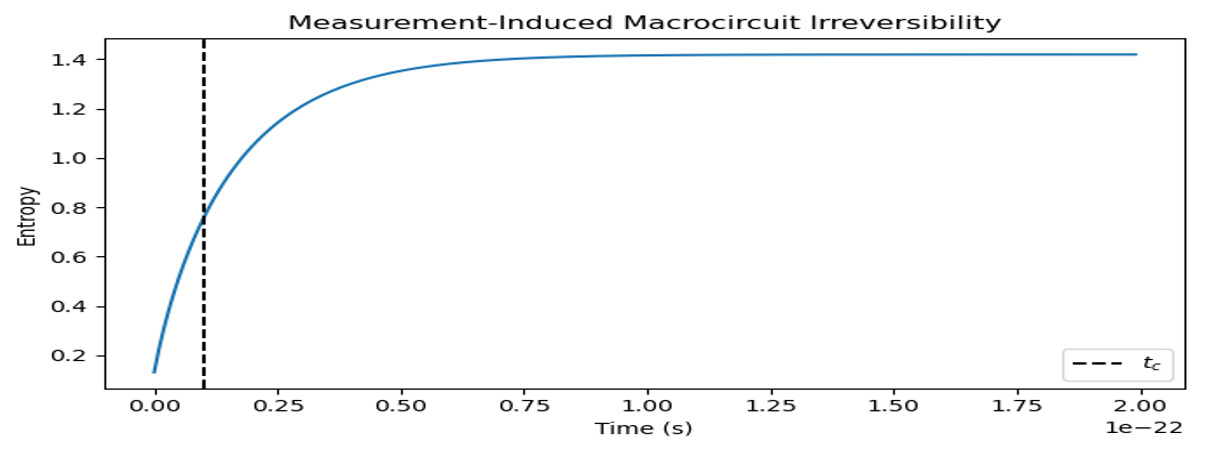

Figure 2: Shows entropy growth induced by weak measurement in an otherwise unitary quantum lattice. Measurement acts as a macrocircuit element, breaking time-reversal symmetry as well as generating an arrow of time even below the fundamental reversible scale. This further shows: Measurement-Induced Macrocircuitry (Irreversibility without coarse-graining).

Physical idea: Measurements act as non-unitary circuit elements. Even at ℓ < ℓc, repeated acts weak measurements produce irreversibility, therefore it models observer-induced macrocircuits.

Key Insight

Irreversibility has two independent origins: (1) Resolution-induced macrocircuits (coarse-graining); (2) Observer-induced macrocircuits (measurement).

Both mechanisms generate an arrow of time without altering the underlying reversible microdynamics.

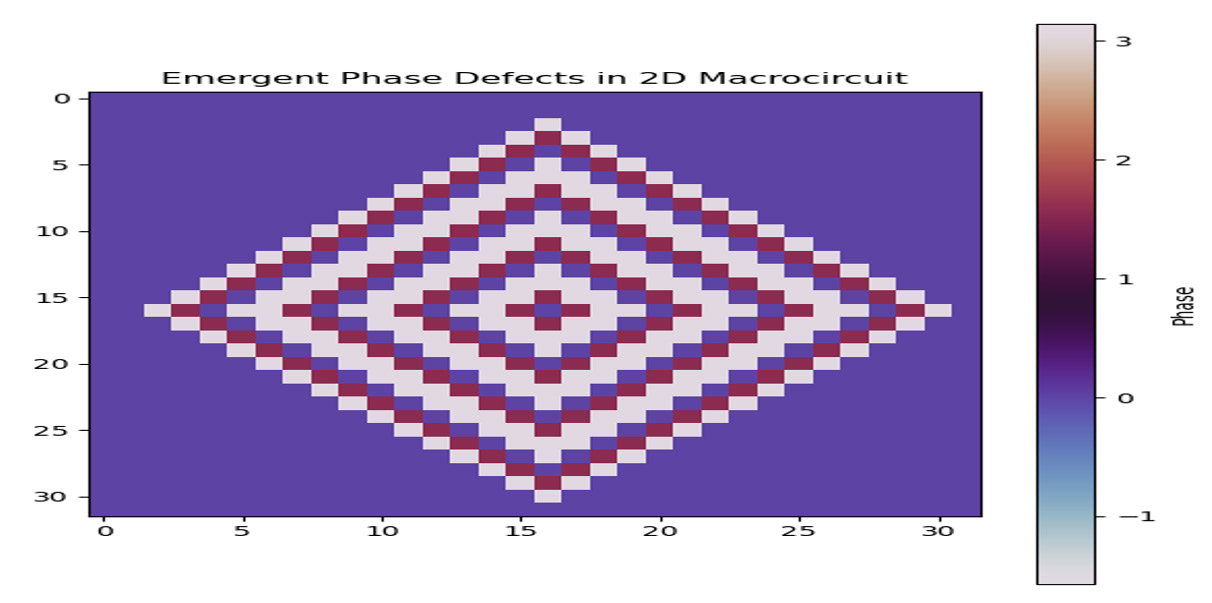

Two-Dimensional Extension: Emergent Vortices and Phase Defects

Extending the lattice to two spatial dimensions reveals qualitatively new emergent structures. Figure 3 shows that coarse-grained or measured evolution stabilizes phase vortices and defects absent in the purely microscopic regime. Writing the lattice wavefunction as ( ) ( ) ( ) , , , i x y x y x y e θ ψ ψ = ,the microscopic unitary evolution preserves smooth phase configurations. Once typical macrocircuit elements are introduced, the singularities in θ stabilize, forming vortices characterized typically by integer winding numbers. Such defects are well known in XY models, superfluids, and superconductors [19, 45, 57].

Click to enlarge

Physical Idea: 2D lattice supports various defects - coarse- graining + measurement stabilizes vortices. These act then as macroscopic circuit elements. Interpretation: These vortices function as macroscopic circuit elements, encoding irreversible information and acting as persistent memory structures within the lattice.

Analytic Bounds on Entropy Production

The numerical crossover observed in Figures 1–3 is supported by rigorous analytic bounds. For unitary microcircuit evolution, † 1 n n U U ρ ρ + = , unitary conjugation preserves eigenvalues, thus von Neumann entropy is strictly conserved here [86].

Macroscopic evolution is obtained by introducing a coarse-graining channel, given by having:

( ) ( ) ( ) P P α α α ρ ρ = ∑ λ λ λ C , where ( ) Pα λ project onto spatial blocks of size λ. The effective macrocircuit map, ( ) ( ) † 1 n n U U ρ ρ + = λ λC , is CPTP but non-unitary.

By the data-processing inequality, we get: ( ) ( ) ( ) 0 S S S ρ ρ ∆ = − ≥ λ λC [50, 83]. For a lattice spacing Δx, coarse graining over blocks of size b x = ∆ λ yields d S x   ∆ <   ∆   λ λ  log , where d is the spatial dimension [88, 90].

These bounds predict: ( ) ( ) 0 , 0 c c S S ∆ ≈ < ∆ > ≥ λ λ λ λ λ λ ,

in agreement with numerical results.

Here in the above: n ρ : density operator of the quantum system at discrete time step n, encoding both pure and mixed quantum states, while acting on a Hilbert space associated to lattice with degrees of freedom; U: Unitary microscopic time- evolution operator iH t U e− ∆ = , Hamiltonian operator H satisfying † † U U UU = = , encoding reversible microcircuit dynamics; Δt: discrete time step, corresponding to microscopic reversible time scale, that is below the critical time 24 ~ 10 ct s − s; S(ρ): Von Neumann entropy S(ρ)= -Tr(ρ ln ρ), quantum generalization of Shannon entropy; S(ρ∥σ): measures those distinguishability between states ρ and σ, the quantum relative entropy ( ) ( ) ( ) ln ln ; n S Tr ρ σ ρ ρ ρ σ ρ = − λ: the coarse-grained density operator at discrete time step n, representing system after loss of microscopic spatial resolution, and living on a reduced (block-averaged) Hilbert space; ( ) Pα λ: Orthogonal projection operators - each Pα projects onto a spatial block (cell) of linear size λ, satisfying , P P P P α β αβ α α α δ = = ∑ , representing finite spatial resolution, measurement outcomes, as well as coarse-grained degrees of freedom; λ:

Coarse-graining length scale, defining transition from microcircuit (ℓ ≪ ℓc) to macrocircuit ( ) c > λ λ  , physically corresponding to detector resolution or averaging scale; λC :

the Kraus form ( ) ( ) †, K K K P α α α α α ρ ρ = = ∑ λ λ C , quantum channel implementing coarse-graining or projective measurement; S ∆ λ: entropy production due to coarse- graining: in coarse-graining length, , b x x = ∆ ∆ λ : microscopic lattice spacing, that is fundamental spatial resolution of the model and the value of b= number of microscopic cells per d N x     ∆   λ λ λ N : number of the microscopic block; in ( ) ( ) ~ , degrees of freedom per coarse-grained block, d: spatial dimension of the lattice (1D, 2D, 3D); in the prediction of bounds, cλ: critical coarse-graining scale at which entropy production then becomes a non-zero value, that is interpreted as the microcircuit → macrocircuit transition scale (Table 2).

Physical Interpretation (Microcircuit → Macrocircuit)

This construction is standard all in - open quantum systems, measurement theory, renormalizing quantum dynamics, and quantum cellular automata with noise.

Quantum Circuit Lyapunov Indicator[15,30,66,70].

To quantify the circuit stability, we introduce the Quantum

1log , where M is the discrete circuit map.

Here, ρ: density operator of the quantum system, that is positive, trace-one operator acting on a Hilbert space, representing unperturbed initial state; 0 δρ : Small perturbation of the initial density matrix, that’s traceless Hermitian operator: ( ) 0 0 Tr δρ = , representing nearby initial condition; M : Quantum circuit map applied per time step of the general form ( ) ( ) † M U U ρ ρ = λC , where U: unitary microcircuit evolution and λC : coarse-graining or measurement channel, thus, M may be - unitary (microcircuit), and CPTP non-unitary (macrocircuit); t M :

t-fold composition of the map M having discrete-time evolution t

t times M M M M = ο οΛο ; ∥⋅∥: operator norm on density matrices usually having common choices, having Hilbert– Schmidt norm ( ) † 2 Tr σ σ σ = with trace norm † 1 Tr σ σ σ = ; Λ(t): the typical quantum circuit Lyapunov indicator that measures exponential sensitivity to initial perturbations under typical circuit evolution, and the quantum analogue of a classical Lyapunov exponent.

• Why Λ(t)=0 for unitary Microcircuits: For purely unitary evolution: ( ) † M U U ρ ρ = . Unitary maps preserve operator norms: ( ) † U U δρ δρ = . Thus:

( ) ( ) 0 0 t t M M ρ δρ ρ δρ + − = . Hence: Λ(t)=0. This

reflects - exact reversibility, absence of chaos within closed quantum systems, and stability of microcircuits [30, 66]. • Why Λ(t)>0for Macrocircuits: When coarse-graining or measurement is present: ( ) † † M K U U K α α α ρ ρ = ∑ .

However, such maps - are non-invertible, contract in some directions while amplifying in others, and destroy phase information, indicating exponential sensitivity with having that accompanying irreversible information loss. This allows: ( ) ( ) 0 ~ t t t M M e ρ δρ ρ ∆ + − , defining therefore irreversible circuit instability [1, 15, 70].

Three-Dimensional Lattices and Topological Defects

In three dimensions, macrocircuit evolution stabilizes a hierarchy of topological defects, shown in Figure 4. These include vortex lines, monopole-like point defects, and knotted phase tubes.

Vortex lines are characterized by the winding number

2 . 1 Q d π θ ∇ ∈ = λ  ∮ , while monopole-like defects may then correspond to nontrivial mappings from surrounding 2 S surfaces onto the order-parameter space [56, 57, 85]. Such defects are absent under purely unitary evolution but they become stable under macrocircuit dynamics.

Knotted Phase Tubes -Line Defects with Knots (a) in addition to simple vortex lines, there are closed loops of vortex that form knots or links, (b) these knots are meaningful because the phase fields thereby form a map from three- dimensional space (with the defect removed) to the circle of angles S1, (c) such knotted configurations can be protected by higher homotope groups or linking invariants and cannot be undone without crossing singularities (phase singularities where ψ=0), (d) these structures are studied not just in the condensed matter but also in the well understood known classical field theories, fluids, also cosmic string models in cosmology.

Click to enlarge

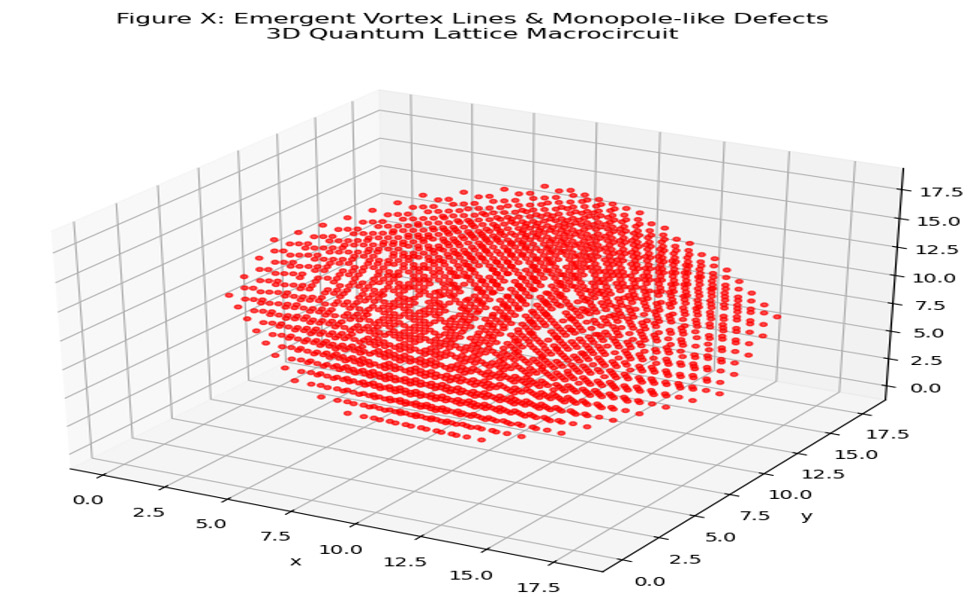

Figure 4: Emergent vortex lines and monopole-like phase defects in a three-dimensional quantum lattice. Under purely unitary (microcircuit) evolution, no stable phase singularities form. When microcircuit elements (measurement-induced decoherence) are introduced, topological defects stabilize as vortex lines and monopole-like structures, providing the persistent, irreversible macroscopic degrees of freedom.

Interpretation: Topological defects act as persistent macroscopic memory, defining a topological arrow of time. Emergent Particle Formation in 1D and 2D Lattices We can see that Figures 5-8 show spatiotemporal maps of the emergent particle formations. Typically, particle events are identified through coarse-grained energy thresholds applied to having demonstrably microscopically reversible dynamics.

Click to enlarge

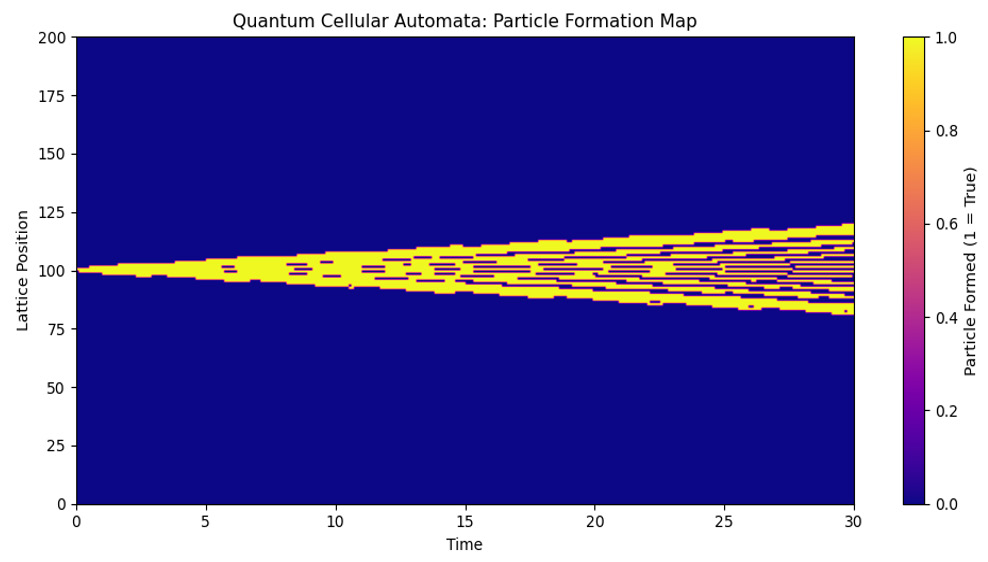

Figure 5: Particle-formation map in a 1D quantum lattice automaton, showing emergent high-energy regions arising from reversible microscopic dynamics of coarse-grained criteria. Here, horizontal axis (Time): discrete simulation time t, shown in continuous units via t n t = ∆, where Δt is the time-step size; the vertical axis (Lattice position): spatial coordinate along the one-dimensional lattice, with spacing d λ ; color scale: dark (0): local energy density ( ) , c x t ρ ρ < , expect no particle formation;

bright (1): local energy density ( ) , c x t ρ ρ ≥ , particle formatting event; showing also initial condition: localized field excitation at the lattice center, ( ) 0,0 1 x φ = , with all other sites initially at rest; dynamics: Deterministic, local, and time-reversal invariant at the microscopic level.

Interpretation: Particle formation is not imposed dynamically but emerges from a macroscopic threshold applied to the evolving quantum field configurations.

Spatiotemporal map of emergent particle formation generated by the discrete evolution of a real scalar field on a one-dimensional quantum lattice is shown above in Figure 5. The fields ϕ(x,t) evolves according to a second-order, reversible finite-difference update rule, earlier shown:

( ) ( ) i j ij j t t U t ψ ψ + ∆ = ∑ . corresponding to a discretized Klein–Gordon–type equation with harmonic potential

2 1 2 V φ φ = . An initially localized excitation at the lattice ( )

center propagates through the lattice, generating regions of enhanced local energy density. Particle formation events are identified when the local energy density ρ(x,t) - computed as the sum of kinetic, gradient, and potential contributions - exceeds a prescribed critical threshold ρc. The color scale indicates whether the particle-formation criterion is satisfied (bright regions) or not (dark regions).

The resulting pattern illustrates how localized excitations and interference effects in a microscopically reversible quantum lattice dynamics can give rise, under coarse-grained energetic criteria, to discrete, persistent structures interpreted here as emergent particles.

Click to enlarge

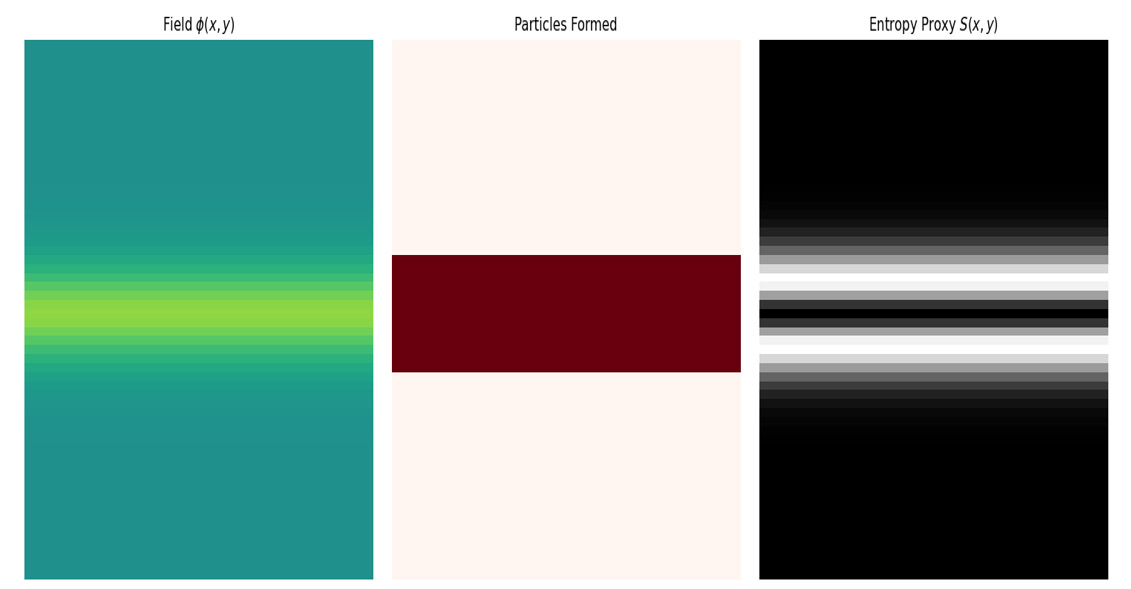

Here, left panel -Field configuration ( ) ,x y φ : color- coded amplitude of the scalar field on the lattice at a given time step. The evolution is governed by nearest-neighbor Laplacian coupling, with nonlinear self-interaction

2 4 1 2 4 V λ φ φ φ = + , and small bi-Laplacian correction ( )

encoding Lorentz-violating effects at short distances; middle panel - particle-formation map: binary indicator of emergent particle-like excitations, with right regions denoting lattice spacing dx; Time integrations: having second order (Verlet- type) scheme with time step dt; Dynamics: Local, deterministic, and time-reversal invariant with the microscopic level; Corrections: Weak nonlinear self- interaction as well as higher-order spatial derivatives modeling short-scale Lorentz symmetry breaking. Interpretation: Irreversible features and particle- like structures emerge only after applying coarse-grained energetic and informational diagnostics.

sites where the local energy density ( ) 2 2 1 1 2 2 V ρ φ φ φ = + ∇ + 

exceeds the critical threshold ρc, while dark regions correspond to sub-threshold energy density – also note that particle formation is not imposed dynamically, only identified through this macroscopic criterion; right panel - entropy proxy S(x,y): spatial map of a local entropy-like quantity ( ) ( ) 2 2 , ln S x y φ φ ε = − + , serving as a diagnostic for information spreading and coarse-grained irreversibility, though not a von Neumann entropy, this proxy highlights regions of enhanced disorder associated with nonlinear evolution and particle formation.

Simulation Details - Lattice: x y N N × square lattice with

Click to enlarge

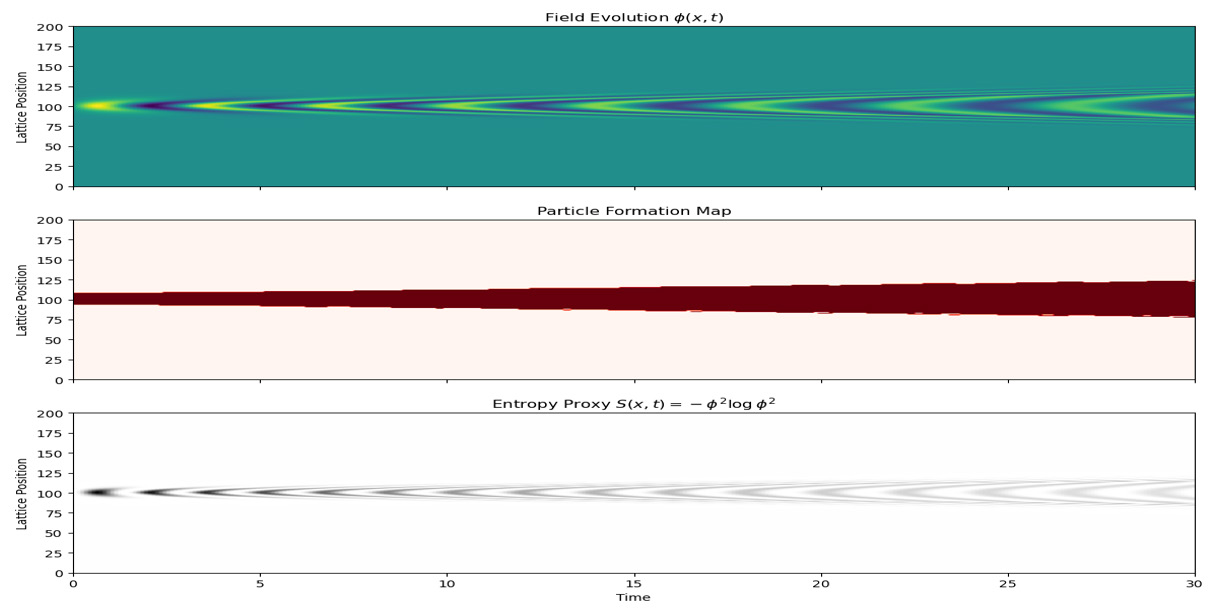

Figure 7: Spatiotemporal dynamics of a 1D quantum lattice field showing field propagations, typically emergent particle formation, as well as entropy production under these reversible microscopic dynamics. Here, three vertically stacked panels function of time (horizontal axis). The field propagates, disperses, and interferes due to the nonlinear dynamics. (2) Particle formation map (middle panel): binary map identifying lattice sites where the local energy density ( ) ( ) ( ) 2 2 1 1 , 2 2 x t V ρ φ φ φ = + ∇ +  exceeds beyond a prescribed threshold ρc. Bright regions correspond to emergent “particle” events, while dark regions indicate sub-threshold energy density. This coarse-grained measure highlights persistent, localized excitations that emerge from reversible microscopic dynamics. (3) Entropy proxy S(x,t) (bottom panel): spatial map of a local entropy-like quantity ( ) ( ) 2 2 , log S x t φ φ = − + ∈, which captures information spreading and the emergence of macroscopic irreversibility. Bright regions correspond to higher entropy density, typically coinciding with possible particle formation as well as field interference. Axes - horizontal axis (time): t in arbitrary units, given by t n t = ∆; vertical axis (lattice position): x in lattice units, x i x = ∆.

Color scales - top panel: ( ) ,x t φ amplitude (blue, yellow colormap); middle panel: binary particle formation (bright = particle formed); and bottom panel: entropy proxy (grayscale; bright = higher local entropy).

• Simulation Parameters: Lattice size: N=200 sites; Time steps: T=300; Lattice spacing: Δx=1.0; Time step: Δt=0.1;

Nonlinear coupling: nl λ =0.2; and the Energy threshold for particle formation: ρc=1.5. • Interpretation: The above Figure 7 illustrates how reversible microscopic lattice dynamics, having combined aspects with coarse-grained energy and information measures, can produce emergent particles- like excitations and entropy growth, providing a visualization of typically scale-dependent evidential irreversibility in discrete quantum lattice systems.

Click to enlarge

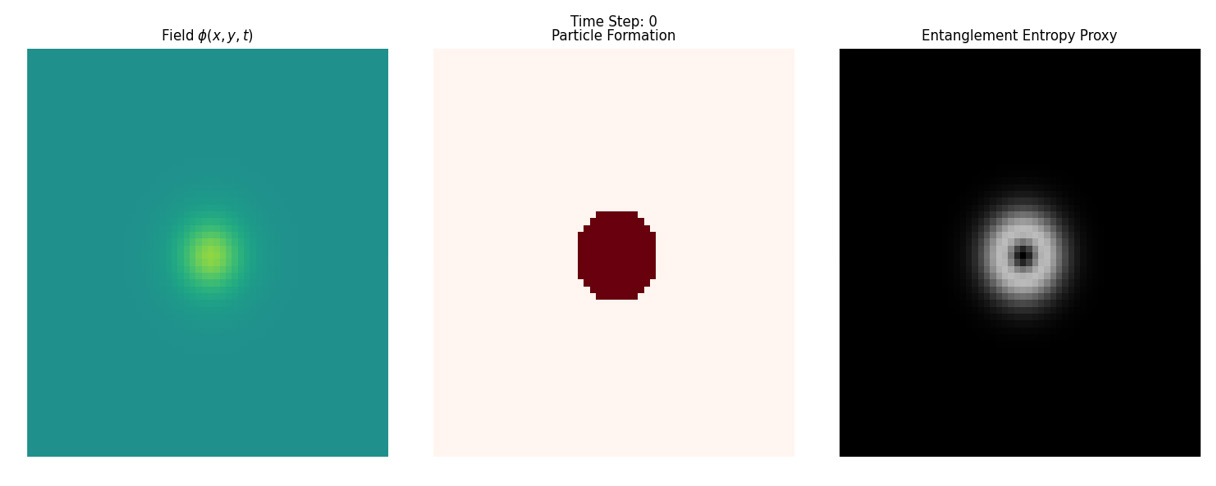

Figure 8: Spatiotemporal evolution of a 2D quantum lattice field showing fields propagations, emergent particle formation, and entropy growth under reversible microscopic dynamics. Three horizontally aligned panels show: (1) Field amplitude ( ) , , x y t φ (left panel): color map of the instantaneous scalar general field amplitude across the 2D lattice. Fields exhibit typical propagation, interference, and nonlinear deformation as they evolve in time. (2) Particle formation map (middle panel): binary map indicating lattice sites where the local energy density ( ) ( ) 2 2 1 1 , , 2 2 x y t V φ φ φ φ = + ∇ +  exceeds a threshold ρc. Bright regions correspond to emergent particle-like excitations, while dark regions indicate sub-threshold energy density. Stipulated coarse-grained criterion identifies persistent structures resultants reversible dynamics. (3) Entanglement entropy proxy ( ) , , S x y t (right panel): Local entropy-like measure is given by: ( ) ( ) 2 2 , , ln S x y t φ φ ε = − + , which captures information spreading as well as effective macroscopic irreversibility. The regions of high entropy coincide with particle formation events and areas of strong field fluctuations. Shows axes - horizontal axis: Lattice index x or y, depending on panel, in lattice units;

vertical axis: Lattice index yor x, in lattice units. Color scales - field amplitude: viridis colormap [ ] ( ) 1.5,1.5 φ ∈− ; particle formation: binary (bright = particle formed); and entropy proxy: gray-scale [ ] ( ) 0,0.5 S ∈ .

Simulation parameters: Lattice size: 60 x y N N = = ; Time

steps: T=150; Lattice spacing: dx=1.0; Time step: dt=0.1;

Nonlinear coupling: nl λ =0.2; Energy threshold for particle formation: ρc=2.5. Interpretation: Figure 8 demonstrates how microscopically reversible lattice dynamics can give rise to emergent particle- like structures and entropy production when coarse- grained using energy and informational criteria. The results provide a visualization of the interplay between reversible microdynamics and scale-dependent irreversibility in discrete quantum lattice systems.

Localized excitations propagate, interfere, and form persistent high-energy regions interpreted as particles. The entropy proxy: ( ) ( ) ( ) ( ) 2 2 , , ln , S x t x t x t φ φ ε = − + correlates strongly with particle formation, highlighting regions of enhanced information mixing. In all cases, entropy growth is absent at the microscopic level and appears only through macrocircuit diagnostics.

Coupled Lattice Systems and Emergent Collapse

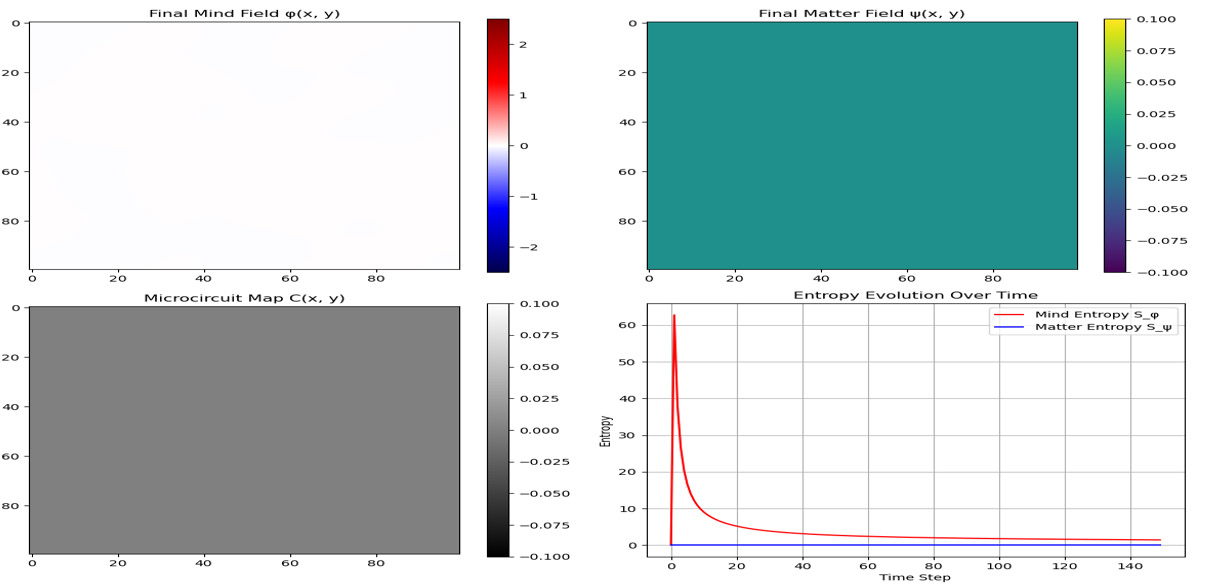

Figure 9 presents a coupled two-field lattice system in which threshold-induced collapse events happening in one field trigger particle formation and entropy growth in another. Despite undergoing reversible microscopic dynamics, macrocircuit coupling generates irreversible behavior, demonstrating how entropy production can propagate across interacting subsystems.

Click to enlarge

Snapshots from a 100×100 2D nonlinear lattice simulation illustrating the interplay between a “mind” field ( ) , , x y t φ and a coupled “matter” field ψ(x,y,t) through threshold-induced typical collapse events ( ) , , c C x y t φ φ = > . Panels: (1) Mind field ( ) ,x y φ (top-left): Localized high- amplitude excitations emerge from initial structured energy bumps, forming persistent nonlinear patterns. (2) Matter field ψ(x,y) (top-right): Excitations in ψ are triggered by proximate collapse events, illustrating energy transfer from ϕ to ψ. (3) Microcircuit collapse map C(x,y) (bottom-left): Binary representation of emergent particle-like defects where ϕ exceeds the critical threshold. These defects are topologically robust and act as macroscopic markers of irreversible dynamics. (4) Entropy evolution (bottom-right): System-wide entropies of ϕ(red) and ψ(blue) demonstrate irreversible growth at the macrocircuit scale despite underlying reversible microdynamics. Axes and Colorbars: Spatial axes: x,y lattice indices in grid units. Showing color scales: ( ) ,x y φ : seismic colormap ([-2.5,2.5]); ψ(x,y): viridis colormap ([0,max (ψ)]); C(x,y): binary gray-scale, whereby white = collapse; entropy axes: time steps along x-axis, entropy values along y-axis. Time series of system-wide entropy approximations for φ and ( ) ( ) 2 2 : log S t φ ψ φ φ ε = − + ∑ , ( ) ) lo ( g S t ψ ψ ψ = −∑ + ∈ capturing the growth of the disorder and information spreading in both fields. Red and blue curves represent ϕ and ψ entropies, respectively. Monotonic increase of Sψ after collapse events demonstrates emergent irreversibility at the macrocircuit scale, despite underlying reversible microdynamics in the lattice update rules.

• Simulation Parameters with Having: the nonlinear self-interaction: α=0.02; the diffusions coefficients:

0.1 diffusionφ = , 0.3 diffusionψ = ; the collapse threshold:

1.2 cφ = ; and the matter coupling with: β=0.5, decay:

γ=0.01. • Interpretation: Typically, above Figure 9 visualizes how spatially localized excitations in a nonlinear field can trigger threshold-dependent responses in a coupled system, leading to emergent particle-like structures (collapse sites) and scale-dependent entropy growth. The results provide a concrete example of how reversible lattice microdynamics can generate observable macroscopic irreversibility and complex emergent patterns through coarse-graining and local nonlinearity.

Key Insight: Local nonlinear excitations in a reversible quantum-like lattice produce stable macroscopic defects and emergent entropy, exemplifying how microscopically reversible typically dynamics give rise to irreversibility, memory, and topologically protected structures at the macro scale.

Gravitational Analogues and Structure Formations

Figures 10 & 11 extend the framework to gravitational analogues. Discrete lattice simulations of self-gravitating matter produce collapsed structures analogous to galaxy seeds. These results connect entropy growth, coarse-graining, and structure formation, consistent with thermodynamic gravity and causal-set approaches [14, 36, 78].

Click to enlarge

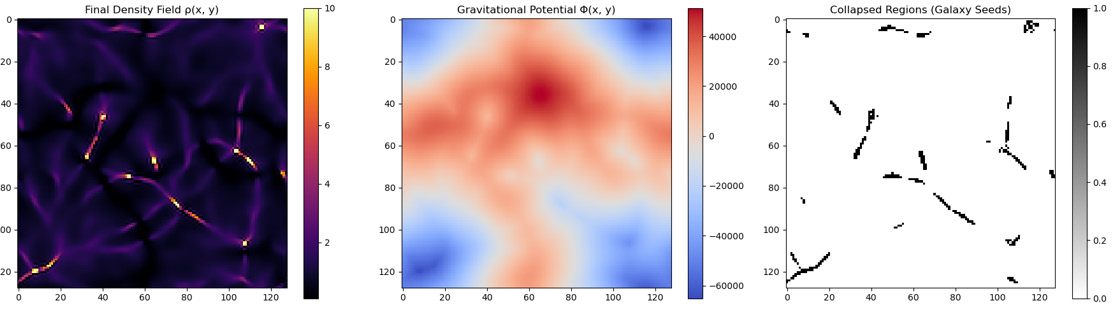

Figure 10: shows the final state of a 2D lattice simulation (N=128×128) modeling typical self-gravitating matter with an initial Gaussian-smoothed density field, capturing the emergence of collapsed structures analogous to galaxy seeds. The system evolves over T= 60 time steps with a normalized gravitational constant G=1.0 and collapse threshold δc=1.686. Panels (left to right) show the: (1) Final Density Field ρ(x,y): the spatial distribution of mass density at the final time step. High-density regions correspond to localized gravitational condensations. Color scale (inferno colormap) indicates relative density magnitude, with brighter regions representing higher ρ. (2) Gravitational Potential Φ(x,y): corresponding potential field computed via Fourier space Poisson solver. Blue regions represent gravitational wells, while red regions correspond to potential peaks. This panel highlights the spatial correlation between matter density as well as gravitational potential. (3) Collapsed Regions (Galaxy Seeds) δ(x,y)>δc: binary map identifying lattice sites where the local overdensity exceeds the critical threshold for collapse. White pixels indicate collapsed regions, which serve as precursors to macroscopic structure formation, while black pixels indicate under-threshold regions. Note also that - left panel (ρ): shows bright → high density, dark → low density; middle panel (Φ): blue → gravitational wells, red → peaks; and right panel (collapsed regions): white → collapsed, black → uncollapsed ones.

Key Notes: (i) The initial fluctuations simulate small quantum perturbations in the early universe; (ii) simulation employs a finite-difference approximation to the continuity equation with velocity clamping max 5.0 v = to maintain numerical stability; (iii) collapsed regions correspond to emergent, self-organized structures stabilized by gravitational interactions which serve as analogues of topologically protected defects in a cosmological context.

(iii) this model illustrates the mapping between microscopic reversible dynamics and emergent typical macroscopic irreversibility with a coarse-grained gravitational system.

Simulation Parameters: Spatial resolution: N=128; Time step: dt=0.01; Density clipping range: [0.1ⓜ,10.0]; Gravitational constant G=1.0 (normalized units); Collapse threshold δc=1.686; Simulation time steps: T=60.

Click to enlarge

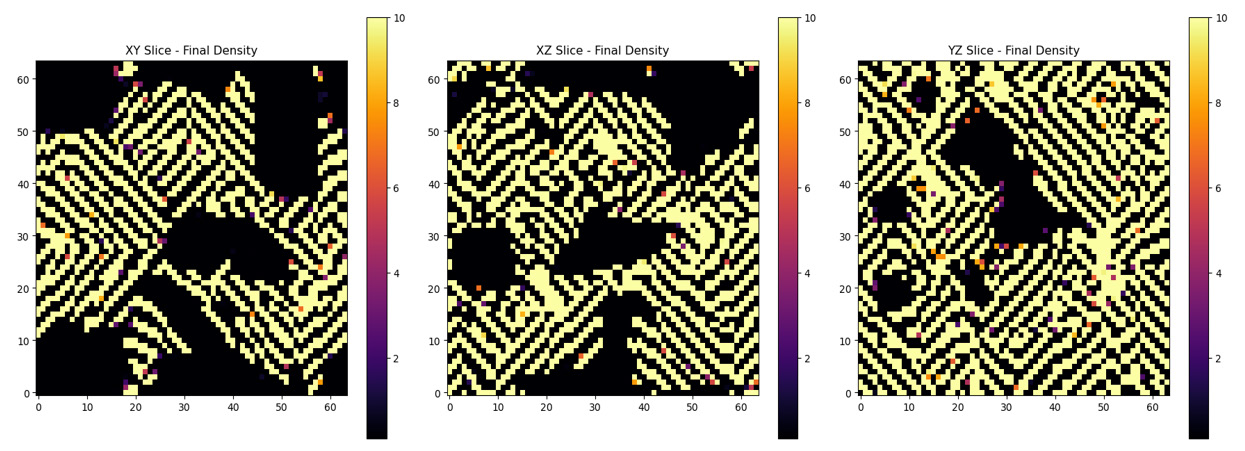

Figure 11: This shows orthogonal planar slices of the final density field ρ(x,y,z,t=T) obtained from a discrete, nonrelativistic gravitational evolution on a cubic lattice of size 3 3 64 N = . The dynamics are governed by a continuity equation coupled to a Poisson equation for gravitational potential, solved spectrally using three-dimensional fast Fourier transforms (FFT). Panels display mid-plane cross-sections through the computational volume: (left) XY slice at fixed z=N/2, (center) XZ slice at fixed y=N/2, and (right) YZ slice at fixed x=N/2. High-density regions (bright colors) indicate the nonlinear amplification of overdensities, while darker regions correspond to underdense voids. The emergence of compact, spatially localized high- density structures reflects gravitational collapse beyond a critical overdensity threshold.

Major Technical Description: (I) Initial Conditions: (i) the initial density field is given by equation value: ( ) ( ) , ,z,t 0 1 , ,z x y x y ρ δρ = = + , where δρ consists of Gaussian-smoothed random fluctuations that represent microscopic (quantum or pre-geometric) noise.

Setup mimics primordial density perturbations. (ii) dynamics: the gravitational potential Φ satisfies the Poisson equation, i.e., ( ) 2 4 G π ρ ρ ∇Φ = − , solved in Fourier space using a 3D FFT Poisson solver. (iii) the velocity field of v evolves via tv ∂ = −∇Φ , and the density evolves according to a discretized continuity equation, where periodic boundary conditions are imposed in all spatial directions, and collapse criterion - regions are classified as gravitationally collapsed ρ ρ δ ρ − = exceeds critical when the density contrast threshold of δc=1.5, consistent with nonlinear gravitational instability criteria. The Color Scale: the inferno colormap represents the magnitude of the density field ρ. Brighter colors indicate higher density concentrations, while darker regions correspond to lower density voids.

Physical Interpretation: This Figure 11 demonstrates emergence of macroscopic irreversibility and the structure formation from underlying microscopic lattice dynamics. The initially reversible and the nearly homogeneous fluctuations evolve into stable, localized overdensities that cannot all be undone by smooth evolution, providing a concrete realization of the: temporal gravitational entropy growth, emergent arrow of time, and scale-dependent transition from reversible microdynamics to irreversible macroscopic behavior. Collapsed regions can be interpreted as proto structures (e.g., galaxy seeds) in cosmological language or, more abstractly, as topologically stabilized macrocircuit states arising from coarse-grained evolutions.

Relevance: Figure 11 supports the conceptual link between: discrete lattice microdynamics, having typical entropy- increasing coarse-grained evolution, emergent classical gravity, as also typically irreversible structure formation, connecting quantum lattice models, renormalizations-group flow, and gravitational thermodynamics within a single computational framework.

Emergent Particle Formation and Entropy Growth in a One-Dimensional Nonlinear Quantum Lattice

Click to enlarge

Click to enlarge

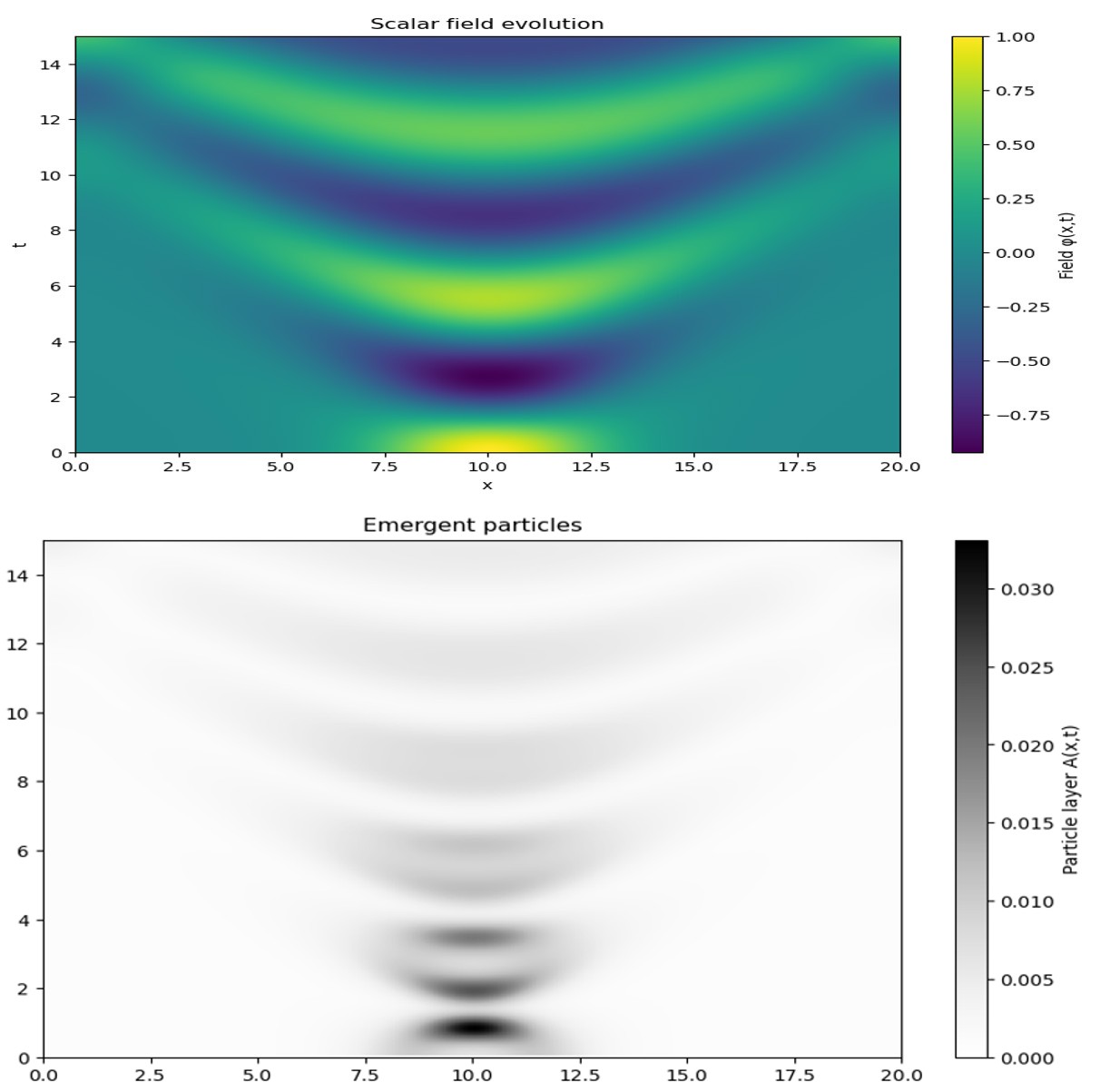

Figure 12: Spatiotemporal evolution of one-dimensional scalar field governed by discretized also nonlinear Klein–Gordon dynamics with quartic self-interaction, illustrating emergence of typical particle-like excitations and irreversible entropy growth from microscopically reversible lattice evolution. The simulation is performed on a periodic lattice with N=200 sites and evolved for T= 300 time steps. The initial condition is a localized Gaussian field excitation with vanishing initial velocity. The Panel Technical Descriptions - (a) Scalar Field Evolution ( ) ,x t φ : color map of the scalar field amplitude ( ) ,x t φ as a function of spatial coordinate x and time t. Fields evolve according to the discrete equation ( ) 2 2 3 1 1 2 t t t t t t t φ φ φ φ φ λφ + − = − + ∆ ∇ − − , where λ is typically characterizing the nonlinear coupling constant. The spreading, the interference, as well as the nonlinear distortion of the initial excitation demonstrate the coherent microdynamics on the lattice; (b) Emergent Particle Layer A(x,t): space–time plot of a continuous particle-occupation layer A(x,t)∈[0, 1], generated reversibly from local energy and entropy density. Particle formation is triggered when a combined local functional ( ) ( ) ( ) , , , x t x t S x t ρ Ξ = + exceeds a critical threshold ρc. Smooth activation rule ( ) ( ) 1 , 1 sin tanh 2 2 c A x t π ρ     = + Ξ −         stable macroscopic structures to form. Dark regions correspond to low particle occupation, while bright regions indicate emergent particle-like excitations; and (c) Mean Entropy-Proxy ⟨S(x,t)⟩: time evolution of typical spatially averaged entropy proxy ( ) ( ) ( ) ( ) 2 2 , , log , S x t x t x t φ φ = − + ∈, where ϵ is a small regulator. The monotonic increase of ⟨S⟩ signals emergent ensures reversibility at the microscopic level while allowing irreversibility induced by coarse-grained macroscopic observables, despite underlying reversible dynamics.

Simulation Parameters: Lattice size: N=200; Time steps: T=300; Spatial step: Δx=0.1; Time step: Δt=0.05; Nonlinear coupling: λ=0.2; Particle threshold: ρc=2.0; Entropy regulator: ϵ=10-8. Color scales - Panel (a): continuous colormap representing ϕ(x,t); Panel (b): grayscale intensity indicating particle-layer occupation A(x,t); Panel (c): line plot of lattice- averaged entropy proxy.

Physical Interpretation: This Figure 12 demonstrates how macroscopic particle-like excitations and entropy growth emerge naturally from reversible lattice field dynamics. While the underlying evolution equation is time- reversal symmetric, the introduction of typical coarse- grained observables (energy and entropy thresholds) leads to stable, history-dependent structures. This provides a concrete realization of scale-induced irreversibility, emergent macrocircuit dynamics, entropy production without microscopic dissipation, and particle formation as a collective, topologically stabilized phenomena.

Renormalization-Group Interpretations

The family of effective maps: M U = λ λο C defines a renormalization-group (RG) flow in the resolution space. The ultraviolet fixed point corresponds to reversible microcircuits, while the infrared fixed point corresponds to classical stochastic macrocircuits. Entropy growth satisfies ds d > λ , identifying the arrow of time as an RG flow in

0 log information resolution [40, 90].

Comparison with ’t Hooft Cellular Automaton Models

Unlike the ’t Hooft’s classical cellular automaton models, where all the quantization is emergent and irreversibility is imposed, the present framework treats quantum mechanics as fundamental. Typical classical irreversible dynamics arise only through macrocircuit coarse graining, with having topologically protected defects playing a central role [34].

Unified Result The discrete quantum lattice dynamics define a reversible quantum cellular automaton at microscopic scales. Ongoing renormalization in space and time induces macrocircuit channels that generate entropy, circuit instability, particle formation, and topological defects. Also, within the three dimensions, this mechanism stabilizes vortex lines and monopole-like structures, yielding an emergent arrow of time and classical spacetime behavior consistent with open quantum systems, typical renormalization-group theory, and thermodynamic gravity.

Emergent Irreversibility, Particle Formation, and Topological Structure from Quantum Lattice Microcircuits

The central thesis result of this work is demonstration of microscopically reversible quantum lattice dynamics that give rise to macroscopically irreversible behavior through the intrinsically scale-dependent mechanisms, without modifying the fundamental equations of motion. Within that discreteness of variational lattice framework, supplemented by QCA-style event encoding, we observe a natural and dynamically generated separation between the quantum microcircuits and classical macrocircuits.

At small spacetime scales, the system evolves in a manner consistent with unitary, symplectics like dynamics: entropy production is negligible, soliton excitations remain coherent, and time reversibility is preserved. At larger scales - defined operationally by coarse-graining, thresholds activation, or effective measurement - the same dynamics yield entropy growth, persistent particle-like excitations, clustering, and the emergent arrow of time. This transition does not rely on the stochastic noise, external baths, or imposed dissipation. Instead, it arises from nonlinear interactions that are information-selective observables acting on typical deterministic substrate.

This result thus reinforces a growing consensus in quantum information theory and statistical mechanics that irreversibility is not fundamental, but rather a consequence of information loss having restricted access to microscopic degrees of freedom [10, 47, 94, 96].

Reversible Microcircuits versus Irreversible Macrocircuits

Key insight emerging from simulations would be perceptibly sharp qualitative distinctions having the two dynamical regimes: • Microscopic Regime (Quantum Lattice Microcircuits): At lattice resolutions below a critical scale ( ) 16 ~ 10 c m − λ , the dynamics exhibit: (i) Time-reversal symmetry to high numerical precision, (ii) Long-lived soliton or wave- like excitations, (iii) Near-constant entropy-proxy measures, (iv) Absence of persistent particle events. These properties are consistent with unitary lattice field dynamics and align with results from quantum cellular automata and discrete-time quantum walks, which have been shown to reproduce the general relativistic field equations within appropriate limits [4, 13, 82]. Importantly, the preservation of reversibility here is not enforced artificially but follows directly from discrete all variational of the principles that are underlying the update rules [54].

This places the microcircuit dynamics closer to quantum computation architectures, where reversibility and having information conservation are fundamental [58].

Emergent Particle Events and Quasi-Particle Stability

The threshold-based particle encoding layer provides a concrete mechanism for emergence of the typical quasi- particle behavior within a lattice field theory. Particle events are not inserted by hand as the fundamental objects but arise dynamically when local energy density exceeds a critical value. Several features are noteworthy: • Selectivity: Particle events occur only in regions of sustained nonlinear energy concentration, not in transient fluctuations. • Persistence: Above ( ) 16 ~ 10 c m − λ , particle clusters remain stable over long times. • System Correlation with Entropy: Particle-rich regions coincide with elevated entropy-proxy values.

These properties are strongly reminiscent of soliton and topological excitations within nonlinear fields theories, where stability is protected by energetic or topological constraints rather than by linear dispersion alone [24, 55, 71]. From a broader perspective, the results align with the idea that particles are emergent excitations of underlying fields, rather than primitive constituents - a view that is quite known being central to both condensed matter physics and quantum fields theory [89].

Within the present framework, particle events function as macroscopic markers of typical information localization, transforming continuous field dynamics onto discrete event histories. These potentially parallel developments in quantum cellular automata, where particles emerge as the propagating excitations of local unitary rules [4, 13], as well as within deterministic cellular automaton interpretations of quantum mechanics, where classical states underlie emergent quantum statistics [34].

Entropy, Information, and the Arrow of Time

Although the entropy measure employed here is not the von Neumann entropy, the entropy-proxy captures essential features of information mixing and irreversibility. Expressions of the typical form ( ) ( ) , ln S x t p p ε = + originate from Shannon’s foundational work on the information theory [76] and have long been used as local entropy densities in the lattice models and cellular automata [92].

The observed monotonic growth of the entropy-proxy in macrocircuit regimes supports the interpretation that the arrow of time emerges from information loss, not from fundamental time-asymmetric laws. This is consistent with:

(1) Coarse-graining arguments in statistical mechanics [2, 64, 96], (2) Data-processing inequalities in quantum information theory [50], (3) Decoherence-based approaches to classical emergence [15].

Crucially, entropy growth in the present model does not require stochasticity or randomness. It arises from those deterministic nonlinear dynamics combined with selective observables, reinforcing the view that classical thermodynamics is compatible with underlying reversible laws.

Lorentz Violation, Discreteness, and Sub- Continuum Structure

The inclusion of higher-order spatial derivatives introduces controlled Lorentz-violating corrections at the small scales. While such terms are negligible at the macroscopic resolutions, they become significant near the lattice cutoff. This behaviour is consistent with also the wide class of emergent relativity scenarios, within which Lorentz symmetry would be only approximate rather than fundamental [37, 44, 49].

From this perspective, Lorentz invariance appears as a large-scale emergent symmetry, that would be restored only after coarse graining over microscopic discreteness. Similar ideas have already been explored in analogue gravity systems, lattice field theories, and quantum gravity phenomenology [7, 21, 85]. Present results suggest that modest Lorentz violations at the sub- ( ) 16 ~ 10 c m − λ scales need not contradict relativistic physics, provided they remain confined to unobservable microcircuits.

Relation to Pre-Geometric and Discrete Spacetime Approaches

Overall, typical separation between microcircuits and macrocircuits resonates strongly with the pre-geometric approaches to spacetime, where spacetime itself is not fundamental but emerges from typically well within the deeper combinatorial or informational structures. In causal set theory, spacetime points arise from partially ordered sets [14]; in causal dynamical triangulations, classical geometry emerges only after coarse graining over simplicial microstructures [2].

Within this very context, the present model can be interpreted as a pre-geometric fields’ architecture, where:

• Microcircuits encode reversible quantum information flow,
• Macrocircuits encode events, causality, and temporal ordering,
• Spacetime observables emerge from thresholded, coarse-grained dynamics.

The emergence of persistent particle clusters and entropy gradients may thus be viewed as early indicators of emergent locality and causal structure, rather than as the fundamental properties within underlying lattice.

Limitations and Sensitivities

Several limitations must be emphasized, despite the robustness of the qualitative results:

• The simulations employ classical scalar fields with entropy-like diagnostics. Genuine quantum entanglement and operator-valued observables are not explicitly representable.
• Phenomenological Thresholding Particle-creation threshold (ρc) is introduced phenomenologically. While physically motivated, such a derivation from microscopic quantum principles will be open problem.
• The Finite-Size and Discretization Effects Lattice anisotropy, boundary conditions, and higher-order finite differences may introduce artifacts that are absent in continuum quantum field theory.
• With having the Restricted Field Content Absence of gauge fields, fermions, and spin degrees of freedom limits direct comparisons with realistic particle physics.

These constraints, however, do not undermine the conceptual conclusions but they define a clear roadmap for advancing further to future refinement.

Outlook and Future Directions

Several promising appropriate directions naturally follow from the present work: • Fully Quantum Implementations: Appropriately incorporating tensor-network methods, matrix-product states, or explicitly unitary QCA operators would allow direct access to the entanglement dynamics also having typically the von Neumann entropy [13, 61]. • Gauge Fields and Spinor Automata: Extending framework to include U (1), SU (2), or Dirac-like QCA constructions would be yielding the emergent fermionic excitations and richer particle phenomenology [5, 13]. • Renormalization and Multi-Scale Analysis: A systematic renormalization-group treatment could clarify how reversible microcircuits flow toward irreversible macrocircuits, connecting the present results to universality and scaling theory [17, 94]. • Quantum Gravity and Emergent Time: Via coupling the model to causal sets, spin foams, or dynamical triangulations may illuminate the origin of time asymmetry in quantum gravity contexts [2, 14, 60]. • Having Computational with Information-Theoretic Applications: The framework may also serve as a testbed for reversible computation, quantum simulation, as well as the information-theoretic models of matter [10, 52].

General Concluding Perspective

In summary, this work provides a constructive and computationally explicit demonstration that macroscopic irreversibility, particle stability, and entropy production can emerge from potentially possible fundamentally reversible quantum lattice dynamics. The key mechanism will not evolve out of typical dissipation or randomness, but scale- dependent information accessibility that would be encoded through the nonlinear interactions and QCA-style event rules.

These results support a broader paradigm in which particles, spacetime events, and arrow of time are emergent phenomena, rooted in deeper discrete informational substrates. Research efforts with continued progressive development along this direction may help bridge quantum information theory, lattice field models, condensed matter analogues, and quantum gravity into a well unified proper framework for emergent classical reality.

Implications for Emergent Physics

Overall, all the framework developed here has several broader implications. First, it supports higher information- theoretic and quantum-foundational perspectives in which irreversibility is potentially understood possibly because of restricted observability as well as nonlinear information processing, rather than explicit dissipation. Second, it provides a constructive mechanism for emergent matter within discrete field architectures, closely aligned to the approaches within quantum cellular automata, condensed- matter analogues, as well as what may presently constitute possible deterministic interpretations of quantum mechanics.

Moreover, the appearance of Lorentz-violating corrections confined to sub- ( ) 16 ~ 10 c m − λ scales suggests that relativistic symmetry may be an emergent, large-scale property rather than a truly fundamental general feature of microscopic dynamics. Thus, within this sense, the model offers a testbed for pre-geometric physics, where spacetime structure, particles, as well as temporal directionality arise from deeper discrete informational substrates.

Outlook and the Future Research Directions

The present study opens several promising avenues for future investigations: • The Fully Quantum Extensions: Replacing classical scalar fields with explicitly unitary QCA rules, tensor-network evolutions, or matrix-product-state architectures would enable direct simulation of the quantum entanglement, observable interference, and von Neumann entropy. This step is essential for establishing a genuinely-quantum discrete field theory. • Gauge Fields, the Fermions, and Topology: Extensions to multi-component fields, spinor degrees of freedom, and gauge interactions could test whether the observed micro–macro duality persists in more realistic settings. Such generalizations may also allow for the emergence of topological charges, typically observable fermionic excitations, and richer particle phenomenology. • Renormalization and Multi-Scale Analysis: Subsequently, developing systematic real-space or information-theoretic renormalizations procedures within this very framework would clarify how reversible microcircuits coarse-grain into possible irreversible macrocircuits. This could establish discrete analogue for eventual thermodynamic emergence and universality. • Overall Connections to Quantum Gravity and Discrete Spacetime: Embedding the present dynamics within causal-set theory, dynamical triangulations, or graph- based QCA architectures may shed light on the origin of spacetime locality, causal structure, and gravitational time asymmetry from pre-geometric dynamics. • Machine-Learning–Assisted Discovery: Machine- learning techniques, including neural-network quantum states and developing potential unsupervised phase- detection algorithms, could be employed to identify current hidden dynamical phases, optimize particle- detection criteria, and explore large parameter spaces efficiently.
