International Journal of Forensic Sciences Research Article 13 min read

Identification of Accused from Gutkha Spitting- Success of DNA Profiling

Vaishali B Mahajan*, Deepak Y Kudekar*, Maruti S Ghuge, Amulya A Pande, Bhausaheb P More and Vijay J Thakare
* Corresponding author
ISSN: 2573-1734  10.23880/ijfsc-16000242  Received: September 24, 2021  Published: October 19, 2021
 — views
 29 references
 1 figure
 3 tables
PDF
Keywords
DNA Polymerase Chain Reaction Denaturation Allele Genotyping Gutkha
Abstract

Gutkha is specifically manufactured in India which is prepared of crushed areca nut, tobacco, catechu, paraffin wax, slaked lime, and sweet flavourings. It is consumed by placing a pinch of it between the gum and cheek and gently sucking and chewing, similar to chewing tobacco. Though many states of India have banned gutkha, some people are using it illegally. The spitting of betel leaf juice or gutkha collected from the scene of crime plays important role in forensic DNA identification. Isolation of cell material from biological traces on forensic evidence is often a serious challenge to solving forensic cases. Successful extraction of DNA from such evidence having trace quantity of cellular portion even in critically low quantity could be achieved by proper observation and collection of evidence. We have analysed two different cases in our laboratory at Nashik, one of murder and another of burglary, in which traces of gutkha were used to solve the crime. In both cases, DNA was successfully isolated from gutkha spitting, and obtained DNA profile was tallied with DNA profile of reference blood of accused. This is one of the important pieces of evidence to prove the presence of the accused at the crime scene. It is supportive evidence for the judiciary while deciding to convict the accused along with other shreds of evidence.

Vaishali B Mahajan*, Deepak Y Kudekar*, Maruti S Ghuge, Amulya A Pande, Bhausaheb P More and Vijay J Thakare

Regional Forensic Science Laboratory, India *Corresponding author: Vaishali B Mahajan, Regional Forensic Science Laboratory, Government of Maharashtra, Home Department, Dindori Road, Nashik - 440002, Maharashtra, India, Tel: +91-9881022939; Email: vaishalimahajan.nagpur@gmail.com

Introduction

In the field of forensic, the recovery of traces of body fluids is one of the important pieces of evidence to connect the crime. There are different identification methods to identify the source. Blood grouping, enzyme grouping, DNA profiling, etc is common scientific methods for identification. In some medico-legal cases like murder, child abuse, rape, and robbery, blood may be absent at the scene, but saliva in some form may be procured. Besides blood, the blood group antigens are also secreted in various other body secretions, such as saliva, semen, gastric juice, nasal secretions, vaginal secretions, sweat, tears, urine, etc., from which blood groups can be determined [1]. This greatly helps in determining the blood group of a victim or a suspect. In such cases, saliva may be obtained in dry forms from crime scene articles like cigarette ends [2], bidi butts, tile, floor, wall, grass, glasses, cups, envelope flaps [3, 4, 5, 6, 7], bite marks, dental appliances, etc [8].

However, the presence of blood group substances in various body secretions depends on whether the individual is a secretor or a non-secretor, which can be determined by the presence of Lewis antigen [9]. Stains of dried saliva are invisible, making its recognition and collection difficult. However, the presence of saliva can be confirmed by an amylase assay [10]. If the sample is in trace form, the best way to go is for DNA profiling which gives the exact identity of the perpetrator.

DNA profiling came into use around three decades ago, in the late 1980s. It was first developed in England in 1985 by Sir Alec Jeffreys [11, 12]. It has been a useful tool in law enforcement as it works both ways, securing correct convictions and also exonerating the innocent. Furthermore, DNA profiling unlike other, forensic evidence can be collected easily and sustains for a long thereby increasing chances of accurate analysis by manifold. It has become an important method for human identification by introducing the study of microsatellite regions – Short Tandem Repeats (STR) Loci in criminal and civil cases [13, 14, 15]. The STR fragments are separated and detected by using capillary electrophoresis. Certain regions of DNA contained repeated DNA sequences. The regions with repeat units that are 2-6 base pairs in length are called Short Tandem Repeats. The first STR multiplexes developed was quadruply created by Forensic Science Services (FSS) that comprises four STR Loci [16]. Short tandem repeat (STR) analysis is regularly performed for generating DNA profiles from blood, saliva, and hair samples encountered as evidence to solve the crime [17, 18].

Our forensic laboratory had received two different cases. One of murder and another of burglary. In the case, ‘I’ which was of murder, the accused brutally killed his cousin’s father in law for the property issue. He tied one leg of the deceased to the banana plant with cloth and with the help of sickle he cut his neck separating the head from the body. Police seized the clothes of the accused and deceased. Our forensic team visited the crime scene and found gutkha spitting on nearby banana leaves. They collected those pieces of leaves for saliva detection and to ascertain the presence of the accused at that crime scene. Bloodstains on clothes were analyzed in biology division with blood grouping. But as the gutkha spitting stains were in trace quantity and it was difficult to obtain a blood group of saliva mixed with gutkha, we analyzed it using the DNA profiling technique to find out whether the accused is the source of it. We had received reference blood of the accused in a DNA kit provided by our laboratory for comparison. The DNA profile from gutkha and reference blood of the accused matched.

In the case ‘II’ which was of burglary, two suspects broken lock of the door, grill gate and three cupboards in the house and stolen gold and silver ornaments worth about 3 lacks. During the visit to the crime scene, our forensic team collected gutkha spitting on the bedsheet and wall of the bedroom where the cupboards were present. A DNA profile was obtained from gutkha spitting on a bedsheet matched with a DNA profile of reference blood of one of the accused.

In both cases, traces of saliva present in gutkha with the help of DNA profiling concluded the presence of the accused at the crime scene.

Materials and Methods

Instruments and chemicals used for DNA analysis were as follows:

  • PrepFiler Express DNA extraction kit. Lot No. 1807201.
  • AmpFlSTR® Identifiler kit. Lot No. 1807261
  • HiDi Formamide.
  • Liz 600 Size standard.
  • Quantifiler Duo DNA kit. Lot No. 1710101.
  • AutoMate ExpressTM Forensic DNA Extraction System. Catalog number: 4441763
  • PCR thermal cycler GeneAmp 9700. Catalog number: 4375786
  • 3500 Genetic Analyzer. Catalog number: 4406017 Traditional workflow for generating DNA profiles includes the below steps: 1. Extraction of DNA from body samples found on different substrates. 2. Quantification of extracted DNA 3. Amplification of DNA using polymerase chain reaction (PCR) based STR reactions 4. Denaturation of amplified DNA 5. Genotyping using short tandem repeat (STR) technique 6. Analysis and comparison of generated DNA profiles. 7. Nowadays, advanced instruments such as AutoMate Express and EZ1 Advanced which work on robotic principles are helpful to minimize the analysis time. Commercially available kits for amplification of DNA allow the faster turn- around time [19, 20].

Isolation of DNA

As the spitting sample on banana leaves in case I and on the bedsheet and wall in case II was in trace quantity, testing for saliva using traditional biological methods had been avoided. It had the possibility of a loss of sample in testing. Spitting sample from leaf, bedsheet, and the wall was carefully collected on a small portion of cotton swab soaked in PBS buffer. It was taken in a 2 ml centrifuge tube for DNA extraction. For extraction of DNA, the PrepFilerTM Forensic DNA extraction Kit (Applied Biosystems) was used. It enables the isolation of DNA from biological samples that contain small quantities of biological material in such a way that it removes the substances interfering with PCR. Additionally, the extracted DNA is having a sufficiently high concentration due to which the volume of extract for downstream analysis is minimal [21].

For the reference profile, a 40 μl blood sample of suspects in both cases was taken into another microcentrifuge tubes. 500 μl Lysis buffer from PrepFiler Express F DNA extraction kit [22] was added to all the sample tubes. The sample tubes were kept on a thermoshaker at 750 rpm at 70˚C for 40 min. The tubes were then centrifuged at 10,000 rpm for 2 min. Cartridges from the PrepFiler Express F DNA extraction kit were loaded to the cartridge rack in AutoMate Express DNA extraction system [23], Sample tubes, elution tubes, and tips were loaded as per machine guidelines and the machine program was run as per the recommended machine protocol. After completion of the program, elution tubes containing extracted DNA in highly pure form were stored at 4˚C till the next PCR amplification process.

Quantification of the Extracted DNA

Extracted DNA was quantified using Quantifiler® Duo DNA Quantification Kit [24] on an Applied Biosystems 7500 Real-Time PCR System according to manufacturer- recommended protocols. Quantified DNA was taken for downstream application.

PCR based STR Analysis

The quantified DNA extracted from the gutkha spitting samples from the crime scene and reference blood samples of suspects in both the cases was processed for Polymerase Chain Reaction using the AmpFlSTR® Identifiler PCR Amplification Kit (Applied Biosystems) [25] with the help of PCR thermal cycler GeneAmp 9700 [26] following the protocols recommended by the manufacturer. This kit contains a Reaction mixture, Primer set, and Taq Gold Polymerase enzyme. Primer Set contains locus-specific 6-FAMTM, VICTM, NEDTM, and PETTM dye-labeled and unlabeled primers in the buffer. The primers amplify the STR loci CSF1PO, D2S1338, D3S1358, D5S818, D7S820, D8S1179, D13S317, D16S539, D18S51, D19S433, D21S11, FGA, TH01, TPOX, vWA, and gender marker Amelogenin.

The reaction mixture used for PCR was prepared by adding Reaction mix 10.5 μl, Primer set 5.5 μl, and Taq Gold DNA Polymerase 0.55 μl. The extracted DNA sample of 10 μl was added to it. The DNA was amplified in 28 cycles using a PCR machine selecting 94.0 ºC, 59.0 ºC, and 72.0 ºC as temperatures of denaturing, annealing, and extension respectively (Table 1) (Figure 1).

StepAmpliTaq Gold Enzyme
Activation		PCRPCR Final
Step		PCR product till
separation of STRs
HoldCYCLE (28 cycles)Hold
DenaturationAnnealExtend
Temp95˚C94 ˚C59 ˚C72 ˚C60 ˚C4 ˚C
Time11 min1 min1 min1 min60 min∞

Table 1: PCR protocol.

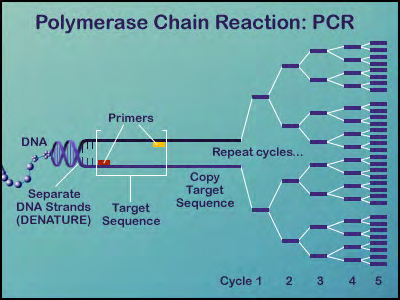

Figure 1: The amplified DNA samples were kept at 60.0 ºC for an hour and then at 4.0 ºC till the separation of STRs. PCR produces millions of DNA fragments of different sizes. Amplified products were separated and detected using 3500 Genetic Analyzer [27] and analyzed using GeneMapper® ID-X Software V 1.5. The separation of different fragments of DNA molecules based on their sizes was achieved by capillary electrophoresis. Simultaneous amplification of 16 STR Loci was completed and analyzed [28,29]. DNA profiles obtained were interpreted by comparing them with each other.
Click to enlarge
Figure 1: The amplified DNA samples were kept at 60.0 ºC for an hour and then at 4.0 ºC till the separation of STRs. PCR produces millions of DNA fragments of different sizes. Amplified products were separated and detected using 3500 Genetic Analyzer [27] and analyzed using GeneMapper® ID-X Software V 1.5. The separation of different fragments of DNA molecules based on their sizes was achieved by capillary electrophoresis. Simultaneous amplification of 16 STR Loci was completed and analyzed [28,29]. DNA profiles obtained were interpreted by comparing them with each other.

Figure 1: The amplified DNA samples were kept at 60.0 ºC for an hour and then at 4.0 ºC till the separation of STRs. PCR produces millions of DNA fragments of different sizes. Amplified products were separated and detected using 3500 Genetic Analyzer [27] and analyzed using GeneMapper® ID-X Software V 1.5. The separation of different fragments of DNA molecules based on their sizes was achieved by capillary electrophoresis. Simultaneous amplification of 16 STR Loci was completed and analyzed [28, 29]. DNA profiles obtained were interpreted by comparing them with each other.

Results and Discussion

The extracted DNA from all the samples were typed at 15 STR Loci and gender-specific Amelogenin locus using the PCR amplification technique. IdentifilerTM PCR kit of applied biosystems was used for DNA profiling. The following table shows 15 STR loci and one amelogenin locus which shows the gender of a person. Alleles obtained at every locus of crime scene sample are compared with alleles obtained from a reference blood sample of suspects (Case I-Table 2) and (Case II-Table 3).

STR LocusGENOTYPE
Pieces of banana leaf with reddish color stains of gutkha
spitting (Crime scene)		Blood
(Suspected accused)
D8S117913,1413,14
D21S1130,32.230,32.2
D7S8208,118,11
CSF1PO12,1312,13
D3S135816,1716,17
THO18,98,9
D13S31712,1212,12
D16S5399,99,9
D2S133819,2419,24
D19S43314,16.214,16.2
vWA15,1615,16
TPOX8,108,10
D18S5112,1612,16
AMELOGENINX,YX,Y
D5S81810,1210,12
FGA22,2622,26

Table 2: DNA profiles obtained from saliva in gutkha spitting on a banana leaf (Case I) and reference blood of suspected accused.

STR LocusGENOTYPE
Gutkha stains from Bedsheet
(Crime scene)		Blood
(Suspected accused I)		Blood
(Suspected accused II)
D8S117913,1513,1514,14
D21S1131.2,32.231.2,32.229,32.2
D7S8208,98,910,12
CSF1PO11,1211,1210,11
D3S135815,1515,1514,16
THO16,86,86,6
D13S31711,1111,1112,12
D16S53911,1211,129,11
D2S133819,2419,2423,24
D19S43315,15.215,15.213,14.2
vWA17,1817,1816,18
TPOX8,118,118,10
D18S5114,1414,1416,26
AMELOGENINX,YX,YX,Y
D5S81811,1311,1312,12
FGA20,2320,2320,21.2

Table 3: DNA profiles obtained from saliva in gutkha spitting on Bedsheet (Case II) and reference blood of two suspects.

In case I, the DNA profile obtained from saliva in gutkha spitting on banana leaf at crime scene found to be of male origin having XY alleles at Amelogenin locus matched at every locus with DNA profile obtained from a reference blood sample of male suspected accused.

In case II, the DNA profile obtained from saliva in gutkha spitting on a bedsheet at the crime scene was found to be of male origin having XY alleles at Amelogenin locus matched at every locus with DNA profile obtained from a reference blood sample of male suspected accused I.

Conclusion

Mostly the reasons behind the murder are property issues, money matters, or illegal relationships. In the case, I, accused brutally murdered his cousin father in law for their property matter. He separated the head of the deceased from the body with sickle and body found to be tied with a banana plant with a cloth. Such a heinous crime should get proved in a court of law to punish the accused strongly. To control such crimes, it is necessary to provide strong evidence in the court to increase the conviction rate. In case II, both the accused had a habit of stealing as they had thus looted a lot of places. It was necessary to provide evidence in court to prove them accused. It is the skill of the analyst to get the DNA profile from the available biological samples without wasting it. Further, if the sample is received to the laboratory in proper condition, it becomes somewhat easy to perform the analysis. This is one of the most helpful techniques to solve complicated heinous crimes. As there were no eyewitnesses, DNA profiling from gutkha spitting proved the presence of the accused at the crime scene. This is one of the important pieces of supportive evidence to strengthen the conviction of the accused in court.

Acknowledgment

We are thankful to the Director-General, Legal and Technical, Mantralaya, Mumbai, Home Department, Government of Maharashtra, India for his guidance and encouragement all the time extended to us.

References

  1. Neiders ME, Standish SM (1977) Blood group determinations in forensic dentistry. Dent Clin North Am 21(1): 99-111.
  2. Hochmeister MN, Budowle B, Jung J, Budowle B, Jung J, et al. (1991) PCR-based typing of DNA extracted from cigarette butts. Int J Leg Med 104: 229-233.
  3. Barbaro A, Carmaci P, Teatino A, Marca ALa, Barbaro A (2004) Anonymous letters? DNA and fingerprints technologies combined to solve a case. Forensic Sci Int 146: S133-S134.
  4. Hopkins B, Williams NJ, Webb MBT, Debenham PG, Jeffreys AJ (1994) The Use of Minisatellite Variant Repeat—Polymerase Chain Reaction (MVR-PCR) to Determine the Source of Saliva on a Used Postage Stamp. J Forensic Sci 39(2): 526-531.
  5. Sajantila A, Budowle B (1991) Identification of Individuals with DNA Testing. Ann Med 23(6): 637-642.
  6. Sweet D, Hildebrand D (1999) Saliva from cheese bite yields DNA profile of burglar: a case report. Int J Legal Med 112(3): 201-203.
  7. Sweet D, Lorente M, Valenzuela A, Lorente JA, Alvarez JC (1996) Increasing DNA extraction yield from saliva stains with a modified Chelex method. Forensic Sci Int 83(3): 167-177.
  8. Motghare P, Kale L, Bedia AS, Charde S (2011) Efficacy and Accuracy of ABO Blood Group Determination from Saliva. J Indian Acad Oral Med Radiol 23(3): 163-167.
  9. Dacie JV, Lewis SM (1975)  The human red cell blood groups and the identification of the blood group antigen and antibodies. 5th (Edn.),  In: Practical hematology, Edinburgh and New York: Churchill Livingstone, pp: 356.
  10. Hochmeister MN, Rudin O, Ambach E (1998) PCR analysis from cigarette butts, postage stamps, envelope sealing flaps, and other saliva-stained material. In: Lincoln PJ, Thomson J (Eds.), Forensic DNA profiling protocols. Totowa: Humana Press, pp: 27-32.
  11. Jeffereys AJ, Wilson V, Thein SL (1985) Individual- specific “fingerprints” of Human DNA. Nature, pp: 316: 76-79.
  12. Jeffreys AJ, Brookfield JFY, Semeonoff R (1985) Positive identification of an immigration test-case using human DNA fingerprinting. Nature 317: 818-819.
  13. Buttler JM (2009) Fundamentals of Forensic DNA Typing 1st (Edn.). Elsevier Academic Press.
  14. Gill P (2002) Role of Short Tandem Repeat DNA forensic casework in the UK. Past, present, and future perspectives. Biotechniques 32(2): 366-368.
  15. Butler J (2006) Genetics and genomics of core short tandem repeat loci used in human identity testing. J Forensic Sci 51(2): 253-265.
  16. Kimpton C, Fisher D, Watson S, Adams M, Urquhart A, et al. (1994) Evaluation of an automated DNA profiling system employing multiplex amplification of four tetrameric STR loci. Int J Legal Med 106: 302-311.
  17. Collins PJ, Hennessy LK, Leibelt CS, Roby RK, Reder DJ, et al. (2004) Developmental validation of a single- tube amplification of the 13 CODIS STR loci, D2S1338, D19S433, and amelogenin: the AmpFlSTR Identifiler PCR amplification kit. J Forensic Sci 49(6): 1265-1277.
  18. Mahajan VB, Kharade AP, Kudekar DY, More BP, Kulkarni KV (2019) Jot of Blood Sends Constable behind the Bars - Justice by DNA Profiling. Ann Clin Lab Res 7(2): 305.
  19. Wang D, Chang C, Oldroyd N, Hennessy I (2009) Direct amplification of STRs from blood or buccal cell samples. Forensic Sci Int 2(1): 113-114.
  20. Wang D, Chang C, Lagace R, Calandrol I, Hennessy I (2012) Developmental validation of the Amp FℓSTR® Identifiler® Plus PCR Amplification Kit: an established multiplex assay with improved performance. J Forensic Sci 57(2): 453-465.
  21. Brevnov MG, Mundt J, Benfield J, Kalusche G, Meredith J, et al. (2009) Automated Extraction of DNA from Forensic Sample Types Using the PrepFiler Automated Forensic DNA Extraction Kit. JALA 14(5): 294-302.
  22. Brevnov MG, Pawar HS, Mundt J, Calandro LM, Furtado MR, et al. (2009) Developmental validation of the PrepFiler Forensic DNA Extraction Kit for extraction of genomic DNA from biological samples. J Forensic Sci 54(3): 599-607.
  23. Jason Liu Y, Zhong C, Holt A, Lagace R, Harrold M, et al. (2012) AutoMate ExpressTM Forensic DNA Extraction System for the Extraction of Genomic DNA from Biological Samples. J Forensic Sci 57(4): 1022-1030.
  24. Barbisin M, Fang R, O’Shea CE, Calandro LM, Furtado MR, et al. (2009) Developmental validation of the Quantifiler Duo DNA Quantification kit for simultaneous quantification of total human and human male DNA and detection of PCR inhibitors in biological samples. J Forensic Sci 54(2): 305-319.
  25. (2001) AmpFlSTR® Identifiler® PCR amplification kit. Applied Biosystems.
  26. Mullis K, Faloona F, Scharf S, Saiki R, Horn G, et al. (1986) Specific enzymatic amplification of DNA in vitro: the polymerase chain reaction. Cold spring Harb Syma Quant Biol 51(1): 263-273.
  27. (2010) Applied Biosystems 3500/3500XL Genetic Analyzer User Guide. Applied Biosystems, HITACHI.
  28. Budowle B, Allen RC (1998) Analysis of amplified fragment length polymorphism (VNTR/STR Loci) for human identity testing. Methods Mol Biol 98: 155-171.
  29. Gill P, Kimpton CP, Urquhart A, Oldrod N, Millican ES, et al. (1995) Automated short tandem repeat (STR) Analysis in forensic casework-a strategy for the future. Electrophoresis 16(9): 1543-1552.
