Remote Sensing Application for Tall Oil Palm Harvester

Basic Parts/Tools of Remote Sensing for Tall Oil Palm Harvester

With a broad coverage, remote sensing is atechniquefor timely, reliable, and accurate information about the Earth’s surface. It is an effective way to keep track on the development of oil palms. As shown below, remote sensing can help with decision-making for effective plantation management and can be used to investigate how oil palm plantations affect the environment. Since it became one of the enduring elements on the land for agricultural purposes, the oil palm is an element of interest for remote sensing applications. To monitor land use changes cost-effectively and sustainably, remote sensing has become necessary. On the other hand, several oil palm remote sensing applications are still in the research and development phase. Traditional surveying techniques are used in the current monitoring activities. Additionally, there is insufficient cooperation between academia and industry to advance the sustainability of palm oil. This lack of cooperation may be caused by a lack of knowledge of the methods and sensitive information involved in the industrial side’s successful palm oil production. For remote sensing to be used effectively, the divide between academia and industry must be closed. While exploring the potential of remote sensing in oil palm cultivation, application- focused research using the technique could be profitable for the sector. These studies aim to address or lessen some of the major issues that the oil palm industry is currently dealing with, such as illegal deforestation, the spread of disease or pests, the identification of nutrient deficiencies, yield estimation, palm counting, and the monitoring of oil palm-induced environmental degradation. To enable early detection and ongoing monitoring of these issues, remote sensing is a beneficial technique. The innovation named E-Cutter is an electric scythe technology that has a special generator that is light, saves energy and is capable of picking palm oil fruits and cutting palm oil fronds up to a height of about 40 feet. E-Cutter is a complement to existing oil palm harvesting tools that use manual methods such as harvesting poles or scythes. This innovation is an improvement to the ‘cantas’ technology by replacing the mechanical concept with electricity which is more economical and environmentally friendly based on finding Ahmad H, et al. [1]. The sickle will vibrate to cut the palm fronds or fruit. It is developed through a system that combines an electric generator and a motor. Double Standard Generator which has high power density is used as a generator. It is light and small but high power and is a portable tool for farmers to use. It also has a collection system to minimize injury to the fruit that can affect the quality of the processed oil.

Concepts of Remote Sensing Application for Tall Oil Palm Harvester

Land cover classification: Growing oil palms for their fruit is a huge industry. Learning where oil palms are located is useful in several contexts. The term “land cover” refers to the variety of plants and animals that make up Earth’s surface. Oil palms are easily recognisable as a physical feature on Earth and may be located remotely using sensors. The oil palm can be distinguished from neighbouring forest, buildings, bare ground, water, and other agricultural crops by classifying items according to their land cover classes [2]. It enables precise boundary delineation and area estimates of oil palm plantations. When used in a time series study, it can help find instances of oil palm growth and other land use changes. Optical imaging captures energy reflected from the ground in the visible and near-infrared (NIR) spectrum. Depending on the sensitivity of the sensor, data can be gathered from the sun at various wavelengths across the electromagnetic spectrum (e.g., blue, green, red, red edge, NIR, and infrared band). Spectral intensities are thus altered by the variety of land surfaces. Distinct types of land cover can be recognised by evaluating the reflected energy and sorting it into categories based on their spectral characteristics.

Using a spectral angle mapper, it was determined that the NIR band provides the highest contrast between oil palm crowns and the background Shafri, et al. [3]. The Bhattacharyya Distance was used in a spectral separability test to quantify the best separability classifier. Landsat 7 ETM + red (band 3), near-infrared (band 4), and mid- infrared (band 5) wavelength bands were shown to have the highest distinguish ability between oil palms. Possible causes include high absorption by chlorophyll in the red band and high absorption by water in the infrared band Nooni

et al. [2]. The spectral separability of oil palms from their surrounding land cover is further improved by combining study of these bands by comparing the outcome. Vegetation indices characterise vegetation in terms of its greenness and can be obtained by changing values bands. The Normalized Difference Vegetation Index (NDVI) is a standard measure of plant health that is calculated by comparing near-infrared to red light at the same wavelength.

As a type of active remote sensing, microwaves may generate their own penetrating irradiation and send imagery regardless of the time of day or the weather. Cloud cover is a major obstacle for optical remote sensing, and this was resolved. This was especially helpful in tropical nations where oil palms are commonly cultivated. Using the energy that is reflected from the earth, it can produce useful data. The penetrating power of a microwave increases with its wavelength. Also, by analysing the surrounding pixels, we can learn about the lit target’s texture. This data could be used to differentiate between smooth surfaces like water or dirt and rough ones (like plants or trees) based on their radar wavelength [4]. When the limitations of each source of data are addressed, the combining or fusion of multidimensional data has the potential to provide a more complete picture of the target surface [5].

Change detection: Because of the categorization work done, multi-temporal analysis may now be used to detect changes. To maximise profit, irresponsible forest clearing has occurred to make room for oil palm plantations. There is widespread agreement that the cultivation of oil palms is a major contributor to environmental destruction due to the clearance of forest land, it causes problems in the social order, the carbon cycle, and biodiversity [6]. However, it’s important to highlight that not all oil palm land conversions are unsuitable. If social and environmental considerations are considered, it is even advocated that certain fallow or degraded lands be converted to oil palm to enhance palm oil production. Research into the identification of changes is especially important in the context of oil palm monitoring, where the detection of oil palm expansion and its effects is of paramount importance.

As part of its mission to preserve and protect the world’s natural resources and biodiversity, the Roundtable on the Sustainability of Palm Oil (RSPO) employs remote sensing in change detection to determine whether oil palm plantations were previously converted from high conservation value (HCV) forest RSPO [7]. High Conservation Value (HCV) forests are those that are extremely important on a national, regional, or even global scale due to their biological, social, or cultural significance [8]. Unauthorized land use changes are tracked by remote sensing. Anyone who violates these terms should lose their sustainability certification or face severe financial consequences. Remote sensing services for checking whether a region’s land cover has altered in accordance with the RSPO standard are increasingly being provided by non-governmental organisations (NGOs).

A land cover map is analysed throughout time to see if any areas have been converted to oil palms, and only then is the plan put into action. For this purpose, it is common practise to examine historical records and make comparisons between the “before” and “after” states. Standard remote sensing packages typically include a change detection analysis that may be used to view the transformations. Deforestation, urbanisation, and oil palm plantation expansion can all be revealed through the graphic. Classification based on a single or several data sources yields a land cover map, the precision of which is typically crucial to the success of a change detection strategy. A land cover map is analysed throughout time to see if any areas have been converted to oil palms, and only then is the plan put into action. For this purpose, it is common practise to examine historical records and make comparisons between the “before” and “after” states. Standard remote sensing packages typically include a change detection analysis that may be used to view the transformations. Deforestation, urbanisation and oil palm plantation expansion can all be revealed through the graphic. Classification based on a single or several data sources yields a land cover map, the precision of which is typically crucial to the success of a change detection strategy.

Tree counting: Yield estimation and monitoring, replanting and layout design, etc. all rely heavily on accurate and thorough tree counts. But doing it on a large scale in the field is time-consuming and expensive. Human mistake is a common occurrence. Most plantations just make estimates based on the entire area multiplied by the palms per hectare, which is obviously not true due to the varied topography such as hilly, undulating, or flat and features of the plantation’s location such as river, land, or forest. A solution to this problem is remote sensing, which allows for an automated tree count and a bird’s-eye perspective of the plantation.

Automated tree counting typically makes use of image processing methods including object segmentation, classification, and identification. Choosing a single algorithm or method might be challenging because different studies take different factors into account. The input photos must be of excellent quality, have a high spatial resolution, and have a clear field of view to produce correct findings. Additionally, it’s important to note that this region for tree counting research is an excellent beginning for the introduction of precision agriculture in the oil palm business. To maximise yield while minimising up keep expenses, this method goes above and beyond site- and tree-specific treatment of oil palms. Reduced waste of fertilisers and chemicals like pesticides and herbicides is a bonus, and it also helps with budgeting.

To identify oil palms at the level of individual trees, a very high spatial resolution image is required. To automate the process of tall-tree counting using high-resolution with 1-meter air borne hyper spectral images, a strategy was devised to use several techniques, including texture analysis, edge enhancement, morphology analysis, and blob analysis [3]. Unmanned aerial vehicles (UAVs) are becoming increasingly popular as a means of data collection for tree counting applications since such applications require high- resolution spatial imagery but may not always require a comprehensive survey area [9]. Major plantation firms in Malaysia and Indonesia already routinely employ UAV applications in oil palms, with each company maintaining its own UAV team. A method was created using normalised cross- correlation to identify and exclude non-oil palm components in a study of tree counts based on UAV platform generated data from an oil palm farm in Thailand. Furthermore, template matching, and multi-scale clustering methods are used to distinguish each oil palm from a bush. Automatic tree counting was accurate to within 10% using a digital camera mounted on a remote UAV.

Age estimation: Given that the age of a plant affects both its quality and yield, it can be used as a reliable indicator of yield. Additionally, precision agriculture relies on information about oil palms’ages to identify outliers within a given age group, at which point corrective management methods can be planned for and resource allocation can be optimised. Overall, knowing a tree’s age accurately is crucial for both academic and practical reasons, as it impacts the tree’s output [10]. Because oil palms develop in a specific pattern, this physical characteristic can be used as a proxy for their age. The trunk of an oil palm tree thickens during its first two years of life, and then its height quickly expands after that without any further thickening. The average yearly height growth of a mature palm tree is 30-60 cm, and its trunk diameteris typically 40 cm. When oil palmsare originally planted in a field, their ageis typically documented by giving the field the year in which it was established as normal management practise. Such details, especially those pertaining to the activities of small holders, are unfortunately unavailable to the public and too time-consuming to collect and verify.

The height of an oil palm tree never plateaus. This maturation characteristic is critical for age assessment of oil palms. Throughout its lifetime, an oil palm can grow between 30 and 60 centimetres each year, depending on its environment and genetic makeup. Several types of remote sensing techniques, such as Light Detection and Ranging (LiDAR) and Interferometry Synthetic Aperture Radar (InSAR), can be used to retrieve height information (InSAR). Using just field-measured data, a robust linear association between oil palm height and age has been found. It has been demonstrated that oil palm height may be used as a reliable indication of age. Because oil palm trunks do not thicken after the first two years of growth, the link between age and other biophysical factors like diameter at breast height becomes negligible [11].

Advantages of Remote Sensing for Tall Oil Palm Harvester

• Large area coverage in oil palm. It is because remote sensing allows coverage of very large areas which enables regional surveys on a variety of fruit and identification of the quality of the fruit.
• Remote sensingallows repetitive coverage which comes in handy when collecting data on the harvesting of oil palm
• Remote sensing allows for the easy collection of data over a variety of scales and resolutions to harvest the oil palm.
• A single image captured from the higher oil palm through remote sensing can be analysed and interpreted for use in various applications and purposes.
• Data collected through remote sensing is analysed at the laboratory which minimizes the process of harvesting that needs to be done in the field.
• Increases efficiency – Remote sensing’s capacity to boost productivity is one of its primary benefits. Remote sensing is a useful tool for pin pointing the origin of an issue. Aside from only pinpointing trouble spots, remote sensing can also be utilised to make educated guesses about the future based on the present.
• Provides accurate measurements – Remote sensing has allowed farmers to take precise measurements of a wide range of environmental parameters. They were able to quickly harvest the oil palm thanks to these precise measures. Farmers can utilise remote sensing to keep tabs on how the weather, human activity, and climate change are affecting their crops and livestock.

Limitation of Remote Sensing for Tall Oil Palm Harvester

The inability to accurately assess physical characteristics like temperature, humidity, and wind speed and direction is remote sensing’s biggest drawback. Soil moisture content cannot be directly measured by remote sensing. Realizing the method’s limitations: Its usefulness is often overestimated, which is the largest limitation. Scientific research requires more data than what can be gathered solely through remote sensing. You must pick the right sensors, resolutions, data gathering time, and post-processing procedures for these tools and strategies to work. Expensive method Due to the specialized equipment and expert interpretation needed, remote sensing data is difficult to gather and analyse. Despite this drawback, the technique’s immense rewards are worth the effort.

Harvesting Robot

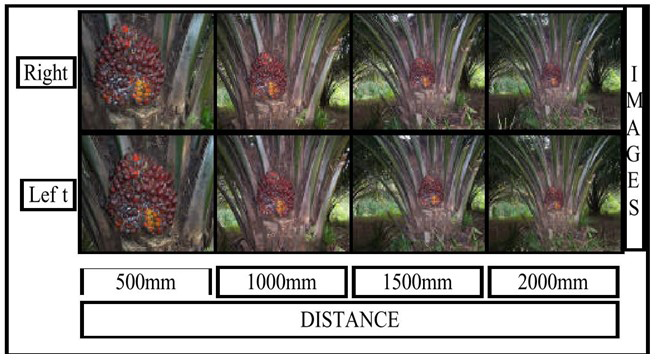

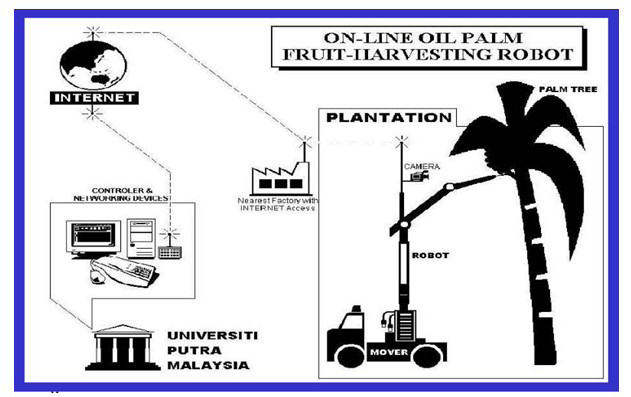

Remote sensing also becoming the element that attached together with the harvesting robot. According to Wan Ismail [13], it has been introduced in year 1992 when UPM students start conducted research on oil palm harvesting machinery. The manipulator, the controller, the power supply, and the end-effector are the basic parts of a robot system. The robotic system’s manipulator performs the mechanical task. A manipulator’s movement is managed by drive systems or actuators. Pneumatic, hydraulic, or electric power can all be used in the drive system. Robot eye is the component of remote sensing which it is involve the camera vision usage. Robot vision research aims to make it possible for robots to replicate human vision in order to comprehend and analyze real-time image sequences. In order to direct the end-effector to the required position and orientation using computer vision or image processing, a vision device is typically attached on the robot. The problem in creating a full vision system that can automatically recognize the color of the item is due to the differences in illumination intensity from time to time and location to place. Figure 2 indicates the concept of oil palm harvesting robot that has been designed by UPM students.

Click to enlarge

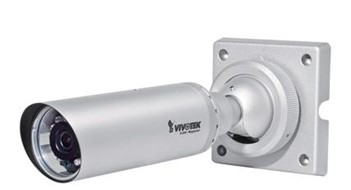

Based on the study, this mechanization is capable to reduce man power, lighten burden, increase productivity as well as making the harvesting job more interesting than usual. RGB camera is the element of remote sensing that included as the robot eye in identifying desired FFB to be harvested. The image captured then being transferred by using Internet of Things elements. Until now, the initial costs are the only barrier that most farmers are hard to adapt. Therefore, much research has been designed and implemented to tackle the barrier and to add the value to the machine.

Intelligent Colour Vision System

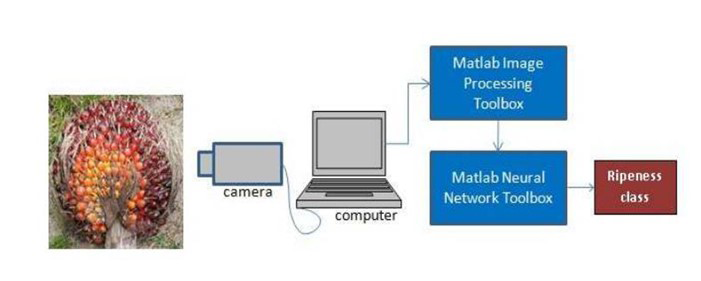

Malaysian Palm Oil Board (MPOB) has established fifteen classes of FFB in the grading of oil palm in palm oil mills such as ripe, underripe, unripe, overripe, empty, rotten, long stalk, unfresh/old, dirty, small, pest damaged, diseased, dura, loose fruit, and wet. Usually most studies only focus on certain grading such as ripe, unripe, and underripe. According to Norasyikin Fadilah [14], intelligent color vision system inspection in assessing every stage in fruit ripeness. The intelligent color vision system consisted of a camerafor image acquisition and a computer for data storage, image pre-processing and ANN classification. The camera type is Vivotek IP8332 Network Bullet Camera where the specifications is 0 lux, 1.0 M pixels, F1.8 (Picture 1) and this camera was chosen due to its ability to adapt to constantly changing outdoor lighting conditions. In Figure 3 shows that the camera was used to acquire the image of oil palm FFB. The images taken from camera will be stored in a computer for the next processing (Figure 4).

Click to enlarge

Click to enlarge

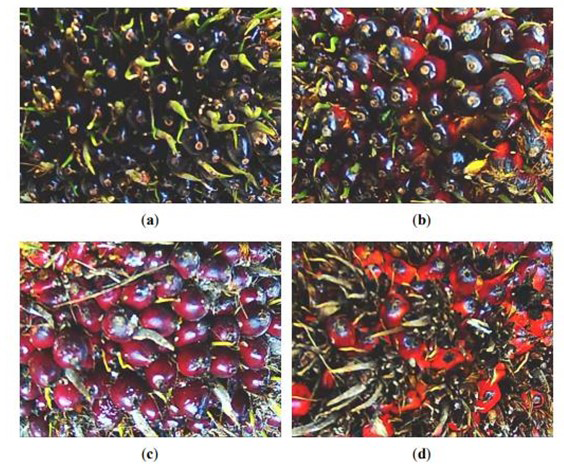

This image will show the different ripeness for each category. Secondly, the images were processed using digital image processing technique to obtain color features of the fruits. Thirdly, after obtained for each image, color features were extracted and appear in computer. And the last, the fruit will be classified for ripeness class of oil palm FFB and ready to harvest it. Four sample images from different ripeness categories are shown in Figure 5 using intelligent color vision system. The unripe fruits are in deep violet to black. As the fruits ripen, they turn red. The overripe oil palm FFB shows that most of the outer fruits are gone, and the inner fruits are orange in color.

Click to enlarge

Fibre pole

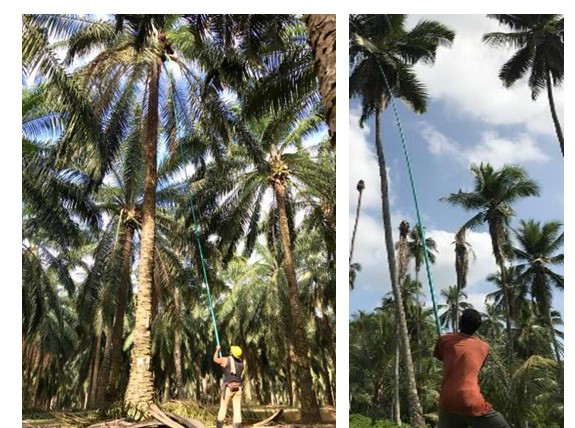

PalmPro Graphite harvesting poles are unique in that they have been custom-built to make life easier for harvesters. Made from incredibly lightweight materials these are nonetheless impressively sturdy. PalmPro ® poles can cut a harvester’s workload in half, enabling them to become more productive than ever. Harvesting fruits from tall palm oil is one of the most common agricultural pursuits, yet it is one that remains a chore for many harvesters to this day. Traditional harvesting poles are notoriously unwieldy and difficult to maneuvers; many poles are not even capable of reaching the heights necessary to collect the best and juiciest fruits without causing strain and potential injury to the harvester (Figure 6).

Click to enlarge

The main features of this fibre pole are super light, telescopic, durable and last-longer, high stiffness, less slippery, non-conductive pole and repairable. There also several benefits for this pole which are solves the current difficulty of using heavier aluminums poles or bamboo, allow workers to harvest tall oil palms, up to 18m (60ft) easily, boosts productivity by 30% and helps to solve the issue of low harvester number, helps harvesters recover rotten and damaged bunches that went unharvest, shorten the intervals between harvesting and reduces the quantity of loose fruit and all type of harvesting cutter suitable for Palm Pro pole (Figure 7).

Motorized Engine Harvester (Cantas)

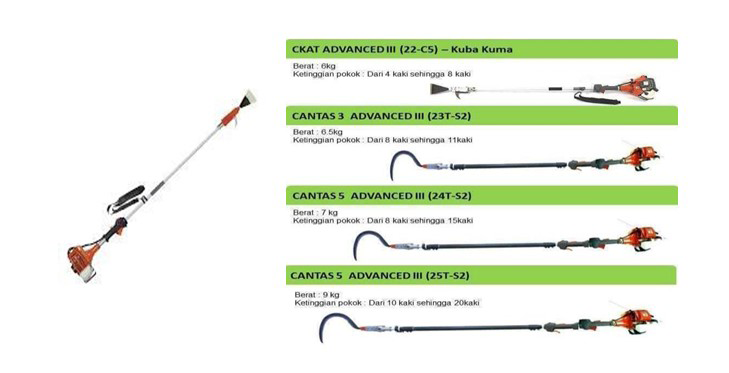

The Malaysian Palm Oil Board (MPOB) has developed a motorized cutter popularly known as Cantas™ for harvesting fresh fruit bunches (FFB) at less than 4.5 m height. Cantas™ is a hand-held cutter powered by a 1.3 ph petrol engine. Trials carried out on Cantas™ revealed that the productivity of the machine was 560 to 750 bunches per day (equivalent to 9.50 to 12.61 per day at a bunch weight of 17 kg). The productivity very much depends on the cropping level, the topography of the estate and the operator’s skills. By comparison, the productivity of manual harvesting (using a conventional sickle) is only 250 to 350 bunches per day. Therefore, the productivity of Cantas™ is equivalent to two to three human harvesters. Using Cantas™, the estate would be able to reduce 50% of its labour requirement in the harvesting operation. Another advantage of this cutter is that the terrain or topography of estates does not restrict its usage. Refer to Figure 8, the invention of Cantas™ is not suitable and not long enough to harvest FFB from the palm tree which the height of 30 ft.

Click to enlarge

And, above the motorized engine for Cantas™ is parallel to the pole that why it might cause fatigue and tired to the worker to use Cantas™ due to the heaviness of the pole plus the engine.

Combination of Fibre Pole and Motorized Engine Backpack

By referring to the studies relating to this futuristic equipment, we had come which an idea of combining these two products to address the harvesting of 25 to 30 years old palm trees. The idea is quite familiar to those products but the improvement of replacing the motorized engine that parallel to the harvester pole into a backpack motorized engine which eases the burden and weight of the harvester tools during the operation (harvesting FFB). As for the pole that attached to the motorized engine to the pole more lighten and long up to 40 ft, which fibre pole from Palm Pro.

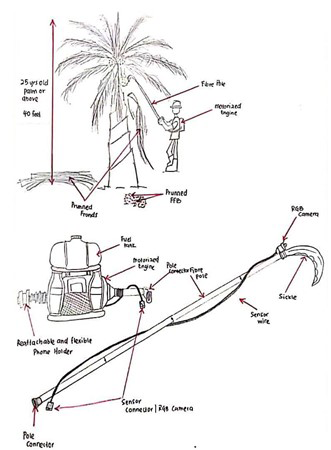

Those two combinations will be the relevant and benefits enough to harvest 40 ft palm trees. Those products are quite commercial and high potential in the market especially among the harvesters and farmers. Figure 4 below shown the illustration of the combination of those two products which the label of the features for the new motorized engine harvester tools.

As for the remote sensing, we implemented the RGB camera as the sensor camera to detect the mature FFB that need be harvested. The location of this RGB camera nearly at the tip of the pole because at that position, it will be able to sense bunches that need to be harvested. The info or pictures will be display on the phone through and application software which needed to be installed on the phone first. And for the motorized engine is powered by petrol fuel. The backpack design was to ease the user to carry the tools during harvesting operation because the design is super light with the combination with the fibre pole.

This tool has high commercial potential in the market due to the benefits of this tool. One of the reasons is this tool long enough to harvest 40 ft. Palm tree besides, this tool helps harvester by providing a super light pole to carry during the operation and this tool is repairable which more is encouraged and focused on the smallholders. Meanwhile, the backpack motorized engine that quite like Bush cutter which will also becoming the potential on commercialize this product where the backpack like will be easier to carry (Figure 9).

Click to enlarge

This tool has high commercial potential in the market because of the benefits of this tool. One of the reasons this tool long enough to harvest 40 ft palm tree. Besides, this tool helps to super light for the harvesters to carry during the operation and this tool is repairable which is more encouraged and focused on the smallholders. Which the back pack motorized engine that quite like Bush cutter will also becoming the potential on commercialize this product where the backpack like will be easier to carry [15, 16, 17, 18, 19, 20].
