Laser Lithotripsy Fundamentals: From the Physics to Optimal Fragmentation

History and Laser Physical Principles

Light amplification by the stimulated emission of radiation, used as its acronym (LASER), has been used in medical procedures by many specialties since its discovery in the past century. The fundamentals of its nature were first described by Albert Einstein using Max Planck’s law of radiation, but it was until 1960 that Theodore Maiman developed a rubidium laser being used for the first time in New York’s Presbiterian Hospital in 1961 during an ophthalmologic procedure. Later on, Parsons uses the rubidium laser to experiment in canine bladders, and Mulvany in 1968 tries to fragment bladder stones with it [1].

In the 1980s lasers became of interest of clinicians in urology, and nowadays are an everyday tool in the armamentarium of our specialty, and the gold standard for lithotripsy. Its emission of a beam of energy from an electromagnetic radiation can vary in the electromagnetic spectrum, belonging in either the visible, the infrared or the ultraviolet range [1].

All laser generators must be composed of an energy source, an active medium and a resonant cavity. The latter has a mirror in each opposite end: a completely reflective mirror, and a partially reflective mirror, by which the laser beam will leave the resonant cavity [1].

Within the resonant cavity, an active medium contains the atoms that produce electromagnetic radiation. There are many types of active mediums; the most commonly used being semi conductive, solid, gas or dye. The atoms in this active medium are stimulated by an electric current, in which the electrons surrounding the nucleus increase their movement around the nucleus. Once these electrons return to its elemental state, then the energy is liberated in form of photons [2].

These photons begin to stimulate one another within the resonant cavity, banging again the mirrors containing them until a physic phenomenon called “population inversion” occurs, in which the stimulated photons within the resonant cavity outnumber the non-stimulated ones, thus producing the laser beam [1, 2].

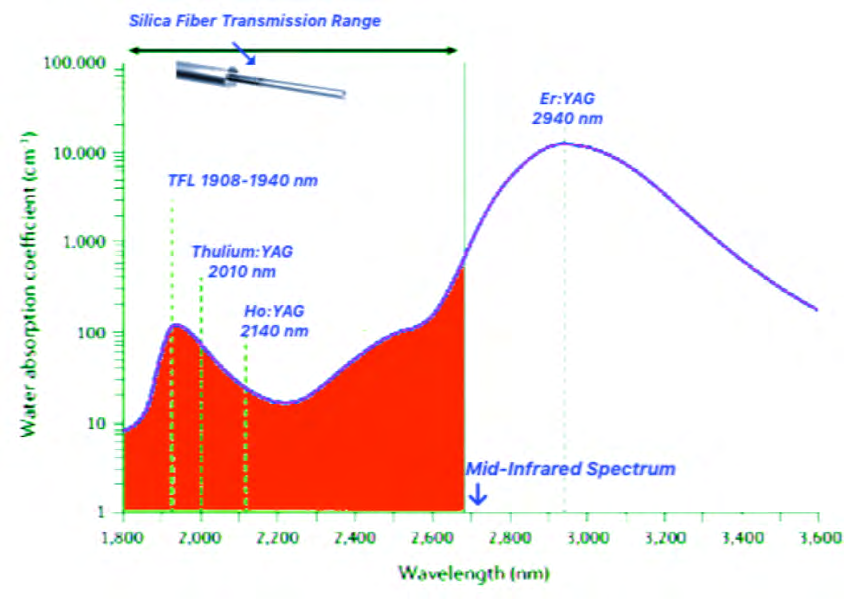

The three classical properties attributed to lasers are as follows: a) Monochromatic: The same wavelength, it allows a high proportion of energy to be delivered in the point of interest. b) Coherence: Its photons travel forward with no dispersion, have minimal divergence, and maintain its brightness over long distances c) Collimation: Photons travel in parallel nature, allowing its use in laser fiber within an endoscope [1].

The effect created on a target depends on several characteristics:

• Power: The rate (frequency, expressed in Hertz - Hz) at which energy (expressed in Joules - K) is delivered, expressed in watts (W).
• Power density: Watts/cm2 (at target surface).

Besides those, how far or close the delivery device is to the target can affect its response [1].

Solid-state lasers are composed of a crystalline host material doped with ions, which are excited after exposure to an electric current. A common crystal is the yttrium aluminum garnet (YAG), usually doped with neodymium, erbium, thulium and holmium, the latter being, with its long- pulse characteristics, the dominant laser currently used for lithotripsy (Ho:YAG) [1].

Lasers can release its energy beam in a pulsed fashion, with pulsed durations varying from femtoseconds (10-15 s) to microseconds (10-6 s). One example is the Q-switched, which uses a “shutter” mechanism to intermittently release light. Another kind is the mode-locked or phase-locked laser; this method takes advantage of wave interference (the phenomenon in which two waves superpose to form a second wave) within the resonant cavity, being able to release short pulses in femtoseconds. Classically, lasers in lithotripsy are generally classified as ultra-short(less than 500 ns), short (1- 10 μs) and long pulse (greater than 250 μs) [2].

Laser Tissue Interactions

How a laser can be used in medicine have its basis in laser tissue interactions. When laser energy strikes tissue, or a kidney stone, three kinds of interactions exist: photochemical, photothermal and photomechanical. Photomechanical is mainly present when using dye lasers, taking advantage of its particular ability to produce singlet oxygen which can react with any nearby molecules. These are not currently used in lithotripsy [1].

Photomechanical, also called photodisruptive interactions are the main mechanisms by which lasers can be used in lithotripsy. They take advantage of the transient stress forces that occur from the deposition of laser energy within and around the stone. It requires shorter pulses with an extremily high spatial density of photons, which have to be coherent in its travel.

Typically less than 10 μs, transient stress waves can be used to produce thermoelastic expansion (the heat inflicted by the laser can cause mechanical disruption, known as spallation), recoil (due to ejection of ablated material) among others, the most important being the production of plasma, often called the “fourth state of matter”, produced by the vaporization of ions existing in a cloud of free electrons. Due to its rapid instability, plasma produces stress fractures with extremely short pulse durations (less than 500 ns), such as in Q-switched lasers. Another example is cavitations bubbles, which occur within 500-1000 ns. The cavitation bubble occurs due to the rapid spherical expansion of water vapor at the laser fiber tip. When this bubble collapses it releases energy, creating very strong pressure waves which shear the stone matrix [3].

Photothermal processes occur due to direct irradiation of energy in the tissue, in this case, a stone. It can be induced through absorption in either endogenous chromophores (aminoacid, NADH, collagens, flavins, porphyrins, hemoglobin, melanin, etc.) or in externally added dyes [4].

Direct irradiation of the laser light produces vaporization, ablation or fragmentation of tissues [5] (Table 1). Lithotripsy can happen either by direct absorption of photons by the stone structure, therefore producing disruption, or by water itself, causing heating and rapidly producing vapor flow, also called explosive vaporization. This is the main mechanism by which the long-pulse laser (2-500 ms) is applied (eg Ho:YAG and erbium:YAG lasers [5, 6, 7].

Laser Fibers

Laser fibers are available in many forms, sizes and shapes. Because of the increasing use of laser procedures in endourology, optical fibers form part of the daily armamentarium of the urologist [8, 9, 10, 11]. In order to achieve optimal lithotripsy, the fiber must ensure that the light will travel within the fiber from the proximal to the distal end, smooth insertion and travel in the endoscope, with minimal energy loss within it and low burn-back phenomenon. This “perfect fiber” has been the effort of many manufacturers, but advances are yet being made [12, 15].

The surgical laser device must be lightweight and susceptible of easy transportation, must sustain long operating times with multiple on-off cycles. From its interface, the laser device must ensure correct alignment to the laser fiber. Any interference between them can translate into higher order rays and laser failure. The fiber is usually composed of a low hydroxyl fused-silica core and multiple layers of cladding, since its placing is absolutely necessary to avoid loss of energy during transmission and to ensure delivery at the tip of the fiber [13, 14, 15].

The connector to the laser power source is called “subminiature version A connector” (SMA). Its consists of a central reinforced channel surrounding the optical fiber, the former being covered by a threaded connector shell [12, 15].

Many layers of coating ensure safety against bending, prevents vaporization and heat failure of the fiber. The physics that explains the fact of “sending” a laser beam in one end of the fiber and delivering in the other end have it basis in the physical laws of reflection and refraction. A lens is used to focus the laser beam within the face of the fiber. Some light will be reflected, and some will be refracted. The speed of light traveling within the fiber depends on its index or refraction. The index of refraction of air is 1, and of silica is 1.4572 [12, 13, 15].

Laser Fiber Materials

Cladding in a laser fiber must be as safe and as durable as possible. Many cladding materials have been used in covering these fibers. A fluoroacrylate (TECS, a type of Teflon®) will absorb more of the 2100nm wavelength of a Ho:YAG laser than fluorine-doped silica. This material coats the primary fused-silica glass core of the fiber. That is why it is the primary choice when Ho:YAG laser is used. When using other lasers with shorter wavelengths, TECS could the first choice [8, 9, 13, 16] (Figure 1).

Click to enlarge

The deleterious effect of fiber bending lies its principle in that if the angle exceeds the maximum propagation angle of the fiber, then power is transmitted into the cladding material, thus damaging it. If sufficient laser leaks into the jacket material, the laser fiber will suffer thermal damage because of the excessive absorption of energy in the cladding layers themselves [8, 9, 13, 16].

Fiber Tips

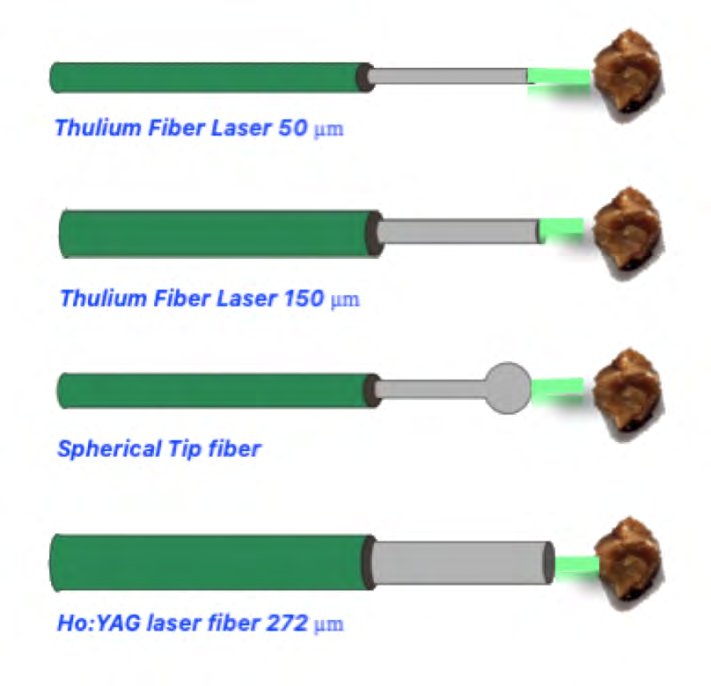

Historically, laser fibers were manufactured with flat tips. To optimize its use and sterilization, a wide variety of laser tips have been developed. Recently, the round or ball tip was introduced. It allows for smooth insertion through the flexible ureteroscopy, being less likely to perforate its inner lining, even when it is deflected, and also requiring less force of insertion. This protective property is loss once the laser burns back the round tip, making it flat or irregular [17].

Burn-back is a common phenomenon seen in laser lithotripsy and refers to the damage in the tip and cladding of the distal tip of the laser fiber, making it necessary to pause the procedure and prepare the tip to ensure efficient ablation of the stone. Many factors can influence burn-back, including lower fiber diameters, pulse energy, pulse duration and density and composition of the stone [8, 16, 18].

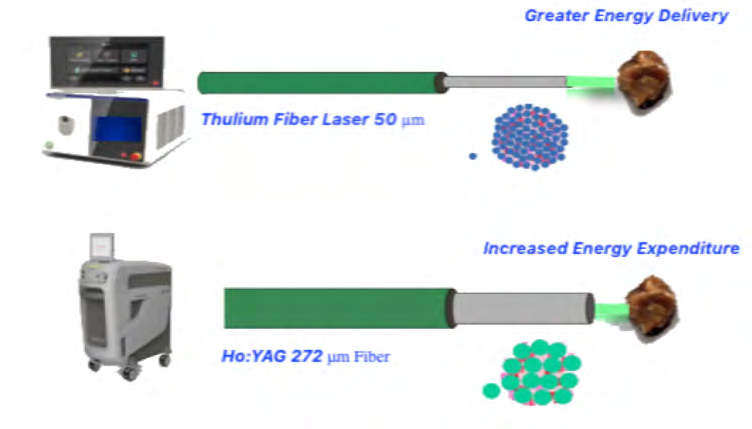

Many fiber tips have been studied in order to minimize burn-back, always having in mind that smaller diameters mean more burn-back. When using TFL one can take advantage of its Gaussian beam profile. This property implies that the majority of the light rays that are transmitted on- axis are low order rays, thus enabling the TFL to use smaller fiber diameters. Hollow-steel tips can experience minimal retropulsion and burn-back while not compromising ablation volumes when using thulium fiber laser lithotripsy [19] (Figure 2).

Click to enlarge

A tapered fiber consists of a funnel-shaped core, with the longer diameter being proximal and the stepper end lying in the distal end of the fiber. This type of fiber was developed to more easily couple a larger laser beam in the proximal end and reduce the fiber diameter distally to add more flexibility. One study inversed the ends of the fiber, leaving the wider end at the distal tip, showing less damage without compromising fiber bending, stone vaporization or irrigation rates [20].

Laser Parameters Calibration

Laser photo thermal lithotripsy mechanism is effective to treat any stone composition, laser energy is absorbed, and the stone temperature rises until a critical thermal threshold is reached and the result is dehydration, vaporization, carbonization of the stone surface and subsequently crater formation.(3,16,21) Photoacoustic effects from laser have minimal effect on the fragmentation process nonetheless play a role in optical breakdown and plasma initiation which creates shockwaves and cavitational bubbles which finally breaks the stones [21, 22, 23]. Calculus fragmentation depends on two main variants, which are the physical properties of the calculi and laser parameters. Laser parameters pertain to wavelength, pulse energy and pulse duration [3].

Laser parameter calibration varies according to the technique the urologist is planning to perform (dusting or basketing), stone composition and stone size and location.

Laser parameters that could be calibrated are frequency (Hz), optical wavelength (λ), laser pulse duration (Tp), laser pulse energy (Qo), Radiant exposure (Ho) (optical energy per unit area delivered), radiant exposure (Hth) (vaporization, chemical breakdown), fluence (Ψ) (distribution of optical energy per unit area within water or tissue, laser irradiance (Eo) (optical energy per unit area delivered per unit time), threshold irradiance (Eth), laser output power (Po) and laser beam radius (⍵L) [3].

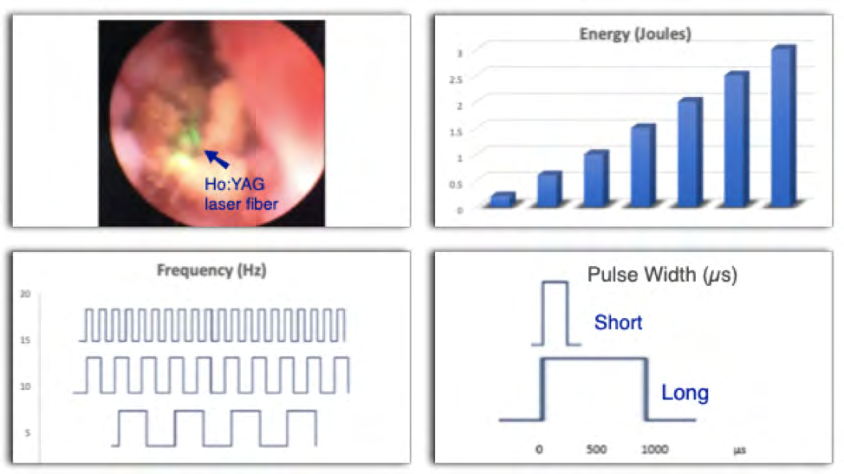

Three main parameters are most used in clinical practice, these are frequency, laser pulse duration (Tp) and laser pulse energy (Qo). Pulse energy is the total optical energy content of a pulse in Joules (J), frequency is defined as the number of pulses emitted per second in Hertz (Hz) and pulse duration is the time during which the laser output pulse power remains continuously above half its maximum value in microseconds (μs). According to the chosen technique laser parameters are usually set up in this fashion: for stone fragmentation and basketing, the frequency is low (5-10 Hz) and laser pulse energy (Qo) its high (0.8-1.5 J), for dusting regimes the frequency is set between 50-80 Hz) and laser pulse energy (0.2-0.6 J) [3, 6, 16, 21, 23, 24, 25]. Laser pulse duration is a mechanical parameter that has gained popularity recently, given that stone retropulsion, fragmentation efficiency and fiber burn back could be related to this parameter [24] (Figure 3).

Click to enlarge

A study by Sroka comparing short laser pulse duration (300-700 μs) and long pulse duration ( 600-1500 μs) found that using the long-pulse mode, the fiber burn-back was negligible, retropulsion measured by the pendulum test was higher in the short-pulse but fragmentation rate did not differ significantly [24]. Another “parameter” that could affect lithotripsy is the Moses effect, this is known as delivering a short, low-energy pulse to create a cavitational bubble before delivery of a longer, high-energy pulse, which has shown to reduce stone retropulsion and increase ablation rates. This technology has been provided as an option on commercial high-power laser systems since 2017 [23].

It has been described that crater size during lithotripsy correlates with energy density and multiple pulses, confirming a positive correlation between laser energy and fragmentation rate. Most people could think that the size of the fiber is associated with greater energy delivery to the stone; on the contrary, larger laser fibers are associated with increased energy expenditure to achieve stone fragmentation without improving the fragmentation efficiency [2]. In a study conducted by Marchini, et al. stone size and volume had a significant positive correlation with laser energy expenditure and laser time [22] (Figure4).

Click to enlarge

Dusting or Busting, the Eternal Dilemma

Laser lithotripsy strategies could be divided in two major categories, the first one is fragmentation with active basket retrieval of the stones and the other one is dusting, which as it sounds aims to make the stone dust (fragments smaller than 2 mm) and left in situ for spontaneous passage [26, 27].

Current Ho:YAG laser systems are able to achieve wavelengths as high as 80 Hz in higher watt systems (60-120 W). In vitro studies have shown that high frequencies lead to more fragmentation at the same pulse energy setting, it could also increase retropulsion but not at the same extent as when increasing the pulse energy [18, 26, 27].

The dusting technique as mentioned before uses low pulse energy and high frequencies, it has two phases. The first stage is the contact laser lithotripsy which aims to break the stones into dust and smaller fragments Second stage is the non-contact laser lithotripsy which is hypothesized to have two action mechanisms, the first one is, after the stone is debulked in numerous fragments, the fiber laser is activated in bursts resulting in a “whirlpool” effect which causes fragments to collide and fragment further; the other mechanism perhaps the most popular was described by Chawla et al, and it is known as the “popcorn” effect which aims to cause laser vaporization of the fragments swirling around. It has been shown that using a long pulse has a protective effect on laser tip degradation, known as burn- back [18, 26, 27].

Aldoukhi, et al. recommend to set the laser system parameter accordingly to the stone density and stone location, in the dusting technique, if the stone is in the ureter and has low density the recommended parameters are 0.2 J x 40 Hz and if the stone has high density the recommended setting are 0.3 J x 40 Hz. If the stone is in the kidney they recommend 0.2 J x 70 Hz if low density and 0.3 J x 70 Hz if high density, if the stone is located in a calyx they preferred to perform a “pop-dusting” technique with a laser configuration with 0.5 J x 80 Hz. All the above with a long pulse duration preferably [26, 27].

The fragmentation and active basket retrieval technique aims to create fragments between 3-4 mm to retrieve them with a stone basket, leaving the patient stone free. If the stone is in the ureter and has low density the recommended parameters are 0.8 J x 6 Hz and if the stone has high density the recommended setting are 1.2 J x 6 Hz. If the stone is in the kidney 1.0 J x 6 Hz if low density and 1.4 J x 6 Hz if high density, all with a long pulse duration [26, 27].

Clinical studies comparing dusting to retrieval techniques are scarce. Chat off et al presented a randomized clinical trial in patients with ureteral stones treated with dusting or active retrieval techniques utilizing an 80-W system [28]. They found the rate for emergency department visits were much higher (30%) in patients treated with dusting technique than when active retrieval was performed (3%), SFR were not statistically significant between both groups [28]. Humphreys and colleagues reported on a prospective multicenter trial comparing dusting vs. basketing, they recruited 84 patients in the basketing group and 75 in the dusting group, they found no difference in complication rates, hospital readmissions, they found a statistically significant difference in basketing operative time, taking 37.7 minutes longer than in the dusting procedure and a lower SFR in the univariate analysis (74.3% vs 58.2%, p=0.04) in the latter group, the SFR was equivalent on multivariate analysis [29].

The question of which surgical technique is optimal remains unanswered and should be determined on a case- by-case basis. Advantages of dusting are that this technique produces smaller fragments, avoids routine use of ureteral access sheath (UAS), and thus reduces the risk of ureteral trauma, has a shorter operation time, could avoid routine postoperative stenting, disadvantages are that it requires next-generation laser systems, SFR may vary according to surgeon skill, there are concerns for fragment drainage in patients with spinal cord injury or clean intermittent catheterization (CIC) and usually results in no fragment for analysis. Fragmentation and active basket retrieval has the advantages that it could be performed with a low power laser system, can extract stone fragments for analysis, the disadvantages are longer operation times, requires a UAS, risk of ureteral injury from UAS and routine stenting is necessary when using UAS [18, 26, 27].

Safety and Complications of Laser Lithotripsy

Regardless of the type of laser or the technique used, there are principles for doing laser lithotripsy safe and avoid harming the patient or damaging the equipment [30, 31, 32]. These principles are: avoid shooting the laser fiber near or inside the tip of the scope, keep in mind the tip of the fiber should always be kept away from the mucosa, be aware of intrarenal temperature (IRT), injury of the human tissues can occur indirectly through elevation of the temperature of the irrigation fluid, absence of high rate irrigation rate (< 30 ml/m) can result in potential harm to the tissue, long laser activation could also raise the IRT above 84.8ªC (without irrigation), 63.9 ªC (medium irrigation) and 43.6 ªC (high irrigation), but IRT cools down rapidly after cessation of laser activation [30, 31].

Harmful corneal effects extending from superficial corneal abrasions to full-thickness corneal loss from exposure to Ho:YAG laser has been reported in an ex-vivo pig model by Villa et al, they found lesions were directly related to pulse energy and time of exposure and inversely related to the distance from the eye. When the laser was placed 5 cm away from the unprotected eye, no corneal damage was observed [33]. The current recommendation is to wear laser protective googles even when wearing eyeglasses. [31, 32, 33].

Complications of laser lithotripsy are rare, but when present they could be catastrophic. Althunayan, et al. reviewed the Manufacturer and User Facility Device Experience (MAUDE) database and the Rockwell Laser Industries (RLI) Laser Accident Database they found a total of 433 adverse events (AEs), 46% resulted from laser generator failure or fiber tip breakage. AEs harming medical operators were 37%, most were eye injuries, none by the Ho:YAG laser. There were 8.3% AEs resulting in patients harm, 1.6% mortality rate, 3 deaths from ureteral perforation with the Ho:YAG and 4 deaths from air emboli Nd: YAG, other complications were bladder perforation, minor skin burns, internal burns, and bleeding [32].

Fundamentals of Holmium Laser

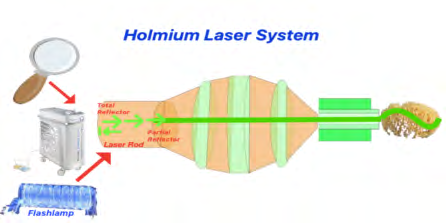

Holmium laser is currently the most popular laser lithotripter, it is a solid-state flashlamp-pumped pulsed laser, it uses a yttrium-aluminum-garnet (YAG) crystal rod to which a flash lamp powered by a high-voltage power supply injects photons and holmium ions within the crystal rod emits new photons at a 2,120 nm wavelength. Water is the dominant absorber of this laser. It has a very low penetration depth (0.4 mm) limiting the amount of energy reaching the mucosa, which gives us a remarkable safety profile and it has been proven to have the ability to fragment stones of any composition [9, 10, 14, 18, 19, 20] (Figure 5).

Click to enlarge

Figure 5: TFL generates the energy through electronically- modulated chemically doped small diode laser. fibers and is then transferred to a 10-20 µm Thulium-doped laser fiber which finally delivers this energy to the small laser fibers of 50-150 µm. TFL offers the most comprehensive range of laser parameters in the market, better absorption coefficient and water optical penetration depth.

Ho:YAG laser activation causes the release of energy from the fiber tip which initially creates a vapor channel, leading to a photothermal reaction causing chemical decomposition of the stones. It also has a photoacoustic effect producing a cavitational bubble that when collapsed generates shockwaves, although this effect does not contribute significantly to calculus fragmentation. It comes in single-use and reusable laser fibers in varying sizes, 200µm, 272µm, 365µm, 550µm and 1000µm, the sizes reflect the true core diameter of each fiber and are mainly made of silica. Ho:YAG system power is available from 20 W to 120 W (High- power novel systems comes with the Moses technology) [9, 26, 27, 30, 33, 34].

A novel feature of the Ho:YAG for further reduction of stone retropulsion and increase in ablation rates was termed as the “Moses effect” which consists in delivering a short, low energy pulse to create a vapor bubble followed by a high energy pulse which acts as the actual ablative energy pulse. This technology has shown to improve significantly ablation rates, improves SFR and reduce retropulsion and fiber burn- back [9, 16, 27].

Fundamentals of Thulium Laser

Opposite to Ho:YAG the thulium fiber laser (TFL) generates the energy through chemically doped small diode laser fibers and is then transferred to another laser fiber which finally delivers this energy to the stone [9, 20, 26, 27, 34, 35, 36]. TFL operates at a wavelength between 1908 and 1940 nm, these wavelengths has the advantage to have a higher absorption peak in water than the Ho:YAG laser, meaning it has a four-time shorter optical penetration. Thulium laser uses small laser fibers of 100 µm. Fibers as small as 50 µm had been tested with comparable stone ablation rates as larger ones, this is possible given that the energy for TFL is generated in a small diode fiber so it can be coupled to laser fibers with small core diameter which allows more space for higher irrigation rates and better ureteroscope maneuverability. TFL has a very different set of parameters than its predecessor, it could be calibrated with pulse energies as low as 33 mJ, and up to 6 J, frequencies as high as 2200 Hz, pulse width could range between 200-1200 µs, maximum system output power at the market is 55 W [9, 20, 26, 27, 34, 36]. TFL could easily be confused with the Thulium: YAG laser which has a wavelength of 2000 nm and it is used exclusively for prostate vaporization and enucleation and is unsuitable for lithotripsy.

Suggested settings for TFL according to several patient cohorts are 0.1–0.2 J/15–30 Hz for dusting of kidney stones, 0.2–0.5 J/10–15 Hz for the dusting and fragmentation of ureteric stones, 2–5 J/30–50 Hz for the fragmentation of large bladder stones and 1–1.5J/15–30Hz for Percutaneous nephrolithotomy PCNL fragmentation and 0.1-0.3 J/50-100 Hz for PCNL dusting [9, 20, 26, 27, 34, 36].

The Laser of the Future

Ho:YAG has been the laser of election for lithotripsy over the last 20 years, but it could be true that time for a change has come [9, 27]. Great interest had come with the development of a new laser technology for laser lithotripsy, this is the TFL which as explains earlier has many advantages over its predecessor, main advantages are the TFL uses electronically-modulated laser diodes which offers the most comprehensive range of laser parameters in the market which translates in a stone ablation efficiency four-times greater than Ho:YAG which has implications in operation time and efficiency for dusting or fragmentation of the stones [9, 27]. TFL is highly absorbed by water and has an absorption coefficient of α=129.2 cm−1 which is four-times greater than Ho:YAG, it has a water optical penetration depth of 0.077 mm which curiously is also 4 times lower than holmium laser (0.314 mm), this means TFL energy pulse will have been reduced only 1.7% of its initial energy after traveling the distance corresponding to its optical penetration depth. (9) Not only the wide range of parameters are the feature of this new laser, also the retropulsion rate is almost negligible with TFL, the laser fibers are as small as 50 µm-core with advantages in irrigation rate, visibility, ability to use other endoscopic instruments simultaneously, maneuverability of the scopes and offering future miniaturization capabilities of the endoscopic instruments [9, 20, 27, 34, 36, 37]. Another advantage of the TFL is that its system generator machine that consumes over nine times less energy and is approximately seven times smaller and eight times lighter than a high- power Ho:YAG system. The TFL produces three to four times more dust, resulting in higher dust particle quantity and smaller particle sizes than with a Ho:YAG laser, which has been recognized as a desirable feature for a lithotripter, this could be explained to a micro-explosive water vapor mechanism which is explained as the water trapped in inter- microcrystal spaces, pores and fissures inside the stone vaporizes suddenly with the TFL and creates very high pressures in the stone surface causing an explosive fashion [9, 20, 27, 34].

In summary, the laser of the future should have the following features: higher ablative efficiency, a wider range of laser parameters and comprehensive combinations, reduce retropulsion and fiber burn-back, scope miniaturization capabilities, smaller fiber sizes which allows simultaneous use of endoscopic instruments, has an increased safety, lower environmental impact, reduced maintenance costs and improve durability and better dusting capabilities than its predecessors. The Thulium fiber laser has all the above mentioned features and outruns without no doubt the current gold standard Ho:YAG [9, 19, 20, 27, 34, 38].
