Crystal Beam Technology with Special Resolution

Introduction

Under the registration of spectra understand the definition of the dependence of the radiation energy on the wavelength using the registration system. The registration system usually includes a photoelectric radiation receiver that converts the energy of light radiation into an electrical signal, hardware and software for processing and visualization of this signal. Depending on the type of radiation detector used, the following types of registration systems are distinguished: integral and with imaging.

Integrated registration systems include systems in which detectors are used as radiation detectors, which convert the entire radiation flux (integral light flux) into an electrical signal, without determining the distribution of radiation energy over wavelengths. This type of detector includes photomultiplier tubes (PMTs), photodiodes, and other types of similar detectors.

Image-building systems include systems in which linear or matrix multi-element photo detectors are used as radiation detectors. Such registration systems are used in cases where, in addition to measuring the amount of energy of optical radiation, a determination is made of the distribution of radiation energy over wavelengths.

There are linear and matrix detectors based on silicon structures [1, 2], which have a spectral sensitivity range from 200 to 1100 nm (ultraviolet, visible, and near infrared spectral regions). These are the most widely used linear detectors due to their relative cheapness. Linear detectors for the near infrared region of the spectrum - the spectral sensitivity range from 900 to ~ 2500 nm - are quite expensive.

Linear detectors for other spectral ranges are either very expensive or not manufactured at all. Thus, one of the limitations of using linear detectors is their rather narrow range of spectral sensitivity. Therefore, the need to expand the range of spectral sensitivity of the detectors is an urgent task.

Experimental Part

The work to create a spatial resolution detector based on corundum, in which the resolution is determined by the size of the corundum crystal element assembled into a mosaic, is carried out in several stages.

The first stage is the selection of crystal samples for research. For this, first of all, it was necessary to certify crystal samples. To assess the optical quality of crystals and for optical studies, it is sufficient to make samples according to two criteria-bubbles, impurities, and their concentration. For design work, it was quite enough to measure the presence of bubbles, their size and concentration. Similar measurements are made with a conventional microscope, and webcams and digital cameras are used to fix (capture images).

The second essential criterion for certification of crystals is the determination of the presence and concentration of dopants used in crystals. The availability and controlled insertion of dopants and the change in structural perfection (annealing of crystals) are decisive driving and changing parameters that determine the luminescent qualities of crystals [3, 4, 5].

The determination of dopants and their concentration were measured on an Armtek X-ray fluorescence spectrometer Table 1.

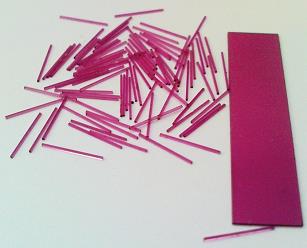

The sequence of operations is described in Figure 2. Samples were obtained from boulder single crystals of corundum by optical-mechanical processing. An ultrasonic unit was used to cut matrix crystalline Figure 1: Crystals with a thickness of 250 μm and a width of 250 μm.

Click to enlarge

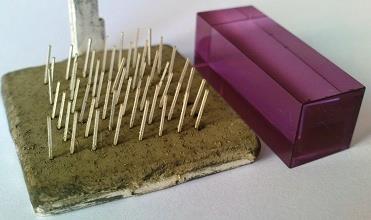

After a separate fiber element has been prepared, it should be polished (both mechanically and chemically polished), coated with a connecting material (nickel, copper, silver, platinum, etc.). “Knitted”- together, cut into plates and therefore “bundle” must undergo final processing. To improve the technology, first the processing of simple glass fibers (diameter 0.5-0.25 mm) with nickel, copper, argentine low-temperature dispersion powder at a temperature of 2500°C was applied. Then quartz samples with a diameter of 0.5-1.0 mm were made, and the technology on them was improved, and then they switched to the manufacture of corundum plates. A “bundle”-matrix of converters was made (Figure 3-7).

Click to enlarge

Click to enlarge

Click to enlarge

Results

Single-crystal corundum samples with various dopants, their optical properties, absorption spectra, and luminescence spectra were studied. Crystals were selected for the manufacture of fibers with a size of 0.25x0.25x2.5 mm. A “bundle” of pre-converters matrix was made, the matrix was combined and images were obtained using webcams.

Conclusion

To improve the spatial resolution of the detection system, it is necessary:

1. Improve the crystal beam technology
2. Get fiber crystals with a smaller diameter
3. Improve the optical performance of corundum crystals implanted in each fiber “bundle” impurities that have resonance absorption lines in the HUV, UV and IR radiation regions.
