Medicinal & Analytical Chemistry International Journal Research Article 16 min read

Critical Overview of the Use of Tethered Bilayer Lipid Membranes with Electrochemical Techniques

Brianna D Murphy and Angel A.J. Torriero*
* Corresponding author
ISSN: 2639-2534  10.23880/macij-16000110  Received: May 01, 2018  Published: June 19, 2018
 — views
 58 references
 4 figures
PDF
Keywords
Plasma membrane Tethered bilayer lipid membranes Phospholipid tails Electrochemical Impedance Spectroscopy
Abstract

Studying various substrate interactions with the plasma membrane is difficult due to the large variety of molecules that compose the biological membranes. The importance of understanding plasma membrane interactions, behaviour and properties prompted the development of artificial membranes to recapitulate fundamental aspects of membrane biology. Tethered bilayer lipid membranes (t-BLM) are a versatile type of artificial membrane that enables the simulation of real biological membranes in a controlled, stable environment. Numerous studies have uncovered valuable data using t-BLMs but there are still some unknowns related to t-BLM research that has been overlooked. For example, the effect of unsaturation in phospholipid tails is one of these unknowns. By focusing on gaps in t-BLM research and Electrochemical Impedance Spectroscopy, this manuscript makes evident that further development and classification of t-BLMs is still required to make them a more sound biological mimic.

Discussion

Tethered bilayer lipid membranes are a class of self- assembling biomimetic structures that provide a platform for a variety of biophysical experiments such as reconstituted membrane proteins, biosensors that range from the detection of biological agents to pharmaceutical screening [22], redox reactions [21], ion transport across the membrane [23], antigen/antibody binding [24] and more in diverse fields. Attachment to a conducting surface such as gold (Au) allows t-BLMs to be monitored via electrochemical techniques [21].

Gold is commonly used as the substrate as it is chemically inert and can easily be modified by sulphur bearing reagents such as 1,2-dipalmitoyl_-sn-_glycero-3- phosphothioethanol (16:0 PTE), which tethers the lipid bilayer to the Au substrate (Figure 2) enhancing the membrane stability [12, 25]. Silicon based substrates are also commonly used and have proven useful results [22, 26, 27, 28, 29]. t-BLMs represent the most promising class of artificial membranes due to the increasing ability to mimic fundamental properties of natural cell membranes, including fluidity, electrical sealing and capability of hosting transmembrane proteins. The advantage of t-BLM is that unlike BLM and h-BLM, t- BLM are stable for months and do not collapse when exposed to electrochemical techniques such as transmembrane potentials larger than ± 500 mV and robust mechanical mixing [30]. The t-BLM model also creates minimal interaction with the substrate, the free space available allows the introduction of proteins [31] and they exhibit a higher lipid diffusion coefficient relative to SAMs [21]. The compelling properties, diversity and capability of tethered membranes have caused t-BLM to be considered the closest artificial mimic to real biological cells. Even though artificial membranes are a highly used method to gain information about the phospholipid bilayer, they still have some unknowns in their research. The lack of information about biomimetic membranes comes from the possible effects off double bonds in the phospholipid tails. Membrane fluidity lacks a precise definition but it refers to the mobility of various membrane components Brianna D Murphy and Angel AJ Torriero. Critical Overview of the Use of Tethered Bilayer Lipid Membranes with Electrochemical Techniques. Med & Analy Chem Int J 2018, 2(1): 000110.

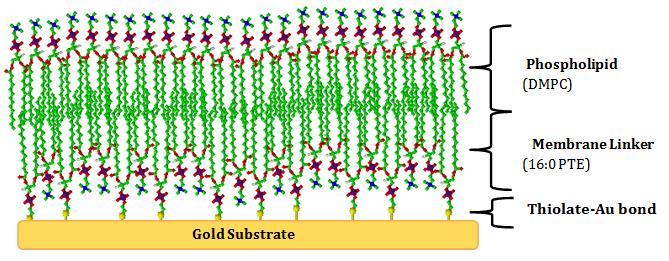

Figure 2: Schematic representation of a tethered bilayer lipid membrane in aqueous solution. 1,2-dipalmitoyl-sn- glycero-3-phosphothioethanol (16:0 PTE) with sulphur group bound to gold substrate causing the phospholipids to
Click to enlarge
Figure 2: Schematic representation of a tethered bilayer lipid membrane in aqueous solution. 1,2-dipalmitoyl-sn- glycero-3-phosphothioethanol (16:0 PTE) with sulphur group bound to gold substrate causing the phospholipids to

such as lateral diffusion and flexibility [32]. Fluidity of the phospholipid bilayer needs to be precisely regulated as various processes can be affected if membrane fluidity moves beyond its threshold level [32]. Lipid fluidity is heavily dependent on two factors, sterol content and the number of unsaturation in the fatty acid tails of the phospholipid molecules. Fully saturated phospholipids such as DMPC create a neat ‘zig-zag’ configuration that forms a highly ordered membrane of low fluidity [33]. Conversely, unsaturated phospholipids have a larger area per lipid molecule which forms a loosely packed, highly fluidic membrane [9]. The larger area is caused by the cis conformation creating ‘kinks’ in the fatty acid tails as the double bond is unable to rotate [9]. Even though the cis configuration is less stable it is still favoured by nature over trans in phospholipid membranes as cis ensures the ideal fluidity and permeability [34]. The optimal functionality of membranes can only be obtained by the bent structure of the cis configuration [34]. Increasing the amount of unsaturation in the phospholipid tails increases its area, and consequently increases membrane fluidity [35]; Figure 3 demonstrates this trend.

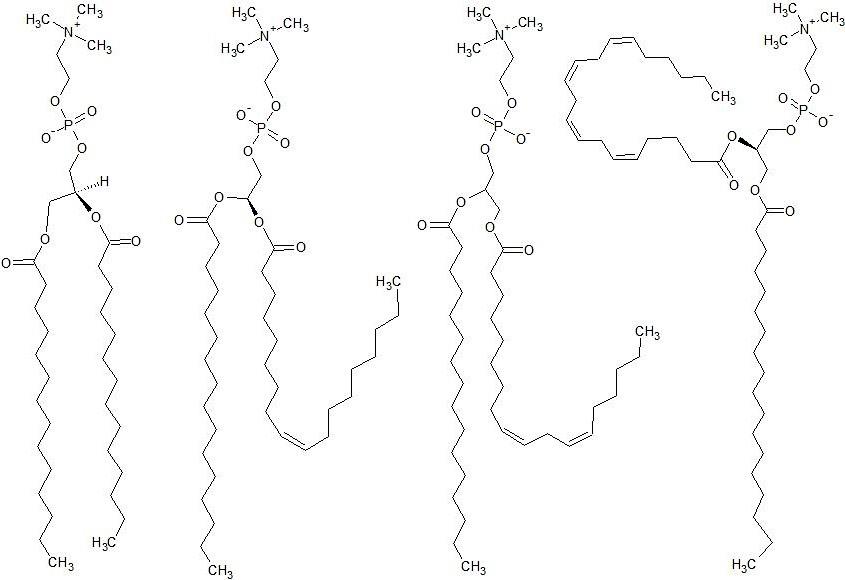

Figure 3
Click to enlarge
Figure 3

temperature required to change the physical state of the phospholipids from ordered gel phase to disordered liquid phase depends on the transition temperature of the individual phospholipid type [38]. Sterols like cholesterol buffer the effects of temperature on fluidity by decreasing the activation energy for rotational diffusion [39]. A decrease in activation energy permits less change in fluidity per degree change in temperature establishing fluidic control of the membrane [40]. Both Brianna D Murphy and Angel AJ Torriero. Critical Overview of the Use of Tethered Bilayer Lipid Membranes with Electrochemical Techniques. Med & Analy Chem Int J 2018, 2(1): 000110.

cholesterol and unsaturation are important properties of a cellular membrane but these properties have not been simultaneously explored nor just exploration of unsaturation effect on the membrane behavior. Unsaturated phospholipids are naturally occurring in biological membranes but the amount of saturated and unsaturated bonds varies depending on the type of cell and membrane. Approximately 35-45% of phospholipids are saturated and the remainders are unsaturated which contain between 1 and 6 cis double bonds [41]. Surprisingly, mostly fully saturated phospholipids such as 1,2-dimyristoyl_-sn-glycero-3- phosphocholine (PC(14:0/14:0)) and 1,2-dipalmitoyl- _sn-_glycero-3-phosphocholine (PC(16:0/16:0)), are used to prepare t-BLMs [22, 23, 24, 42]. The phospholipid 1- palmitoyl-2-oleoyl-sn-glycero-3- phosphocholine (PC (16:0/18:1)) has also been used to conduct t-BLM studies [29, 43] which contains one cis double bond. The 1,2-dioleoyl-sn-_glycero-3-ethylphosphocholine(EDOPC), containing two cis double bonds was only used in one study of t-BLMs [43]. The t-BLMs created in these various studies (t-BLMs composed 100% by only one phospholipid) are not accurate representations of real biological membranes, as real biological membranes possess many types of phospholipids with varied amounts of cis double bonds. Therefore, what we are reporting may not be an accurate representation of what is happening in a real cell membrane. We may need to rethink how mimetic artificial t-BLM truly are. Membrane composition is the primary factor that has been overlooked in regards to t-BLM research. Due to the abundant types of membranes it will be a challenge to produce a t-BLM that truly mimics a biological plasma membrane. This challenge is currently incomplete and in some cases completely overlooked. Figure 4 demonstrates some composition varieties that have caused this challenge of creating a true biological mimic. Some of the most common forms of phospholipid head groups found in plasma membranes of mammalian cells are seen in Figure 4a. Cholesterol is also a very abundant lipid in plasma membranes with a molar ratio of 1.0 [44]. Due to its overall neutral charge and abundance [45] phosphatidylcholine (PC) head groups are commonly used for the entirety of research [22, 23, 24, 29, 42, 43] but what effect do the other head groups have on t-BLM behaviour? For example phosphatidylserine (PS) has an overall negative charge [46]; how does this affect substrate–membrane interaction in a t-BLM? The same principle applies to the variation in unsaturation levels in phospholipid tails and its effects on membrane behaviour. Simply using PC head groups and fully saturated lipid tails to build a t- BLM is not an accurate enough biological mimic.

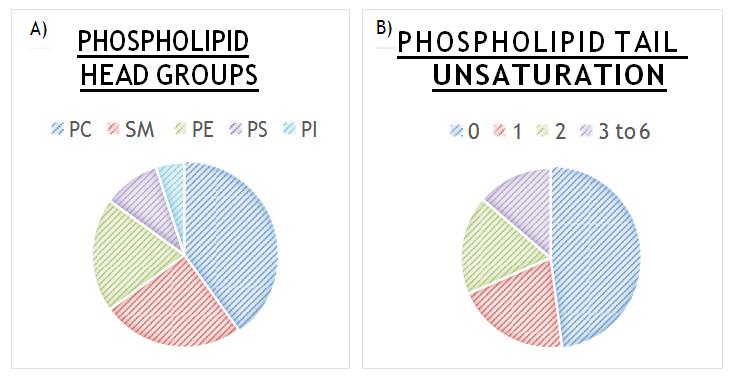

Figure 4
Click to enlarge
Figure 4

Brianna D Murphy and Angel AJ Torriero. Critical Overview of the Use of Tethered Bilayer Lipid Membranes with Electrochemical Techniques. Med & Analy Chem Int J 2018, 2(1): 000110.

Electrochemical Impedance Spectroscopy (EIS) is a common technique used to monitor the conductivity and dielectric properties of t-BLM [26, 43, 49, 50, 51, 52]. EIS is the only technique that allows the simultaneous visualisation of conductivity and resistance. Two properties that is vital to the understanding and creation of t-BLM. Conductivity incorporates the exploration of capacitance including change in height and investigation of dielectric properties of the membrane [53]. The lipid bilayer composition of cells can modify the capacitance and resistance values [26], and also alter permeation of molecules into the cells [54]. For one study using 1-palmitoyl-2-oleoyl_-sn- glycero-3-phosphocholine and 1,2-dioleoyl-sn-_glycero- 3- ethylphosphocholine, containing one cis double bond and 2 cis double bonds respectively, a slight change in conduction and a small amount of variation in capacitance was observed [43]. It was concluded that the main determinant for this change is the hydrogen bonding between the phosphate oxygen molecules on adjacent phospholipids when varying H3O+ concentration [43]. But what hasn’t been considered is the possible effect of double bonds on the electrical properties, which may account for some change observed in this study. By adding unsaturation into the phospholipid tails and possible other membrane components the resistance and capacitance might consequently change but to what degree is still unknown. The availability of this information is required to set new standards for the electrical properties of t-BLMs that are known today. Unsaturation in newly synthesised tether molecules has been explored [22]. The study’s focus was to identify if the newly created tether molecules could support the formation of t-BLMs, which was concluded possible. The results from unsaturated tether molecules were compared to those of fully saturated tether molecules. However, by also using unsaturated phospholipids in the t-BLM setup it cannot be confirmed whether changes in membrane behaviour is the cause of the unsaturation in the tethers, the variation in tether lengths or the unsaturation in the phospholipid tails [22]. This was a successful study as they did achieve the initial aim but in regards to membrane behaviour it is inconclusive what caused the changes in membrane properties, as there were many variations in the setup. The ever-growing frequency of multi-drug resistant pathogens has specifically caught the interest of t-BLM studies [55]. The hunt for alternative antibiotic treatments and antimicrobial peptides (AMPs) has resulted in utilization of t-BLMs to test the mechanism of action of new and commonly used pharmaceuticals. The largest problem found in majority of studies is the lack of similarity between a real biological membrane and the synthesized t-BLM [52]. The AMP Cecropin B has been tested on a t-BLM that was aimed to mimic a mammalian cell. However, one unsaturation in phospholipid tails and integration of cholesterol was used to produce the t-BLM [52]. The study states it relies on the changes in permeability but has not uncovered possible effects of unsaturation composition on permeability [52]. Another study testing Melittin, another AMP, on only fully saturated t-BLMs has also not considered the possible effect of unsaturation on membrane behaviour [56]. This is a common pattern seen in many studies using t-BLMs as membrane composition has not been considered a priority [57].

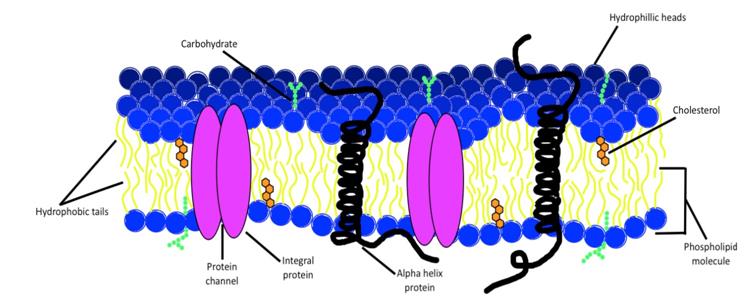

Figure 1: Schematic illustration of a plasma membrane demonstrating some of the complexities embedded within composition tuning, making it possible to start with the phospholipid bilayer followed by slowly introducing membrane components to investigate their contribution to the cell. These models have vasty contributed to the advancement of biotechnology in the field of healthcare, environmental monitoring and energy storage [12]. Ion Channel Switch (ICS) biosensors used in pathogen detection [13,14], diffusion controlled drug delivery membranes [15,16] and dialysis membranes [17] barely scratch the surface of artificial membrane applications. Various methods have been developed to form different types of artificial lipid membranes including black lipid membrane (BLM), supported lipid bilayer membrane (s-BLM), hybrid bilayer lipid membrane (h- BLM) and tethered bilayer lipid membrane (t-BLM) [18]. BLMs were developed over 40 years ago and have substantially contributed to the current understanding of biological membranes. Unfortunately, the free- standing planar film that constitutes the BLM causes such an unstable lifetime (<1 hour) making it an outdated method compared to the s-LBM [19]. Solid substrates are often used to support the s-LBM, providing mechanical stability to allow for vigorous experimentation including electrochemical techniques [12]. Various materials can serve as membrane supports such as gels, mica, ceramics, silicon or noble metals [6]. The primary limitation of supported bilayers is the extensive hydrodynamic coupling between the bilayer and substrate resulting in a lower diffusion coefficient [20]. To circumvent this problem t-BLM are used as they don’t encounter substrate compatibility limitations that affect the diffusion coefficient [21].
Click to enlarge
Figure 1: Schematic illustration of a plasma membrane demonstrating some of the complexities embedded within composition tuning, making it possible to start with the phospholipid bilayer followed by slowly introducing membrane components to investigate their contribution to the cell. These models have vasty contributed to the advancement of biotechnology in the field of healthcare, environmental monitoring and energy storage [12]. Ion Channel Switch (ICS) biosensors used in pathogen detection [13,14], diffusion controlled drug delivery membranes [15,16] and dialysis membranes [17] barely scratch the surface of artificial membrane applications. Various methods have been developed to form different types of artificial lipid membranes including black lipid membrane (BLM), supported lipid bilayer membrane (s-BLM), hybrid bilayer lipid membrane (h- BLM) and tethered bilayer lipid membrane (t-BLM) [18]. BLMs were developed over 40 years ago and have substantially contributed to the current understanding of biological membranes. Unfortunately, the free- standing planar film that constitutes the BLM causes such an unstable lifetime (<1 hour) making it an outdated method compared to the s-LBM [19]. Solid substrates are often used to support the s-LBM, providing mechanical stability to allow for vigorous experimentation including electrochemical techniques [12]. Various materials can serve as membrane supports such as gels, mica, ceramics, silicon or noble metals [6]. The primary limitation of supported bilayers is the extensive hydrodynamic coupling between the bilayer and substrate resulting in a lower diffusion coefficient [20]. To circumvent this problem t-BLM are used as they don’t encounter substrate compatibility limitations that affect the diffusion coefficient [21].

Overlook

Although numerous studies using t-BLMs have uncovered useful information, it is almost as if a critical step has been skipped. Jumping straight from the success of being able to create a t-BLM to testing varieties of things on or within them. Instead, perfection of the t-BLM should have been completed first before elaborate testing took place. This overlooked vital step has barred many studies from comparing their findings to real biological membranes, which one would assume is the ideal aim behind using artificial membranes in the first place. Commonly, it is stated that there is an advantage behind comparing a t-BLM study to other artificial membrane studies [58] but the overall aim is to compare these systems to real biological membranes not more artificial ones. The macrocosm idea behind an artificial membrane has been forgotten. Making this article more of a reminder that going back to basics strengthens the foundation of research.
