Nitrogen Rich Heterocycles as a Privileged Fragment in Lead Discovery

Introduction

Heterocyclic core systems are fascinating scaffolds for drug discovery and development process because of their potential to constitute various and essential bonds within the active site of their targets [1]. Among heteroatoms, nitrogen is of greater importance due to its high degree of electronegativity whereas can easily form polar bonds like dipole-dipole, π-dipole, π-charge transfer in π-π stacking, ionic-dipole and hydrogen bonds. As we know, hydrogen bonding is of particular importance in biological environments and in this sense; nitrogen atoms can play roles as both hydrogen bond acceptor and donor (in the form of NH) which makes this atom as a key element in lead discovery.

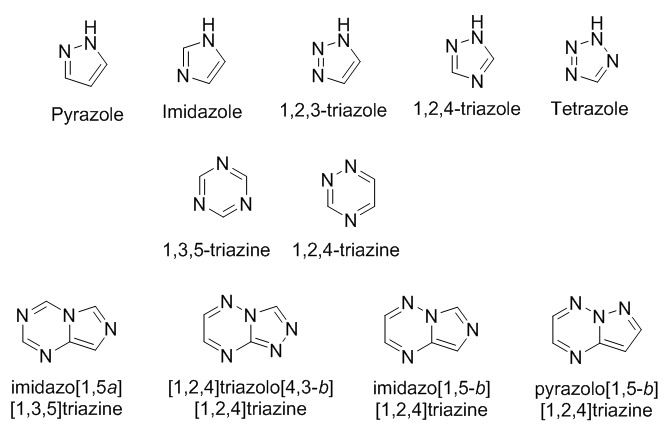

Nitrogen rich heterocycles are considered as pyrazole, imidazole, 1,2,3- and 1,2,4-triazole, tetrazole, 1,3,5- and 1,2,4-triazine and their fused systems named pyrazolotriazine, imidazotriazine and triazolotriazine (Figure 1). These heterocycles are widely used and incorporated into the structure of numerous synthetic drugs and pharmacologically active agents. Some of their pharmacological activity pertaining to these heterocycles are antifungals, antimicrobials, anticancer, anticonvulsants, anti-inflammatory and antihypertensive agents. In the following, we briefly describe some examples of recently introduced and discovered drug candidates containing nitrogen rich heterocycles.

Click to enlarge

(Figure 2). Their anti-inflammatory activity was acting through cyclooxygenase-2 inhibition whereas their anti- diabetic effect was through inhibition of α- and β- glucosidase and PPAR-γ activation. In fact, the reason behind the incorporation of pyrazole ring in the structure of designed compounds is to keep the Y-shape of coxibs like celecoxib [2].

Bioactivities of Nitrogen Rich Heterocycles

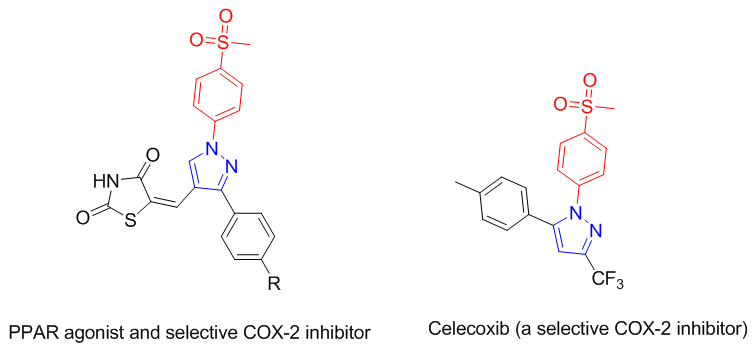

In a recent study by Abdellatif, et al. pyrazole core which was inspired by selective cyclooxygenase-2(COX-2) inhibitor celecoxib was used for the synthesis of new drug candidates as anti-inflammatory and anti-diabetic agents

Click to enlarge

(Figure 3). Some of the derivatives with short –CH2- linker between pyrazole core and imidazole/triazoles ring showed prominent antimycobacterial activity with low MIC values in the range of 6.25-25 µg/ml. As we know, imidazole and triazole nitrogen atoms are suitable electron donors for forming a coordination bond with heme iron in the active site of CYP121A1 [3].

Click to enlarge

A series of diphenyl conjugated imidazole derivatives were designed and synthesized as glutaminyl cyclase inhibitors (Figure 4). This enzyme is a key target in Alzheimer’s initiation by generating neurotoxic pyroglutamate modified β-amyloid peptides. Synthesized compounds showed potent inhibitory activity against human glutaminyl cyclase along with high blood-brain- barrier permeability and could substantially reduce the level of amyloid plagues in the brain. The nitrogen atom of imidazole ring binds to the catalytic zinc ion at the pocket of glutaminyl cyclase to inhibit the enzyme [4].

Click to enlarge

A novel series of triazole containing mammalian target of rapamycin (mTOR) kinase inhibitors were synthesized and their potency, selectivity and pharmacokinetics were evaluated (Figure 5). SAR studies suggested that 4,6- or 1,7-disubstituted-3,4-dihydropyrazino[2,3-b]pyrazine- 2(1H)-ones substituted by a terminal triazole showed improved pharmacokinetic and were highly potent and selective mTOR inhibitors. In this study, the best compound CC-115 was considered as a lead for further clinical development. Molecular docking of these compounds inside the active site of mTOR displayed that the triazole moiety extends deeply into the catalytic site and forms multiple hydrogen bonding interactions with Asp2195, Lys2187 and Ile2356 [5].

Click to enlarge

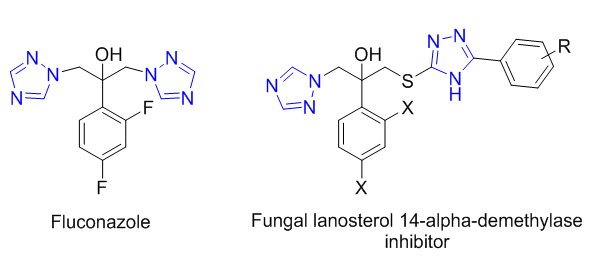

Nowadays, Antifungal drugs are under great investigations due to the emerge of resistant fungi to the current antibiotics. Presence of an imidazole or triazoles ring is necessary in keeping anti fungus activity. Imidazole or triazole nitrogen atom constitutes a coordination bond with heme iron existed in the active site of lanosterol 14α- demethylase to block its catalytic activity. In this context, some fluconazole analogs containing triazole modified scaffolds were synthesized and their antifungal activity were evaluated (Figure 6). Among compounds tested, two of them showed very potent activity with MIC values ranging ≤0.01-0.5 µg/ml against Candida species even more effective than fluconazole [6, 7].

Click to enlarge

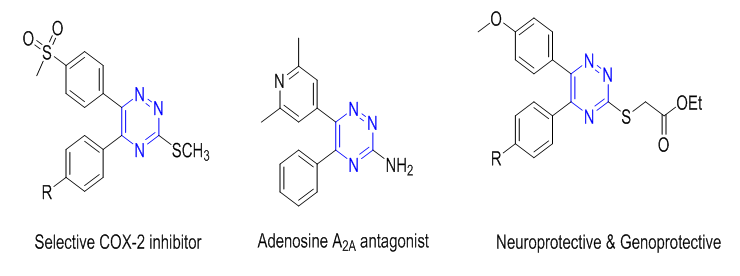

Correspondingly, some 5,6-diaryl-1,2,4-triazine derivatives were reported to be selective cyclooxygenase- 2 inhibitors with high anti-inflammatory activity [10]. On the other hand, various 1,2,4-triazines were reported to have potent neuroprotective activity against H2O2 and β- amyloid induced neurotoxicity in PC12 and SHSY5Y cell lines [11]. Similarly, the same 1,2,4-triazine compounds were shown to have high genoprotective activity against endosulfan mediated toxicity in lymphocytes [12].

Subramanian et al. reported tetrazole analogs of an amidine derivative in order to find potent, selective and orally bioavailable protein arginine deiminase (PAD) inhibitors (Figure 7). This enzyme catalyzes the hydrolysis of arginine residues to citrulline and plays role In a study conducted at 2012, a series of 5,6-diaryl- 1,2,4-triazines were synthesized as Adenosine A2A antagonists (Figure 8). These compounds showed potent, selective and orally efficient drug candidates for treatment of Parkinson’s disease [9].

Click to enlarge

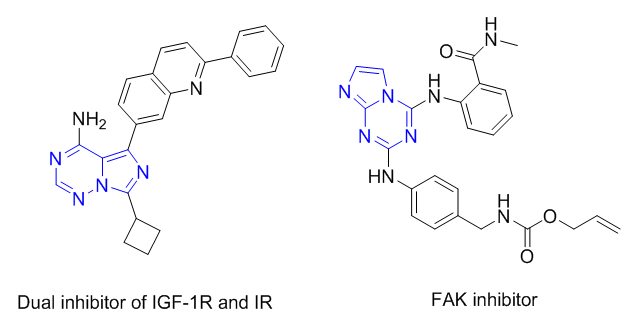

Figure 8: Triazine containing drugs as selective COX-2 inhibitor, adenosine A2A antagonist and Fused nitrogen rich heterocycles are of special interest among medicinal chemists. Some imidazo-1,3,5-triazine derivatives were explored to have focal adhesion kinase (FAK) inhibition potential with antiangiogenic and anticancer activity (Figure 9). The best inhibitor in this series had IC50 value of 50 nM against FAK enzymatic activity [13].

Some imidazo-1,2,4-triazine derivatives were described and evaluated as potent, selective and orally bioavailable dual insulin-like growth factor receptor-1 (IGF-1R) and insulin receptor (IR) inhibitors (Figure 9). These receptors are transmembrane tyrosine kinases which their activation results in tumor genesis. A molecular modeling study has revealed that the imidazotriazine ring has multiple hydrogen bonding interactions mimicking the adenine moiety of ATP in the ATP-binding site of the enzyme [14].

Click to enlarge

selectivity to the compounds because this core is able to form some key interactions as hydrogen bonds with Asp1222 and Tyr1230 at the active site which is very crucial in the selectivity of c-Met inhibition towards various kinase receptors [15, 16].

Click to enlarge

Conclusion

Nitrogen rich heterocycles are attractive cores or fragments and potentially are able to form energetic and diverse chemical bonds at the binding site of biological drug targets. According to the literature, presence of this type of heterocycles infers high potency, selectivity and favorite pharmacokinetic profile to the parent drug. Nitrogen rich heterocycles are widely using in the future trends of medicinal chemistry.
