Zeolites as Functional Materials for Energy Technology

Review of Molecular Sieve

Molecular sieve property was first demonstrated by Weigel and Steinhof in 1925, and termed and described in James W. McBain’s publication, “The Sorption of Gases and Vapours by Solids”, in 1932 [5]. The sieves are solid with three-dimensional framework of tetrahedral oxygen atoms that contains millions of uniform size and regular shaped pores. The pores are in the same diameter normally range from 3 to 10 Angstorm (Å). They act as sieves on a molecular scale as they selectively absorb molecules that fit into their pore size and exclude those that are too large [9]. They are different from filters as they operate on a molecular level and trap the absorbed molecules instead of blocking the them. Examples of molecular sieves are zeolites, active carbon, porous glass and silicon oxides. Due to their sieve property, they have been widely applied in areas such as absorbents, gas separations, laundry detergents, oil refinery and petrochemical industries, and even health aspect [10, 11, 12, 13].

Historical Background of Zeolite

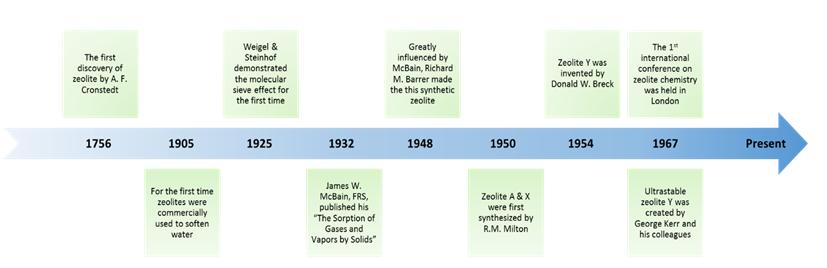

In 1756, a Swedish mineralogist, Axel Fredick Cronstedt (1722-1765), published a paper title “Rön och Beskrifning Om en oberkant bärg art, som kallas Zeolites” on the Journal of the Swedish Royal Academy of Science [6]. In his paper, he introduced a brand-new type of material. Thus, he coined it the term “zeolite”, which is a combination of two Greek words, ‘zeo’ and ‘lithos’ meaning ‘to boil’ and ‘stone’ as these minerals were observed to have ‘boiling’ properties and steam was formed from the pores when heated in a blow pipeflame. Two years later, Cronstedt published his views on mineral classification by chemical compositions instead of physical properties and introduced the mineralogical classification of zeolite in his “An Essay Towards a System of Mineralogy” [5]. Thus, based on this morphological classification, the first discovered zeolite mineral in human history, Cronstedt’s zeolite, was widely reported as stilbite not until very recent to be investigated as stellerite [6] (Figure 1).

Click to enlarge

large-scale industrial process using zeolite would not be limited by its rarity. So he started his research on preparing synthetic zeolite by reacting known chemicals, such as analcite or leucite or precipitated alimonosilicates, with concentrates solutions of barium or potassium salts at high temperature and autogenous pressure [14]. He successfully produced the first synthetic zeolite with no known natural counterpart [5] that is the chabazite analogue ZK-5. Greatly influenced by Barrer’s works, Bob Milton synthesized another two specimen of zeolites A and X in 1950. Barrer’s and Milton’s contribution to synthetic zeolite industry had laid the cornerstone of zeolite technology for today (Figure 2).

Click to enlarge

Structure of Zeolite

It is important for us to understand the structures and frameworks of zeolites as they are highly related to the properties of zeolites, such as selectivity in ion exchange, sorption capacity, thermostability, reversibility in hydration and dehydration, etc. According to W. M. Meier, one of the very first scientist who classified zeolites by framework type [15], for most of the zeolites, they can be generalized with a formula:

𝑀𝑚/𝑧[𝑚𝐴𝑙𝑂2 ∙𝑛𝑆𝑖𝑂2] ∙𝑞𝐻2𝑂 [16] where z is the valency of the exchangeable metal cation M which balance the negative charges of the entire aluminosilicate framework [17]. However, the latest general formula adopted by the Structure Commission of the International Zeolite Association (IZA) is expressed in the following:

𝑀𝑥 𝐻2𝑂)𝛾 [𝐴𝑙𝑥𝑆𝑖 𝑡−𝑥)𝑂2𝑡] − 𝑰𝒁𝑨 [7] This formula means that, in a unit cell of this zeolite, the framework contains χ number of aluminate [AlO4/2]-, (t-χ) number of silicate tetrahedra [SiO4/2], where t is the total number of tetrahedral atoms within the framework of a unit cell. M represents the exchangeable metal cation for negative charge balance and γ is the number of adsorbed water molecules in cavities [18]. Symbols enclosed in the | | blanket represent the guest species while bolded blanket, [ ], represents the host framework. IZA refers to the three-letter code assigned by the IZA regarding the framework type of the zeolite [7].

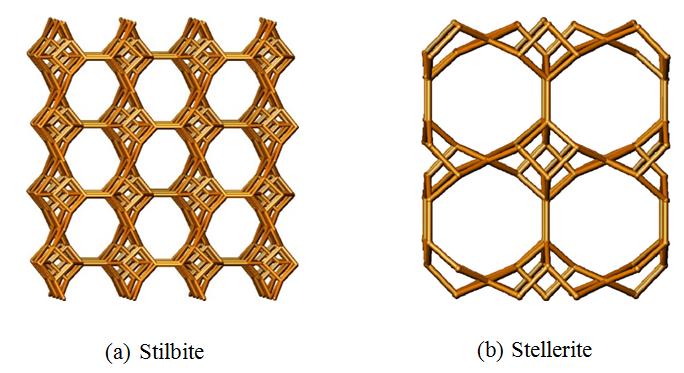

Typically, zeolites have a three-dimensional, four- connected framework of TO4 tetrahedron, where T refers to a cation (Si, Al, P, Ga, Ge B, Be, etc.) [7, 19]. This TO4 is a basic building unit (BBU) in a zeolite and they are linked to each other by sharing a corner oxygen atom. When several BBUs are connected, they become composite building units (CBU) [7]. There are also secondary building units (SBUs) which contains 16 T-atoms or above and are invariably non-chiral [19]. A zeolite structure can be described separately in its framework type and framework structure. The framework type of a zeolite simply refers to the connectivity (topology) of the tetrahedrons in its most ideal and highest possible symmetry [19] while the framework structure includes composition of framework, extrao- framework cations, structural defects, etc [15]. According to the rules given by an IUPAC Commission on Zeolite Nomenclature in 1986 [19], a three-letter code, such as LTA (from Linde Type A), DOH (from Dodecasil 1H), FAU (from Faujasite), will be assigned to all zeolites based on their corresponding framework type by the IZA. All the codes are derived from the name of the Type Materials and must be written in bold letter. Details of the codes are available in the ‘Framework Type Data Sheets’ given by the ‘Atlas of Zeolite Framework Types’ published on behalf of the IZA. Sometimes it is more convenient to discuss the zeolite framework type in terms of their structural features, like composite building units (CBUs), chains, cages, channels, and sheets, as many zeolites may share the same.

As aforementioned, a CBU is formed from joining a number of BBUs and the simplest form of CBUs are rings, which is denoted as n-ring (n is the number of tetrahedra contained in a ring) [18]. It is essential the recognize the n-ring as it determines the size of the pore openings. The smaller the n is, the smaller the pore opening is. Typically, CBUs are displayed in three-letter codes, for examples d4r or lau, and the pore opening is expressed in terms of free diameters or effective pore width (Å). As another form of CBUs, cage refers to those polyhedral building units that water molecules are not allowed to pass through as the pore opening is too small even for the largest ring [18]. The cage is normally expressed in terms of the number of surface they have. For instance, a cubic cage is written in [46], and a cage with six 4-rings as well as two 6-rings is written as [4662] [15]. Apart from cages, cavities, channels, and framework density are also considered as characteristics of zeolite framework type. Cavities are very similar to cages, however, molecules are allowed to get in and out of the cavity [18]. Channels are formed by many n-rings linked together in a tube-shaped that extend infinitely in at least one dimension (most likely two or three dimensions [18] and molecules can diffuse along the n-ring pores. Framework density simply means the number of T-atoms per 1000Å [19]. In opposite to the framework type, framework structures focus on how the structure, like composition, cations, of the zeolite would influence the zeolite properties [15]. Among all aspects, zeolite framework composition appears to be the most important one as it determines the (thermo-) stability of the zeolite. Here we focus on the application of zeolite in energy aspect, readers who are interested in the structure of zeolite could refer to ‘Atlas of Zeolite Framework Types ‘and ‘Introduction to Zeolite Science and Practice’.

Zeolite in Biofuel Production

The consumption of petroleum and other fuels (including NGPL, biofuels, CTL, GTL, kerogen and refinery gain) remains ascending as reported in the International Energy Outlook 2016 (IEO2016) Reference case [20]. Despite the slow economic growth and static or declining population levels of Organization for Economic Cooperation and Development (OECD) - which is a group of 34 member countries- there still exists a net increase of 0.6 million barrels per day (b/d) of fuels consumption in

2040, compared to 2012. The total fuels consumption by non-OECD broke even with OECD in 2013 and will rise to 75 million b/d (Figure 3).

Click to enlarge

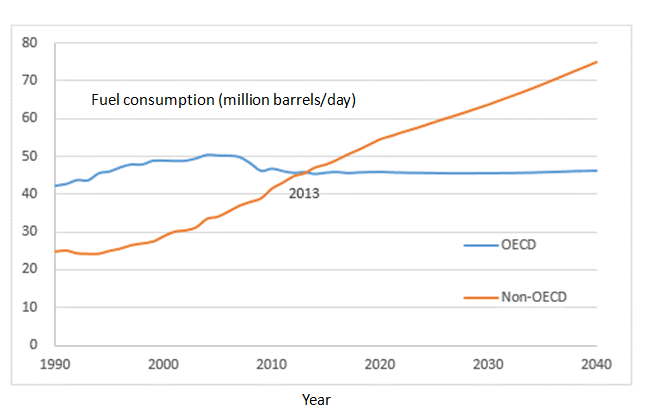

Figure 3: OECD and non-OECD petroleum and other liquid fuels consumption, IEO2016 Reference case, 1990-2040. Biofuels account for the second largest component of other liquid fuel. Biofuel is a collective term for renewable liquid or gas fuels, including ethanol and biodiesel that generated from biomass [21]. A five-fold increase in biofuel production was recorded in US from 2002 to 2013 [22]. In fact, the fuels consumption is expected to growth exponentially in the future, especially for the other fuel types due to a few reasons. Unlike fossil fuels, biofuel generated from biomass is theoretically inexhaustible. It does not take millions of years for feedstocks to be replenished or rejuvenated. Yet, restrictive legislations and regulations are the main driving forces on the increasing trend on biofuels consumption and supply. As stated in the Energy Independence and Security Act of 2007 (EISA), 36 billion gallons of renewable fuel, in which a certain percentage must be advanced biofuel, shall be blended into domestic transportation fuels each year by 2022 [23]. Theoretically, biofuels are converted from biofuel feedstocks, such as agricultural crops (e.g. corn, soy, vegetable oil), animal by-products (e.g. animal fats), plant materials (e.g. wood, wool), and recycled waste (e.g. waste cooking oil, grease). On average, around 60% of energy derived from feedstocks can be transformed to deliverable biofuels while the rest are energy losses or co-products [22]. Currently, soybean oil, corn oil, canola oil and palm oil are the majority feedstocks for biofuels production as reported by the U.S. Energy Information Administration (EIA) in 2013.

Liquid biofuels can be separated into two categories: the first-generation or conventional biofuel and the second- generation biofuel. The first-generation biofuels are mostly made from arable crops in which sugar, starch or vegetable oil. Oil could be easily extracted from these materials using conventional methods. However, their limitations and drawbacks gradually emerge. For examples, they are limited in the ability of greenhouse gases reduction (except for sugarcane ethanol), they could possibly create needless competition on land and water used for food production, and their production cost is high [24]. With growing concerns in the above impacts, many turn their interests in developing second-generation biofuels that could avoid the problems. The second- generation biofuels are produced from non-edible biomass, namely lignocellulosic biomass, agricultural resides or waste. In comparison, the second-generation biofuels are expected to be much more superior than the first-generation, in terms of climate change mitigation, competition of food, water and land. Biofuels produced from biomass is cleaner and greener choice compare to the fossil fuels. It could be a solution to the negative impacts raised by using fossil fuels in the foreseeable future. The reason they still have not yet taken up the market mainly due to immature production technologies. Homogeneous catalysts are commonly used in the biofuels production processes, such as transesterification and hydrolysis process. But many researchers started eyeing on replacement of homogeneous catalysts to heterogeneous catalysts (solid catalysts) owning to the serious drawbacks they have, namely handling hazards, soap formation, separation difficulty and toxic waste production [25, 26]. In such case, zeolites could possibly be a feasible choice.

First-Generation Biofuels

Sugar and vegetable oil are two main sources of first- generation biofuels, since they relatively common and easy to be extracted. The extraction process like pyrolysis, gasification, transesterification and hydrolysis always involves the use of catalysts. In this section, we will show some examples or applications of zeolites as catalysts on first-generation biofuels production. Sugar is a general name for sweet tasted soluble carbohydrates and one of the major types of carbohydrates found in food. There are several types of sugar and monosaccharides (e.g. glucose, fructose), disaccharides (e.g. sucrose, maltose) and polysaccharides (e.g. starch, cellulose) are the three main types. It is one of the major feedstocks available for the first-generation biofuels production as carbohydrates occupy for 75% of annually renewable biomass approximately. It is also a key intermediate for converting biomass to fuel oils [26]. Starch is another major types of carbohydrates and is a polysaccharide that composites of glucoses units linked by glycosidic bonds. Amylose is the branchless form of starch which means there the sugar molecules do not branch off from the main chain while amylopectin is the branched form of starch. Native starch molecules normally consist of 20% amylose and the rest are amylopectin [27]. Back in 1990, a patent was issued to Jacobs P and Hinnekens H for their invention in single step conversion of polysaccharides to polyhydric alcohols [28] which could be one kind of biofuel. Corn starch was put into a Parr reaction for hydrolysis and hydrogenation under high temperature (around 130-180°C) and high pressure (5.52 MPa) for around 0.5-1 hour with the presence of zeolite - HUSY, Ru on acid ultrastable Y zeolite - as catalyst. Zeolite NaY LZY-52 powder was the initial material for HUSY. The powder first underwent ion-exchange with NH4Cl solution and washed until Cl-free for further calcination for 12 hours. The above steps were repeated three times until sodium-free material is obtained. The HUSY contained 3% of Ru was obtained by final ion-exchange with Rusolution. 99% mole alditols was obtained for the reaction operated at 180°C with 25% w/w of starch in water for 0.58 h. The results also demonstrated that higher mole percentage could be achieved for longer reaction time, however, this will take unreasonable long time for achieving 100% mole alditols which is not cost-effective. The HUSY was also tested with sucrose and lactose and this further confirmed that the process was not only applicable for hydrolyzing polysaccharide, also for disaccharides to their basic monosaccharide. H-Mordenite and HZSM-5 prepared from ZSM-5 were also employed and gave similar results as HUSY but higher conversion rate of hexitols. It is known that typical solid acid catalysts include zeolites are easily poisoned during the hydrolysis process while water is used as solvent or reaction media, thus could not be recycled afterwards due to leaching of acid groups [26]. Dhepe P, et al. proposed to modify mesoporous silicas, HMM-1, with sulfonic acid to produce a recyclable water-tolerant solid acid catalyst for hydrolysis of disaccharide and polysaccharide, i.e. sucrose and starch, to glucose and fructose. Experimental results showed that the water-tolerant solid acid catalysts yield more monosaccharides than conventional catalysts like Amberlyst-15, Nafion-silica and HZSM-5, and no decrease in catalytic activity or leaching or acid groups or blocking or pore sites were observed. In another word, these water-tolerant solid acid catalysts have higher conversion rate and turnover frequency [24]. After hydrolysis and hydrogenation, the obtained monosaccharides can be further converted into useful diesel and fuel derivatives such as hydrocarbons and oxygenated additives through esterification and hydrogenation [24]. There is also example of commercialized biofuel production process using zeolites as catalysts. A novel catalytic conversion technology of carbohydrates to hydrocarbon - BioForming® process – was developed and patented by Virent, Inc. It employs the Aqueous Phase Reforming (APR) technology together with modified conventional catalytic processing, in which modified ZSM- 5 is used as catalysts, to transform sugar into liquid fuels, such as gasoline, jet fuel and diesel that match petroleum fuels’ compositions, functions and performance, and chemicals [29]. One distinct advantage is that the BioForming® process has high feedstock flexibility, non- food feedstocks like lignin, cellulose and hemicellulose can also be processed. A brief summary of the industrial process is illustrated in Figure 4.

Click to enlarge

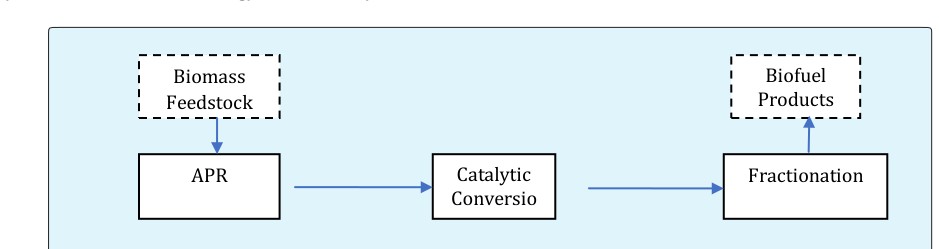

On the other hand, vegetable oils, triglyceride esters extracted from plants, are also a common feedstock for biofuel production. Theoretically, these oils could be used directly as substitutes for diesels since they are high in energy content. They have not been injected directly into diesels engines, despite their advantages, mainly due to their high viscosity. Fatty acid methyl ester (FAME), which is produced from transesterification of triglycerides with methanol and catalysts [24], is one of the major component presented in biodiesel. As mentioned before, homogeneous catalysts are mostly employed in the processes, leading to several unfavorable drawbacks. To avoid those drawbacks, heterogeneous catalysts have been extensively studied in many literatures [31, 32, 33, 34].

Lopez et al. compared a list of homogeneous and heterogeneous catalysts on the performance of transesterification of triacetin, as a model of larger molecules of triglycerides that can be found in animal fats and vegetable oils, together with methanol [35]. The list of catalysts that they used is shown in Table 1. All the reactions took place at 60°C in a parr reactor and 6:1 anhydrous methanol to triacetin ratio with 2, 0.5 and

Second-Generation Biofuel

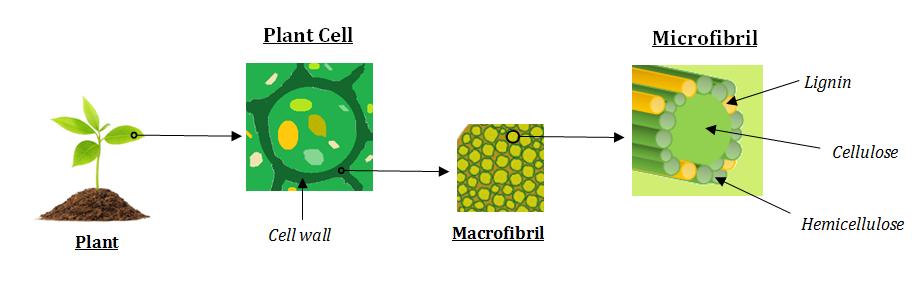

Second-generation biofuels are produced from non- edible biomass, mostly from lignocellulose. Lignocellulose is the most abundantly feedstocks for biofuel production and can be classified into three different groups: virgin biomass, waste biomass and energy crops. Among the sectors, the energy crops refer to crops that have high yield and can be densely planted, and serve as major feedstocks for second-generation biofuels. Lignocellulose composites of cellulose, hemicellulose and lignin and they can be transformed to biofuels by applying different methods. Cellulose, which is insoluble in water, is linear polysaccharide with β-D-glucose as its basic units. It can be transformed easily into its glucose units chemically. A. Onda et al. studied the performance of different zeolites on selective hydrolysis of cellulose into glucose [36]. Several H-form zeolites, such as H-beta zeolites with Si/Al = 12 and 75, H-mordenite with Si/Al = 10 and H-ZSM5 with Si/Al = 45, were tested in an autoclave at 150°C for 24 hours with agitation (22 rpm). H-ZSM5 and H-beta with Si/Al = 75 found to have higher yield for glucose than H-beta with Si/Al = 12 and H-mordenite. They suggested that the higher Si/Al ratio would result in higher hydrophobic character which cause the organic products (glucose) more favorable than water. However, cellulose fibers are surrounded by hemicellulose and lignin fibers (Figure 5), and pulping process is normally applied to separate them from hemicellulose and lignin [24].

Click to enlarge

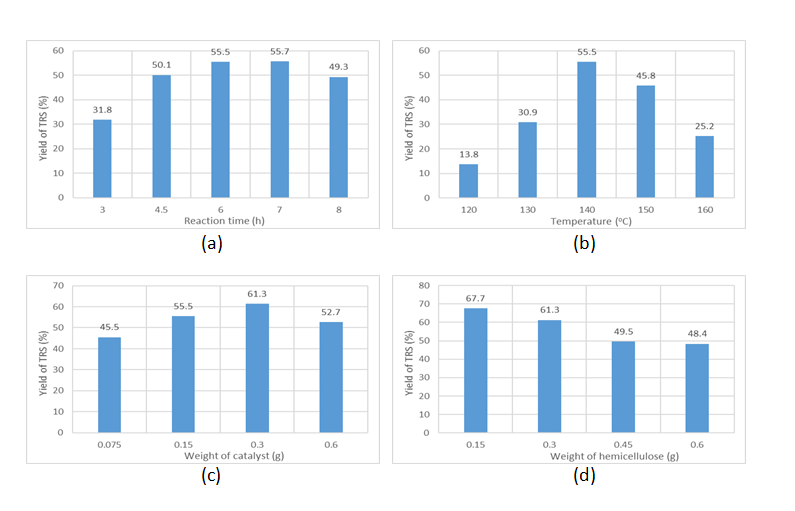

surface area and lower acidity yielded higher in total reduced sugars (TRS), and the optimal conditions for maximum yield of TRS was found to be 2/1 catalyst to hemicellulose ratio under 140°C for 6 hours (Figure 6). In order to obtain a higher TRS yield, a supplementary research was conducted to study the performance of sulfonated hierarchical HUSY zeolite [39]. Similar experiment approaches were adopted and yielded 78% for TRS which is much higher to that obtained previously with hierarchical HUSY.

Click to enlarge

Zeolite in Direct Methanol Fuel Cell

Fuel cells are electrochemical devices that convert chemical energy into electrical energy. They are becoming more and more popular since they have wide variety of applications, high specific and volumetric energy densities, and are relatively clean in which they produce electricity without combustion and pollution. Unlike batteries, electricity production is sustainable as long as source of fuel and air or oxygen are continuously supplied. Direct Methanol Fuel Cell (DMFCs) is one kind of fuel cells that provide power for portable electronics. It is one of the most attractive power source as it is relatively clean, simple to operate, and very dense in energy. Methanol is used as the fuel at the anode and oxidize to form carbon dioxide on a catalyst layer. Protons are produced from the oxidation and pass through the proton exchange layer to form water with oxygen. The reaction mechanisms are shown in Table 2.

Table 2: Redox reaction mechanism of DMFC. Nafion is a common choice of material for proton exchange membrane due to its high proton conductivity and excellent chemical stability. However, it has a few limitations that restrict the performance and efficiency of the fuel cell, namely methanol crossover (high methanol permeability), low proton conductivity at above 90°C, and catalyst poisoning [43, 44]. In order to combat these problems, many studies suggested to modify the Nafion membrane by addition of a variety of compounds, both organic and inorganic, onto the surface. Zeolites are one of the materials that many researchers are focused on due to their meso-/mirco-porous, stable, chemically and electronic conductivity inert properties [45]. Tricoli V and Nannetti F attempted to embed zeolites, chabazite (ZS500H) and clinoptilolite (ZS403H), onto the Nafion in the presence of denaturated ethanol and dimethylformamide (DMF) to form either H+ form or Na+ form of chabazite-nafion and clinoptilolite-nafion respectively [46]. The testes on the characteristics of the composite membrane were conducted in 22°C and 60°C. Unfortunately, the composite membranes only showed significant change in proton conductivity but no notable change in methanol permeability with respect to zeolite- free Nafion. Another zeolite/Fation composite membrane which has better performance under high operating temperature was raised by. Jung DH, et al. [47]. Nafion/montmorillonite (MMT) nanocomposite membranes (both H+ and Na+ form) were produced by direct melt intercalation of Nafion into the montmorillonite and modified montmorillonite (m-MMT) synthesized from cation exchange with dodecylamine respectively. The manufactured membranes were proven that they have better performance for high temperature operating conditions (90-110°C, 125°C) compare to normal Nafion membrane. But results showed that the proton conductivity for both nanocomposite membrane species were lower than that of normal Nafion membrane, and only slightly improvement in methanol permeability. While others devoting on developing new composite membranes, Byun SC, et al. suggested the methanol permeability could be attributed to the size of the zeolite within the membranes by comparing the methanol permeability performance of a few zeolite/Nafion membranes with different zeolite contents [48]. In general, the higher the zeolite content, the higher the methanol permeability, since methanol can leak through the void fraction between large zeolite crystals and Nafion. Nevertheless, high boiling point solvent, dimethylformamide (DMF), showed lower methanol permeability than low boiling point solvent, propanol, as a solvent in fabrication of composite membrane due to higher mechanical strength when the hydroplilic parts of both Nafion and zeolite particles are more closely packed together in the presence of high boiling point solvents. With the discovery on the solvents effect, many attempted to functionalize the zeolite/Nafion composite membranes with solvents, such as acids and organics [44, 49, 50].

A Nafion/acid functionalized zeolite Beta (NAFB) nanocomposite membrane with significant decrease in average methanol permeability, compared to Nafion 115, was developed by Chen Z, et al., using concentrated H2SO4 [44]. Another functionalized zeolite/Nafion composite membrane was invented by Li X, et al. by grafting organic chains onto the surface of zeolite A-Nafion composite membrane using silane-based coupling agents, and decrease in methanol permeability was also noticed (compared to Nafion 117) [49]. Miserably, both of them were found to have obtrusive loss in proton conductivity [44, 49]. Efforts have been made to study the effects of acid strength, pore size and dimensionality, on the proton conductivity of acid-functionalized zeolites (zeolite beta, MCM-41, MCM-48) [45]. The proton conductivity decreases as follows: aryl sulfonic acid functionalized materials (S-PE-) > propyl sulfonic acid functionalized materials (S-MP-) > phosphonic acid functionalized materials (P-) > carboxylic acid functionalized materials (C-) > oleum treated materials (O-) > unfunctionalized pure materials. This trend agrees with the corresponding acid strength. Zeolite beta materials have the hydrophobic nature of nearly hydroxyl-defect-free framework, causing less complete hydrogen bonding water framework, which makes it exhibit the lowest proton conductivity. Meanwhile, MCM-48 showed highest performance on proton conductivity, probably due to its three-dimensional interconnected pore structure that reduces the electric resistance. Instead of composite membrane, zeolites can also play as the role of anode in the DMFCs. Frinz FB, Gur TM and Shim JH patented their invention [51], a thin film all solid- state fuel cell (one kind of DMFC), in which a zeolite was employed as the anode (Figure 7). The uniform porous property of zeolites provides excellent active sites for adsorption and chemisorption of hydrocarbons, and facilitates the incorporation of transition meatal ions during ion exchange in either liquid or solid state, hence, enhancing its electrical and catalytic properties. There are some remarkable advantages of this DMFC: (1) no methanol crossover; (2) wide variety of zeolite choice, (3) cathode does not have to be precious metal, it can be selected from a group of metallic or mixed ionic electronic conducting materials.
