Curvature Optimised Plasmonic Gold-Gallium Oxide Nanocomposites for High Temperature Optical Detection of NO2

Preparation of AuPs

AuPs were prepared by mixing 5mL of 2mM chloroauric acid solution with10mL of distilled water along with 5mL of 1mM sodium thiosulfate. This solution was irradiated under microwave for 4 min at 425W. The resulting solution appeared deep brown. The solution obtained was further centrifuged at 10,000rpm for 10 min with isopropanol and water for removal of unreacted species in the reaction mixture until the achievement of a neutral pH.

Preparation of AG

To synthesize AG nanocomposites, 10mL of the synthesized AuPs were added to 10mL of a 1mM gallium nitrate aqueous solution and introduced into a microwave reactor. The sample was irradiated for four minutes with 425W of power and subsequently transferred to a hydrothermal reactor and heated at 180ºC for 8h. Finally, the product was washed several times with water and centrifuged at 10000rpm. The nanoparticles were then suspended in IPA and spun on a quartz substrate at 1500rpm, dried at 90ºC and then annealed at 900ºC. The formation mechanism of the nanocomposite through the hybrid microwave and hydrothermal process is given below.

0 4 2 2 3 2 2 .2 2 2 2 (1) HAuCl Na S O H O Au H O NaCl HCL + → + + +

0 0 180 800 0 3 8 1 (2) h h Au GaNO GaOOH AG +  →  →

Thermal stability studies on AuPs and AG

Thermal stability tests were performed by monitoring wavelength and intensity (in-situ) through UV-VIS spectroscopy of the synthesized AuPs as well as the nanocomposites. For these tests the procedure followed was: (i) the resultant solution of AuPs (obtained from the microwave process) as well as AG (obtained from the hydrothermal approach) being spun on a quartz substrate (15layers) (ii) the substrates being annealed at 800ºC (iii) post annealing, monitoring the substrates to confirm the presence of and changes in Au in AuPs as well as AG nanocomposites using UV-Visible spectroscopy. Thermal stability tests were performed by monitoring the optical absorbance over the wavelength range of 350nm-1000nm using a Flame spectrometer from Ocean Optics. AuPs and AG spun on quartz substrates were placed inside a high temperature furnace, and heated to 800°C at a ramp rate of 10°C/min with constant exposure to air (2SLPM flowrate) over a period of 2h. Light from a tungsten halogen source of wavelength 300-2000nm (HL-2000 from Ocean optics) was passed through the film, and the transmitted light was collected using a collimating lens coupled with an optical fibre cable that fed into the flame spectrophotometer.

Characterization

The nanostructures synthesized were characterized using a Flame-T-Visible spectrometer (Ocean optics) coupled with a halogen light source (HL-2000 from ocean optics) with associated beam optics. Transmission electron microscopy (TEM) images and Energy dispersive X-ray spectra (EDS) were collected using a JOEL JEM 2100 with 200kV accelerating voltage to study the morphological aspects of the synthesized nanocomposites. For TEM, the colloidal suspensions were coated on copper grids and dried at room temperature. The crystalline structure of AG nanocomposites were investigated by X-ray diffraction (XRD) using an Empyrean, Malvern Panalytical instrument with Cu-Kα source radiation, (λ=1.54Aº). The diffractograms were recorded between 2θ angles of 20º and 90º.

Morphological structural and compositional properties of AuPs and AG

Optical properties

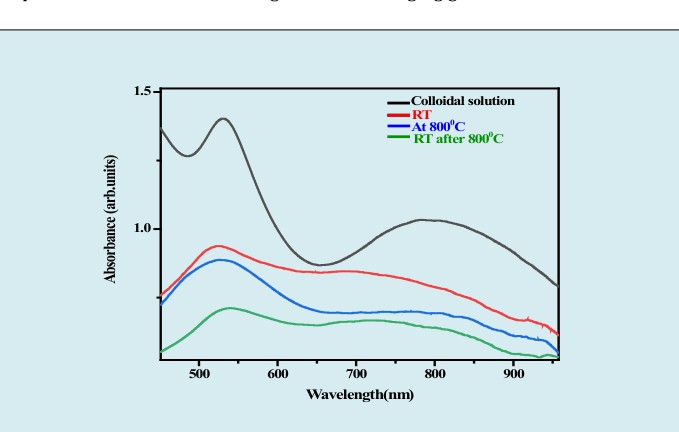

Surface plasmon resonance is as explained briefly in preceding sections a highly sensitive property with respect to particle morphological changes. The monitoring of the optical absorbance hence can give vital clues which other techniques can seldom provide. With this reasoning, the absorbance properties of the nanocomposites were studied. The optical absorption spectra of AuPs and AG are presented in figure 1 and figure 2 respectively. AuPs were prepared by the reduction of Au (III) ions to Au (0) in the presence of sodium thiosulphate as a reducing agent. Figure 1a depicts the absorption peaks of AuPs exhibiting two plasmonic peaks at 530nm and 790nm. AuPs were then spun on quartz substrate for which the peak has shifted towards a shorter wavelength (1b). This is presumed to be due to particle aggregation due to interactions with the substrate and due to the drying process, leading to a considerable damping of the red-shifted peak. When this substrate was annealed at 800ºC the sample shows a disappearing of the longitudinal plasmonic peak (1c) which can be attributed to thermal expansion and associated free electron density decrease which will also cause and additional red shift along with the damping. Post annealing at room temperature the AuPs exhibited a red shift of 15nm (compared to 1b) with an associated decrease in intensity of the absorption peak which is in agreement with the literature [15]. Briefly, the reasons for the red shift are postulated to be due to a change in the morphology of the polygons which could not be imaged in TEM as the structures were dispersed in a quartz substrate and were not able to be recovered and re-dispersed on TEM imaging grids.

Click to enlarge

Pristine AuPs are hence envisaged to undergo agglomeration and/or changes in morphology during thermal annealing which can be unfavourable to the sensing performance as it changes and degrades the plasmonic properties. AuPs incorporated in a metal oxide matrix (GaO), are expected to be better stabilized against agglomeration/ morphological change as revealed by our recent findings [16, 17]. As can be observed from the resulting optical characterization studies on AG, similar experiments on a substrate reveal that the degree of changes to the optical absorption has been minimized when AuPs are composited with GaO with a red shift of only 8nm (at 800°C) and that too only during the first high temperature treatment. Post annealing at room temperature the peak has a shift of about 4nm.

Structural studies on the synthesized nanomaterials

Click to enlarge

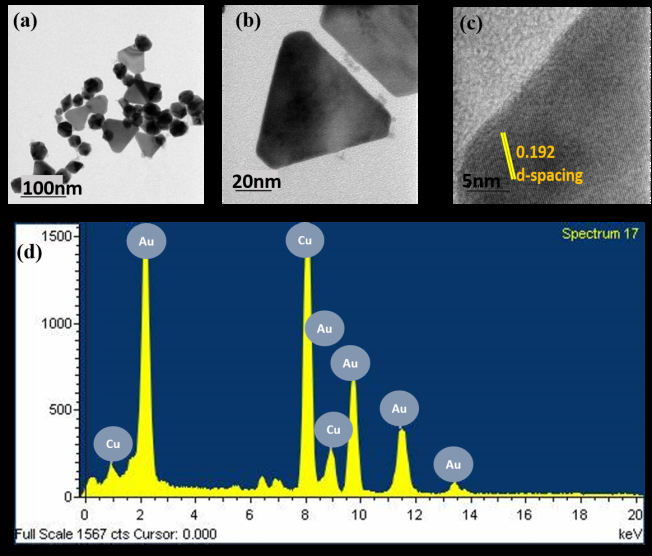

It is clear from the TEM images that the particles formed are mixed shapes of smaller icosahedral and larger truncated prisms and higher polygons. Since the particle size (taken from 25 measurements) of truncated prisms are larger (56±45nm) than icosahedrons (37±25nm), two plasmonic peaks are observed as shown in figure 1(a) as evidenced prior and confirmed by other studies [17]. The d-spacing has been calculated to be 0.192 using ImageJ software. The EDS analysis shows the presence of AuPs with no other impurities traced. We propose a mechanism below for the formation of such mixed morphologies, which are of considerable interest in multiple plasmonic investigations and applications.

Compositional analysis on the synthesized nanocomposites (111)

ICDD-11373 AuP/Ga2O3

- Au - GO

40 (002) (-111) (111) Intensity (arb.units) (401)

(220) (200)

30 (-310) (311) (312) (222) (-510)

(311) (512)

The composition of the fabricated composites was analysed and corroborated through XRD. The phase formation of β-GaO was a primary confirmation from XRD, as shown in figure 4. Here, the lattice planes (111), (200), (220), (311) and (222) correspond to the characteristic peaks of face centered cubic Au. β- GaO with the lattice planes of (111), (200), (220), (311) and (002), (-111), (111), (401), (-310), (311), (312), (-510) and (512) has been observed. We have in our previous studies reported the ability to tune the phase of GaO between α, β, and δ through a controlled evolution of morphology [18]. From other studies on hydrothermally synthesized GaO reported previously, the innate tendency for the formation of the β phase when there is morphology directing mechanism present has been reaffirmed here [16]. Based on the findings so far, we postulate a mechanism for the formation of the observed morphologies and compositions of the mixed polygons of Au and GaO.

Formation mechanism of AG

Sodium Thiosulfate (Na2S2O3) is one of the interesting anionic surfactants that facilitates anisotropic growth of nanoparticles. Kim et al has synthesized Te nanowires using Na2S2O3 and investigated the effect of Na2S2O3 on the morphology and size. Concentrations were when increased from 0.2g-1g, wherein at the higher concentrations mixed morphologies of hexagons and tubes whereas at lower concentrations only tubes were observed [19]. In our study, we observe polygons mostly consisting of larger prisms and an equal proportion of higher order polygons of hexagons, pentagons and octagons since Na2S2O3 could be selectively adsorbed on the facets of Au particles, thereby serving as a growth directing agent. The proposed growth mechanism is illustrated as shown in Figure 5.

Click to enlarge

High temperature Gas sensing measurements and data acquisition

Optical gas sensing tests were performed by monitoring the plasmonic absorbance over the wavelength range of 350nm-1000nm at 800°C. AG spun on quartz substrates was placed inside a high temperature furnace, and different concentrations of NO2 was exposed using Alicat Scientific mass flow controllers (MFC). In a typical NO2 sensing experiment, the sample was first heated to 800°C at a ramp rate of 10°C/ min with constant exposure to air (2SLPM flowrate) over a period of 2h and was held at this condition for 30min prior to the first gas exposure. Post this ramping and stabilization step, AG was exposed to three different concentrations of NO2 viz., 1000ppm, 2000ppm and 5000ppm. Each of the concentrations were exposed thrice and the individual gas exposures were for 5min. Light from a tungsten halogen source of wavelength 300-2000nm (HL-2000 from Ocean optics) was passed through the film, and the transmitted light was collected using a collimating lens coupled with an optical fibre cable that fed into a spectrophotometer. Once the data acquisition was completed, the change in intensity as a function of time for different wavelengths (500-950nm) was plotted using python program.

Gas kinetics of NO2 at high temperature NO2 is a polar molecule due to the presence of lone pair of electrons on nitrogen whose electron- electron repulsion results in a trigonal planar structure. It is made of sigma/covalent bonds formed by the head-head overlap of atomic orbitals. This inequality develops a charge within the molecule promoting the persistence of a permanent dipole. When light passes through molecule, transitions from bonding to non-bonding/anti-bonding orbital in the visible region since nitrogen has a lone pair of electrons. With regards to the reaction mechanism of NO2 the one unpaired electron in nitrogen makes it very reactive, dimerising it to attain stability and forming N2O4. N2O4 does not have unpaired electrons but consists of two sigma and two pi- bonds, comprising ultimately of four resonance capable entities. First resonance occurs in the near UV around 340nm (3.6eV). Due to instrumental limitations, absorbance in this region cannot be investigated and hence is not included in this study. The other absorptions occur in the visible region. Upon increasing the temperature to 800°C, the equilibrium tends to shift towards producing more NO2 gas molecules (endothermic reaction) and upon cooling the equilibrium shifts backward again producing more N2O4 molecules (exothermic reaction). When the gas molecules are heated, the volume of the gas also increases and kinetics is increased according to the ideal gas law, PV=nRT. Also the number of molecules/population of molecules decreases with increase in temperature in the testing chamber. Due to the inherent NO2 absorption in the visible region, AG like composites whose plasmon band peaking beyond 650nm can be used as a coherent choice.

Response of AG towards NO2

At 800ºC the reactive oxygen species (O- and O2-) during the temperature ramping stages of the experiment are chemisorbed on the surface of AG or AuPs, followed by migration into the oxygen vacancy sites. This results in either a decrease in polarizability of the GaO or a decrease in the free electron density of AuPs, and a net change in plasmon frequency depending on which of these phenomena dominate. The reaction pathway can be written as: O2(g) + Vo(s) + Ga3+ (s)  O2 (ads) + Ga4+ (s) (3) (or) O2(g) + Vo(s) + Au(s)  O2(ads) + Au2+ (s) (4) O2(ads) + VO(b)  O2(b) (5) Where subscripts g, s, b and ads denote gas phase, surface, bulk and adsorbed states respectively. Oxygen vacancies are filled through charge transfer between adsorbing oxygen, vacancy sites and AuPs, during exposure to air atmosphere.

NO2 has been detected here by exploiting the significantly improved (compared to lower temperatures) oxygen ion conduction properties of GaO that has been reported to commence at 650ºC and the catalytic reactivity promoted by the plasmonic property of Au. From the UV analysis it can be seen that AG has a distinct plasmonic signature beyond 650nm whose peak position is extremely sensitive to changes in surrounding environment, making the nanocomposite ideal to detect NO2. Upon NO2 exposure, the gas molecules dissociate into NO- and O- ions and the O- ions find unoccupied vacancy/defect sites on the surface for adsorption/adsorption + migration [20]. The reaction pathway can be written as follows: NO2  NO- (ads) + O- (ads) (6) As shown in figure 6 (a) the intensity of the peaks at all three concentrations has decreased, with increase in wavelength and intensity of the peaks becoming the highest for 5000ppm. It is also evident that changes to the intensity peaks are observed beyond 650nm-800nm for 2000ppm and 5000ppm. This could be attributed to the conversion of NO2 to NO reactions occurring within nanocomposite as explained in equation (4) and (5). Figure 6 (b) indicates the difference in intensity when NO2 alone was purged (denoted as raw absorbance) whereas when the sample was present during the NO2 exposure (AG) for the representative concentration of 1000ppm at a representative wavelength of 400nm. It is hence conclusive that the difference in the intensities could be due to reactions between sample and gas, in which the NO2 gas molecules has been converted to NO. The precise events that lead to the observed quenching of intensities in relation to and in addition to the proposed mechanisms are subject for scrutiny for follow-on studies. Calibration curves showing the differences in the intensity changes when only NO2 was purged whereas when the sample was present during the NO2 purge were determined for 1000ppm and 5000ppm and are shown in figure 6(c). It is clear the most responsive wavelength (considering the plasmonic region of 500nm-900nm) is 500nm for 5000ppm and 1000ppm which comes under the plasmonic regime of the sample, implying a plasmonic contribution to the observed changes on NO2 exposure.

Click to enlarge

Figure 6(a): Response to NO2 as a function of intensity at different wavelengths from the range of 450nm-850nm of the AG sample (b) Graph depicting the absorption intensity changes in response towards only NO2 whereas when AG was present during the exposure (c) Difference in absorbance intensity of AG vs only NO2 from the entire investigated UV-visible spectrum.
