Ce Doped SnO2 Nanoparticcles: Investigation of Structural and Optical Properties

Sathyaseelan B1*
* Corresponding author
ISSN: 2574-187X  10.23880/nnoa-16000282  Received: September 20, 2023  Published: January 26, 2024
 — views
 38 references
 5 figures
PDF
Keywords
Ce-Doped SnO2 Co-Precipitation Method Optical Property Rare Earths
Abstract

Tin oxide (SnO2) and (1 wt%, 3 wt%, 5wt %) Ce-doped SnO2 nanoparticles were synthesized by the Co-precipitation method. X-ray diffraction investigations have been confirmed that the synthesized nanoparticles are polycrystalline in nature with tetragonal rutile phase. The particle size is determined using Scherrer’s formula and it is found to increase with the “Ce” dopant. High resolution scanning electron microscope (HRSEM) and transmission electron microscopy (TEM) analysis showed spherical morphology composed of fine crystallites with diameters around ∼200 nm. Optical band gap was decreased by the doping confirming the direct energy transfer between f-electrons of rare earth ion and the SnO2 conduction or valence band. This study demonstrates the Ce doped SnO2 nanoparticles for applications in optoelectronic devices.

Introduction

Unique physical and chemical properties of nanomaterial compared to the bulk have kindled great research interest in these materials. Presence of foreign atoms or impurities is reported to modify electronic, optical, and magnetic properties of bulk semiconductors [1, 2, 3]. In recent years, one dimensional (1-D) nanostructures have been the focus of research due to their unique physical properties and potential applications in nanoscale optoelectronics [4, 5, 6, 7, 8, 9, 10, 11, 12]. Tin dioxide (SnO2) is an n-type semiconductor with excellent optical and electrical properties. This semiconducting metal oxide is commercially used because of its numerous advantages, including low cost, high chemical stability, high sensitivity to various toxic gases, and compatibility with micro fabrication processes [13, 14, 15]. In the case of RE

metals doped oxide semiconductors, the 4f Electrons in RE ion are localized and direct the exchange interactions via 5d or 6s conduction electrons, which offer high total magnetic moments per atom because of their high orbital momentum [16, 17, 18]. This might help to decide the dopant which can be used to dilute the semiconductor oxide. In this context, Ce from the rare earth family is one of the major elements which have two stable oxidation states, namely, III and IV, and their f electron states are partially occupied or empty, respectively. Cerium (Ce) as a doping element has gained a huge curiosity by the researchers owing to its abnormal characteristics emerging from the existence of the 4 f shell. And also due to the doping of rare earth elements such as “Ce” is a way to control the structural characteristics such as crystallite size and shape and electronic properties [19]; indeed, both micro- structural and electronic properties affect chemiresistive gas-sensing behavior of the material. Doping with the elements which cause the mixed-valence states is especially attractive, as their electronic micro-structure can be changed by reduction and oxidation mechanism. The mixed state phenomenon between Ce4+ and Ce3+ can be in the Ce ion; hence, it has been established to be impressive material for enhancing the gas-sensing performance of chemical sensors [20, 21]. Numerous methods are available to prepare Ce- doped SnO2 nanoparticles such as sol-gel [22], modified polymeric precursor method [23], and co-precipitation [24] Among these various methods, the hydrothermal synthesis method has been reviewed as the most advantageous technique due to its advantage of single-step process, low temperature of operation, purity and uniformity [25, 26]. However, only very few reports have appeared on rare- earth ion doped SnO2 semiconductors and Rare earth ion doped semiconductor oxide is also interesting due to their unique optical properties and possible applications in optoelectronic devices. Especially, rare earth doped SnO2 has been used as gas sensors, and catalyst activity. In this report, we are interested to investigate Ce-doped SnO2 nanoparticles as a suitable material for opto-electronic device application.

Experimental and Characterization Technique

Pure SnO2 and Ce doped SnO2 nanoparticles were prepared by a simple Co precipitation method using SnCl2•2H2O, and CeCl3•7H2O as the sources of Sn, and Ce respectively. The salts were added in de-ionized water and mixed homogeneously and refluxed for 48 h under air atmosphere. Precipitation was carried out using aqueous NH4OH after cooling the refluxed solution. The precipitates were washed several times with de-ionized water to remove the water-soluble impurities and free reactants and dried at 110°C for 10 h. The resultant powders were characterized to determine the particle size, structure and morphology. UV– vis spectra of the samples were recorded using the UV–vis spectrophotometer (Lambda20, Perkin Elmer). The structure of the powder samples was characterized using powder X-ray diffraction (XRD) technique (RichSiefert, Model 3000) and Cu Kα(λ = 1.5405A˚ ) radiation. The specific surface area of the prepared samples was calculated from the adsorption isotherm of nitrogen at 250°C on the basis of the Brunauer– Emmett–Teller (BET) method. The morphological features of the samples were also observed using the scanning electron microscope (SEM; Hitachi S-3000N).In order to examine the size and the morphology through transmission electron microscopy (TEM, JEM-1200EX, JEOL), the dilute suspension of the powders were dropped on the carbon-coated copper grids and allowed to dry in air.

Results and Discussion

Structural Properties Analysis

Figure 1 shows XRD patterns of the pure SnO2 and Ce-doped SnO2 samples. The undoped SnO2 powders are identified as a tetragonal SnO2 (JCPDS card No.41-1445) with lattice constants a=0.4758 nm, c=0.318 nm. For the Ce- doped SnO2 sample, the diffraction peaks are almost similar to that of pure SnO2, no secondary phase is found. That is, for the Ce-doped SnO2 sample, it can be speculated that some Ce-oxides formed Ce-Sn-O solid solutions with SnO2 because no other species existed in the system. It is possible for Ce3+ ions cooperate with the matrix of SnO2 particles to form Ce-Sn-O solid solutions since the radius of Ce4+ (0.092 nm) is not much bigger than that of Sn4+ (0.071 nm). The doping of a host matrix by different ions may change the lattice parameters because of the ionic radius difference between the dopant and host atoms. The crystallinity of our samples was significantly affected by the Ce doping into SnO2 [27, 28]. It cans be found that the diffraction peak of the Ce-doped SnO2 sample becomes wider than that of the undoped SnO2. The result indicates the particle size of the doped SnO2 is smaller than that of the undoped SnO2.

The size of the particles was calculated using Scherer’s formula from the XRD data [29]:

$$ D = K \lambda / \beta \cos \theta $$

Where 𝐷 represents the particle size, 𝜃 is the Bragg angle, 𝛽is the full width at half maxima, and 𝜆 is the wavelength of the X-ray used (1.541876˚A). The size of the pure SnO2 nanoparticles was calculated to be of 24nm of size. The size of the Ce doped SnO2 a nanoparticle was calculated to be of 28 nm of size.

Figure 1: XRD patterns of samples. : (a) pure SnO2 (b) 1 % Ce doped SnO2 (c) 3 % Ce doped SnO2 (d) 5 % Ce doped SnO2.
Click to enlarge
Figure 1: XRD patterns of samples. : (a) pure SnO2 (b) 1 % Ce doped SnO2 (c) 3 % Ce doped SnO2 (d) 5 % Ce doped SnO2.

Morphological Analysis

The SEM images for both pure and Ce doped SnO2 are shown in Figure 2. The pure SnO2 nanoparticles are cone shaped with an average diameter of 51nm. The nanoparticles were found to be with larger distribution of particles. Introduction of Ce dopant resulted in larger sphere shaped structures with a repetitive arrangement. The Ce doped SnO2 nanoparticles have an average diameter of size of 61 nm. Further increasing the dopant, the nanoparticles resulted in the formation of larger spheres because, with the addition of cerium ions, the crystallite size decreases there by resulting in agglomeration of particles.

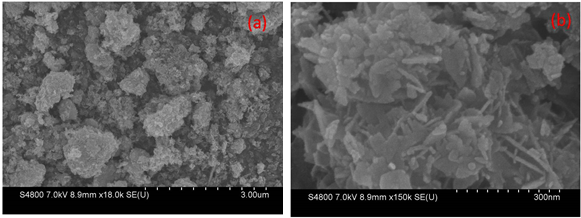

Figure 2: The pure SnO2 nanoparticles are cone shaped with an average diameter of 51nm. The nanoparticles were found to be with larger distribution of particles. Introduction of Ce dopant resulted in larger sphere shaped structures with a repetitive arrangement. The Ce doped SnO2 nanoparticles have an average diameter of size of 61 nm. Further increasing the dopant, the nanoparticles resulted in the formation of larger spheres because, with the addition of cerium ions, the crystallite size decreases there by resulting in agglomeration of particles.
Click to enlarge
Figure 2: The pure SnO2 nanoparticles are cone shaped with an average diameter of 51nm. The nanoparticles were found to be with larger distribution of particles. Introduction of Ce dopant resulted in larger sphere shaped structures with a repetitive arrangement. The Ce doped SnO2 nanoparticles have an average diameter of size of 61 nm. Further increasing the dopant, the nanoparticles resulted in the formation of larger spheres because, with the addition of cerium ions, the crystallite size decreases there by resulting in agglomeration of particles.

In order to reveal the microstructure of the nanoparticles in detail, TEM combined with the selected area electron diffraction (SAED) analysis of pure SnO2 and 5 wt% SnO2: Ce nanoparticles are shown in Fig. 3, respectively. As observed in Figure 3a, the as-prepared powders are made up of nanoparticles, and no obvious particle agglomeration is observed. Compared with pure SnO2 nanoparticles (Figure 3a), which of Ce-doped SnO2 (Figure 3c) is smaller. To confirm the nanostructure of the SnO2 and 5 wt% SnO2: Ce nanoparticles, the high-resolution TEM (HRTEM) images are shown in Figures 3b & 3d, respectively. The HRTEM Figure 3b shows the lattice distance of 3.42 and 2.61 Å, corresponding to the (110) and (101) planes of rutile SnO2, respectively. Figure 3d shows that the interplanar distances of corresponding planes of 5wt% SnO2: Ce are 3.26 and 2.28 Å, respectively. It can be seen that Ce-doping leads to the decrease of interplanar distances. As shown in the inset of Figure 3d, the corresponding ring-like SAED pattern further reveals the polycrystalline nature of this microstructure.

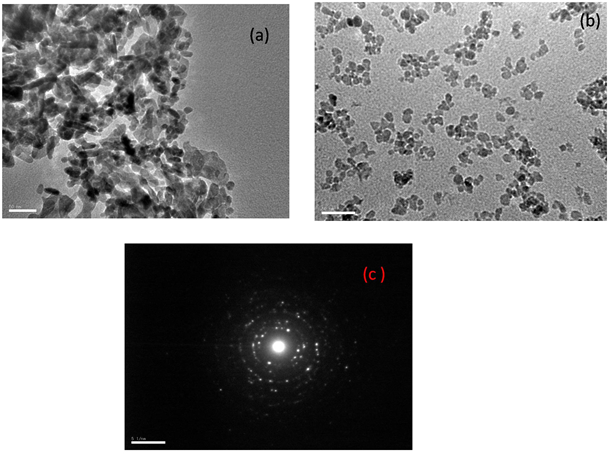

Figure 3: TEM images of Pure and doped SnO2 (a) pure SnO2, (b) 5 % Ce doped SnO2 .In the images (c) shows an electron diffraction pattern taken from the sample.
Click to enlarge
Figure 3: TEM images of Pure and doped SnO2 (a) pure SnO2, (b) 5 % Ce doped SnO2 .In the images (c) shows an electron diffraction pattern taken from the sample.

BET Analysis

To study the effect of Ce doping on the specific surface area of SnO2, nitrogen adsorption and desorption analysis were performed. The nitrogen adsorption and desorption isotherm of pure SnO2, 1 and 5 wt% SnO2: Ce are shown in Figures 4a, 4b & 4c respectively. It can be observed that the isotherms of two samples are characteristic of a type IV with type H1 hysteresis loop, which confirm the nanostructures [30, 31, 32, 33]. The BET specific surface areas measurements were performed in a pressure range from 0.05 to 1, and for the samples pure SnO2, 1 and 5 wt% SnO2: Ce the calculated values were 107.92, 124.07, and 136.01 m2/g, respectively. The large specific area can provide more surface sites available for oxygen absorbed, gas diffusion and transportation [34, 35]. The pore size was mainly concentrated between 2 and 15 nm. Since the specific surface area is an important factor affecting which could provide good contact efficiency for powder nanoparticles and expose more active sites.

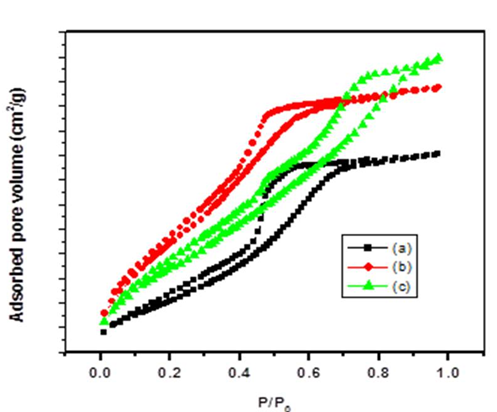

Figure 4: Adsorption and desorption isotherm and pore size distribution of sample, (a) pure SnO2 (b) 1 % Ce doped SnO2 (c) 5% Ce doped SnO2.
Click to enlarge
Figure 4: Adsorption and desorption isotherm and pore size distribution of sample, (a) pure SnO2 (b) 1 % Ce doped SnO2 (c) 5% Ce doped SnO2.

UV-Vis Analysis

To study the optical properties, UV-Visible spectra were recorded for SnO2 nanoparticles with the various concentrations of Ce which are shown in Figures 5a-5d. UV absorption edge at around 250 nm is associates to the photo- exciton of charges from the conduction band to valence band [36]. With an increase in the Ce concentration, the absorption edge shifted towards higher wavelength corresponding to reduction in crystallite size. This shift in the absorption edge is directly related to the transition of charges between SnO2 valence or conduction band and 4f electrons of rare earth metal ions. Dopant concentration dependent red shift was observed in the absorption edge which opens up the potential for application of the Ce doped SnO2 nanoparticles in narrow band gap optoelectronic devices. The measured Eg values are little higher than bulk SnO2 (3.6 eV) this is directly related to the surface structure, particle size, and morphology. The Eg values are found to be in the range of 3.65 to 3.4 eV, respectively, for pure and Ce-doped SnO2 nanoparticles. Further, the decreased Eg value suggests that addition of Ce increase the Particle size significantly. Similar results were reported earlier for SnO2 with different metal ion doping [37, 38].

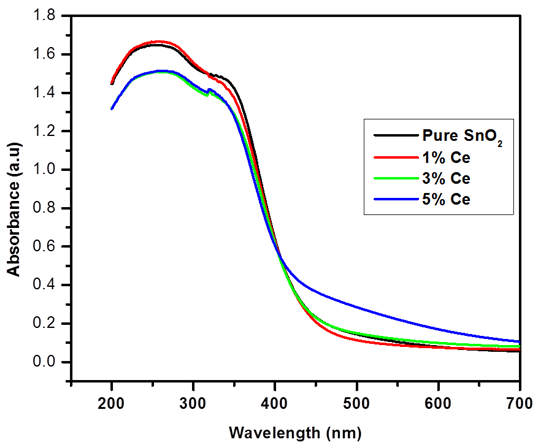

Figure 5: Optical spectra of: (a) Undoped SnO2; (b) 1 % Ce doped SnO2 (c) 3 % Ce doped SnO2 (d) 5 % Ce doped SnO2.
Click to enlarge
Figure 5: Optical spectra of: (a) Undoped SnO2; (b) 1 % Ce doped SnO2 (c) 3 % Ce doped SnO2 (d) 5 % Ce doped SnO2.

Conclusions

In this report, SnO2 and Ce-doped SnO2 nanoparticles are synthesized by the Co-precipitation method. The structural evaluation of the SnO2 with and without Ce ion confirms significant variation in the morphology due to the rare earth metal ion. SEM and TEM analysis show with diameter values around 200 nm. Interesting optical properties are also observed with this structure. The change in the optical band gap energy can influence strongly behaviour useful for optoelectronic device fabrication. From this study, we understand the importance of synthesizing materials with specific nanostructures using simple Co-precipitation method to achieve multi-functionality leading to new optical- electronic devices.
