Ferromagnetic Glass-Coated Microwires for Electromagnetic Shielding for Medical Application

Introduction

The increasingly miniaturized devices at high frequencies lead to noise in medical apparatus. This fact has strongly promoted the development for noise suppression purposes [1, 2, 3]. As this research has evolved, the need to control the magnetic anisotropy in components came into attention since the field absorption is related to natural ferromagnetic resonance (NFR) [4, 5, 6, 7].

On the other hand it has been widely documented that glass-coated amorphous magnetic micro- and nanowires (GCAMNWs) possess very interesting high frequency properties due to the strong magnetoelastic anisotropy which is induced in the fabrication process [4]. By defining strictly the geometric characteristics and the alloy composition the medical norms of electromagnetic field can be accurately controlled. Furthermore, the high production rate and high permeability feature of GCAMNWs without any rigid substrates are advantageous for use as noise absorbers of electromagnetic field.

In this report, amorphous glass-coated microwire arrays in a sheet configuration are proposed for use as absorbers. High frequency characteristics of thin amorphous microwires will be presented and evaluated as radionoise absorbers and medical protection radio absorption shielding.

During the manufacturing the GCAMNWs using the Ulitovsky-Taylor method the soften glass capillary is filled with a melted metal alloy with a further quenching [4].

The residual stresses, arising in metal core of GCAMNWs by during manufacturing, determine magnetic behavior of such GCAMNWs [4]. The metal is frozen into a very thin GCAMNWs. Thus a strong quenching stress (for example, σ∼109 Pa in ultrathin GCAMNWs) is introduced in the GCAMNWs [4, 5, 6, 7].

Radio-Absorption Shielding

The designs of composites from GCAMNWs have following configurations.

Click to enlarge

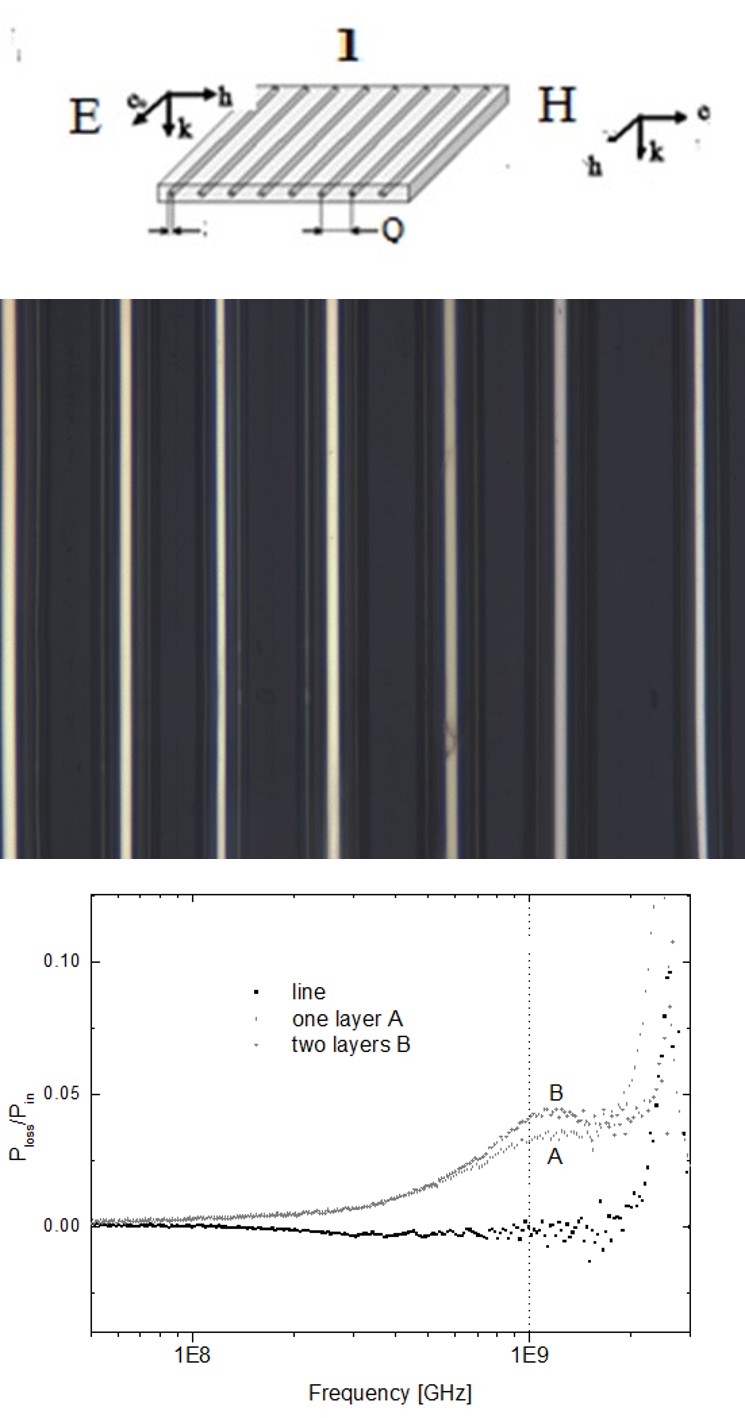

Figure 1a: Composite shielding for radio absorption protection with GCAMNWs where were marked in grating form. We can consider two types of orientation of a magnetic field: E and H.

Figure 1b: Micrograph of an array of Co based microwires.

However, for very thin GCAMNWs with negative, positive and zero magnetostriction the domain structure is far more complicated due to a complex stress distribution within the small diameter. The simplest domain structure reported so far for these GCAMNWs is obtained in Baranov SA [8, 9, 10] (see also [11, 12]). As for the microwire array configuration for noise suppression experiments, 223 microwires (10 µm total diameter and length of 5 mm where the metal core diameter is 2 µm,) are parallel aligned (Figure 1a) in an area of 5 x 4 mm2 as can be observed in Figure 1b. They are supported by a thin polymer sheet (∼100 µm thickness).

Noise Absorption Experiments

In order to investigate the noise absorption performances a microstrip line (with 50 Ω characteristic impedance) has been designed [1, 2, 3]. The signal line has a width of 610 µm and thickness of t = 35 µm and is set on a 300 thick Teflon base with permittivity εr = 3.6. The insertion losses are estimated below 0.08 at 1GHz. The performance of the line is measured using an Agilent E8363B network analyzer from 0.1 to 20 GHz. The microwire array was placed on the top of the signal line.

Samples of a single and twofold array of microwires were fabricated. The measured absorption coefficient S21 on the microstrip line is showed in Baranov SA, Yamaguchi M, Garcia KL, Vazquez M [1]. The S21 parameter at 1 GHz decreases from the background of -0.08 dB to -0.154 dB and -0.188 dB for the single layer and twofold layer (labeled as A to B). It is worth mentioning that larger decreases are observed at around 20GHz. This is probably due to the metallic property of the wires.

The ratio of the power loss by the microwire layers to the input power calculated as Ploss/Pin = 1-(|S11|2+|S21|2) is shown in Figure 2 [1]. A loss peak nearby the resonance frequency is observed around for both samples. It is noted that the twofold sample fails to be effective correspondingly. The reason is that the second layer is not close enough to interact with the near field from the microstrip line.

From the experimental results described above the following matters should be considered for future improvements.

Although the amorphous wires exhibit superb frequency profiles and various advantages such as a high production rate and geometrical flexibility, the metal cores in the wires are coated with very thick glass layer resulting in a poor packing density of high permeability region in the wire array samples. If the packing density of 0.12 for the present samples were, for example, 0.8, the power loss would be about 0.3 for a single layer. This is possible by removing the glass coating. Furthermore, by designing a wire array with proper conductivity and permeability, a high performance absorbers.

These issues will be treated intensively as this research work progresses in near future.

Conclusion

The high permeability features for very thin amorphous microwires for medical apparatus and HF radio absorption shielding were investigated. The electromagnetic noise absorption of sheet type samples with dimensions (5 x 4) mm2 made of 223 parallel aligned microwires was measured. The twofold layers exhibit of -2.5 dB, with insertion losses below 0.2 at 1 GHz which corresponds to the resonance of magnetization at 1 GHz.
