Radiofrequency Ablation Therapy for Varicose Veins Guided By Ultrasound: Overview and Preliminary Experience

Mauricio Alvarez Tenjo1, Oscar Javier Rincon Cardenas1 and William Andres Prada Mancilla2*

Email: wpradamancilla@gmail.com

Keywords: Catheter Ablation; Ultrasound; Venous Insufficiency; Varicose Ulcers

Introduction

Varicose veins in the lower limbs are the most common vascular disease in humans, affecting 20-25% of Radiofrequency Ablation Therapy for Varicose Veins Guided By Ultrasound: Overview and Preliminary Experience women and 10-15% of men [1]. These are caused by venous hypertension that is frequently produced by incompetent valves in the saphenous veins that condition the appearance of reverse flow in these superficial veins. This is why the treatment is aimed at eliminating the reverse flow in these veins [2]. In Colombia, the less invasive therapeutic tools that can be offered to patients Clin Radiol Imaging J

with this disease are not well standardized. This article aims to describe the endovascular treatment by radiofrequency guided by ultrasound and to discuss the experience of the authors in the use of this therapeutic technique. A systematic search was carried out with the following terms MeSH and Boolean operators (("Catheter Ablation" [Majr]) AND "Venous Insufficiency" [Mesh]) OR "Varicose Ulcer" [Mesh], selecting the items with the greatest rigor in the scale epidemiological. The information and images of patients were evaluated and accepted in the scientific technical committee with the consent of the patients.

Ecographic Anatomy

The venous drainage of the lower extremities is divided into three systems: a. The superficial venous system: It is located in the superficial compartment above the muscular fascia and drains the cutaneous microcirculation. b. The deep venous system: It runs inside the muscular fascia and is responsible for draining the muscles of the lower extremities. c. The perforating veins that penetrate the muscular fascia and connect the superficial and deep veins.

The superficial compartment is composed of subcutaneous tissue that contains the greater saphenous vein and its tributaries. The saphenous fascia is the portion of the membranous layer of the subcutaneous cellular tissue that is found on the saphenous veins and is thinner than the muscular fascia. All the fascias are visualizable by ultrasound and their appearance is eminently hyperechogenic. The two fascial layers form a closed space called saphenous compartment which contains the saphenous veins accompanied by arteries and nerves [3, 4]. This compartment is easily identified in ultrasound and colloquially it has been called "Egyptian Eye" or "Ultrasonic sign of the eye".

The deep compartment corresponds to the venous structures that are inside the fascia and the ventral side of the muscles in both the thigh and the leg formed by the large veins that are accompanied by the main arteries of the lower limbs and called venous lakes in the depth of the calf muscles.

Superficial Venous System

The superficial venous system includes the reticular veins and the major and minor saphenous veins, as well as its main tributaries. The reticular system is a network of veins parallel to the surface of the skin that are located between the saphenous vein and the dermis, draining the skin of the lower extremity and the subcutaneous cellular tissue [5]. Direct communication between incompetent reticular veins and veins of the deep system through perforators has been reported in 60% of patients with extensive telangiectasias of the thigh [5].

The greater saphenous vein arises from the medial aspect of the dorsal venous arch of the foot and ascends anterior to the medial malleolus advancing on the inner side of the leg and thigh until perforating the deep fascia and joining the common femoral vein 3 or 4 cm below the inguinal ligament [3]. The greater saphenous vein has a terminal valve 1 to 2 cm distal to the saphenofemoral junction in 94 to 100% of cases. The saphenous nerve is anterior to the greater saphenous vein in the calf and may be injured in procedures that extend to this region.

As an anatomical variant of importance, the duplication of the greater saphenous vein should be mentioned, in which the division of the vein can be seen in two channels, both within the fascial compartment, reanastomosed more distally. It occurs in the thigh in 8% of cases and in the leg in up to 25% of cases [6]. The accessory and tributary branches of the greater saphenous vein are important in the pathophysiology of chronic venous disease. Usually they are two main ones in the calf: an anterior branch (anterior arch of the leg) and a posterior one (Leonardo's vein - posterior arch of the leg). In the thigh it is the accessory anterior and posterior veins that ascend parallel to the Saphenous Vein Major outside the saphenous fascia [7, 8].

The small saphenous vein originates from the dorsal arch of the foot, ascends posterolaterally behind the external malleolus in a variable termination in the popliteal vein. It usually has 7 to 10 closely spaced valves. The sural nerve ascends immediately lateral to the vein and usually passes below the muscular fascia before its termination [3, 6, 7, 8, 9]. The termination of the minor saphenous vein can often vary, extending to different heights of the thigh. Similarly, a cranial extension of the lesser saphenous vein that has been called the Giacomini vein or intersaphene vein is seen with some regularity and is ascertained by the appearance posteromedial of the thigh paying tribute to the greater saphenous vein (Scheme).

Click to enlarge

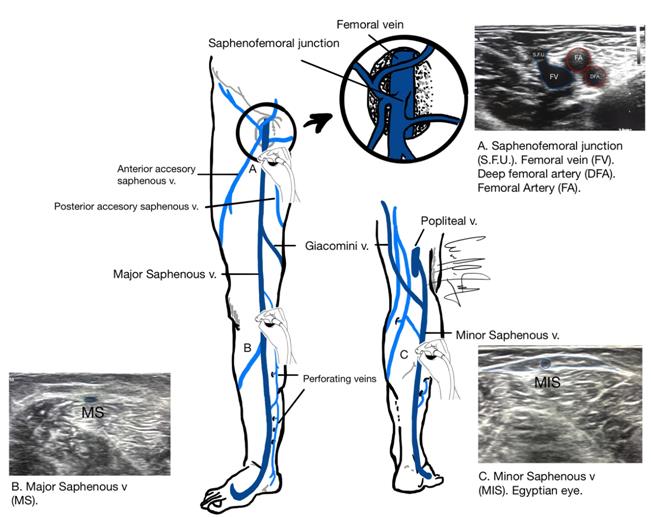

Scheme made by Dr. William Prada. Scheme: Venous anatomy of the superficial and deep system of the lower limb.

Radio Frequency Equipment

It requires radiofrequency generator equipment (high frequency equipment, bipolar to supply radiofrequency energy in a controlled manner and a bipolar catheter.) Our experience is based on the use of the CLOSURE FAST ™ catheter (Covidien, Mansfield, Massachusetts, USA) This catheter has a distal therapeutic segment of 7 cm (for use in the Great Saphenous Vein) and 3 cm (for use in the Small Saphenous Vein) that has a thermo dome that takes the temperature inside the vessel, assuring the maintenance of the same between 95 and 120 degrees Celsius, using the minimum necessary power (between 15 and 40 W). By means of a feedback system that connects the catheter temperature sensor with the power generating equipment [10].

Mechanism of Action

The radiofrequency is a type of electromagnetic energy, (non ionizing), is composed of electric and magnetic waves that when they come into contact with the tissue cause vibration and friction of their atoms producing thermal energy (resistive or ohmic heat). The increase in temperature generated by the RF (between 95 and 120°C) causes a series of changes in the vein structure treated between those that are the endothelial destruction, denaturation and contraction of the collagen fibers, thickening of the venous wall with reduction of the light of the glass. Thus, the therapeutic objective is to induce fibrotic occlusion of the treated vein and its subsequent disappearance due to atrophy. (Fibrotic vein occlusion - non-thrombotic) [11, 12]. It is important to avoid very high temperatures, which could cause boiling, vaporization and carbonization of the tissues, as happens with the endolaser, which generates temperature peaks between 700 and 1500 oC [11, 12]. Today it is accepted that surgical dissection in the groin, performed in the conventional procedure, is a stimulus for neovascularization. In RFA by avoiding such dissection, there is no stimulus for revascularization, potentially reducing the recurrence of varicose veins [2].

Technical Aspects

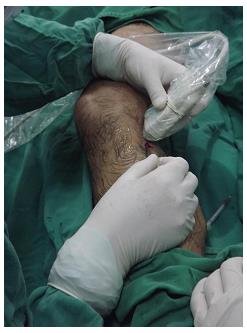

This is a procedure completely guided by color Doppler ultrasound, does not require sedation and can be performed in an ambulatory environment. Access to the greater saphenous vein is performed with puncture below the knee using Seldinger's percutaneous technique with a micro-puncture device (Figure 1). A short vascular introducer (No. 7Fr) is then placed through which the catheter is advanced by sonographic guidance proximally and is located 2 cm below the sapheno-femoral junction (Figure 2) [13].

Click to enlarge

Click to enlarge

Tumescent local anesthesia (ultrasound-guided injection of "Klein's solution": mixture of lidocaine, adrenaline, bicarbonate and physiological saline), which is injected into the saphenous compartment, is used to analgesize, protect the skin and neighboring tissues against heat, and promote venous collapse [1]. Both lower limbs can be treated in the same "surgical act" and the recovery time is short. To obtain successful results requires a complete understanding of the disease, an exquisite handling of the technique of color Doppler ultrasound and also a good knowledge of the anatomy of the superficial venous system. Treatment for RFA has been successfully performed in the greater saphenous vein, the small saphenous vein and the Giacomini vein, and recently in incompetent perforators [13, 14].

Postprocediment Management

a. Ambulation starts immediately and must be done for the rest of the day. b. Large periods of immobilization should be avoided after the radiofrequency procedure to minimize the risk of venous stasis that could increase the risk of thrombus formation. c. Control with color Doppler ultrasound at three days, a week and a month after the procedure.

Efficacy of Radio Frequency

As of 1990 there are scientific works that demonstrate that the RFA is a safe and effective method to abolish the reflux of the saphenous vein [15], as described by Merchant RF, et al. in which complete improvement of saphenous vein insufficiency is reported greater with RFA (between 90 and 100%) of the cases, making follow-ups between three months and four years [14, 16]. RFA equals conventional surgery in efficacy but it is also clearly superior in terms of less postoperative pain, better quality of life and faster recovery [17, 18]. Likewise, it is a safe and effective procedure for the treatment of varicose veins; it is associated with high rates of success and satisfaction on the part of patients [19, 20]. A systematic review published in 2018 by Poder TG, et al. reports that although the level of evidence currently regarding the effectiveness of RFA is with observational studies, the efficacy is comparable to open surgery and laser therapy, exposing lower degree of complications and shorter hospital stay [15].

Compared with laser ablation, the results show that despite having good long-term results, it presents a higher risk of skin burns because the temperatures reached by the probe during treatment are much higher than those achieved with radiofrequency, generating even more postoperative pain. On the other hand, sub-treated venous segments can be found that recanalize in a short time and frequent lesions of nerves adjacent to the veins that condition paresthesias, dysesthesias and anesthesia [21]. There is less data regarding the minor saphenous vein but the results are quantitatively similar [8].

Complications

The majority of adverse events generated after the radiofrequency procedure are minor. Among which are the following: a. Ecchymosis. They are usually frequent and take 7 to 14 days to disappear.

b. After the procedure and for about 3 weeks there is thickening sensation along the vein treated, this is due to the inflammation process and spontaneously improves with the administration of non-steroidal anti- inflammatory and medium compression stockings. c. Surface phlebitis of varicose tributaries. It is another rare collateral effect and is reported in 5% of cases [16]. Its management is conservative with non-steroidal anti- inflammatories and medium compression stockings, as well as ambulation. d. Burn: Complication derived from any type of thermal ablation. It is avoided by performing adequate tumescent anesthesia isolating the vein to be treated for fascia, muscle planes and subcutaneous cellular tissue. Others: Paresthesia in 3.2% and Skin pigmentation in 2%. e. When veins recanalize after RFA, this happens in the first

12 months and it is suggested that recanalization may be related to insufficient energy release during treatment [22].

Our Experience

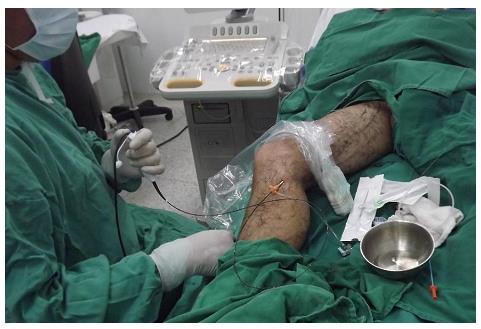

From March 2013 to February 2019, we performed in 120 patients, 250 procedures (114 larger saphenous veins without ulcer, 9 greater saphenous veins with ulcer, and 29 minor saphenous veins without ulcer with satisfactory results) (Figures 3 & 4). The procedure has improved with the experience over the years, from 4 hours of the first procedures to about one hour today. The remission of the disease in our experience is very high and the complication rate is very low, from the post operative pain that improves with oral analgesia, even small bruises in the first days that resolve completely a week. In the experience with patients with profound venous system insufficiency, the results are less effective, due to the persistent reverse flow from the deep to the superficial system. In general, the effectiveness of the treatment is really high and the physiological and cosmetic results are very good (Figure 5).

Click to enlarge

Click to enlarge

Click to enlarge

5a: Preoperative, 5b: Postoperative. Figure 5: Results of radiofrequency treatment.

Conclusion

The introduction of minimally invasive intravenous procedures in the last decade has stimulated interest in venous diseases. Today RFA is a highly safe and effective technique for the management of varicose veins since it is associated with a high rate of success and a high degree of satisfaction on the part of patients [23]. It has demonstrated its superiority over conventional surgery with a higher level of scientific evidence [17]. Additionally, it is less painful and offers a better quality of life than the endolaser [10]. In our country, it is still a therapeutic alternative with little use. But nevertheless; our experience shows excellent results with a very low rate of complications that can contribute to the change in the therapeutic approach of patients with venous insufficiency.
