Long Term Effects of Human Induced Shoreline Changes: Veracruz Metropolitan Zone an Example of Port and Tourism Development in the Tropics

Introduction

Human development in coastal zones is closely related with coastline modification. Coastal defense structures (CDS) and landfills aim to modify coastline or preserve it [1], frequently with no previous studies of the area. This usually results in the acceleration of natural coastal erosion. CDS such as breakwaters, groynes and jetties interfere with littoral drift, resulting in sedimentation budget modification and shoreline impacts [1]. Land reclamation, with landfills of diverse materials to gain land, to meet the growing economic and societal demands in coastal zones worldwide modifies coastal geomorphology and affect sensitive habitats. They also lead to construct more CDS to preserve reclaimed land [2]. The impacts of CDS and landfills occur in long-term time scales (decades) observed at spatial local-scale [3, 4]. Studies report erosion, change in coastal energy, alteration of sedimentary budgets and ecological impacts to coastal environments. These impacts produce habitat replacement, fragmentation, changes in habitat composition, stress or sub-lethal and lethal effects [5, 6, 7]. The stretch of coast between the Port of Veracruz and the Jamapa River inlet in Veracruz Bay (western Gulf of Mexico) has been modified historically with CDS (Figure 1). The Veracruz Metropolitan Zone (VMZ) is one of the most important coastal cities in the Mexican Gulf of Mexico. It has been the principal western terminus of trade since the colonial period [8, 9]. Most CDS in this area were located without previous studies, as it is the case of most countries worldwide [10]. The construction of such structures may sometimes require economical budgets that exceed the economic and ecological benefits of its construction. Further, the Jamapa River inlet has two jetties of 0.24 and 0.45 km, respectively, constructed to protect the river mouth from sedimentation. Those structures are common in most countries; however, in most cities around the world they become harmful for the adjacent land. The VMZ is also a touristic destiny, which has led to the construction of groynes in order to avoid sand beach erosion. As in many other places, they enhance the erosion of adjacent beaches [10]. Thus, the VMZ has almost all types of CDS, therefore it has all the major problems related with development pressures near sensitive environments [4]. Among these environments, shallow coral reefs are affected by sedimentation due to natural and anthropogenic effects. Sedimentation rates of over 25 mg cm-2 d-1 cause severe stress resulting in coral mortality [11]. Some studies reported [7], that around the world, most coral species experience stress with mortality at rates of over 100 mg l-1 day-1. CDS may also generate erosion of sandy beaches, which in some cases are refilled with added sand from other areas. The cost of added sand from a sand bank may reach up to $18.75 usd per cubic meter and from dredging, up to $22.37 USD per cubic meter [12]. Finally, the construction of CDS with no previous studies may increase the sedimentation rate in areas such as ports and marinas; in those places the dredging price in the world has been estimated of up to 21 usd per cubic meter [13].

The aim of this study is to contribute to a better understanding of the long-term effects of human induced coastline modifications, through a model of evolution, based on aerial historical photographs, for a complex stretch of coastline, where development pressures increase near sensitive coastal ecosystems. This case study shows the advantages and disadvantages of coastal protection structures over natural systems such as sand beaches, coral reefs and river inlets.

The city of Veracruz (Figure 1) was established around a commercial port constructed in 1600 [8]. Since 1940 CDS and landfills have been constructed to attend port development pressures.

Click to enlarge

It is the most important port in the eastern Mexican shores, which neighbors with a Marin Protected Area (MPA) with shallow and deep coral reef structures [4, 19]. The site is influenced by a large-scale current pattern [14] from the Campeche Bay [15] which influences the area, and is locally modified by the presence of coral reefs, islands and local wind stress [3, 14]. It is also characterized by the presence of diurnal tides [16]. Coastal studies in Veracruz Bay have focused on coastal orientation patterns [17], river mouth [18], port effect over ecological systems [4] and to economic implications generated by coastal infrastructures [17]. However, resent studies supported by the Port of Veracruz have provided more information than in the last decade; this information is available for scientific purposes [19]. The aim of this study is to elucidate the effects of CDS (breakwaters, groynes and jetties) on tropical coastal areas near sensitive environments such as coral reefs, river inlets and touristic sandy beaches.

Material and Methods

A 25 km coast line stretch of VMZ (Figure 1) was digitized from vertical aerial photographs. It was geo- referenced using Ground Control Points (GCP’s), computer rectified and mosaicked together [20] using ARC GIS 9.3. Three sets of photographs from 1946, 1975 (ICA foundation) and 2007 (INEGI government agency) were used to digitize the coastline. Digitization was made for each year by photo-interpretation using ARC GIS 9.3 and the Mean Water Line (MWL) coastline concept [21, 22]. The error related to the photographs distortion [23, 24] has been solved by comparison of ortophotos with the base map and using the mean root square error, which was calculated using the GCPs data of each photogram.

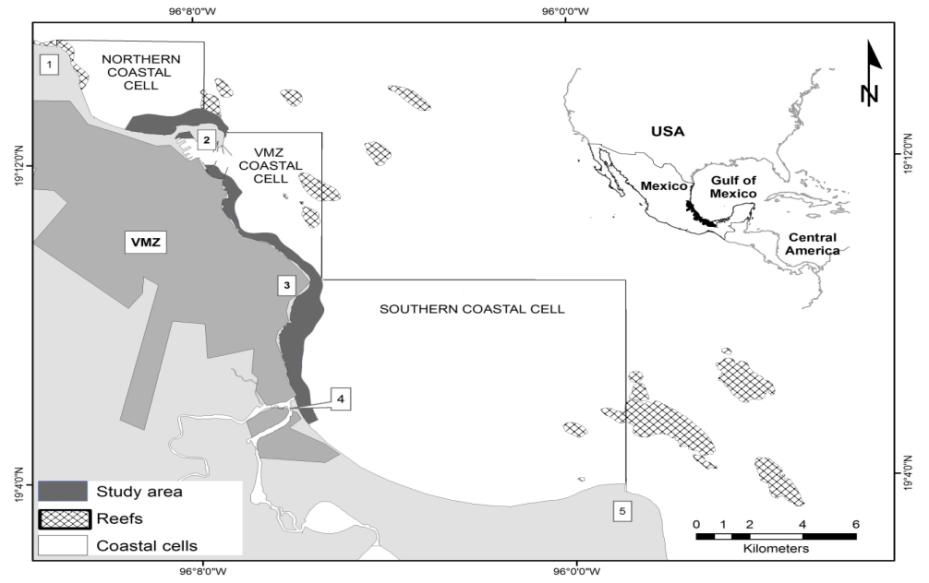

Interpretations and models are based on aerial photographic mosaics which have a mosaic mean error of 1.6 m for the 1976 mosaic and 2.2 m for the 1946 mosaic, using the 2017 mosaic as a reference. Three coastal cells were identified (figure 1): a) A northern cell, limited by a natural headland known as Punta Gorda (located north from the study area) and the Port of Veracruz (artificial headland), which neighbors La Gallega reef (figure 2); b) The Veracruz Metropolitan Zone (VMZ) cell, from the Port of Veracruz to Punta Mocambo headland (figure 3); and c) the southern cell, from Punta Mocambo headland to Punta Anton Lizardo (figure 4). Three sensitive coastal systems (shallow coral reefs, sandy beaches and a river inlet) were detected within the three coastal cells: a) Coral reefs located in the first cell, b) Sandy beaches located from Punta Mocambo in the first cell to the third cell, and c) the Jamapa river inlet located in the third cell which is a major urban and tourism development area known as “Riviera Veracruzana”.

Coastal cells were identified in the study area, defined as coastal compartments containing the complete cycle of erosion, deposition, sediment sources and sinks and the transport paths involved [25] and identified by the presence of headlands which compartmentalize the shoreline into sediment cells, semicircular in shape [26].

Digitized coastlines of different years were overlapped and accretion-erosion areas were identified in each cell creating polygonal layers. These polygons were used to calculate coastline changes per period, using ARCGIS 9.3. Accretion areas were classified as landfills and accretion areas based on the mosaic analysis and knowledge of the study area. Sensitive coastal systems such as reefs, sandy beach and river inlets were identified in each cell and were historically analyzed reconstructing the story of CDS structure.

In addition, for a thorough understanding of the sedimentation impact to shallow reefs of the MPA near the Port of Veracruz, the Regional Ocean Model System (ROMS) was used to simulate sediment transport near the coast. The three-dimensional primitive equations ocean model uses σ coordinates to increase the vertical resolution in the coastal areas. The model simulates the sediment transport using the bathymetry reported by Salas-Monreal, et al. [3] and the two years of moored currents, temperature, and sea levels obtained from Salas- Perez, et al. [14]. The bottom stress was assumed to be a quadratic function of the bottom velocity with a drag coefficient of 2.3x10-3 [27]. The tidal amplitude and phase were obtained from previous oceanographic studies of the area [14]. The stability of the model was analyzed using the potential and kinetic energy. Once differences in energies from successive iterations were on the order of 10-3 or lower, the model was considered to be stable. The yearly average sedimentation rate obtained from the model was used to describe the effects on sensitive coastal systems, mainly coral reef areas.

Results

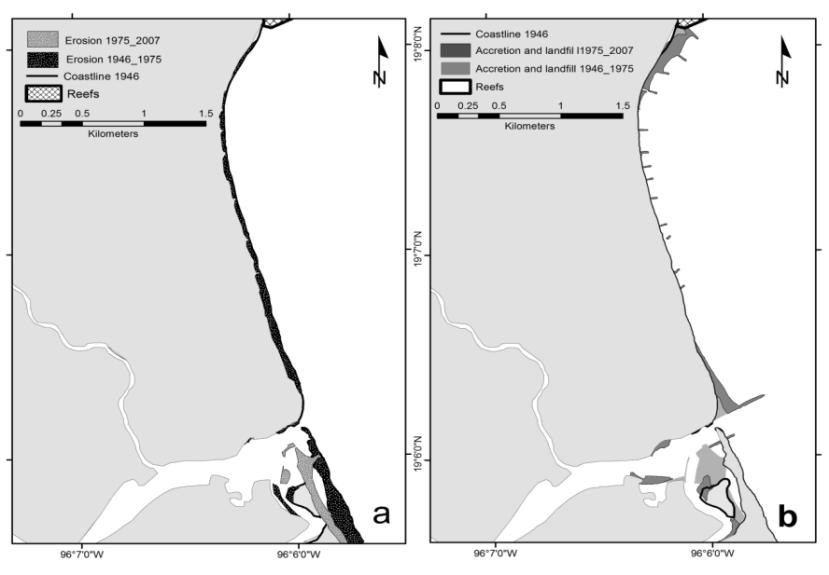

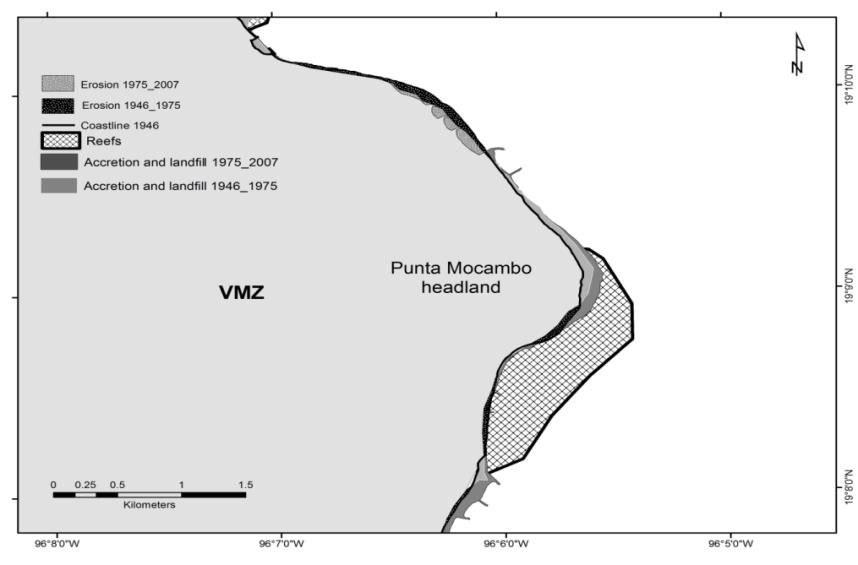

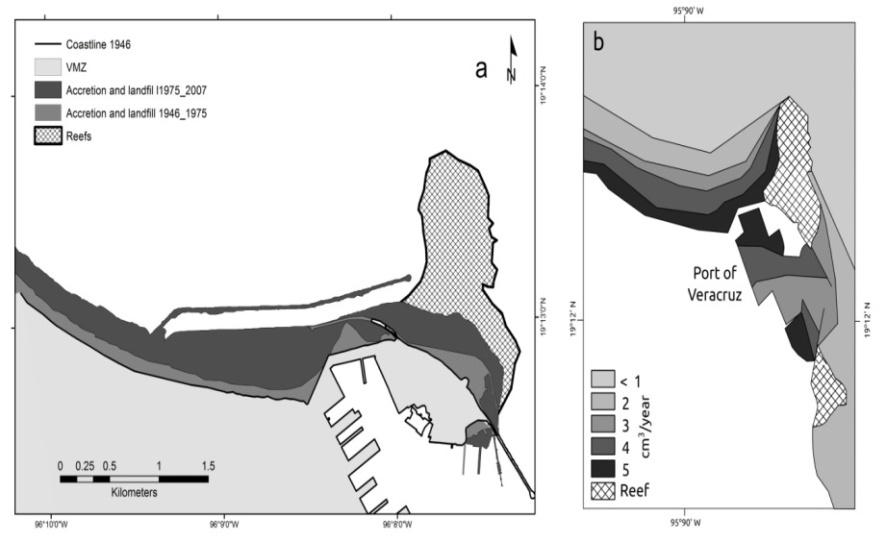

Click to enlarge

Discussion

CDS are constructed with a particular intended purpose: To hold the coast line in its place; to reclaim land and protect it; to reduce wave and current energy to favor maritime transport or to prevent sedimentation or erosion (Table 2).

From this analysis it was clear that the long term effect of the construction of CDS in the VMZ resulted in the desired effects only in two cases (four groynes located in accretion areas and a jetty located in the northern part of the Jamapa River inlet), without negative effects. In the other cases, long-term effects were contrary to desired for the adjacent beach areas. This effect is similar worldwide.

Ports in tropical areas around the world face pressures to increase handling capacity [9], this has led to projects based on studies which tend to prioritize immediate effects [4]. The Veracruz Port case shows that ports when constructed in an accretion area, have high economic and ecological costs. Based on these results it could be stated that port facilities should preferentially be constructed in erosive areas (Table 1) in order to minimize dredging costs (e.g. cell 1 for the case of the VMZ); when ports are built in accretion areas the dredged cost should be considered in the annual maintenance budget that will increase the operational cost.

A point to highlight is the sedimentation rate calculated here (4 to 5 cm3 yr-1 or 35 mg l-1 day-1) in the western part of the breakwater, that will eventually reach the western part of La Gallega Reef, even when the constructed breakwater retard its sedimentation budget. It is a high sedimentation rate based on the sedimentation rates reported by Eftermeijer, et al. [7] as the cause of sublethal and lethal effects to most coral species. Also the sedimentation rate obtained inside the port facilities show areas that will require more maintenance dredging than others, which will periodically contribute to increase the sedimentation rate of the surrounding waters during dredging [7], this effect should benefit the touristic surrounding beaches, but may affect neighbors coral reef areas.

Beach tourism is one of the principal sources of income in most tropical countries. Sandy beaches are assets to preserve, but historically CDS have been constructed without previous studies. The observed long term impacts in the VMZ are similar to those observed in beach areas in most coastal areas of America, Africa, Oceania, Asia and Europe [10]. Beach management decisions including the construction of CDS or beach nourishment are reactive, not planned. Up to 2007, beaches in Punta Mocambo were refilled with sand every week, without knowledge of sediment dynamics, implying an annual cost of up to $26 USD per cubic meter, including the dispersal of sand [12]. The erosion problem caused by CDS with erroneous location and the increased erosion rates due to current dynamics [3] becomes an economic problem for tourism investors (hotels and apartments) located in the front beach.

The Inlet case in the VMZ, which is a natural erosion area, shows how constructing CDS without knowledge on local sediment dynamics (northern jetty) led to the desired effect for a brief period, but then, increasing the length of the jetty and constructing one more jetty (southern jetty) accelerated the erosion rate, which in the long term eroded the southern sand bar, narrowing the beach. In the future, erosion will menace touristic and urban infrastructure toward the southern area of this jetty. This case is found in most river inlets around the world [28, 29].

The main issue is that there is enormous pressure to accelerate coastal development in the VMZ. This, along with CDS projects based on previous shallow studies or sometimes without them have damaging impacts on sensitive environments and leads to get results which are far, or even contrary from desired. CDS construction should be decided regarding their economic and ecological feasibility and based on thorough oceanographic and sedimentation studies, such as the new released dataset by the Port of Veracruz General Administration, which has already lead to scientific studies within the VMZ [19].

Conclusion

Three sensitive coastal environments in Veracruz Marine Zone (VMZ) have been affected by long-term effects, related with the construction of CDS without previous studies (shallow coral reefs, river inlet and sand beaches). Breakwaters and Jetties are the principal CDS used to modify the shoreline for port facilities expansion and touristic beaches near river mouths; along with landfills without considering regional sediment dynamics, particularly in natural erosion areas may accelerate erosion. Such as for the case of the southern jetty of the Jamapa River inlet, which accelerate the erosion rate of the southern Jamapa River area. Port facilities should be built in erosion areas in order to avoid excessive maintenance costs. Finally, local knowledge and local studies should be made for CDS construction projects to achieve the desired effects.
