Monteggia Equivalents: Report of a New Variant of Type I- Salter Harris Type One Injury to Proximal Radius Physis and Olecronon Fracture

Introduction

While fractures of the distal forearm are quite common in children, the Monteggia lesion remains uncommon. Monteggia fracture dislocations have been complex injuries in the terms of diagnosis, mechanism of injury, treatment and its outcome. Its first description dates back to 1814, when Giovanni Battista Monteggia first observed this entity [1]. Shortly before his death, he has written [2]. “…I unhappily remember the case of a girl who seemed to me to have sustained a fracture of the upper third of the ulna. At the end of a month of bandaging, the head of the radius dislocated when I extended the forearm. I applied a new bandage but the head of the radius would not stay in place…” Bado described ‘true Monteggia lesions’ and classified them into four types [3]. He also classified certain injuries as equivalents to the ‘true Monteggia lesions’ based on their similar radiographic pattern and biomechanism of injury and ‘Monteggia equivalent’ term was used for these patterns. Since then various types and their equivalents have been described in the literature. A unique case of a type 1 Monteggia fracture equivalent Fracture of olecronon with Salter-Harris type I physeal injury to proximal radius physis with in a child is reported. To the best of our knowledge, there have been no reports in the literature of cases with exactly the same combination of injuries.

Case Report

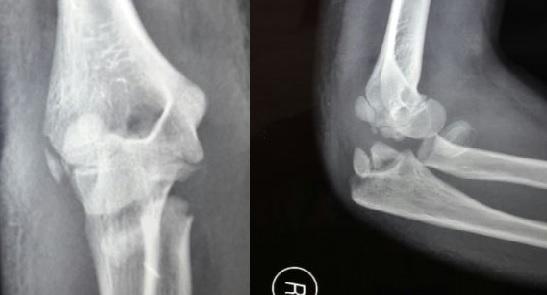

A 12-year-old female sustained a fall from a height of about 4 ft and landed on his outstretched left hand and sustained an injury to the left elbow. He presented to the emergency department approximately 12 hours after sustaining the injury with complaints of swelling, severe pain and restricted motion of left elbow joint. On examination, his vitals were stable and no neurological or vascular deficits were noted. Left elbow displayed gross swelling and deformity. Painful abnormal mobility and crepitus was present elbow. Soft tissue cover was intact. There was no distal neurovascular deficit. Roentgenograms showed a fracture of olecronon with proximal radial type 1 physeal injury with posterior displacement of distal fragments. (Figures 1A and 1B ). The patient was treated with open reduction and internal fixation. Under general anesthesia and in lateral position elbow was exposed by posterior approach. After direct reduction radial physis fracture was stabilized by using 2 mm smooth capitulo-radial kirshner wire and olecronon by tension band wiring using two 1.5 mm smooth kirshner wire and tension bad wire. Postoperatively salb applied for 15 day. After stich removal on 15 day above elbow cast was applied. Both the fractures healed at 6 weeks and here gained the full range of flexion, extension, and supination pronation with bony union at 6 months following physiotherapy. A written informed consent was obtained authorizing treatment, radiological examination and photographic documentation.

Click to enlarge

Discussion

Monteggia fracture dislocation in child is uncommon injury [3] consisting approximately 1.5%–3% of the elbow injuries in childhood. A unique case of a type IV Monteggia fracture equivalent Fracture of olecronon with Salter-Harris type I physeal injury to proximal radius physis with in a child is reported. We describe the management of this unique fracture and discuss the possible mechanism of injury. Previously reported cases includes type III Monteggia injury with ipsilateral distal radius and ulna fractures [4]; olecranon fracture and distal radial epiphysis [5]; type II Monteggia fracture with fracture separation of the distal radial physis [6]; type IV Monteggia injury with distal diaphyseal fracture of the radius [7]; 11 cases of Monteggia fracture dislocation with fracture of the ipsilateral radius and ulna [8]; three epiphyseal fractures (distal radius and ulna and proximal radius) and a diaphyseal ulnar fracture in the same forearm [9, 10, 11, 12]. Asheesh Sood et al. [13] reported a case with complete fracture of the olecran on with a fracture of the radial neck, and a Salter-Harris type II fracture of the distal radius and ulna with complete displacement [3]. With extensive review of literature our case was found unique and unreported. Properly assessing the nature of this injury in a timely fashion is imperative in order to prevent permanent disability or limb dysfunction [2, 14, 15, 16]. It is usually very difficult to determine the exact mechanism of injury in a very young child, who is usually not able to provide precise details of the sequence of injury [10]. However, the position of the forearm when the child is first presents, the position of the distal radius on radiograph, the direction of dislocation of radial head, and the direction of angulation of ulnar fracture, provide indirect clues about mechanism of injury [17]. The most widely accepted theories are that isolated Monteggia fracture dislocation is caused by hyperpronation described by Evans [18]. However, According to Tompkins theory hyperextension of the elbow plays significant role in causing this injury [19]. In our case, probably both of these indirect mechanisms, hyperextension as well hyperpronation, were involved considering the facts that there was presence of anterior angulation in olecronon fracture and forearm was in attitude of pronation when patient presented to us. The patient having suffered a fall on the outstretched hand, in apposition of hyper pronation on impact, it seems logical to believe that the load transmission from distal to proximal and from radius to ulna resulted initially in distal radius physeal injury and distal the ulnar fracture. The continuing hyperextension force across the interosseous membrane which usually resulted in ulna fracture at junction of proximal third to middle third and type 2 radial physeal lesion [20, 21]. The excessive forces acting in and around a joint may result in capsulo-ligamentous or bony failure. Instead of anterior dislocation of radial head or the radial neck fracture, there is type 1 physeal injury to proximal radius with anterior angulation of radius (Figures 2 & 3).

Click to enlarge

Click to enlarge

Figure 3: Post Operative Xray. Essentially, Monteggia the lesion consists of dislocation of the head of the radius with a fracture of ulnaat various levels. Bado, in series of 40 patients, described 4 patterns and classified them according to direction of dislocation of the radial head [3]. He suggested that these injury types should be referred to as “Monteggia lesions” [3, 4] (Table 1).

Table 1: Various Monteggia lesions and proposed mechanism of injury. Bado also supplemented his classification to accommodate some unusual varieties, ‘Monteggia like lesions’ [3]. He described three equivalents (all type I equivalents), which included(1) isolated radial head dislocation (with plastic deformation of ulna), (2) fracture of proximal ulna with fracture of the radial neck and (3) both-bone proximal third fractures with the radial fracture more proximal than the ulnar fracture [5] (Table 2).

Our patient sustained hyperextension and hyperpronation injury resulting in fracture of olecronon with Salter-Harris type I physeal injury to proximal radius physis. Considering this Fracture of olecronon with Salter- Harris type I physeal injury to proximal radius physis should be included in current ‘equivalents’or ‘Monteggia like lesions’.

displaced extension type supracondylar fracture of humerus? Fracture of olecronon with Salter-Harris type I physeal injury to

Conclusions

Our case report has highlighted a rare combination of injuries. While it is true that such injuries occur rarely, one must always rule out associated wrist injuries while dealing with elbow trauma. Thorough clinical and radiological examination is the key to avoid missing such injuries. We would like to emphasise that the mechanism of injury needs to be taken into consideration at all times. The universal principle of examining one joint above and below and including both joints when taking radiographs for suspected long bone fractures must not be forgotten. Fracture of olecronon with Salter-Harris type I physeal injury to proximal radius physis should be included in current ‘equivalents’or ‘Monteggia like lesions’.
