A Case Report of Simultaneous Bilateral Upper Limb CT Angiography

Zafar W* and Iqbal B*
* Corresponding author
ISSN: 2640-2343  10.23880/crij-16000193  Received: July 02, 2022  Published: August 04, 2022
 — views
 15 references
 4 figures
PDF
Keywords
Peripheral Arterial Disease Upper Limb Angiography CT Angiography Digital Ischemia
Abstract

Diabetes mellitus leads to accelerated development of athermanous plaques in the arteries, which can lead to ischemia especially of the distal parts of the limbs, namely the fingers and digits. Bilateral upper limb ischemia is however an infrequently reported complication of patients with diabetes mellitus as compared to the lower limbs. However, it can have devastating consequences for the patient including ischemic necrosis and subsequent amputation of the fingers. Angiography is often required to assess the extent of the disease and to decide further management. CT angiography is a less invasive and effective method of assessment of vascular compromise. We are reporting a case where we performed bilateral upper limb CT angiography simultaneously to minimize the radiation burden to the patient and the potential for renal damage. The contrast was injected using a vein of the lower limb and bilateral athermanous plaques in the arteries visualized in a single scan.

Introduction

The second most frequent manifestation of atherosclerosis is peripheral arterial disease (PAD) [1]. PAD and consequent limb ischemia are a major cause of morbidity and mortality [2, 3, 4]. In the available literature, individuals with diabetes have between two to five fold increase in the odds of developing PAD [5, 6]. CT angiography provides three dimensional imaging of the entire vascular tree non-invasively leading to a high-diagnostic accuracy, an excellent temporal and spatial resolution and more than 90% sensitivity and specificity in detecting hemodynamically significant stenosis [7, 8, 9]. Most of the time the upper limb CT angiography is required for a single limb only, however in case of diabetes, multi-vessel vascular involvement may be present [8, 9, 10]. We are presenting a case report where we have performed the CT angiography of both the upper limbs vessels simultaneously using a single bolus that was delivered via a lower limb vein, to reduce the radiation burden and save time and cost.

A 60-year-old male with chronic uncontrolled diabetes mellitus presented to the radiology department for CT angiography of the upper limbs. He suffered from chronic kidney disease and required dialysis every time radiography contrast was used. He had suffered from ischemia of the fingers with amputation of a finger of the right hand. A CT angiogram of the arms was required to see the cause and extent of the vascular compromise to the fingers. In order to reduce the patient’s radiation burden, and the chance of further renal damage, it was decided that both the arms would be scanned simultaneously to compare the arteries of both arms. The scan was performed with the patient in the prone position. Similarly, it was decided that the bolus would be injected in a suitable vein of the lower limb. 80 ml of a non- ionic contrast was injected at a flow rate of 4 ml/s. sure start technique was used using the manual technique once the bolus reached the arch of aorta. The scan revealed severe bilateral symmetrical athermanous calcified diffuse plaque disease extending from the level of the mid arm to the palmar branches of the radial and ulnar arteries leading to severe digital ischemia (Figures 1-4).

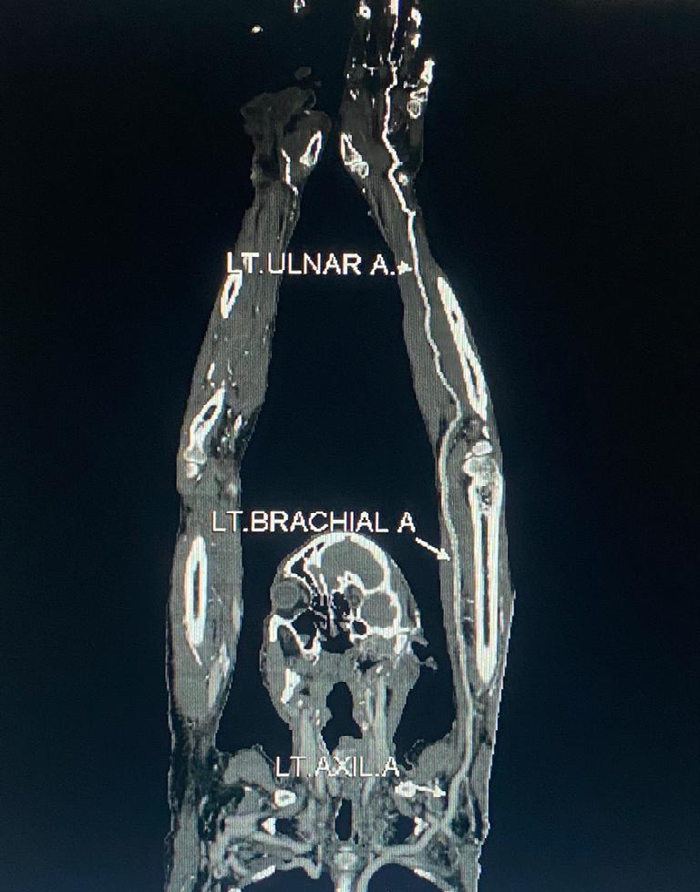

Figure 1: View of the patient in prone position with both arms raised showing the left axial and ulnar artery in MIP image.
Click to enlarge
Figure 1: View of the patient in prone position with both arms raised showing the left axial and ulnar artery in MIP image.

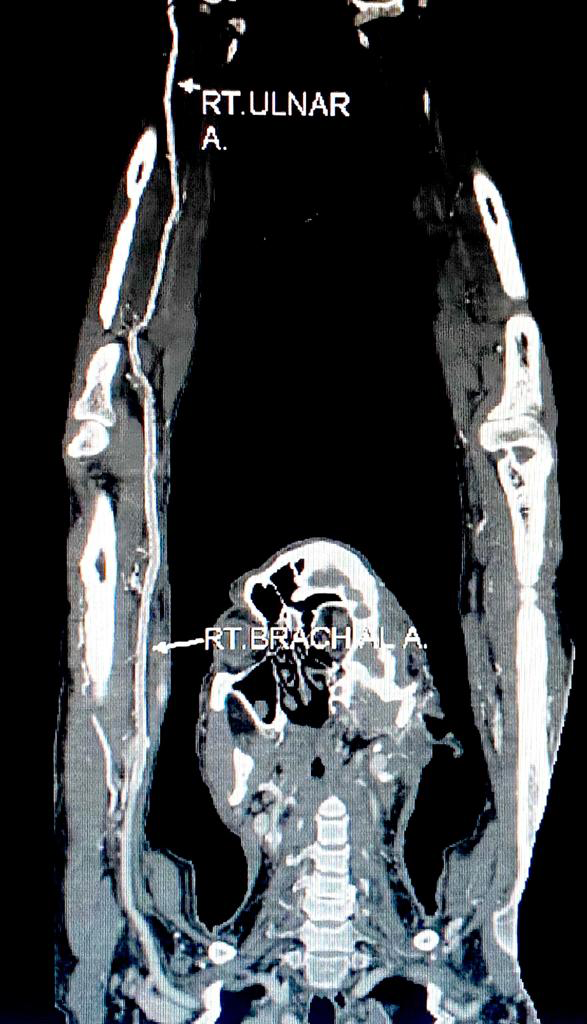

Figure 2: CT angiogram showing the right brachial and ulnar artery in MIP & showing diffuse athermanous calcified plaques.
Click to enlarge
Figure 2: CT angiogram showing the right brachial and ulnar artery in MIP & showing diffuse athermanous calcified plaques.

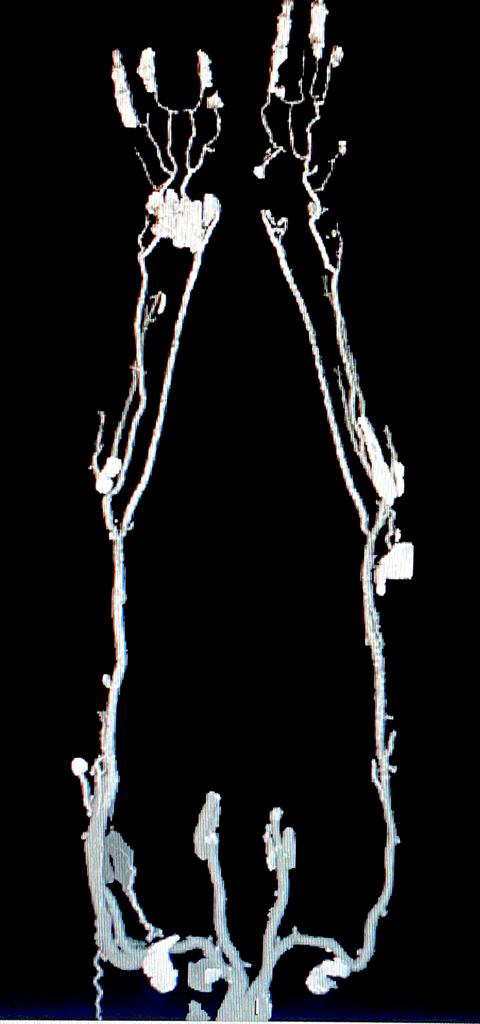

Figure 3: Severe bilateral symmetrical athermanous calcified diffuse plaque disease extending from the level of the mid arm to the palmar branches of the radial and ulnar arteries in MIP image.
Click to enlarge
Figure 3: Severe bilateral symmetrical athermanous calcified diffuse plaque disease extending from the level of the mid arm to the palmar branches of the radial and ulnar arteries in MIP image.

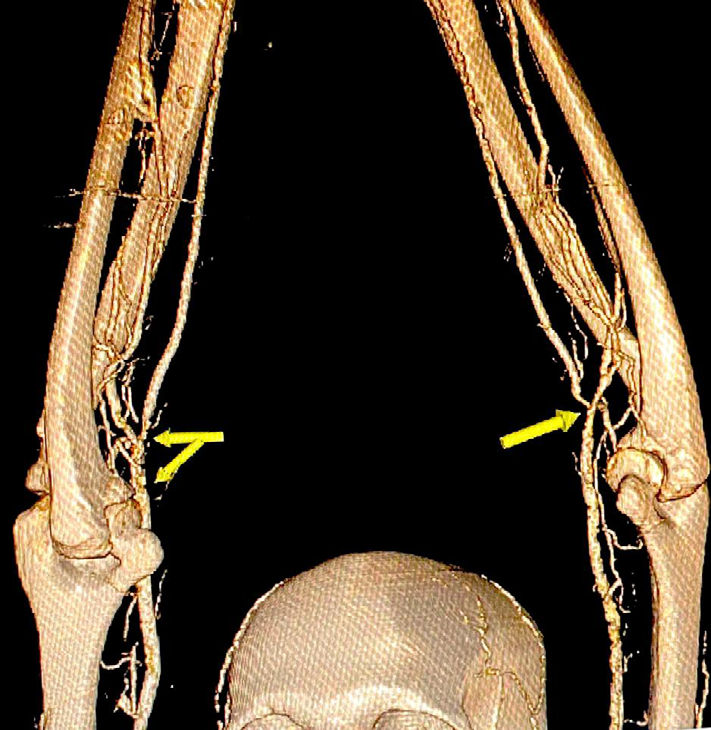

Figure 4: 3D volume image yellow arrow showing stenosis in bilateral brachial arteries.
Click to enlarge
Figure 4: 3D volume image yellow arrow showing stenosis in bilateral brachial arteries.

Discussion

Atherosclerosis is the most frequent large-vessel PAD in the upper limb [11]. Because of the rising frequency of chronic diabetes mellitus in the modern world, PAD is increasingly becoming a mounting healthcare problem [12]. As many as 16.2% of diabetics may present with PAD [12]. It

is estimated that for every 1% increase in haemoglobin A1C, there is a 26% increase in the risk of PAD [13]. Furthermore, diabetics have more aggressive PAD than non-diabetics, with early major vascular involvement and distal symmetrical disease [13]. CT angiography has the ability to accurately assess the extent of disease, delineate the vessel morphology and act as a guide for the management options. Due to its superior spatial resolution, CT angiography is optimal for assessing smaller vessels in the upper extremities [14, 15].

In our review of literature, we have not found a single of case of upper limb CT angiography where both the limbs were assessed simultaneously after injection of the contrast in the leg vein. This technique has the advantage of assessment of the vasculature of both the upper limbs with a single injection of radio-contrast thus reducing the radiation exposure and the chance of renal damage due to radiography contrast agent.
