International Journal of Oceanography & Aquaculture Research Article 14 min read

Population Assessment of Braond-Snout Chondrostoma regium using Specialist Technical Methods in Orontes River (Syria)

Hamwi N Iskandar*, Altajer H, Ali-Basha N and Salem J
* Corresponding author
ISSN: 2577-4050  10.23880/ijoac-16000339  Received: October 22, 2024  Published: November 05, 2024
 — views
 29 references
 8 figures
PDF
Keywords
Chondrostoma regium Expert system Growth Vulnerability
Abstract

A thorough collection of 619 specimens of Chondrostoma regium, commonly known as the Brond-snout, was carried out in the Orontes River (a middle-reach) over a 12-month period from March 2023 to March 2024. Advanced analytical techniques, including artificial neural networks and fuzzy logic, were employed to examine these samples. The largest individual captured during the study measured 26.5 cm in length and was estimated to be seven years old. By applying the von Bertalanffy growth model to the total length data, the equation TLt = 33.43 (1-e-0.207(t + 0.647)) was established, indicating negative allometric growth (b = 2.97). The growth performance index (Φ’) was calculated to be 2.36. Additionally, various mortality coefficients for Chondrostoma regium were estimated, which included: Z = 1.10 y-1 (total mortality rate), F = 0.51 y-1 (fishing mortality rate), M = 0.59 y-1 (natural mortality rate), and E = 0.46 y-1 (exploitation rate). The survival coefficient (S) was noted to be 0.33 y-1. Analysis of the fishing population growth (FP) of Chondrostoma regium in the Orontes River yielded a value of 33.1, suggesting a moderate growth rate within the local aquatic environment. However, the study also identified a fishing vulnerability (FV) for the population at 50.8. The findings from this research offer important insights into the population dynamics of Chondrostoma regium in the Orontes River. The study concludes that sustainable management of this species necessitates the implementation of conservation measures. Furthermore, these results enhance our understanding of the growth, mortality, and fishing vulnerability of Chondrostoma regium, providing a solid foundation for future research and management strategies.

Hamwi N Iskandar*, Altajer H, Ali-Basha N and Salem J

Introduction

The Chondrostoma regium is a benthopelagic species and inhabits both still (lentic) and flowing (lotic) aquatic environments [1]. They reproduce during the period extending from late February to May, where the females lay their eggs on the shallow gravel edges of the river.

Chondrostoma regium fish are native and endemic species found in Orontes River [2].

Chondrostoma regium underwent its latest assessment for inclusion on the IUCN Red List in 2013, at which time it was categorized as Least Concern [3].

Determining the age of fish using traditional methods can be challenging and typically requires skilled experts to analyze the annual growth rings. Recent studies, however, have shown that convolutional neural networks (CNNs) are capable of accurately predicting fish age by analyzing otolith images [4]. In the northwest Atlantic Ocean, have used high-resolution X-ray computed tomography to analyze vertebral centra for the purpose of estimating fish age, along with various growth models to analyze growth patterns [5]. Additionally, the maturity and age of several fish species, including Gymnura altavela, Thunnus thynnus, Epinephelus aeneus, Siganus luridus, Seriola dumerili, and Pomadasys stridens, have been effectively predicted with a specific setup of a Multilayer Perceptron artificial neural network model with a specific configuration [6, 7, 8, 9, 10, 11, 12]. Several studies have utilized contemporary methods, including expert systems, to evaluate various facets of fish vulnerability and conservation threats. This involves using a fuzzy logic expert system to assess the inherent vulnerability of marine fish to extinction due to fishing activities [13], applying an expert system to evaluate the vulnerability and conservation risks of marine species resulting from fishing activities [14]. This involves utilizing a fuzzy logic-based expert system to assess the inherent vulnerability of marine fish to extinction due to fishing practices [15], and assessing the vulnerability of particular Sparidae species in the eastern part of the

Figure 1: a. Orontes River (a middle-reach river, Hamah). b. Female individual of Chondrostoma regium with a total length of 26.5cm.
Click to enlarge
Figure 1: a. Orontes River (a middle-reach river, Hamah). b. Female individual of Chondrostoma regium with a total length of 26.5cm.

Mediterranean Sea (off the Syrian coast) through the fuzzy logic approach [16]. Additionally, a model has been suggested to estimate the growth of fishery populations using an expert system grounded in fuzzy logic [17].

The biological features of the Chondrostoma regium species found in the Orontes River remain largely unexplored. This research initiative intends to fill this knowledge gap by investigating the growth patterns and vulnerability to fishing operations of this particular Cyprinidae fish. To this end, the study employed advanced analytical techniques, including fuzzy logic and artificial neural networks, within an expert system framework. Through this groundbreaking investigation, the researchers seek to acquire more profound insights into the characteristics of Chondrostoma regium and its interactions with fishing activities.

Materials and Methods

A thorough gathering of 619 specimens of Chondrostoma regium was conducted, commonly referred to as the Brond- snout, was conducted in the Orontes River (middle stream) (Figures 1a & 1b). From March 2023 to March 2024, a range of fishing techniques was implemented over the course of 12 months, including gill nets and fishing rods.

(a) (b) Figure 1: a. Orontes River (a middle-reach river, Hamah). b. Female individual of Chondrostoma regium with a total length of 26.5cm.

Age and Maturity

Recent investigations by Hamwi [6] utilized an artificial neural network (Multilayer Perceptron) model with a specific configuration (1, 10, 2) to predict the age and maturity of the Chondrostoma regium species. This updated network model employed the fish’s total length as the input parameter (Figure 2).

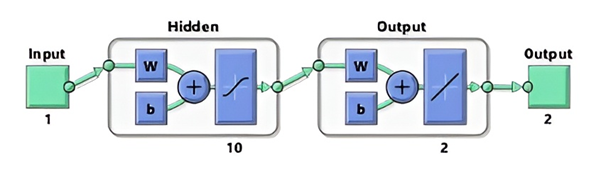

Figure 2: Artificial neural network, multilayer perceptron (MLP).
Click to enlarge
Figure 2: Artificial neural network, multilayer perceptron (MLP).

Fishing Population Growth (FP)

In an earlier study, Hamwi, et al. [17] designed a system utilizing fuzzy logic to assess the population growth of Chondrostoma regium in the Orontes River. This model incorporated distinct parameters (K, Tr, M, E) for input and utilized fuzzy logic methodologies for analysis and interpretation (Figure 3).

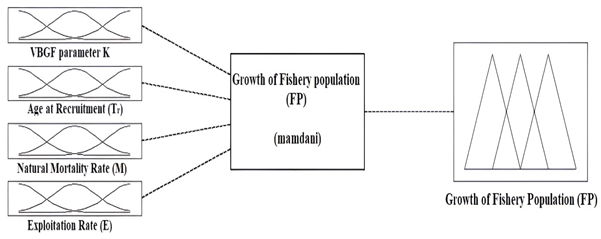

Figure 3: Fuzzy inference system variables (Inputs: K, Tr, M, E; Output: FP).
Click to enlarge
Figure 3: Fuzzy inference system variables (Inputs: K, Tr, M, E; Output: FP).

The von Bertalanffy equation was employed to determine the growth parameters (K, L∞), and the Akaike Information Criterion (AIC) [AIC = N ln (WSS) + 2M] guided the selection of the appropriate growth model. In this equation, N represents the number of data points, WSS is the squares’ weighted sum of residuals, and M denotes the number of model parameters. The study aimed to compare various growth models that illustrate the characteristics of the fish species [18]. The growth model of von Bertalanffy is utilized as follows: Lt = L∞ / [1 + e-K(t-t0)].

Where Lt refers to the total length of the fish at a given age (t), L∞ represents the hypothetical asymptotic total length (in cm) that the fish could potentially achieve, and K denotes the growth coefficient, and the theoretical age when the fish’s length is assumed to be zero is t0.

The total mortality rate (Z) was utilized in the Ricker method [19]. This method included calculating the regression equation for the catch curve (ln Nt = a - Zt) for the entire population.

By employing a specific relationship, the natural mortality rate (M) was determined: Log M = -0.0066 -0.279 log L∞ + 0.6543 log K + 0.4634 log T [20]

Where: L∞ and K were used, along with the average surface water temperature (T) of 24.9°C in the fishing area.

The natural mortality rate (M) subtracted from the total mortality rate (Z) yields the fishing mortality rate (F) [21]: F = Z - M The exploitation rate (E) was determined using the equation: E = F/Z [22]

The survival rate (S) was calculated using the equation: S = e-Z [19].

Beverton and Holt’s [23] equations were used to calculate the total length (Lc) and age (Tc) at first capture: Lc = L’ - [ K (L∞ - L’) / Z ] ; Tc = - (1/K) * ln (1 - Lc / L∞) + t0 Where L’ represents the captured fish’s average total length.

Similarly, Beverton and Holt’s [23] equations were employed to determine the total length (Lr) and age (Tr) at recruitment: Lr = L’ - [ K (L∞ - L0) / Z ] ; Tr = - (1/K) * ln (1- Lr / L∞) + t0 Where L0 denotes the total length of the fish at hatching or age zero.

Pauly, et al. [21] suggested a formula to calculate a growth performance index, represented as Φ’, which reflects the growth characteristics of an organism: Φ’ = logK + 2logL∞.

Building on the earlier work of Beverton and Holt [24], the relative yield-per-recruit (Y’/R) can be modelled as: Y’/R = [E * U(M/K)] * [1 - (3U / (1 + m)) + (3U2 / (1 + 2m)) - (U3 / (1 + 3m))]

Where U, m, and E are defined as follows: U = 1-(Lc/L∞) m = (1-E) / (M/K) = (K/Z) E = F/Z Ricker [19] provided a relationship to estimate the relative biomass-per-recruit (B’/R): B’/R = (Y’/R) / F

Fishing Vulnerability (FV)

Hamwi, et al. [16] constructed an expert system model that takes key parameters (TLmax, K, Tmax, M, S) as inputs and employs fuzzy logic techniques to analyze and evaluate the fishing vulnerability of a species, such as Chondrostoma regium (Figure 4).

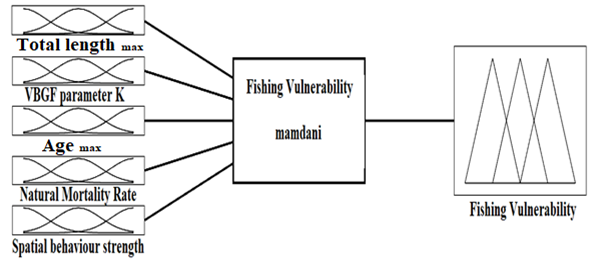

Figure 4: Variables of the fuzzy inference system (Inputs: TLmax, K, Tmax, M, S; Output: FV).
Click to enlarge
Figure 4: Variables of the fuzzy inference system (Inputs: TLmax, K, Tmax, M, S; Output: FV).

Results

Analysis of the age composition of the Chondrostoma regium population revealed 7 distinct age cohorts. The second age class was the most dominant, constituting 33.93% of the population. Conversely, the seventh age group represented only 0.16% of the overall catch (Figure 5a & 5b).

An analysis of the distribution of individuals across various total length (TL) categories showed that the most dominant size classes were 11.1-12 cm and 16.1- 17 cm, constituting 9.05%, and 10.34% of the population, respectively. Conversely, individuals with total lengths of 24.1-25 cm and 25.1-26.5 cm were the least represented, each comprising only 0.32% of the population (Figure 5b).

Figure 5: a. Age composition; b. Total length frequency distribution (TL) for Chondrostoma regium in Orontes River.
Click to enlarge
Figure 5: a. Age composition; b. Total length frequency distribution (TL) for Chondrostoma regium in Orontes River.

(a) (b) Figure 5: a. Age composition; b. Total length frequency distribution (TL) for Chondrostoma regium in Orontes River.

The data gathered during this study revealed that the maximum total length recorded for Chondrostoma regium individuals in Orontes River was 26.5 cm, which was observed in individuals aged 7+ years. In contrast, the smallest recorded total length was 7.4 cm, which corresponded to an age of 1+ year.

The von Bertalanffy growth equation parameters for total length were as follows:

TLt = 33.43 (1 - e -0.207 (t + 0.647)) Statistical analysis of this growth model yielded the following results: AIC = 46.0823; WSS = 0.0182; 95% Confidence Interval = 4.3487.

Analysis of the length-weight relationship for Chondrostoma regium revealed a negative allometric growth pattern, with a b-value of 2.97.

The average age and total length of Chondrostoma regium individuals at first capture were 2.82 years and 17.10 cm, respectively. Meanwhile, the average age and total length at recruitment were 2.02 years and 14.19 cm.

Calculating the growth performance index (Φ’) for total length growth of Chondrostoma regium yielded a value of 2.36.

The total mortality coefficient (Z) for the Chondrostoma regium population was estimated to be 1.10 per year. Further analysis revealed that the fishing mortality coefficient (F) was 0.51 per year, while the natural mortality (M) was 0.59 per year. The calculated survival rate (S) was 0.33 per year. The exploitation mortality coefficient (E) was 0.46 per year.

The connection between the exploitation rate (E) and the relative yield per recruit (Y’/R), along with the relative biomass per recruit (B’/R), is illustrated in Figure 6. The analysis revealed several key values: - Emax: This is the exploitation rate that maximizes yield per recruit, found to be 1 y⁻¹.

- E0.1: This value, also determined to be 1 y⁻¹, indicates the point at which the marginal gain in relative yield per recruit reaches 10% of its value when E equals 0. - E0.5: This exploitation rate, at which the biomass of the stock is reduced to 50% of its unexploited level, was calculated to be 0.379 y⁻¹ (Figure 6).

Figure 6: The analysis revealed several key values: - Emax: This is the exploitation rate that maximizes yield per recruit, found to be 1 y⁻¹.
Click to enlarge
Figure 6: The analysis revealed several key values: - Emax: This is the exploitation rate that maximizes yield per recruit, found to be 1 y⁻¹.

According to the fuzzy logic-based expert system developed by Hamwi, et al. [17], the growth value for the Chondrostoma regium population in the Orontes River was 33.1, as depicted in Figure 7.

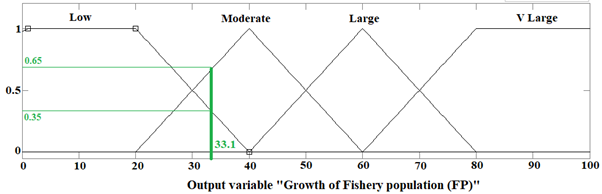

Figure 7: The growth of Chondrostoma regium population off the Orontes River.
Click to enlarge
Figure 7: The growth of Chondrostoma regium population off the Orontes River.

The fuzzy logic-based expert system developed by Hamwi, et al. [16] also revealed that Chondrostoma regium had a fishing vulnerability of 50.8, with the maximum vulnerability value (FV) set at 100, as shown in Figure 8.

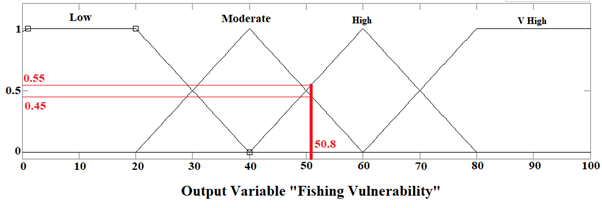

Figure 8: The vulnerability of Chondrostoma regium to fishing off the Orontes River.
Click to enlarge
Figure 8: The vulnerability of Chondrostoma regium to fishing off the Orontes River.

Discussion

This study illuminates the reproductive dynamics of Chondrostoma regium in the Orontes River, where the observed lengths are comparable to those found in Almus Dam Lake (Turkey), ranging from 13.7 to 28.1 cm [1]. These lengths are slightly larger than those recorded in the Bibi- Sayyedan River (Iran), which reached a total length of 22 cm [25], and in Seyhan Dam Lake (Adana), where total lengths reached 23.55 cm [26]. The variability in Chondrostoma regium population sizes across these geographically distinct areas suggests that different environmental and ecological factors significantly influence the life history and dynamics of this species.

The growth coefficient (b) estimated for the Chondrostoma regium population in this study was 2.97, indicating a negative allometric growth pattern. This suggests that the total length of the fish increases at a relatively slower rate compared to other morphological dimensions (e.g., body weight) as the individual grows.

The negative allometric growth exhibited by Chondrostoma regium populations in this study is consistent with previous findings from the Zayandeh Roud River in Iran where the growth coefficient was reported as 2.77 [27] and from Tishreen Lake (Euphrates River) in Syria where it was 2.422. However, this contrasts with the positive allometric growth (b=3.281>3) reported for this species in the Almus Dam Lake of Turkey [1]. These differences in growth patterns may be related to variations in environmental conditions, resource availability, and population demographics across the different study locations.

The growth values indicate low growth at 0.35 and moderate growth at 0.65, based on a maximum fishery population growth (FP) value of 100 (Figure 7).

The ratio of the first capture’s length (Lc) to the asymptotic length (L∞) is a significant indicator for evaluating the exploitation status of a fish population. According to Pauly, et al. [28], a ratio of Lc/L∞ greater than 0.5 indicates that most of the catch comprises mature individuals of the species. In the present study, the estimated Lc/L∞ ratio for the Chondrostoma regium population was 0.51. This value indicates that the current harvest in the Chondrostoma regium fishery mainly comprises mature fishes rather than juvenile individuals.

The prevalence of adult fish in the catch is often an indicator of overfishing, as evidenced by the calculated mortality coefficients and fishing vulnerability, which show a significant increase (50.8). This vulnerability value indicates a moderate vulnerability of 0.45 and a high vulnerability of 0.55 for this species (Figure 8), which is somewhat different from the low to moderate vulnerability of 30 reported by Froese, et al. [29].

Conclusions

This study provides valuable insights into the population dynamics of Chondrostoma regium in the Orontes River, highlighting the need for conservation efforts to ensure the sustainable management of this species. The findings enhance our understanding of Chondrostoma regium’s growth patterns, mortality rates, and vulnerability to fishing, establishing a foundation for future research and management strategies.

The outcomes of this research hold significant implications for the management of the Chondrostoma regium fishery in the Orontes River. Overfishing can severely impact the population’s ability to sustain itself, leading to declining abundances. Consequently, the implementation of management strategies that minimize the catch of Chondrostoma regium and ensure the long-term sustainability of the fishery is of utmost importance.

Acknowledgment

The author would like to express their gratitude to Tishreen University for their support and assistance in conducting this research, as well as extend a great appreciation to the artisanal fishermen, particularly the professional fisherman Imad Al-Khabouri.

References

  1. Suiçmez M, Yılmaz S, Şeherli T (2011) Age and growth features of _Chondrostoma_ _regium_ (Heckel, 1843) from Almus Dam Lake, Turkey. Süleyman Demirel University Faculty of Arts and Science Journal of Science 6(2): 82- 90.
  2. Salloum M (2009) A Photographic Atlas of the Fishes of the Orontes River Basin within Syrian Territory. Ministry of Agriculture and Agrarian Reform pp: 169.
  3. IUCN (2024) The IUCN Red List of Threatened Species. Version 2023-1.
  4. Ordoñez A, Eikvil L, Salberg AB, Harbitz A, Murray SM, et al. (2020) Explaining decisions of deep neural networks used for fish age prediction. PLoS ONE 15(6): e0235013.
  5. Parsons KT, Maisano J, Gregg J, Cotton CF, Latour RJ (2018) Age and growth assessment of western North Atlantic spiny butterfly ray _Gymnura_ _altavela_ (L. 1758) using computed tomography of vertebral centra. Environmental biology of fishes 101: 137-151.
  6. Hamwi N (2024a) Predicting age and maturity of endangered Spiny butterfly ray, _Gymnura_ _altavela_ (Linnaues 1758) using artificial neural network (multilayer perceptron). Damascus University Journal for the basic sciences 40(1): 55-68.
  7. Hamwi N (2024b) Population Growth of _Thunnus_ _thynnus_ and Vulnerability to Fishing along the Syrian Coast (Eastern Mediterranean Sea). International Journal of Oceanography & Aquaculture 8(2): 000311.
  8. Hamwi N (2024c) Population Assessment of White Grouper _Epinephelus_ _aeneus_ Using Specialist Technical Methods Along Coastal Syrian Waters in The Eastern Mediterranean. Journal of Marine Science and Research 3(1).
  9. Hamwi N, Ali-Basha N (2024) Growth of Spiny Butterfly Ray _Gymnura_ _altavela_ Population and Vulnerability to Fishing along the Syrian Coast (Eastern Mediterranean Sea). International Journal of Oceanography & Aquaculture 8(3): 000326.
  10. Hamwi N, Ali-Basha N, Altajer H, Salem J (2024a) Assessment of Dusky Spinefoot _Siganus_ _luridus_ Population Dynamics along the Syrian Coast (Eastern Mediterranean Sea) Utilizing Different Expert System Techniques. International Journal of Oceanography & Aquaculture 8(3): 000329.
  11. Hamwi N, Ali-Basha N, Altajer H, Salem J (2024b) Population assessment of greater amberjack _Seriola_ _dumerili_ along the Syrian waters in the eastern Mediterranean Sea using expert systems. Journal of Marine Science and Research 3(1).
  12. Hamwi N, Ali-Basha N, Altajer H, Salem J (2024c) Assessment of Population Growth and Fishing Vulnerability of _Pomadasys_ _stridens_ along the Syrian Coast (Eastern Mediterranean Sea). International Journal of Oceanography & Aquaculture 8(3): 000333.
  13. Cheung WWL, Pitcher T, Pauly D (2005) A fuzzy logic expert system to estimate intrinsic extinction vulnerabilities of marine fishes to fishing. Biological Conservation 124(1): 97-111.
  14. Cheung WWL (2007) Vulnerability of marine fishes to fishing: from global overview to the northern south China sea. A Thesis in the University of British Columbia pp: 354.
  15. Jones MC, Cheung WWL (2017) Using fuzzy logic to determine the vulnerability of marine species to climate change, Glob Change Biol pp: 1-13.
  16. Hamwi N, Ali-Basha N (2019) Estimation of the vulnerability of some Sparidae species to fishing in the Eastern Mediterranean Sea (Syrian coast) by fuzzy logic method. Journal of Al-Baath University 41.
  17. Hamwi N, Ali-Basha N, Altajer H, Farah T (2022) A proposed model to estimate the growth of ‎the fishery populations by ‎expert system. ‏Journal of Hama University 5.
  18. Hamwi N (2018) Use Akaike (AIC) and Schwartz (SC) information criterions in the differentiation between nonlinear growth models of different fish species. Journal of Al-Baath University 40(3): 45-66.
  19. Ricker WE (1975) Computation and interpretation of biological statistics of fish populations. Bulletin of the Fisheries Research Board of Canada pp: 382.
  20. Pauly D (1980) A new methology for rapidly acquiring basic information on tropical fish stocks: growth, mortality and stock recruitment relationships pp: 154- 172.
  21. Pauly D, Munro JL (1984) Once more on the comparison of growth in fish and invertebrates. FishByte 2(1): 21.
  22. Sparre P, Venema SC (1998) Introduction to tropical fish stock assessment-Part 1: Manual. FAO Fisheries Technical Paper 306/1, Rev 2: 407.
  23. Beverton RJH, Holt SJ (1957) On the dynamics of exploited fish population. Fishery Investigations, Series II (London), UK, 19: 1- 533.
  24. Beverton RJH, Holt SJ (1966) Manual of methods for fish stock assessment. Part II. Tables of yield function. FAO Fish Biol Tech Pap (38)10.
  25. Kiani F, Keivany Y, Paykan-heyrati F (2021) Reproductive biology and gonad histology of King Nase (_Chondrostoma_ _regium_) (Teleostei: Cyprinidae) in Bibi-Sayyedan River, Tigris Basin. Biharean Biologist 15(1): 25-32.
  26. Ergüden SA, Göksu ML, Avșar D (2010) Growth properties of _Chondrostoma_ _regium_ (Heckel, 1843) living in Seyhan Dam Lake (Adana). Journal of Fisheries Sciences 4(4): 391-399.
  27. Mahboobi Soofiani N, Pooramini M, Asadollah Nasrabadi S, Ahmadi S, Hatami R (2014) Age, growth and reproduction of _Chondrostoma_ _regium_ (Heckel, 1843) from the Zayandeh Roud River, Iran. Iranian Journal of Fisheries Sciences 13(4): 810-822.
  28. Pauly D, Soriano ML (1986) Some practical extensions to 368 Beverton and Holt’s relative yield-per-recruit model. In: Maclean JL, Dizon B, et al. (Eds.), The First Asian Fisheries Forum pp: 491-370.
  29. Froese R, Pauly D (2024) FishBase. World Wide Web electronic publication.
