Comparison of CD and DSA in Diagnosing PVD

Study Design

Cross sectional Prospective study.

Period

September 2015 to Jan 2017.

Work Place

Department of Radiodiagnosis G.R. Medical College & Jayarogya Hospital, Gwalior using ALOKA SSD-4000 USG machine with high frequency linear probe & low frequency curvinear probe and Allenger DSA with C-Arm machine.

Study Group

All those patients which were referred for digital subtraction angiography, in department of Radio diagnosis, G.R. Medical College Gwalior, Madhya Pradesh.

Sample Size

50 Patients

Inclusion Criteria

Patient with complaints pertaining to peripheral vascular disease, who was due for Digital Subtraction Angiography in Department of Radiodiagnosis, Jayarogya Hospital Group & Gajra-Raja Medical College Gwalior, Madhya-Pradesh.

Exclusion Criteria

a) Pregnant female.
b) Children.
c) Previously operated cases of peripheral vascular disease.
d) Patients with renal and heart failure.
e) Patients with previous history of allergic reaction to drugs.

B – Mode: Assess ability

Anatomy (course, variants)
Vessel contour (aneurysm, stenosis)
Wall thickness (calcification, plaque)
Pulsations (axial, longitudinal)
Per vascular structures (haematoma, abscess, compressing structures)

Doppler

Demonstration of flow
Flow direction
Flow pattern (laminar, turbulent)
Flow character (monophonic, biphasic, triphasic)
Flow velocity

Technical Aspects of Arterial Duplex Imaging

The examination is explained and a history (risk factors, signs and symptoms) is obtained from the patient. The presence/absence of peripheral pulses and bruits should be documented. Arterial duplex imaging is performed with the patient lying in the supine position on an examination table. Peripheral arterial imaging begins at the level of the aortic bifurcation. Visualization of the proximal arteries is improved if patients do not take anything by mouth the morning of the examination. It is best to use a low frequency transducer (2.0-3.5 MHz) for the proximal segment of the examination. The aortic bifurcation is best seen with the patient turned to the left side and with the transducer placed just in front of the right iliac crest in a longitudinal plane. The distal aorta can usually visualize with the origin of both common iliac arteries. Doppler signals should be obtained from all three vessels at this location. Turn the patient into a lateral decubitus position (side being evaluated up) to evaluate the internal and external iliac arteries with the transducer placed between the iliac crest and the umbilicus. Doppler waveforms should obtain from the internal and external iliac arteries, noting direction of blood flow and velocity. If difficulty is encountered in locating the iliac arteries from this approach, the arteries may be located by identifying the femoral arteries at the groin level and following the arteries proximally. The patient returns to the supine position and a higher frequency linear array transducer (5-10MHz) should be used for evaluation of the arteries of the lower extremity. The common femoral artery is located at the level of the groin. The artery lies lateral to the common femoral vein. Imaging should be performed in the longitudinal plane, and a Doppler Signal should be obtained from this artery. The vessel should be followed distally on the leg to the origin of the superficial femoral and profundafemoris (deep femoral) arteries. Doppler signals should be obtained from the origin of both the superficial femoral artery and the Deep femoral artery. The superficial femoral artery is followed distally as it courses down the medial aspect of the thigh. Doppler signals should be obtained along its pathway and at areas of questionable narrowing. The distal portion of the superficial femoral artery may be easier to evaluate from the distal posterior thigh. This artery is followed distally in the limb and becomes the popliteal artery. The popliteal artery should be followed through the popliteal fossa. The popliteal artery lies deep to the vein, and Doppler spectral waveform should be obtained from this vessel. Following the distal popliteal artery in a longitudinal plane, the origin of the anterior tibial artery can usually be visualized diving deep on the monitor. The anterior tibial artery can only be followed for a short distance from this approach. The remainder of the vessel can be located distally by placing the transducer on the lateral calf and it can be followed to the level of the ankle. The tibial-peroneal trunk extends into the calf from the popliteal artery. The posterior tibial and peroneal arteries are usually visualized by placing the transducer on the medial calf. The peroneal artery lies deep and runs parallel to the posterior tibial artery. These vessels are located above the malleolus and followed proximally. At the end of the arterial duplex examination, the ultrasound gel should be removed from the patient with a clean towel, and any excess gel should be removed from the transducer. The transducer should be cleaned using a disinfectant.

Digital Substraction Angiography

Patient those planned was investigated done all routine work up including HIV & HBsAg. Then after taking informed and written consent, and after lignocaine sensitivity test, patient was taken on DSA examination table .Under all aseptic precautions and under monitoring of anesthesiologist femoral artery puncture was done with patient in supine position. After reaching up to concerned vessel through Trans- femoral route dye was injected through catheter into concerned vessel. Followed by fluoroscopic and digital substraction image was taken. Findings were noted and were compared with color Doppler finding. The collected data was analyzed with the aid of calculator and presented in the form of tables, graphs, figures and diagrams wherever necessary. The findings are discussed and compared with findings of other similar studies.

Click to enlarge

Click to enlarge

Click to enlarge

Click to enlarge

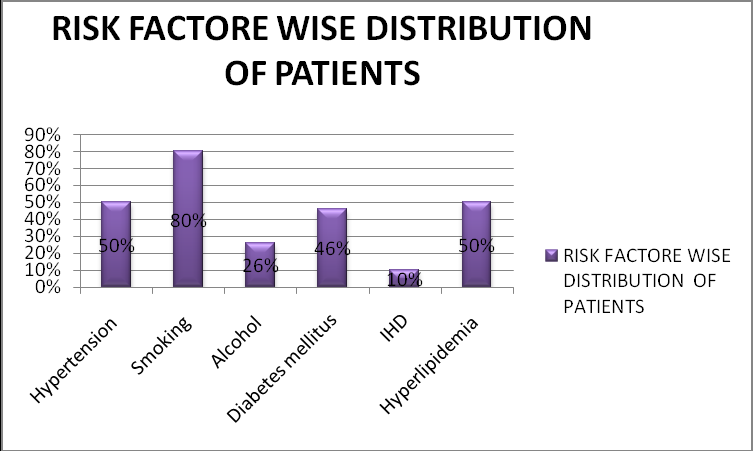

In the history taken during the study for risk factor evaluation, it showed that smoking, hyperlipidemia, hypertension and diabetes were the major risk factors.

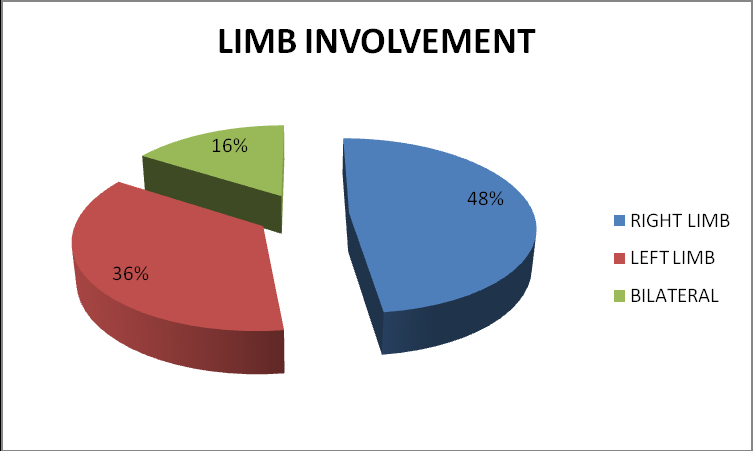

Click to enlarge

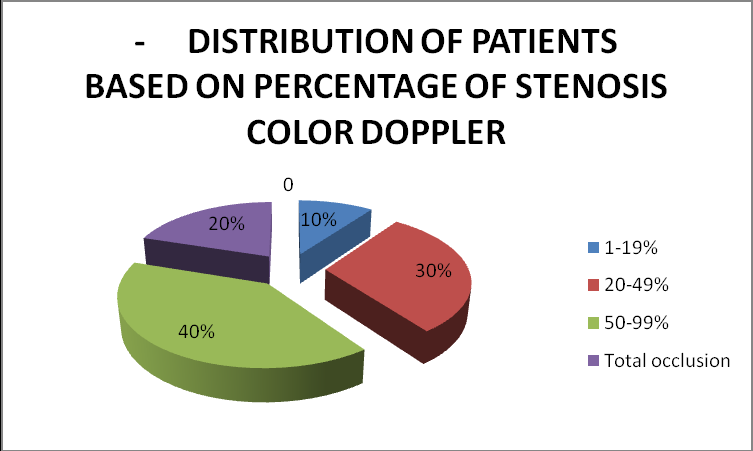

Click to enlarge

On categorizing patients based on percentage stenosis, 10% of them showed 1-19% steno tic lesion, 20% of them showed 20-49% stenosis, 32% showed 50-99% stenosis and 38% of them showed total occlusion.

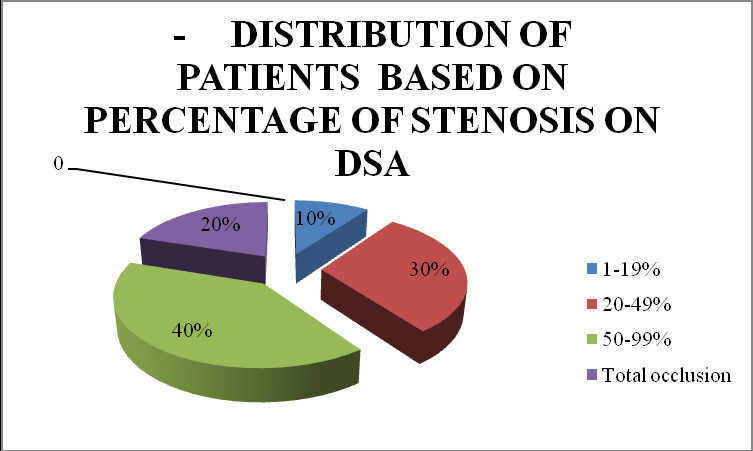

Click to enlarge

Among patient studied 60% of them showed significant (50% or more), and 40% showed non-significant (<50%) stenosis.

Click to enlarge

Age Distribution

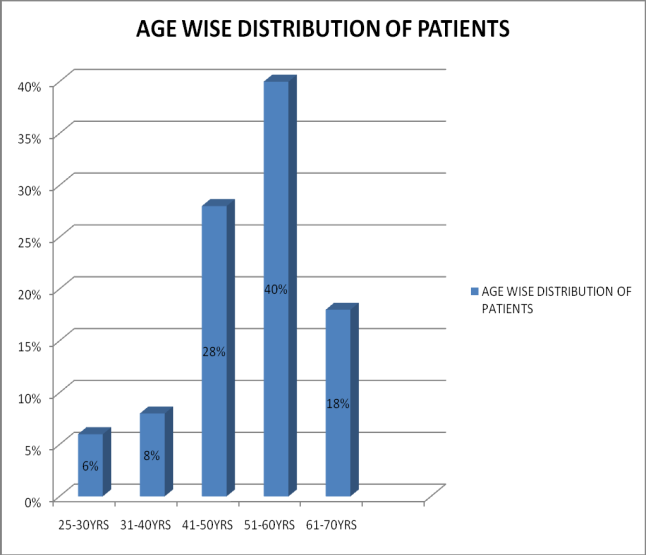

In our study 86% of the cases were above the age of 40 years and 14% of the cases were between the ages of 25- 40 years. It is well accepted fact that the lower extremity arterial disease is the disease of middle and older age groups as cited by Cossman, et al. 23, Hughson et al.

Sex Distribution

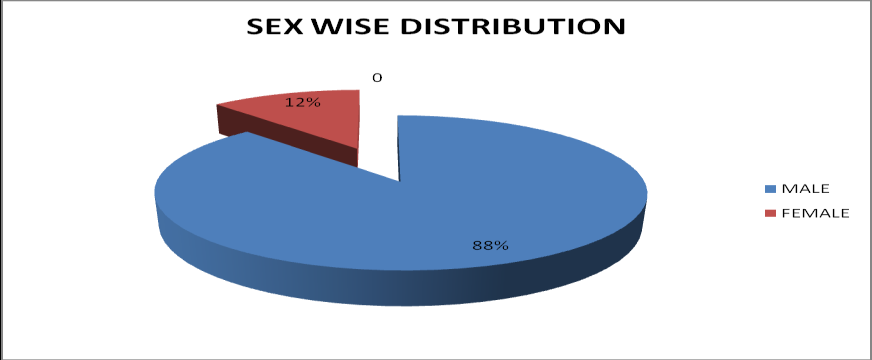

Among 50 diagnosed cases of peripheral vascular insufficiency, patients who underwent Doppler study 44(88%) were males and 6 (12%) were females. Hughson et al observed that 2% of males and 1% of females had symptoms of peripheral vascular disease.

Signs and Symptoms

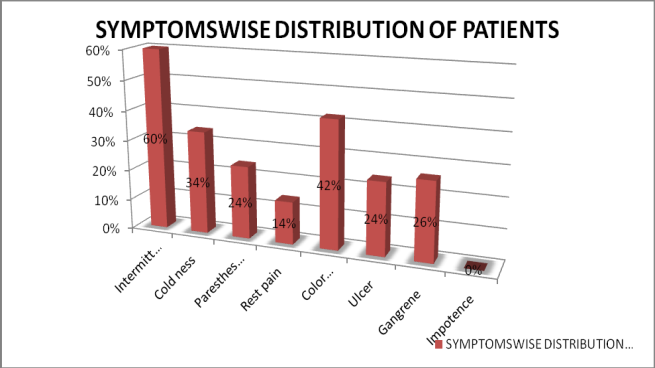

Intermittent claudicating, rest pain and, color changes are very important signs of lower limb Ischemia. We found 60% of patients in this study having intermittent claudicating. Tetsuo Ostida, et al. 56 found 69 out of 144 ischemic limbs of TAO having this symptom. JL Juergen found it in 100% of atherosclerotic patients. M. Hamilton in 1952 found claudicating was directly proportional to the degree of thrombosis and rest may have little effect on pain. Lindbom A57 found that narrowing of the arterial lumen less than 20% and thrombosis are the two main causes of claudicating rest pain indicates advanced arterial insufficiency to maintain normal requirement of the limb even at rest. Rest pain was found in 14% of our patients. B. Ranjan58 reported 105 rest pain and 62 gangrene/ulceration of total 188 cases. In our study 26% cases had gangrene and 24% cases had ulcers. B. Ranjan noted that the maximum gangrene was associated with distal blocks and popliteal blocks. The incidence of gangrene being 50% in each case, while with femoro- popliteal it was 20%. Out study shows that the maximum block at the level of femoro- popliteal trunk followed by distal run-off arteries. Other symptoms are colour changes (42%), coldness (34%) and Paresthesias (24%). In our study we found clinical evaluation of peripheral pulses as a very important adjunct to colour Doppler study. It helps to suspect the possible site of block and we found good correlation between clinical levels of block and colour Doppler findings in majority of cases.

Risk Factors

In our study 80 % of the patients were smokers with average smoking of 25- 30 cigarettes/bedis per day for a period ranging from 10-30 years. Tobacco smoking affects both arteriosclerosis oblitererans and thromboangitisobliterans (TAO) but TAO is exclusively seen in young smokers. The relationship between smokers and PVD is known since 1911 when Erb59 reported intermittent claudication was 3 times more common among the smokers. 26% of patients in our study had history of alcohol intake for average of 10 years. William F. Ganong noted intake of alcohol promotes increase in blood lipid levels, which promotes atherosclerosis. In our study 50% of patients with hyperlipidemia 50% of patients had hypertension, 46% were diabetes and 10% had IHD.

PSV Ratio

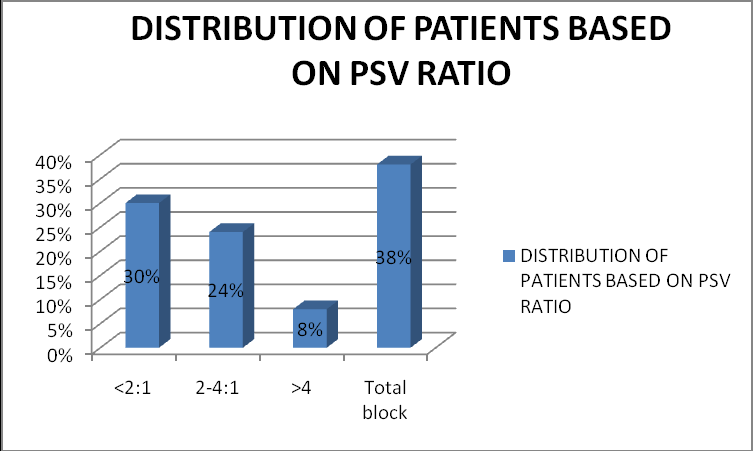

Among patients who had plaque 12 (24%) had PSV ratio of 2-4, 4(8%) had PSV ratio >4, 15(30%) had <2 and 19 (38%) patients had total block. PSV at stenosis and ratio of PSV at stenosis is compared with velocity 1-2cm upstream in a non diseased segment. According to Cossman et al PSV ratio of >2 are indicative of hemodynamically significant stenosis i.e. >50%-75% stenosis and >4 have >75%- 99% of stenosis. Cossman et al have produced accurate results by using PSV ratio for quantifying degree of stenosis. In our study PSV ratio was used which is easy to remember and it can also sub classify 75-99 % of stenosis?

Spectral Waveform Changes

In our study spectral waveform changes were observed and the 2 main features, which are altered are, the overall shape of the waveform and the degree of spectral broadening as a result of flow disturbance. The spectral waveform was monophonic i.e. loss of third and then second phase of the normal triphasic waveform at the areas of hemodynamically significant stenosis and distal to it. The width of the first, systolic complex is increased and overall height is decreased. These changes result in dampening of the waveform which is most marked when there is proximal occlusion. The turbulence generated beyond the stenosis resulted in spectral broadening and spectral fill-in under normal window under the first phase systolic peak. No flow was recorded in cases of occlusion. In cases with distal disease the changes which were seen are the reduced diastolic component, evident from the loss of third component and reduced peak systolic velocity. These findings are comparable to findings of other studies Jager KA et al. 32. Other findings included diffuse irregularity of the vessel wall and resultant irregularcolour fill-in in most of the patients suggesting increased Intima-medial thickness.

False Positive Occlusions

These are reported to occur due to sluggish low velocity flow, with most of the blood being diverted away from the main vessel by the collaterals, decreasing the amount of blood carried by it, which is not picked up by doppler with the overlying gases in the bowel, movement of abdominal wall due to respiration and heavily calcified vessel wall, leading to beam attenuation, further compounding the problem. It is also reported to be due to diffuse insignificant proximal disease. Moreover, distal third of the superficial femoral artery has been called a blind spot for sonographers.

False Negative Occlusions

This phenomenon of non visualization of patent segments on Doppler is known and reported in literature and has been demonstrated in other studies. This non- opacification of normal segment distal to occlusion is said to be due to its filling with non opacified blood from the collaterals, not carrying the contrast due to timing, or flow or pressure variables. The results are misleading, leading to overestimation of occlusion lengths and at times, revealing no runoff on arteriography and subsequent selective arteriography, or observations at surgery tend to substantiate the findings of the CFD. Vascular surgeons have known this for a long time and will explore non-visualized distal vessels for distal bypass grafting, if Doppler is detectable. This shows that our observed sensitivity can be deceptively lower. Moreover arterial collateral branch can also be inwardly sampled as the patent main arterial segment, as reported literature [10, 11, 12].

**False Positive Stenosis**

This possibly occurred due to sampling error, as narrowing was not appreciated on the colour scan and spectral waveform in the distal vasculature was triphasic, whereas abnormal spectral waveform should continue in the distal vessels [13]. More experience in the future will avoid such errors. Thus, CFD can facilitate the pre-angiographic determination of the nature and extent of arterial disease in the lower limbs. Normal CFD virtually excludes significant lesion, which in turn helps reducing the number of unnecessary diagnostic arteriography in patients with symptoms not justifying the surgical or endovascular procedure. Standard of arteriography and provides high-resolution, precise anatomical and physiological information of the peripheral arteries. It is a safe, fast, inexpensive and repeatable non-invasive procedure for investigating PAOD, which can be performed on outdoor basis without hospital admission. With arteriography as the ‘gold standard’, deceptively poor results can be produced, due to non-visualization of segments patent on CFD. A high NPV shows that significant lesions in the vascular tracts can be reliably excluded, which can help reduce the number of diagnostic angiographies, in patients with symptoms not justifying a surgical or endovascular procedure. The study found that, when scan demonstrates normal artery, the angiogram also shows normal segment. Thus, CFD has grown from an ancillary diagnostic aid, to a critical component in the diagnostic workup, raising the possibility of displacing arteriography as the primary diagnostic imaging modality, for patients with chronic arterial occlusive disease of the lower extremity.

**Duplex color Doppler sonography**

• Can accurately locate the site and extent of stenosis/occlusion.
• Can be used to classify peripheral arterial disease intohemodynamically non-significant and significant using Peak systolic velocity, Peak systolic velocity ratios and spectral waveforms which will help in management.
• Is safe, cost effective, repeatable, noninvasive procedure for investigating lower limb arteries. Hence it is the primary investigation of choice in all cases of lower extremity arterial disease and helps to decide the need for further evaluation by angiography.
• Allows the evaluation and quantification of arterial disease.
• Also helps in the follow-up of the arterial diseases.
• The agreement between DUS and DSA was generally good, irrespective of the severity of ischaemia. DUS performed better in the supragenicular arteries than in the infragenicular arteries. However, DUS compared favorably with DSA in both tibial vessels, particularly in the distal part, which makes DUS a useful non-invasive alternative to DSA.
• DSA shows better soft tissue vessel contrast.
• DSA assess better degree of stenosis and occlusion.
• DSA gives better information about the collateral.
• DSA provides better anatomical details of vessel and hence detailed vascular tree mapping.

Based on the above findings we draw the inference that Color Doppler is an initial investigation of choice in evaluation of peripheral vascular diseases specially in infragenicular portion of the vasculature, and is an adjunct to DSA, but cannot replace it.
