Nanomedicine & Nanotechnology Open Access Research Article 11 min read

Biogenically Fabricated TMO-NPs and their Anti-Bacterial and Fungal Assay (Well Diffusion Method) in Saline Solution

Madiha Batool
ISSN: 2574-187X  10.23880/nnoa-16000176  Received: December 03, 2019  Published: February 21, 2020
 — views
 24 references
 13 figures
 2 tables
PDF
Keywords
Nanomaterial XRD Antibacterial Activity Metal Oxides Antifungal Activity
Abstract

Nanotechnology has attained a great deal of attention in the scientific circle. MO-NPs like copper oxide and zinc oxide, and ironoxide had been used in industry for different purposes, like paints, cosmetics and plastics. A recurrent feature that TMO-NPs exhibit is antimicrobial and fungal behavior against gram positive and negative bacteria. In this research work, we experimented the antimicrobial and antifungal activity of transition TMO-NPs nanoparticles against Gram-positive and Gram-negative bacteria. Nanosized Transition metaloxides (TMO) particles like ironoxide, copperoxide, zincoxide were biogenically synthesized by using Aloe Barbadensis leaves extract and characterized by XRD, FTIR, and TEM techniques. XRD confined the single-phase fabrication of metal oxides nanomaterials. The size of metal oxides ranges between 9-20nm. We applied these synthesized nanomaterials to assess their antibacterial and antifungal activity against E.coli, B.Subtilis, B.Licheniformis, K.Pneumonia, Aspergillus Nigar, Candida Albicanes bacteria sand fungui.: Among the MO-NPs, ZnO (zincoxide) exhibited highest antimicrobial activity against GP and GN bacterias described above in this research, while hamatite nanoparticles exhibited the lowest ZOI. Copperoxide nanoparticles demonstrated moderated results of anti-bacterial and antifungal activity.

Introduction

The infectious diseases had been allured consequential threat to public health, particularly with inventions of antibiotic resistance bacterias [1, 2]. The GP and GN bacterial strains create a severe health problem. Antibiotics have been referes to check the infections in community and hospital. By adventure in the nano biotechnology field [3] nanometaloxides of desired size and shape, lead to the buildout of antibacterial agents. The functionalities of metaloxide nanoparticles are modified by the particle size [4]. In variegated fields, MO-NPs exhibit substantial functions due to their reduced sizes. The MO-NPs properties can be altered by manipulations of particle size [5]. Considering unique properties inorganic nanoparticles have being fabricated for different biomedical applications .In addition, MO-NPs nanoparticles with smaller particle size have been reported to show prominent antimicrobial and antifungal activity [6, 7]. Antibactericidal and antifungal activity of nanoparticles depends on size of metal oxide nanoparticles, stability in environment, and amount in the medium growth [8]. Whereas, nanoparticles amended growing media, the bacterial growth can be inhibited by metal oxide nanoparticles interactions [9, 10]. Generally, size of bacterial cell wall is in the mm range, but outer cell membranes possess pores in nm range [11, 12, 13]. Since nanoparticles can be smaller in size than bacterial pores, MO-NPs being in nanometer range have a ideal ability of crossing the outer cell membrane of pathogenic bacteria and fungi. A strong challenge is on spot, while synthesizing MO-NPs, to restrict growth of bacterial in nutrient medium [14]. Least information is present on the antimicrobial activities of metal oxide NPs in comparison to reports on the properties [15, 16, 17]. Furthermore, we designed to fabricate biogenically zinc oxide, iron oxide and copper oxide NPs by using Aloe Barbadensis and finally performed their antibacterial activities against GP and GN bacterial strains.

Material and Method

Synthesis of Camellia Sinensis Leaves Extract

Aloe Barbadensis plant was purchased from the botanical garden of the institute GCU Lahore. The leaves extract were prepared by washing 25-gram leaves with distilled water. The obtained leaves material was dissolved in 100 ml of water in a 250ml flask and allowed to boil for 10 min at 80°C and then allowed to cool down to room temperature [18, 19, 20, 21]. The resulting solution was filtered twice using 0.2 micrometer filter paper to remove any impure particles. The colored solution of Aloe vera leaves was now ready for further use. The calculated PH of that solution was PH=4 at room temperature. The calculated PH of that solution was 4 at room temperature.

Fabrication of Nano Metaloxides

About 4M solution of salts of metal (iron, copper, zinc) were put into 25ml Aloe Vera leaves extract in a 250 ml Erlenmeyer flask with constant shaking with a magnetic stirrer under heating at temperature100–120°C range. The Color of the reaction mixture was changed. Then the resultant solution underwent centrifugation by using (Beckman JA-17 rotor model), at 10,000 rpm for 10-15min, at room temperature (35°C) and solid particles were collected after discarding the supernatant. The particles were washed twice with deionized water and ethanol. The collected MO- NPs were dried in a watch glass for evaporation of extra liquid. The formed black precipitate was annealed at 500 degree for 2h followed by grinding for further characterization [22, 23, 24].

Characterization Techniques

The characterization techniques applied in the lab were UV spectroscopy, FTIR (Fourier transform infrared spectroscopy), XRD (X-rays diffraction), and SEM (scanning electron microscopy) [25]. In order to characterize metal oxide nanoparticles all techniques considered a tool for analysis. These techniques provide morphology, size, shape, and structure information. We can conclude the results with these techniques. The instrumental principal and data handling play a key role in precise readings. Results of characterization are listed below (Figures 1-3).

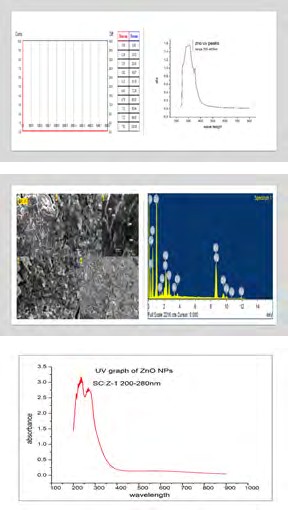

Figure 1: characterization results of SC-Z-1 SEM,PSA,FTIR and UV spectroscopy
Click to enlarge
Figure 1: characterization results of SC-Z-1 SEM,PSA,FTIR and UV spectroscopy
Figure 2: characterization results of SC-F-1 SEM,PSA,FTIR and UV spectroscopy.
Click to enlarge
Figure 2: characterization results of SC-F-1 SEM,PSA,FTIR and UV spectroscopy.
Figure 3: characterization results of SC-C-1 SEM,PSA,FTIR and UV spectroscopy.
Click to enlarge
Figure 3: characterization results of SC-C-1 SEM,PSA,FTIR and UV spectroscopy.
Figure 4: Antibacterial assay of SC-Z-1against E.coli, K.P, B.S, B.L Bacterial strains.
Click to enlarge
Figure 4: Antibacterial assay of SC-Z-1against E.coli, K.P, B.S, B.L Bacterial strains.
Figure 5: Antibacterial assay of SC: F- 1 against E.coli, K.P, B.S, B.L bacterial strains.
Click to enlarge
Figure 5: Antibacterial assay of SC: F- 1 against E.coli, K.P, B.S, B.L bacterial strains.
Figure 6: Antibacterial assay of SC:C-1against E.coli , K.P, B.S, B.L bacterial strains.
Click to enlarge
Figure 6: Antibacterial assay of SC:C-1against E.coli , K.P, B.S, B.L bacterial strains.
Figure 7: Bacterial strains refreshing.
Click to enlarge
Figure 7: Bacterial strains refreshing.

Antibacterial and Fungal Assays

Agar Well-Diffusion Method

In agar well diffusion assay was conducted for calculation of antibacterial and antifungal efficiency calculations of metal oxides nanoparticles. From growth microorganisms incubated on nutrient agar at 35°C about eighteen hour ,suspended in 0.8% saline solution and turbidity adjusted to 108 (cfu/ml). The suspensions were used to inoculate party plates at d=90mm with sterile cotton swab on applicator. Four wells of about 5mm diameters were punched and sealed with molten agar (0.8% agar) as precaution to leakage of samples from the bottom. MO-NPs of 10mg/ml, 5mg/ml, 2.5mg/ml samples concentrations of 100 microgram/ml were applied in well excluding control one well. The deionized water, control sample, did not affect the microorganism growth. The discs were placed on culture of bacteria and fungi, incubated in air at 35°C for one day. Antibacterial and fungal assay was evaluated by calculating ZOI of culture by samples applied. Experiment was conducted thrice to calculate concordant readings.

Broth Dilution Assay

BMD assay was conducted to calculate MIC (minimum inhibitory concentration) and MBC (minimal bactericidal concentration) of TMO-NPs against microorganisms (bacteria). The assay was performed in 96 well plates, the samples of Nano metal oxides were transferred in plates in very diluted state, plates were incubated with bacterial suspension and checked final volume was 200micro liter. After time passed of 24 hr incubation in air, MIC was examined till lowest concentration with no minimum growth in broth. MBC was calculated for low concentration of samples killing maximum bacteria inoculum with no visible growth described in Table 1.

strainsSC:Z-1SC:C-1SC:F-1
MICMBCMICMBCMICMBC
E.C8083130240200240
B.S9796156≥400278≥ 400
B.L100≥100178np250200
K.P9697250≥4002490nc

Results

Morphological Analysis

The typical XRD pattern of MO-NPs nanoparticles after annealed at 500°C , peak positions of copper oxide ,zinc oxide and iron oxides exhibited the tetragonal ,hexagonal and rhombohedra structures, confirmed by the JCPDC CARD 80-0075, 80-1916, and 85-0987, respectively. By using the Scherer formula crystalline size was calculated.

D = 0 9λ /β cosθ (1)

The calculated crystallite sizes were 7.9 nm, 16 nm, and 20.1 nm respectively for ZnO, Cu4O3, and Fe2O3 TMO- NPs .FTIR spectra by using the KBr, exhibited vibrations in the specific region 400–500 cm−1 which can be attributed to the vibrations of M−O which confirmed the formation of ZnO, Cu4O3 and Fe2O3 metal nanoparticles. The stretching peaks of groups alcohols, polyphenols, enrolls of green extract of allovers leaves also shown in spectra which acted as stabilizing and reducing agent .UV spectroscopy revealed the MO-NPs peaks b/w 200-300nm which confirmed the presence of metal oxides nanoparticles. SEM images confirmed the morphology of Cu4O3, Fe2O3, ZnO TMO-NPs tetragonal, rhombohedra and hexagonal respectively. PSA (particle size analyzer) calculated the average particle size accordance to XRD data.

Antimicrobial Properties

Nanoparticles of MO-NPs reported to fungicidal and bacteriostatic agents. Results of AM and AB activity revealed that ZnO and Cu4O3 nanoparticles have excellent potential for pathogenic bacterial strains and fungi. It is examined from the XRD, SEM and TEM results that zincoxide nanoparticles had smaller in size as compared to copperoxide and ironoxides NPs, It was also concluded that the AB and AF activity of the MO-NPs elevated by increasing in S/V ratio and small sizes (Figures 4-9).

Figure 8: Punching of wells in agar plates.
Click to enlarge
Figure 8: Punching of wells in agar plates.
Figure 9: comparative analysis of ZOI of TMO-NPs against bacterial and fungal strains.
Click to enlarge
Figure 9: comparative analysis of ZOI of TMO-NPs against bacterial and fungal strains.
Figure 10
Click to enlarge
Figure 10
Figure 11
Click to enlarge
Figure 11
Figure 12
Click to enlarge
Figure 12
Figure 13
Click to enlarge
Figure 13

Discussion

The zone of inhibition (ZOI) created by transition metal oxide nanoparticles against bacterial and fungal strains by SC:Z-1 (7.9 ± 1.43 nm) exhibited highest (27 mm) bacterial inhibition against E. Coli, in the form of ZOI studies, in which nanoparticles diffusion occurred on the agar nutrient plates which inhibited bacterial and fungal growth. while, SC:C- 1 and SC:F-1 calculated ZOI of 20 and 18 mm respectively against different stains. Among the bacterial strains, E.coli examined maximum ZOI others metal oxides inaugurated to be least. Similar observations were found in the case of B. substilis, B. licheniformis and K. pneumonia, where the ZOI exhibited by MO-NPs (Fe2O3, ZnO, Cu4O3) were summarized in the table 2 below. Zinc oxides being least particles size retained maximum ZOI against bacterial and fungal strains ,but it was also demonstrated that AB assay by TMO-NPs provided better results than AF activity .It was concluded that the AB and AF activity of the MO-NPs elevated by increasing in S/V ratio and small sizes. Similarly, it was also to be noted that GN bacterial strains () had higest inhibition zone than GP bacterial strains especially in the case of zincoxides, copperoxide, and ironoxide nanomaterials. This could also be due to GN strains resistance .we reported in recent research that the smaller the particle size of MO-NPs, efficacy in ZOI against bacterial and fungal strains enhanced, assay efficiency depends both the production of ROS (reactive oxygen species) and the nanoparticles accumulation too. It was observed with inhibition zones studies; zinc oxide nanoparticles had least efficiency against A.Niger and Candida Albicanes fungal strains. Thus, in this report, ZnO nanoparticles had showed the best antifungal against two strain and four antibacterial strains .It was also assessed that the potential of antibacterial and antifungal activity is time dependent after 24 hr the ZOI calculated found to be decreased due to bacterial growth illustrated in table below.

MO-NPE.CB.SB.LK.PA.NC.A
mmmmmmmmmmmm
SC: Z-127232421.220.519.6
SC: C-1201817.517.815.214.5
SC: F-11814.613.512.811.712.1

Conclusion

The nano transition metals oxides pure ZnO() Cu4O3 (paramaleconite), and Fe2O3(hamatite) were biogenically fabricated by Aloe Barbadensis plant leaves. Furthermore, the AB activity of all the transition metal oxides was analyzed. Antimicrobial activity enhanced with increaseing in S/V ratio due to the particle size reduction. Among transition metal oxides ZnO -NPs exhibited excellent antibacterial and antifungal potential, Iron oxide (hamatite) nanoparticles had the least activity.

Acknowledgment

Thanks to Dr Atif Assistant Professor GCU LHR for providing all fungi and bacterial strains for analysis and facility of lab.

Disclosure

No conflicts of interest
