Development of Hydrocarbon Resources on Soft Computing and Data Mining Technologies Base

**Task set up: Investigated Oil Spheres Consist of 24 Objects**

These spheres have been analyzed in scientific literature by statistic methods on the basis of factors influencing oil production within various geological conditions (complexity of geological structure, depth of the deposit, reservoir pressure, length of horizontal area, used equipment and etc.) [4] and object have been divided into 3 groups from exploitation view point, and the most prior object has been determined by classical mathematical logics using oil production coefficients. And as it was mentioned above it doesn’t always bring to the real results. Our goal is to determine exactness of the results obtained by classical method using fuzzy technology and Data mining technologies. The results obtained by classical methods are shown in table 1. Fussy-C-means algorithm will be used to carry out intellectual analysis of the data.

In Fuzzy C-means method used for clustering distance between $X_i, i = \overline{1,n}$, objects and $c_j, j = \overline{1,n}$ is measured by Euclid norm; $D^2 = \left\| x_i - c_j \right\|^2$. Other norms are also used in cluster analysis.

Using Euclid distance fuzzy clustering task consists of cluster coordinates providing the following criterion with minimum value and matrix of

$$J_m = \sum_{i=1}^{n} \sum_{j=1}^{n} u_{ij} \left\| x_i - c_j \right\|^2, \quad 1 \leq m < \infty$$

here, $c_j, j = \overline{1,n} - j$ cluster center, $m$ is exponential weight $(m > 1)$, $u_{ij}$ belonging function of $x$ on $j$-cluster, $\left\| \cdot \right\|$ is norm reflecting correspondence of cluster centers.

$$u_{ij} = \frac{1}{\sum_{k=1}^{n} \left( \frac{\left\| x_i - c_j \right\|}{x_i - c_k} \right)^{m-1}}, \quad c_j = \sum_{i=1}^{n} u_{ij}^m x_i$$

Value of exponential weight is determined till carrying out clustering and it influences belonging level matrix. More is $M$, more mixed is the cluster division, when $m \to \infty$, $M = \left[ \frac{1}{c} \right]$. Determination of $M$ value is the task still being researched. In this method when iteration is $\max_{ij} \left\{ u_{ij}^{(k+1)} - u_{ij}^k \right\} < \varepsilon$ it ends, here $k$ is iteration steps, $\varepsilon$ is the value varying between 0 and 1 influencing value of purpose function in algorithm iterations. This procedure is collected to local $J_m$ minimum.

Fuzzy C-means algorithm consists of the following steps:

1. Initial evaluation of $U = \left[ u_{ij} \right], U^{(0)}$ matrix
2. Calculation of $k C^{(k)} = \left[ c_j \right]$ vectors centers of $U^{(k)}$ matrix in $k$ step.
3. Renovation of values of $U^{(k)}, U^{(k+1)}$ matrix elements.

$$c_j = \frac{\sum_i u_{ij}^m x_i}{\sum_i u_{ij}^m} = \frac{1}{\sum_{k=1}^{n} \left( \frac{\|x_i - c_j\|}{\|x_i - c_k\|} \right)^{\frac{2}{m-1}}},$$
$$4. \|U^{(k+1)} - U^{(k)}\| < \varepsilon,$$
then process ends, otherwise it should be returned to 2 step.

Fuzzy clustering makes it possible to place data in several clusters. Thus, application of fuzzy clustering gives not only one, but some possible variants, and it widens the choice of alternatives in decision making. Let’s denote cluster centers found as a result of clustering by $v_1, v_2, \ldots, v_c$. $\sum_{k=1}^{n} \mu_{\gamma_k}(y_i) = 1$, $i = 1, \ldots, c$ expresses the condition that cluster set of fuzzy objects should be closed by fuzzy coating.

For simplicity let’s consider that cluster centers are given by two $x$ and $y$ parameters. At this time the main task is the defining of rules expressing the relation between $x$ and $y$. Cluster centers $v_i(i = 1, \ldots, c)$ are used in writing of fuzzy rule.

If $x = x_i$, then $y = y_i$, here fuzzy terms are interpreted so: $x_i$ is approximate $x_i$ and $y_i$ is approximate $y_i$: belonging functions of fuzzy terms are expressed by Gause curve:

$$x_i = \exp\left(-\frac{1}{2}\left(\frac{x - x_i}{\beta}\right)^2\right), \quad y_i = \exp\left(-\frac{1}{2}\left(\frac{y - y_i}{\beta}\right)^2\right).$$

Here $\beta$ is the parameter of clustering algorithm.

Computer simulation: Let’s consider creation of 3, 5 and 7 group using existing information and choice of priority object. Initial data of the task is as in table 1:

| No | Deposit | Exploitation Object | Depth of Bedding | Oil Bearing Area, $10^4$ M$^2$ | Effective Thickness M | Porosity % | Reducibility, $10^{-3}$mm | Oil Density $Kq/M^3$ | Total Production Th/T | Oil Recovery Coefficient | Current | Final |
| :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- |
| 1 | Umbaki | Maykop | 1380 | 856 | 23,8 | 20 | 46 | 895 | 943 | 0,04 | 0,2 |
| 2 | Neftchala | V | 125 | 442 | 27,1 | 24 | 182 | 865 | 617 | 0,05 | 0,18 |
| 3 | Zeyli | Miosen | 1750 | 488 | 75 | 18 | 38 | 845 | 911 | 0,08 | 0,21 |
| 4 | Umbaki | Çokrak | 600 | 206 | 28,7 | 20 | 122 | 950 | 408 | 0,05 | 0,10 |
| 5 | Neftchala | IV | 985 | 349 | 19,5 | 24 | 160 | 922 | 299 | 0,04 | 0,14 |
| 6 | Kalamaddin | IV | 1450 | 12 | 57,7 | 22 | 20 | 907 | 461 | 0,07 | 0,36 |
| 7 | Neftchala | VII | 1487 | 428 | 16,2 | 25 | 57 | 8850 | 386 | 0,06 | 0,2 |
| 8 | Neftchala | III | 807 | 234 | 15,5 | 24 | 263 | 891 | 267 | 0,05 | 0,19 |
| 9 | Kalamaddin | III | 1350 | 90 | 42,4 | 22 | 18 | 910 | 135 | 0,03 | 0,35 |

| No | Group objects | Group objects | Group objects | Group objects | Group objects | Group objects | Group objects | Group objects | Group objects | Group objects | Group objects | Group objects |
| :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- |
| 1 | Karabakhli | VII | 3610 | 516 | 23,7 | 21 | 68 | 892 | 639 | 0,05 | 0,2 |
| 2 | Old Kala | KC | 2150 | 441 | 14,5 | 21 | 123 | 889 | 552 | 0,07 | 0,30 |
| 3 | Karabakhli | V | 3350 | 494 | 17,3 | 22 | 30 | 899 | 613 | 0,07 | 0,19 |
| 4 | Zeyva | V | 2550 | 450 | 20,4 | 24 | 27 | 895 | 414 | 0,05 | 0,09 |
| 5 | Karabakhli | III | 3150 | 480 | 14,3 | 22 | 76 | 896 | 445 | 0,06 | 0,19 |
| 6 | Karadagh | Diatom | 2750 | 744 | 28,3 | 16 | 56 | 910 | 44 | 0,01 | 0,1 |
| 7 | Jafarli | Eosen | 3920 | 637 | 50,6 | 4 | 36 | 879 | 248 | 0,04 | 0,1 |
| 8 | Zeyva | VI | 2670 | 251 | 19,6 | 22 | 30 | 879 | 168 | 0,03 | 0,07 |
| 9 | C. Kyursanqa | VIII | 3935 | 213 | 17,5 | 21 | 38 | 895 | 104 | 0,02 | 0,16 |
| 10 | Zeyva | VIII | 2910 | 166 | 24 | 24 | 92 | 873 | 218 | 0,05 | 0,08 |

Hasanov AR, et al. Development of Hydrocarbon Resources on Soft Computing and Data Mining Technologies Base. Pet Petro Chem Eng J 2019, 3(2): 000192.

Data used for obtaining fuzzy clusters are as follows. Exponent is m=3; improvement constant = 0.000 001; number of iterations is 10000; number of clusters is 3, 5, 7, 9.

In the case when number of clusters is 3 centers of the clusters obtained on the basis of intellectual analysis of data and values of belonging functions are as follows. Iteration values according to calculation: Iteration count = 1, obj. fcn = 16903744.071569 Iteration count = 2, obj. fcn = 12928316.867672 Iteration count = 3, obj. fcn = 9610738.100440 Iteration count = 4, obj. fcn = 6611479.254957 Iteration count = 5, obj. fcn = 5458026.748869 Iteration count = 6, obj. fcn = 4953940.811972 Iteration count = 7, obj. fcn = 4724454.476005 Iteration count = 8, obj. fcn = 4631882.469071 Iteration count = 9, obj. fcn = 4598449.067768 Iteration count = 10, obj. fcn = 4587058.272361 Iteration count = 11, obj. fcn = 4583279.774332 Iteration count = 12, obj. fcn = 4582041.535835 Iteration count = 13, obj. fcn = 4581638.077309 Iteration count = 14, obj. fcn = 4581506.988790 Iteration count = 15, obj. fcn = 4581464.458463 Iteration count = 16, obj. fcn = 4581450.670592 Iteration count = 17, obj. fcn = 4581446.202593 Iteration count = 18, obj. fcn = 4581444.755061 Iteration count = 19, obj. fcn = 4581444.286155 Iteration count = 20, obj. fcn = 4581444.134271 Iteration count = 21, obj. fcn = 4581444.085075 Iteration count = 22, obj. fcn = 4581444.069142 Iteration count = 23, obj. fcn = 4581444.063981 Iteration count = 24, obj. fcn = 4581444.062309 Iteration count = 25, obj. fcn = 4581444.061768 Iteration count = 26, obj. fcn = 4581444.061593 Iteration count = 27, obj. fcn = 4581444.061536 Iteration count = 28, obj. fcn = 4581444.061518 Iteration count = 29, obj. fcn = 4581444.061512 Cluster centers Center = 1.0e+003*

2.8991 0.3967 0.0200 4.2272 0.4581 0.0270 1.2058 0.3300 0.0315 0.0218 0.0536 0.8916 0.0192 0.0320 0.8884 0.0224 0.1079 0.8984 0.3267 0.0000 0.0001 0.1379 0.0000 0.0002 0.4605 0.0001 0.0002 Values of belonging function: 0.1502 0.0489 0.8009 0.0151 0.0050 0.9799 0.2279 0.0567 0.7155 0.0660 0.0265 0.9076 0.0208 0.0072 0.9720 0.0681 0.0193 0.9127 0.0458 0.0121 0.9421 0.0483 0.0182 0.9336 0.0692 0.0208 0.9099 0.4819 0.4672 0.0509 0.5508 0.0758 0.3734 0.7354 0.2179 0.0467 0.8938 0.0412 0.0650 0.9180 0.0616 0.0204 0.8475 0.0832 0.0692 0.1099 0.8739 0.0162 0.9218 0.0372 0.0410 0.1107 0.8724 0.0169 0.9443 0.0346 0.0211 0.8266 0.1395 0.0339 0.0762 0.9026 0.0211 0.0143 0.9831 0.0025 0.0306 0.9643 0.0051 0.1160 0.8482 0.0359 As a result, obtained groups distinguish significantly from the results obtained by classic method. Here, priority object is the object, which has obtained the biggest value of belonging function.

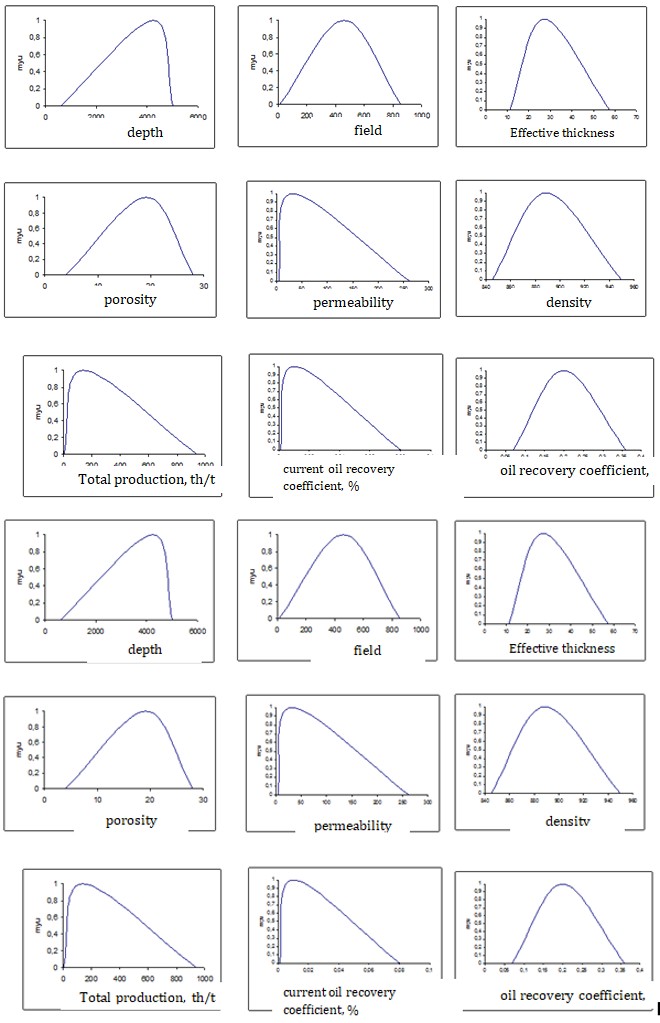

The obtained result is the object providing entrance to the group not only on one or some factors, but with total highest belonging level of all factors. The obtained fuzzy clusters are given in Figure 1.

Copyright© Hasanov AR, et al.

I Cluster

Click to enlarge

II Cluster

Copyright© Hasanov AR, et al.

III Cluster

Click to enlarge

Oil Bearing Area, 104

Depth

Effective Thickness,

№ Deposit Exploitation

of Bedding

Object

M

M2

I group objects 1 Karabakhli V 3350 494 17,3 22 30 899 613 0,07 0,19 2 Zeyba V 2550 450 20,4 24 27 895 414 0,05 0,09 3 Karabakhli III 3150 4$6 14,3 22 76 896 445 0,06 0,19 4 Karadakh Diatom 2750 744 28,3 16 5656 910 44 0,01 6,1 5 Zeyba VI 2476 251 19,6 22 56 879 168 6,65 6,67

6 Zeyba VIII 2910 166 24 24 92 873 215 6,65 6,6s 7 Karabakhli IV 3250 194 11,2 23 19 901 232 0,05 0,21 8 Karabakhli VII 3610 516 23,7 21 6S 892 639 0,05 0,2 Oil Recovery Total Production, Porosity, Permeability, Oil Density Coefficient %

10-3mm Th/T

Current Final

Copyright© Hasanov AR, et al.

When the number of clusters is 5, cluster centers obtained on the basis of data intellectual analyses and fragment of belonging functions values are given below. Iteration values according to calculation: Iteration count = 1, obj. fcn = 10342361.076339 Iteration count = 2, obj. fcn = 5287085.833270 Iteration count = 3, obj. fcn = 3278833.976970 Iteration count = 79, obj. fcn = 2144330.957163 Iteration count = 80, obj. fcn = 2144330.957137 Iteration count = 81, obj. fcn = 2144330.957119 Iteration count = 82, obj. fcn = 2144330.957107 Iteration count = 83, obj. fcn = 2144330.957100 Results obtained on Fuzzy C-means method (3 groups on the objects)

Copyright© Hasanov AR, et al.

The groups obtained by using 5 clusters are given in Table 3.

The same tests have been carried out in the case when number of clusters is 7 and 9. The obtained results make it possible to generalize expert’s knowledge working in the field of oil wells drilling and to make better decisions.

In the paper, data are used to get knowledge and intellectual analyses have been carried out by fuzzy neuron nets. This approach makes it possible to determine priority of the object entered the group by including expert’s any statistic information.

Due to the used Soft computing technology the algorithm is based on fuzzy neuron net. Work principle of fuzzy neuron net is given below [5, 6, 7, 8]. For simplicity fuzzy neuron net can be explained on the neuron net having 2 inlets and one outlet Typical rule set for Sugeno fuzzy model having two fuzzy “If…then…” rule is expressed as follows: If ( 1 1 A x ) and ( 1 2 B x ) Then 1 2 1 1 1 1 r x q x p f + + = Copyright© Hasanov AR, et al.

$$ \mathrm {I f} \left(x _ {1} A _ {2}\right) \mathrm {a n d} \left(x _ {2} B _ {2}\right) \mathrm {T h e n} f _ {2} = p _ {2} x _ {1} + q _ {2} x _ {2} + r _ {2} $$ ANFES (adaptive neuro fuzzy extract system) has 5 layers onward direction structure. The positions of these layers are as follows. Layer-1: Each i knot taking part in this layer is the adaptive knot the output of which is determined as follows:

() 2,1 , 1 ,1 = = i x a

$$ 1, i = \mu_ {A _ {i}} \left(x _ {1}\right), i = 1, 2 \mathrm {a n d} a _ {1, i} = \mu_ {B _ {i \rightarrow \infty}} \left(x _ {2}\right), i = 3, 4 $$ iB i μ ∞ → i x a Layer-2: Each knot in this layer is the constant removing sum of the coming signals and indicated as II. The output of the 2-nd layer can be described as follows:

$$ a _ {2, i} = w _ {i} = \mu_ {A _ {i}} \left(x _ {1}\right) \cdot \mu_ {B _ {i}} \left(x _ {2}\right), i = 1, 2 $$ i i B A i i μ μ Layer-3: Each knot taking part in the 3-rd layer is the constant knot indicated as N. Each i knot in this layer calculates the ratio of reality level of i-rule to the sum of reality levels of all rules:

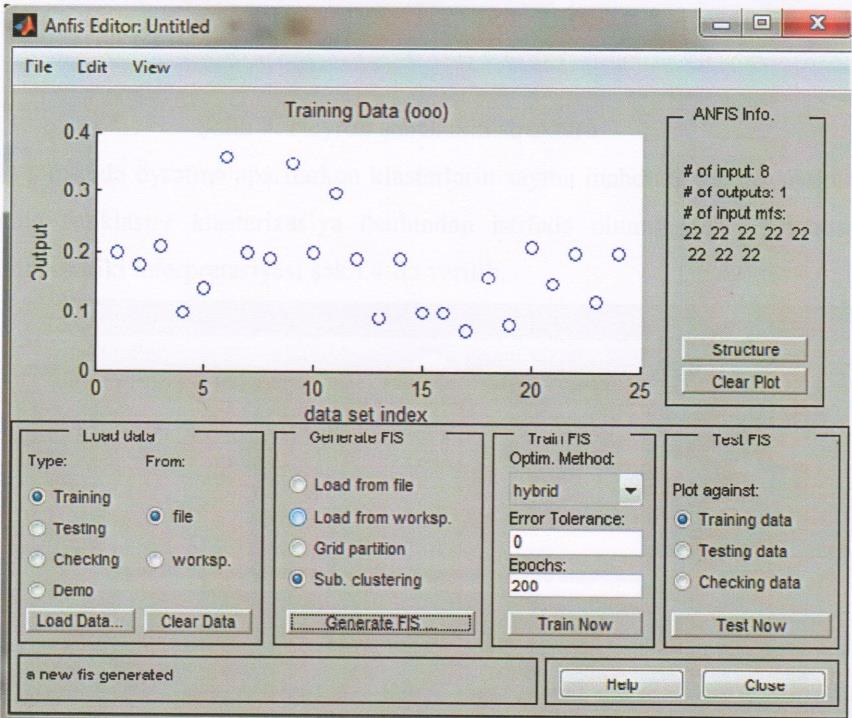

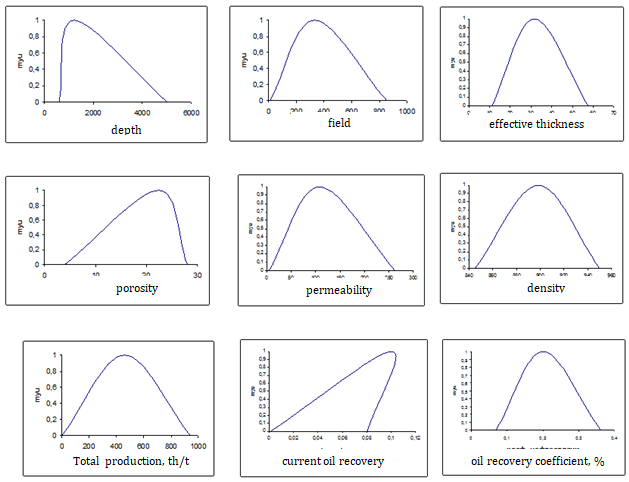

Let’s consider computer simulation on fuzzy neuron net operating above. Study has been carried out including initial data in the inlet of fuzzy neuron net. Description of the initial data is given in Figure 2.

w w a i i i

$$ a _ {3, i} = \bar {w} _ {i} = \frac {w _ {i}}{w _ {1} + w _ {2}}, i = 1 $$

2,1 , Layer-4: Each i knot of this layer is the adaptive knot as follows:

$$ a _ {4, i} = w _ {i} f _ {i} = \bar {w} _ {i} \left(p _ {i} x _ {1} + q _ {i} x _ {2} + r _ {i}\right) $$

Layer-5: In the last fifth layer the only constant knot

receiving all coming signals is the knot calculating Σ

indicated and sum output. The output of this knot is

written as follows:

= i a ,5 sum output= ∑ ∑ ∑ =

f w f w i i

i i i i w i

i

Click to enlarge

Copyright© Hasanov AR, et al.

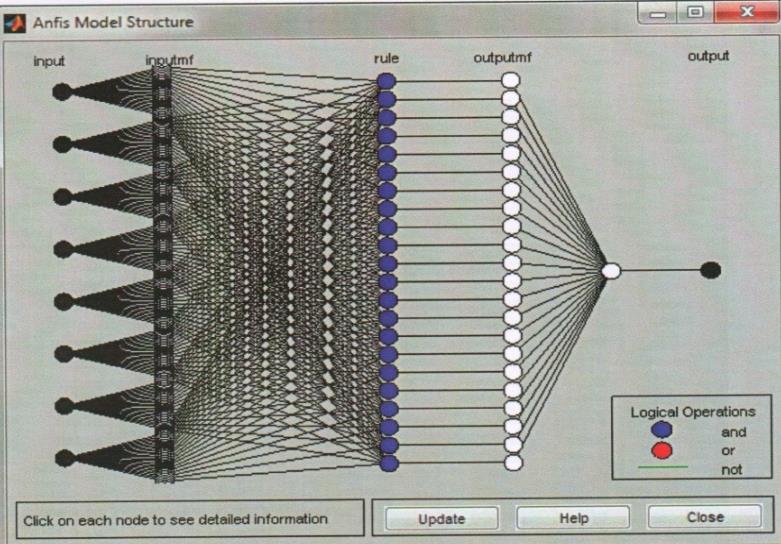

The structure of the used neuron net is given in Figure 3.

Click to enlarge

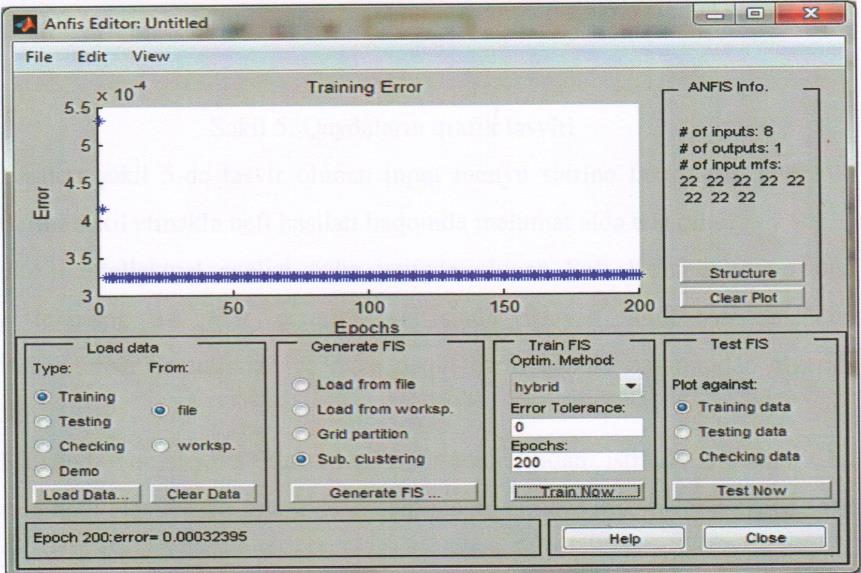

When carrying out study in neuron net sub cluster clusterisation method has been used not to limit the cluster number. Interpretation graphics of the study process is given in Figure 4.

Click to enlarge

Copyright© Hasanov AR, et al.

Click to enlarge

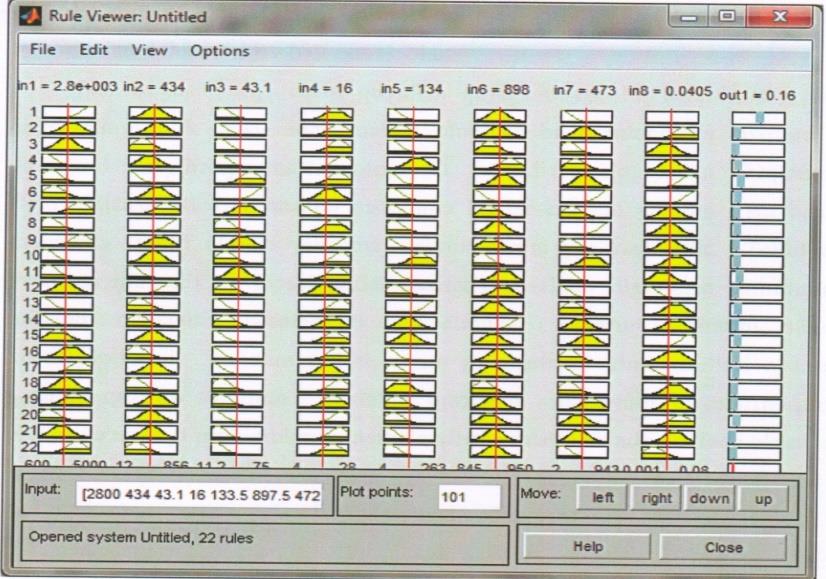

Expert can get information about oil production entering possible factors into input menu line described in Figure 5.

Soft computing and data mining technology used for intellectual analysis of data is favourable means for the specialists working in oil extraction field from the information processing and more precise decision making points of view.

Applying existing fuzzy clustering methods the solution of this problem makes it possible to determine precisely the number of the clusters. Let’s mention that these methods being the main methods of data mining technology serve to get knowledge from data and compiling “If...then...” rules [7, 8]. It is possible to solve oil spheres development problems from information processing view point using fuzzy dimensions making more adequate description of the indefiniteness possible in clusters based “If...then...” type rules [8, 9].

If to consider that in indefiniteness condition as the drilling of deep wells undergoes to unknown indefinite initiating influences the drilling technology project should be distinguished from the real technology. In these cases, there is a great need in the effective control system. From this point, the approach offered in the paper is of great significance. The offered approach can be used in various types problems – to solve various engineering tasks for recognizing rocks in the drilling process, to set up the model of drilling rate considering factors as rocks classification, their features, bit types, regime parameters, also to design problems of controlling well drilling process.
