Evaluation Abu-Dleek Sheep Leathers Properties

Introduction

In Egypt there are about 5.7 million heads of sheep [1]. Abu-Dleek sheep is from the most spread breeds in Upper Egypt especially El-Shalateen-Halaib triangle region [2, 3]. Abu-Dleek animals are classified as hair producer sheep instead of wool [4]. The aforementioned region is a mountainous desert with several valleys dissecting mountains and located at the extreme south east of Egypt (22o 28’ 09” N, 35o 31’ 23”). Thus, these small ruminants and camels are the main available livestock in this area, depending on natural grazing [5].

Almost all skins coming from Sudan and south of Egypt are usually tanned in Cairo & Alexandria tanneries [3]. Globally, mineral tanning with chromium salt is the most widely used in tanneries, while quebracho and mimosa extracts are the most used in vegetable tanning method [6].

Therefore, this investigation aimed to study the effect of tanning materials; chrome, quebracho and mimosa on Abu- Dleek leathers’ quality.

Materials and Methods

The present study was carried out on 15 skins of Abu- Dleek sheep at marketing age (18 months). All animals were reared at El-Shalateen Research Station, which belongs to Desert Research Center, Egypt. After slaughtering, skins were preserved by salting and then transported to Kalash tannery at El-Max region, Alexandria, Egypt for tanning procedures. The skins were common in beam house process steps till tanning, thereafter pickled pelts were divided into three tanning groups (n=5); chrome, quebracho, and mimosa groups. In the chrome tanning group, pelts were tanned by adding 6% chromium sulphate (Basisty 33%) from pelts weight and then neutralization step was performed by adding

1% sodium bicarbonate gradually, whilst in quebracho and mimosa tanning groups, pelts were tanned by adding 20% of vegetable extract in two equal batches.

All finished leathers were tested physically and chemically at the laboratories of Egyptian organization for standardization and quality control, Cairo, according to Egyptian Standards [7, 8], respectively. Physical properties were thickness (mm), tensile strength (Kg/cm2), tear strength (Kg/cm), elongation (%), bursting stretch (mm), permeability to water vapor (mg/mm2.hr) and water absorption (%), while chemical properties were moisture (%), fat (%), ash (%) and pH (ml mol/L).

Data were analyzed by one way compare means using computer program of SAS [9] to evaluate the effect of tanning materials on the finished Abu-Dleek leathers. The fixed effect of the used model was Yij = µ + Ti + eij, where Yij is the observation taken (j), µ is the overall mean, Ti is the fixed effect (i) of tanning materials and eij is a random error assumed to be normally distributed with mean=0 and variance=σ2e.

Results and Discussion

Physical properties data for Abu-Dleek tanned leathers by different tanning materials are shown in Table 1. Both chrome and vegetable tanned leathers were in acceptable ranges for leather manufacturing purposes, such as garments, bags and lining [10]. When comparing Abu-Dleek sheepskin as a hair animal producer with Barki sheepskin that produces wool under the harsh conditions, it is noticed that Abu-Dleek tanned leathers in this investigation surpassed those obtained previously from Barki tanned leathers [11]. The increment was found in tensile strength, tearing strength, elongation, permeability to water vapor, and water absorption. In this regard, Jackson-Mass and Snyman [12] found the same trend between hair-sheep breeds and wool- sheep breeds in South Africa. From our point of view, it could be suggested that these results may be due to the changes in hair fiber diameters and thence the histological differences of skin dermis layer.

On the other hand, data showed that (Table 1), the effect of tanning materials were significantly (P<0.05) differentially influenced the leather thickness, tearing strength and bursting stretch properties, whereas, other physical properties were mathematically different but insignificant. This clearly indicated that chrome tanned leathers were with the highest quality being the thinnest (0.78mm) and the highest in tensile strength (213.20 Kg/cm2), tearing strength (51.80 Kg/cm) and with the most permeability to water vapor (439 mg/mm2.hr). This trend was expected because the inverse relationship between skin thickness and strengths values of tanned leathers [2, 13]. In the meantime, chromium salts make more crosslinks with collagen fibers and in turn its lability is lower than in vegetable tanned leathers, which makes chrome tanned leathers more compressed [14, 15].

a,b Means in the same column having different superscripts are significantly different (P<0.05). PWV: Permeability to water vapor, SEM: standard error of mean, NS: Not Significance, * P<0.05 Table 1: Means ± SEM of physical properties as affected by tanning materials of Abu-Dleek tanned leathers.

Additionally, the thickness increase in vegetable tanned leathers is attributable to the effect of acid fermentation in tan liquors by yeast, as a result of the sugar content in vegetable tanning extracts. Therefore, mimosa tanned leathers were the thicker and lower quality than quebracho tanned leathers, which ascribed to the excess amount of sugar in mimosa extract [6].

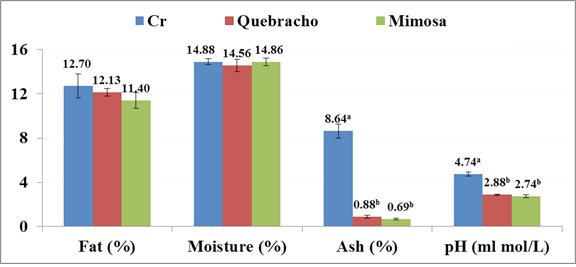

There are significant increases (P<0.01) in both of ash and pH values in chrome tanned leathers, whereas, vegetable tanned leathers (quebracho and mimosa) were comparable (Figure 1). This increase in ash value is a result of chromium salts addition, whilst the highest pH value is referred to the neutralization step in chrome tanning only. Therefore, the obtained results are in agreement with acceptable ranges for chrome and vegetable tanned leathers [10].

Conclusion

An added value could be acquired from the Abu-

Dleek breed in Egypt as a sheep-hair producer breed, which increases their tanned leather quality. In turn, it is convenient to use Abu-Dleek tanned leathers in a wide range of manufacuring purposes like garments, bags and lining.

Click to enlarge
