Results of LRS (Limb Reconstruction System) in Management of Infected Non Unions of Femur

Jenil Patel1*, Chetan Puram2, Yogesh Panchwagh3, Parag Sancheti4 and Ashok Shyam5

Keywords: Infected Non Union; External Fixator; LRS; Femur Non Union; Septic Non Union

Introduction

Infected non-union needs prolonged treatment and repeated surgeries which significantly impacts patient’s social, financial, physical and mental life [1]. Multiple factors like high energy trauma, poly trauma, comminuted and compound fractures, patient/systemic host factors, inadequate fixation, bone defect, poor blood supply, and infection contributes to poor bone healing and non union [2, 3]. Modalities of fixation like plating and nailing further jeopardise the periosteal and endosteal blood supply of the bone and leads to a non-union [4, 5, 6]. The infected non-union of femur accounts for 2.24% of all long bones non-union [7]. The non union is associated with other complications like deformity, limb length discrepancy, joint stiffness and disuse osteoporosis which needs to be addressed simulatneosuly [8, 9].

Presently in literature there are two schools of thought in the treatment of infected non-union [1]: the ‘union-first’ strategy and the ‘infection-elimination first’ strategy. The union first strategy aims at achieving union first and then dealing with the problem of infection as the problem presents itself. On the other hand infection-elimination first strategy aims at elimination of infection as the first and major objective and bone union as the next objective. The bone defect that results from bone debridement can be managed by various techniques like - the llizarov, intramedullary device with or without external fixator, free tissue transfer, Papineau-type open cancellous bone grafting, bone transport through an external fixator / nail or Ilizarov external fixator [1, 8, 9, 10, 11]. Ilizarov technique depends on the principle of distraction osteogenesis and is being widely used in management of infected non-union of long bones [11]. However, the circular external fixator devise is cumbersome, expensive, time consuming, complex with a steep learning curve, not so patient friendly [12].

Thus in cases of femoral non-union where Ilizarov ring fixator is cumbersome, surgeons prefer bone elongation technique using monolateral external fixator developed by the Orthopaedic Institute of Verona [13]. Monolateral external fixator is less bulky, more comfortable and better tolerated by patient as compared to Ilizarov external fixator. It is simple in design, easy to learn and carry out surgical procedure, also easier to remove [12, 13, 14, 15, 16]. Associated complications like infection, deformity, limb length discrepancy can be tackled with monolateral external fixator. In this study we aim to assess the union rates, infection control, complications and the functional outcome of infected femoral non-union managed with monolateral external fixator.

Aims and Objectives

1. To review the incidence, diagnosis, treatment, and functional outcome of LRS in management of infected non unions of femur. 2. To study the different complications of LRS.

Material and Methods

This is a prospective interventional study carried out between June 2017 and June 2021 at tertiary care centre which included a size of 21 patients operated by a single surgeon. Ethical committee approval was sought for the study.

Operative Procedure

All the patients were operated under spinal anaesthesia in lateral position, with affected side facing up on a radiolucent table. (Figure 1) Painting and draping was done to keep the thigh exposed from the anterior superior Iliac spine till the Knee joint. In patients with sinus tract formation, intra- operative sinography with Methylene Blue was done to excise sinus tract in toto. Incision was taken on the previous scar unless contraindicated. Implant removal was done first followed by removal of the non-viable soft tissue, fibrosis and the dead necrotic bone. Debridement was done till the cortical bleeding known as the ‘paprika sign’ was seen. (Figure 2) Intraoperative samples thus obtained were sent for Gram staining, culture and sensitivity and mycobacterial cultures. The bone ends were freshened, the medullary canal was reconstituted (Figure 3,4) and open reduction of the main fragments was performed (Figure 5) to achieve the best possible contact between them and temporary fixation was performed using K-wires under c-arm guidance. Mono-focal procedures was performed when the bone defect was equal to or less than 2 cms. Bifocal procedures were performed when bone defect was more than 2 cms. A single-level bone transport was performed using either the ascending technique or the descending technique through healthy tissue. In all the patients the precise position of the clamps and the Schanz pins were determined according to the site of non-union, bony defect, corticotomy site and the LRS frame was assembled pre operatively on the trolly and kept ready (Figure 6). The preassembled LRS frame was applied. Corticotomy (Figure 7) was done at the site decided pre-operatively as per the location of the non-union which included a total of 10 patients. Osteoperiosteal flap was raised at the non union site. (Figure 8) The wound was lavaged thoroughly and closed in layers over a suction drain. In patients with long standing resistant infection without significant bone loss, antibiotic impregnated beads or the biologically absorbable antibiotic impregnated stimulan was used. In cases with delayed union and persisting bone defect, secondary procedure of bone grafting was carried using autograft or allograft.

Post operatively intravenous antibiotics in the form of Cefuroxime (1.5gm/12hrly) were started empirically. Antibiotics were modified according to the culture and sensitivity report of the intra operative samples and were given for period of 6 weeks or until the ESR and CRP level returned to normal. Drain removal was done on 2nd post- operative day and Hip/Knee joint movements was started as early as possible after the operation. Partial weight bearing with walker support was started for all cases depending on patient’s pain, compliance, local soft tissue condition and quality of bone. Full weight bearing was started after three cortex healing was seen on radiographs and as tolerated by the patient. Distraction at the rate of 0.25 mm four times a day [one-quarter rotation of compression–distraction unit] was started on 7th post-operative day.

Results

In our study 21 patients were operated which included

20 males (95.2%) and one female with mean follow up is 29.85 ± 11.42 months. The mean age is 36.68 ± 9.63 years (range 19-51). The majority of the patients are in age group of 31-40 years accounting for 38.1 % of patients followed by 41-50 years of age group accounting for 28.6% of patients. The mean BMI is 26.36 ± 4.87 kg/m2 (range 17.7-38.3). Three patients (14.28%) had comorbidities in the form of diabetes, 1 patient (4.76%) had both diabetes and hypertension, 1 patient (4.76%) had hypothyroidism, 1 patient (4.76%) had post traumatic seizure.

Click to enlarge

Road traffic accident is the primary cause of fracture in all the patients, with 12 patients (57.1%) sustaining compound fracture while 9 patients (42.9) sustaining closed fracture. According to the AK Jain classification, maximum patients are in Type B group (with draining sinus), accounting for 61.9 % (13 patients), in which B1 type (bone gap less than 4cm) is most common (38.1%). Remaining 8 patients (38.1%) are in Type A group (without discharging sinus) in which A1 type is most common, accounting for 33.3% (7 patients).

Click to enlarge

The mean duration of non-union is 11.76 months (range 3-36 months) with maximum patients (42.9%) presenting with non-union for a duration of 6-12months, 33.3% patients presented with non-union for more than 12 months while 23.8% patients presented with non-union for less than 6 months. The mean previous surgical procedures performed are 2 ± 1.09 (range 1-5). The clinical and radiological signs of infection in the form of discharging sinus in various stages are present in 13 patients (61.90%), fever in 17 patients (80.95%), increased local temperature is present in 17 The intra-operative sample is positive in 17 patients (80.95%) while it is negative in 4 patients (19.05%). The most common organism found is Methicillin resistant Staphylococcus aureus (MRSA) in 5 patients (23.8%). The organisms cultured in our study population are mentioned in following table (Table 1).

patients (80.95%), tenderness at non-union site is present in all patients and clinical shortening is seen in 15 patients (71.42%).

The mean bone defect after debridement is 3.52 ± 2.23cm (1 -10cm) and corticotomy for lengthening is done in 9 patients. The treatment index (radiographic consolidation index) is 28.58 ±1.37 days/cm, lengthening index is 11.58 ± 5.48 days/cm and healing index (external fixation index) is 32.16 ± 10.34 days/cm. The mean time of bony union in our study is 180.65 days (range 95-740 days) i.e 6 months. All the infected non-unions in our study united except one patient who had bifocal femur fracture with persistent infection.

According to the ASAMI classification of bone results the outcome is Excellent in 10 patients (47.6 %), good in 9 patients (42.9%) and one patient (4.8%) had fair and poor result each. Bony union is not achieved in one patient who is a case of bifocal femur shaft fracture. As per the ASAMI classification for functional results the outcome ware Excellent in 8 patients (38.1%) and Good in 13 patients (61.9%). Infection is eradicated in 18 patients (85.71%) of the patients and it remained persistent in 3 patients due to drug resistant organisms.

As per the correlation between the type of infected non-union and the ASAMI bone and functional grading the p value was 0.114 and 0.273 respectively which is not statistically significant suggesting no association between the type of infected non-union and the ASAMI bone and functional outcome. The complications noted in our study are mentioned below [Table 2].

Discussion

Management of the infected non-union of long bone like femur is technically demanding for the surgeon, needs prolonged time, may need multiple interventions and if not treated properly can land up in amputation of lower limb. The associated conditions like the discharging sinus, previous scars, atrophy, bony defect, multiplanar deformities, multidrug resistant infection, limb length discrepancy, adjacent joint stiffness, etc. make the management more challenging for the surgeon [17]. Also it has a devastating effect on patient’s social and financial status. Most of this patients are previously operated for stabilisation, eradication of infection, which causes compromise in the soft tissue and the vascularity of the bone which complicates healing. Eradication of the infection and achieving the union are the two important goals of the treatment for a functional limb along with secondary factors like deformity correction, limb length correction, soft tissue coverage etc.

Ilizarov technique which includes distraction osteogenesis have revolutionized the management of the complex non-union of long bone and associated ailments likes bony defect, infection, deformity, limb shortening etc.

[3, 19, 20]. It is based on the law of tension stress [21] which includes gradual traction on living tissues creating necessary stress that stimulates histogenesis, promotes regeneration and active growth of tissues. However Ilizarov technique is complex and technically difficult to perform, need prolong time to achieve union, is associated to chances of pin-tract infection and is inconvenient to patient to carry and maintain it [15]. LRS can be used in management of the complex non- union. It is based on the same principal of Ilizarov distraction osteogenesis, has uniplanar frame, light weight, easy to construct, with short learning curve and convenient to the patient.

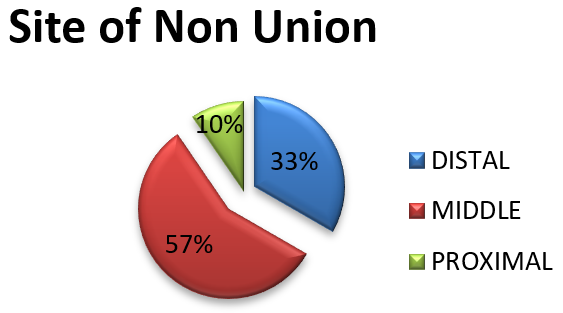

Our study proves that monolateral external fixator (LRS) can be successfully used in the management of the infected non-union of the femur. According to the AK Jain classification, maximum patients in our study are in Type B group (61.9 %), in which B1 type (bone gap less than 4cm) is most common (38.1%) and the most common site of non- union is mid-shaft of the femur in 12 patients (57.1%). The mean previous surgical procedures performed in our study population are 2 ± 1.09. It is comparable to the previous studies [10, 22].

Radical debridement, complete excision of the bacterial biofilm is essential in order to prevent persistent and recurrent infection [23]. The mean bone defect after debridement in our study is less as compared to other studies, while treatment index (radiographic consolidation index), lengthening index and healing index (external fixation index) in our study is comparable to other similar studies (Table 3).

The mean time of bony union in our study (180.65 days) is less as compared to previous studies [10, 22] who noted bony union in 7.3 months and 204 days respectively. This might be probably due to less bone defect in our study. All the infected non-unions in our study united except one patient who had bifocal femur fracture with persistent infection. According to the ASAMI classification of bone results the outcome is excellent too good in 90% of the study group. Our results are comparable to previous studies [22, 24] who too achieved excellent to good results in 90% of their study population (Table 4).

The ASAMI classification for functional outcome is excellent too good in 99% of the patients in our study. (Table 4) Infection was eradicated in 85.71% of the patients and it remained persistent in 3 patients due to drug resistant organisms. The functional results are better than other similar study [10, 22, 24] which might be probably due to lesser bone defect in our study as compared to other studies, achieving early limb lengthening and mobilisation as compared to other studies. Also our study did not have patients with gunshot and cylinder blast injury which are high velocity injuries with considerable soft tissue damage, which takes longer period to recover. The bone result did not correspond with the functional outcome as it was also determined by condition of joints, limp while walking. Also the correlation between the type of infected non-union and the ASAMI bone and functional grading is not statistically significant (p value is 0.114 and 0.273 respectively) suggesting no association between the type of infected non-union and the ASAMI bone and functional outcome.

None of the patients in our study had neurovascular complication, joint instability, newly formed bone fracture or angular deformity. The knee stiffness is present in 8 patients (47.06%) and hip stiffness is present in 4 patients (23.53%). Other complications like Limb length discrepancy is present in 6 patients (35.29%), pin tract infection is present in 2 patient (11.76%) and pin loosening is present in 3 patients (17.65%) (Table 2). The limb length discrepancy in all the patients is less than 2cms and is manged with appropriate shoe raise, patients are functionally comfortable with the same. Pin tract infection is managed with appropriate sensitive antibiotics and the loose pins are exchanged. Even though we paid more attention to pin-track care, there was still a high incidence of pin tract infection, which also depends on the immunity and bone quality of patient. The complications in our study are comparable to other studies in the literature [10, 22, 24]. Active involvement and participation of the patients, early mobilisation and monitored physiotherapy are paramount important to avoid joint stiffness and the success of the LRS. Nearly all of our patients are able to stand and walk with partial weight bearing immediately after LRS application. Patient should be involved in regular cleaning of the pin tract and maintain proper hygiene. Also they must be advised to monitor the inflammation, tenderness, and discharge around the pin tract and sought medical care immediately.

The small sample size and short term follow up are shortcomings of our study. However all surgeries were performed at a single institution by single surgeon, and we aim to continue follow up for long term results. The LRS is more suitable for infected non-union of femur as it has extensive soft tissue envelope and the neurovascular structure making it difficult and challenging for Illizarov technique. LRS is a dynamic frame which is simple in design and application and easy to carry out during a surgical procedure while maintaining it, and it can also alleviate pain caused by pin during the distraction period compared to the Ilizarov external fixator [23]. With LRS multiple issues can be addressed simultaneously like deformity correction, regenerate new bone by distraction osteogenesis, correction of limb length discrepancy, bone transport, early mobilisation and rehabilitation to avoid joints stiffness. Also it’s necessary to maintain and restore the soft tissue envelope around the non-union site which vascularises the site, improves antibiotic delivery, fills the dead space and prevents further contamination.

Conclusion

Our study suggested that the Limb reconstruction system can be successfully used in the management of infected non- union of femur as a stable fixation modality and achieve satisfactory outcome in terms of bony union and functional results. Pre-operatively planning of the LRS frame, radical debridement and maintaining stability of the LRS frame are key steps of the treatment. It is a prolonged treatment which need longer follow up, monitoring, motivated and complaint patients along with physical rehabilitation. Complications like pin tract infection and pin loosening must be addressed immediately. It is a simple and more acceptable alternative to Illizarov fixation in management of infected non-union of femur. However in some patients the infection may still remain persistent even after achieving bony union, which may need multidisciplinary approach, further intervention and prolong period of treatment.

Conflict of interest: On behalf of all authors, the corresponding author states that there is no conflict of interest.
