Reservoir Description, Diagenesis and Reservoir Quality of the Deep Marine Sediments in the Propagation Stage of Rift Basin

Lithofacies Description and Interpretations

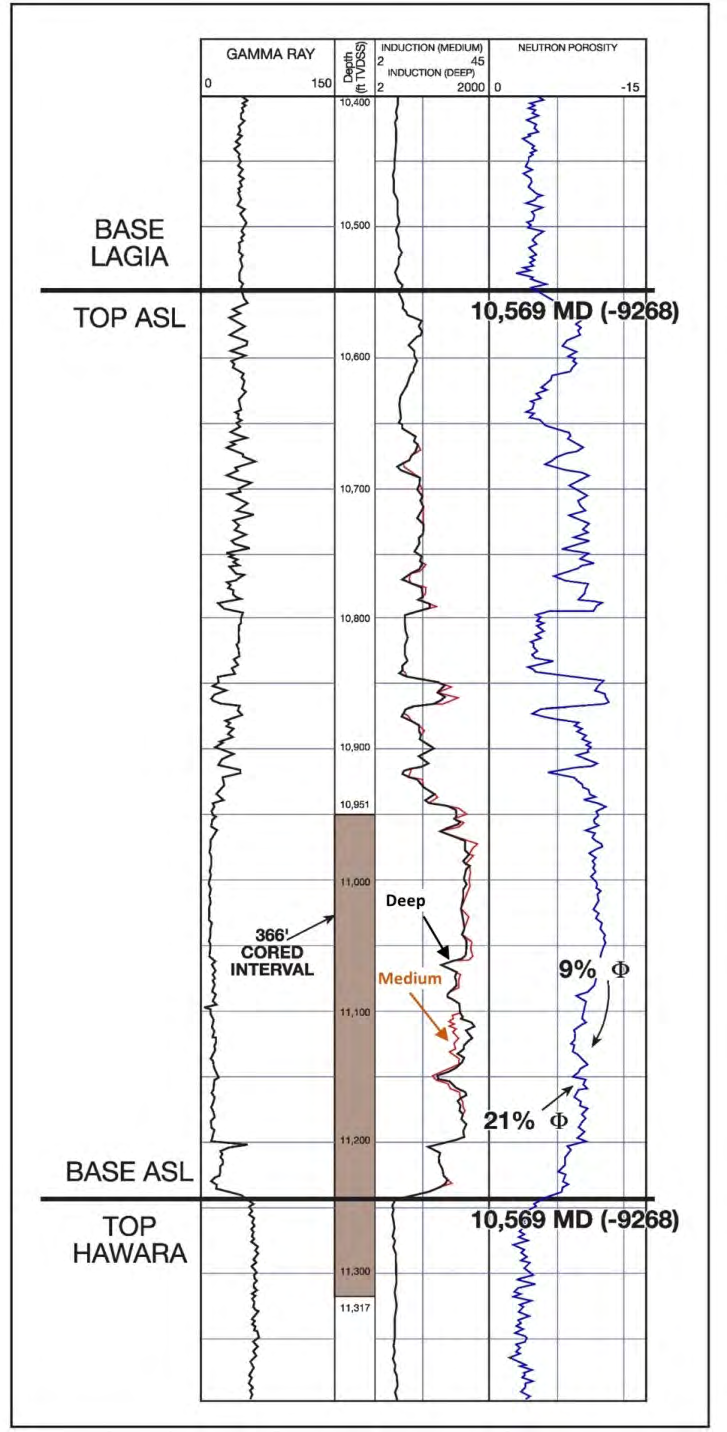

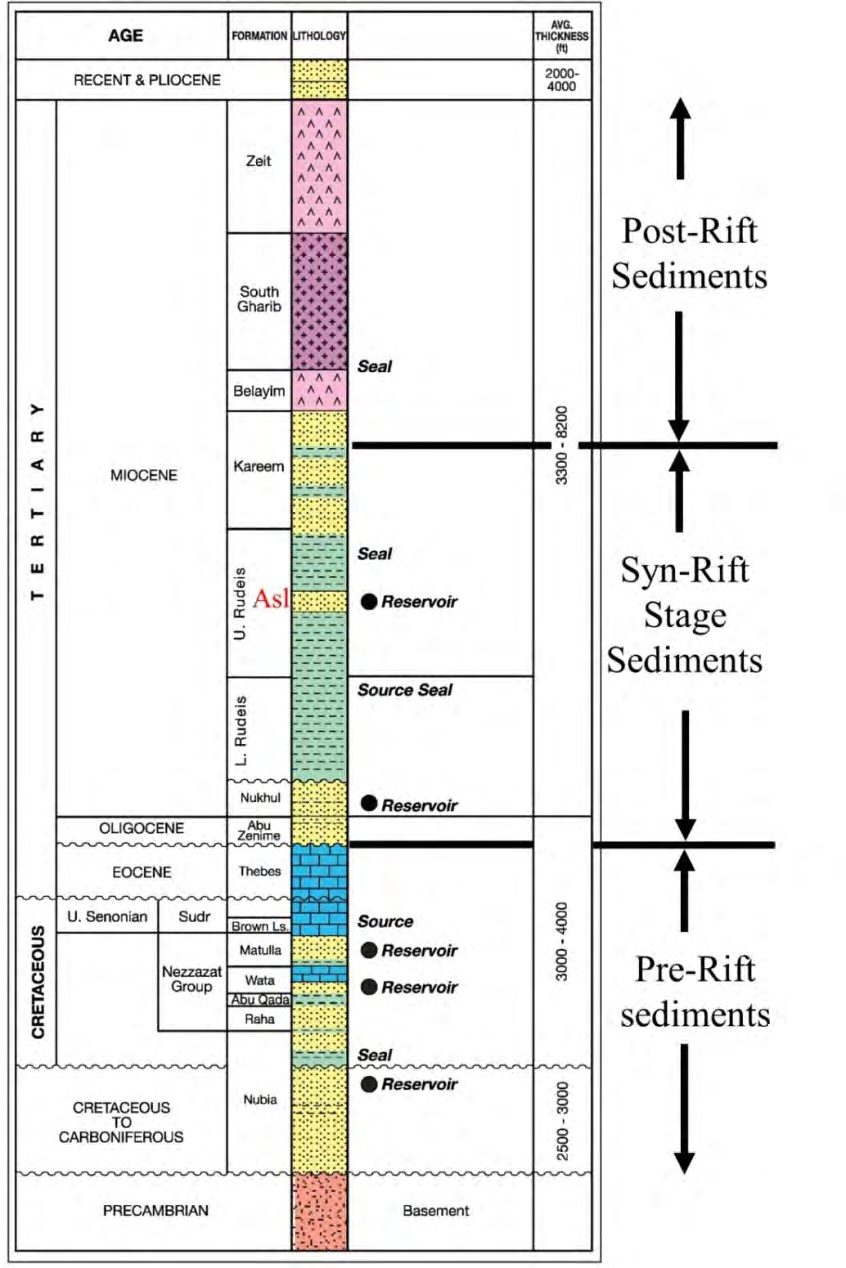

The basal portion of the Asl Member in the well OCT-J5 core contains the best reservoir quality sandstones, which diminish upward into interbedded coarse-grained sandy, carbonates of poor reservoir quality (Figures 3 & 4). The main sandstone interval at the base is about 200 ft thick; two thin net sand zones occur at shallower intervals within the core. From the core description (Figure 4), three main lithofacies have been interpreted as (A) sandstones, including imbricated clasts, broken laminations, and dewatering features; (B) 2 ft-thick shale units; and (C) carbonates. Within the lithofacies, there are 14 reactivation surfaces. These are surfaces marked by a change in texture and/or composition along with bedding that represents boundaries between fining upward major depositional episodes (Figure 4). Interpreted lithofacies boundaries always correspond to reactivation surfaces, but reactivation surfaces may not always correspond to lithofacies boundaries (Figure 4).

Click to enlarge

Therefore, the lithofacies boundaries can be tracked laterally in the un-cored intervals by their surface responses (Figure 4). A 366 ft core from well OCT-J5 has an upward fining sequence in the lower Asl sandstone (Figure 4) [12]. At the base, 200 ft of sandstones with the best reservoir quality pass upward into interbedded coarse-grained sandy carbonates with two thin sandstone beds (gray columns in Figure 4). The sandstone and carbonate lithofacies boundaries show strong oil staining in the sandstone, and weak stain in the overlying white to tan carbonates (Figure 5). This is due to the lower permeability in the carbonate lithofacies, which hold a higher volume of irreducible oil. Regionally, the underlying Hawara shale lithofacies is a pelagic deep-water shale deposits. In the OCT- J5 core, it is a uniform deposit, dark brown to black, and fissile. This lithofacies is bioturbated in the upper 5 ft of the core showing both vertical and horizontal burrows (Figure 5B), indicating a subaqueous depositional environment. The contact between Asl and Hawara rock units is marked by the deposition of sandstone rip-up clasts.

Click to enlarge

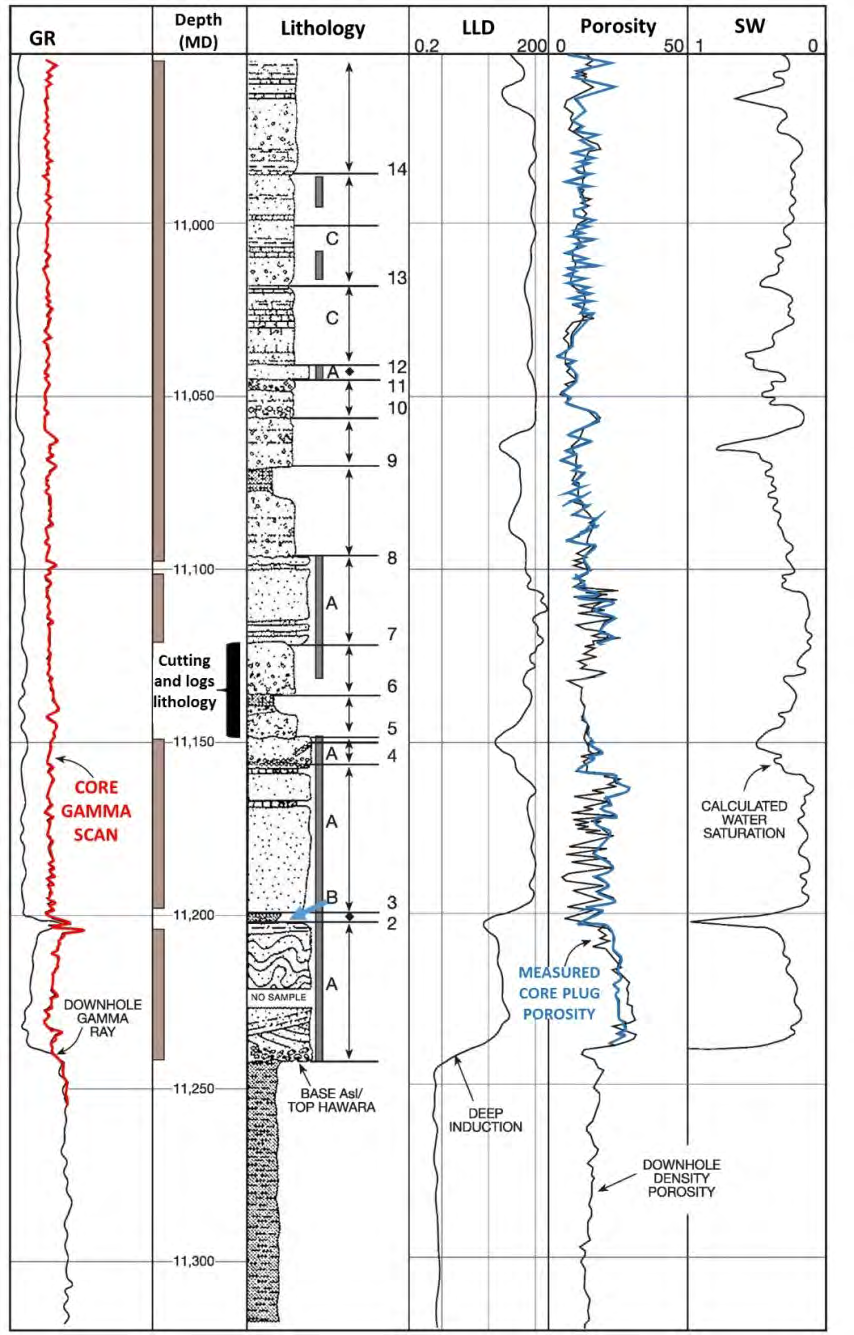

Figure 4: Core description and logs over the Asl Member in well North October J-5 well [12]. (A) Sandstones, (B) shale bed, (C) Carbonates. Numbers 1-14 refer to reactivation surfaces, across which there are marked changes in composition and texture. The Brown column represents the recovered core intervals of Asl sandstone while the gray one presents the high-quality zones in OCT-J5 core.

Click to enlarge

Seventy thin sections through the cored interval were examined petrographically to help determine the texture and composition of the lithofacies as shown below.

Sandstone lithofacies (A): Sandstone lithofacies-A with the highest oil flow rates and staining (Figure 6), was deposited at the lower part of the Asl Member (Figure 3). It made up of very fine-to-coarse sand sized and angular to subrounded grains, moderately to very well sorted. monocrystalline quartz grains are more common than feldspar grains (5- 27%, average 9%) (Figure7A). Fossil fragments, sedimentary rock fragments, pelletal glauconite, and metamorphic rock fragments are less abundant grains (Figure 7B-F). The binding material include kaolinite (less than 5%)

matrix (Figure 7B) calcite and dolomite cement (up to 20%) commonly developed and partially filling the leached skeletal grains (Figure 7E). The skeletal fragments; including mollusca, bryozoa, foraminifera, and corals (Figure 7D-F) some of the skeletal grains had been altered into glauconite pellets (Figure 7C). This sandstone are characterized by the presence of clean intergranular pores (Figure 7). Meanwhile, intragranular pores (Figure 7) formed by the effect of dissolution of feldspars (Figure 7A) and moldic formed by dissolution of fossil fragments (Figure 7D-E). Quartz overgrowth is slightly common (Figures 7B, E, and F). The compositional percent quoted above was estimated visually from thin sections.

Click to enlarge

Click to enlarge

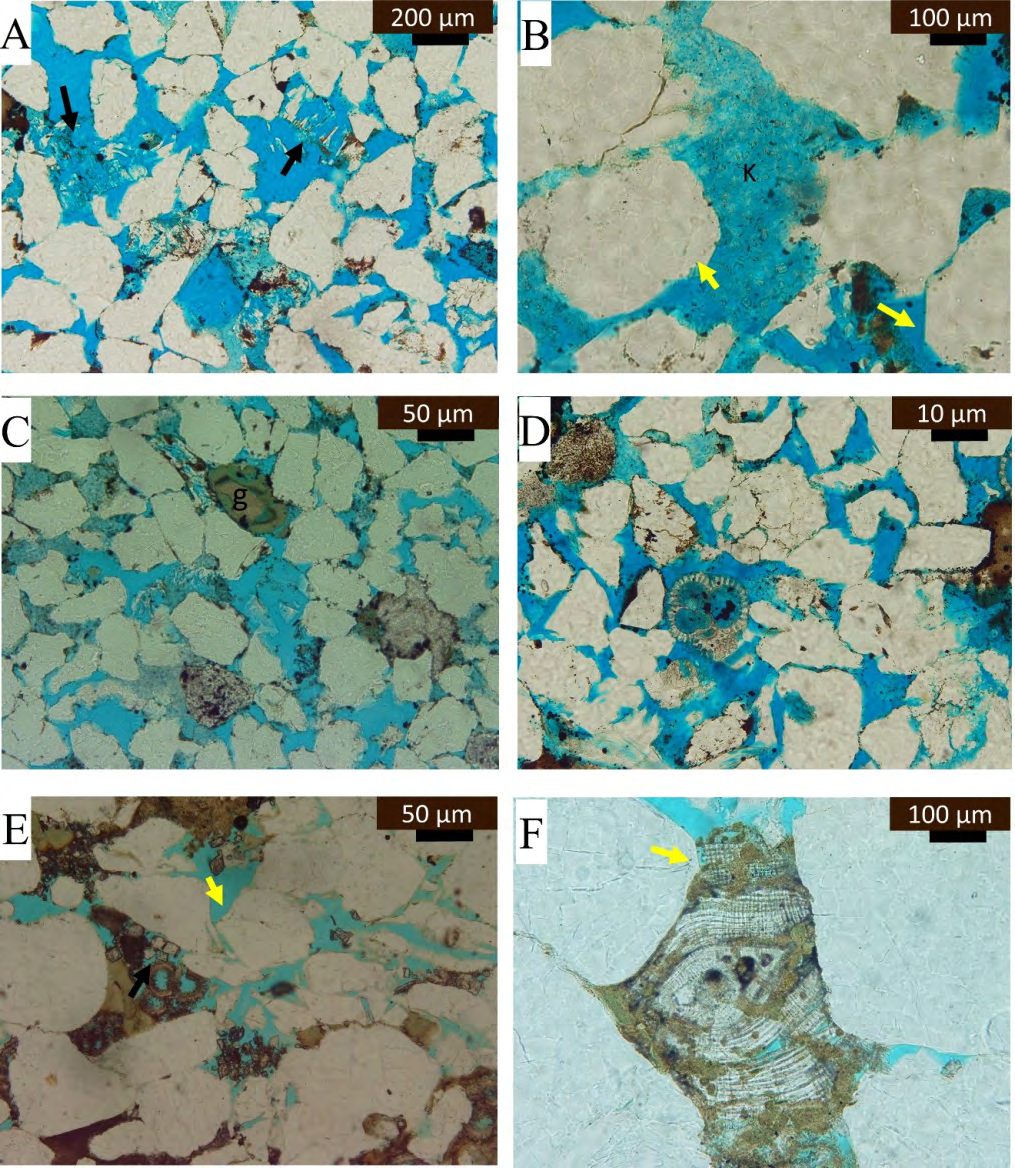

Figure 7: Sandstone lithofacies (A). (A) Arkosic quartz arenite with 25% porosity (blue dye epoxy), note the feldspars dissolution to form secondary porosity. Kaolinite clay infiltration can be observed within the pores. Fine clay film around the quartz grains (PPL). (B) Magnified micrographs present the kaolinite fabric (K) within the pore spaces which may act as a contributor to the microporosity. Faint silica overgrowth (yellow arrow) reduces the porosity (PPL). (C) Coarse grain well-sorted, porous quartz arenite with glauconitized fossiliferous pellets, spar calcite cementation (PPL)(D) Quartz arenite with primary intergranular porosity and secondary moldic porosity, metamorphic rock fragments in the upper left side. Clay cement partially filled the pores on the upper part. (E) Coarse-grained quartz arenite with reworked planktonic foraminifera and dolomite cementation (black arrow) (PPL). (F) Eocene large benthonic foraminifera reworked within the siliciclastic lithofacies (A) accommodation space. Also, silica overgrowth has been recognized (yellow arrow) (PPL).

trend of coarsening upward (Figure 7). Large-scale angular cross bedding, convolute bedding lamination and water escape structure are commonly observed (Figure 7);

Click to enlarge

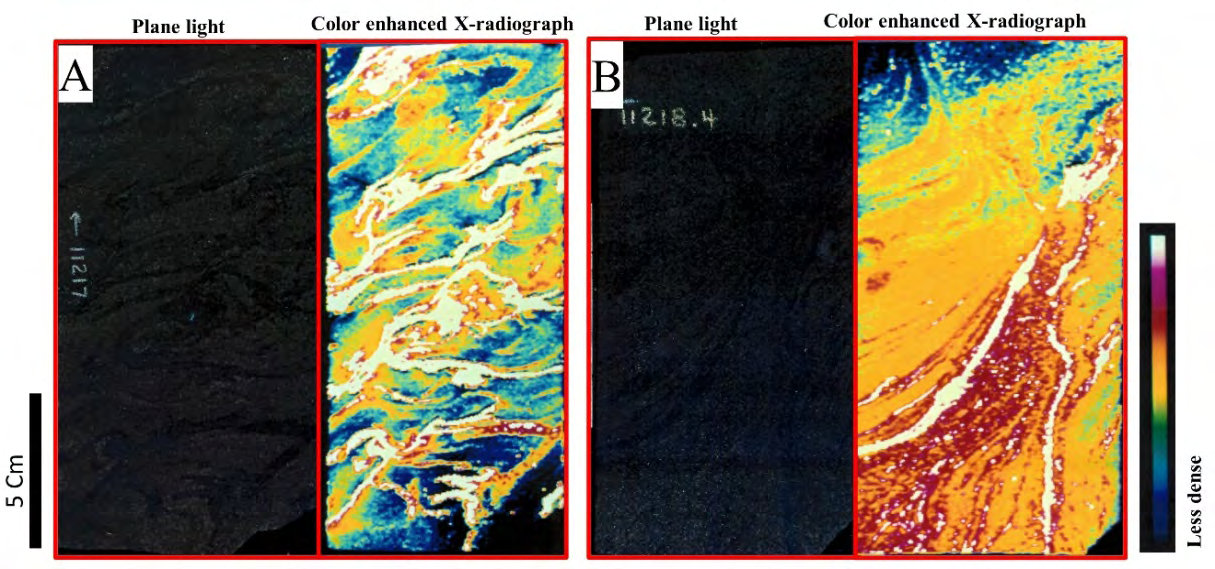

Figure 8: (A) Convolute lamination in sandstone at 11217 shown on the left is a plane light photograph of the sandstone core slab. Shown on the right is a color-enhanced X-radiograph image with a relative density scale imposed. The colors correspond to zones of high (white) and low (blue) X-ray absorption. Laminations are convolute and distorted due to rapid deposition and water escape that occurred 1.4 feet below. (B) Water escape structure in sandstone at 11218.4 shown on the left is a plane light photograph of the sandstone core slab. A large dewatering feature is apparent and becomes clearer in the color- enhanced X-radiograph image on the right. A relative density color scale is imposed showing high density (pink to white) where secondary cementation has occurred in the water escaped zone and lower density where overlying lamination has been punctured and turned upward.

The convolute disorder lamination and water escape structure observed in this sandstone reflect high energetic and rapid rate of sedimentation (Figure 8A). The enhanced colored x-radiography image shows white zones corresponding to high density (low porosity) and orange to blue zones of low-density (high porosity) (Figure 8). Secondary precipitation occurred in the water escaped zones, forming a white high-density image (Figure 8B). Image analyses show that within a distance of inches, rock properties change dramatically in some intervals, which are not readily apparent in plane light (Figure 8). This lithofacies show limestone interbeds ranging in thickness from one foot to a few inches. They consist of reworked skeletal carbonate containing sharp angular lithoclasts in a matrix of quartzose sandstone (Figure 8). In addition, two layers of one-foot thick consisting of bioturbated argillaceous calcareous sandstone are observed below 11191 ft depth (Figure 6).

Evans [13], Sallam, et al. [14] and Nabawy, et al. [11] reported that, the provenance of the Rudeis sandstone was primarily the exposed Nubia sandstones of the Western Sinai. The Asl sandstone (Upper Rudeis of the present study) in OCT-J5, OCT-F3B, and Tanka-3 wells is noticeably unlike the Nubia in composition and texture. It contains more feldspar (Figure 7), compared to the Nubia, which is typically over 95% quartz. Asl framework grains are much more angular suggesting a short transportation history and indicate a more granitic source area, with higher proportions of fragmented Eocene benthic foraminifera (Figure 7F). These facts mainifested that Asl sandstone may be derived from mixed provenance with less reworking in the sediment cycle. In addition, Asl sandstones do not seem similar to the unroofed Miocene sandstones described petrographically by Evans [13] from Wadi Gharandal which interpreted to be derived from an Eocene sediment source. Therefore, the Asl sandstone in the October Field I classified as subarkose, and derived from the nearby exposed basement in addition to Nubia and Eocene (Thebes/Radwany formations) sediments.

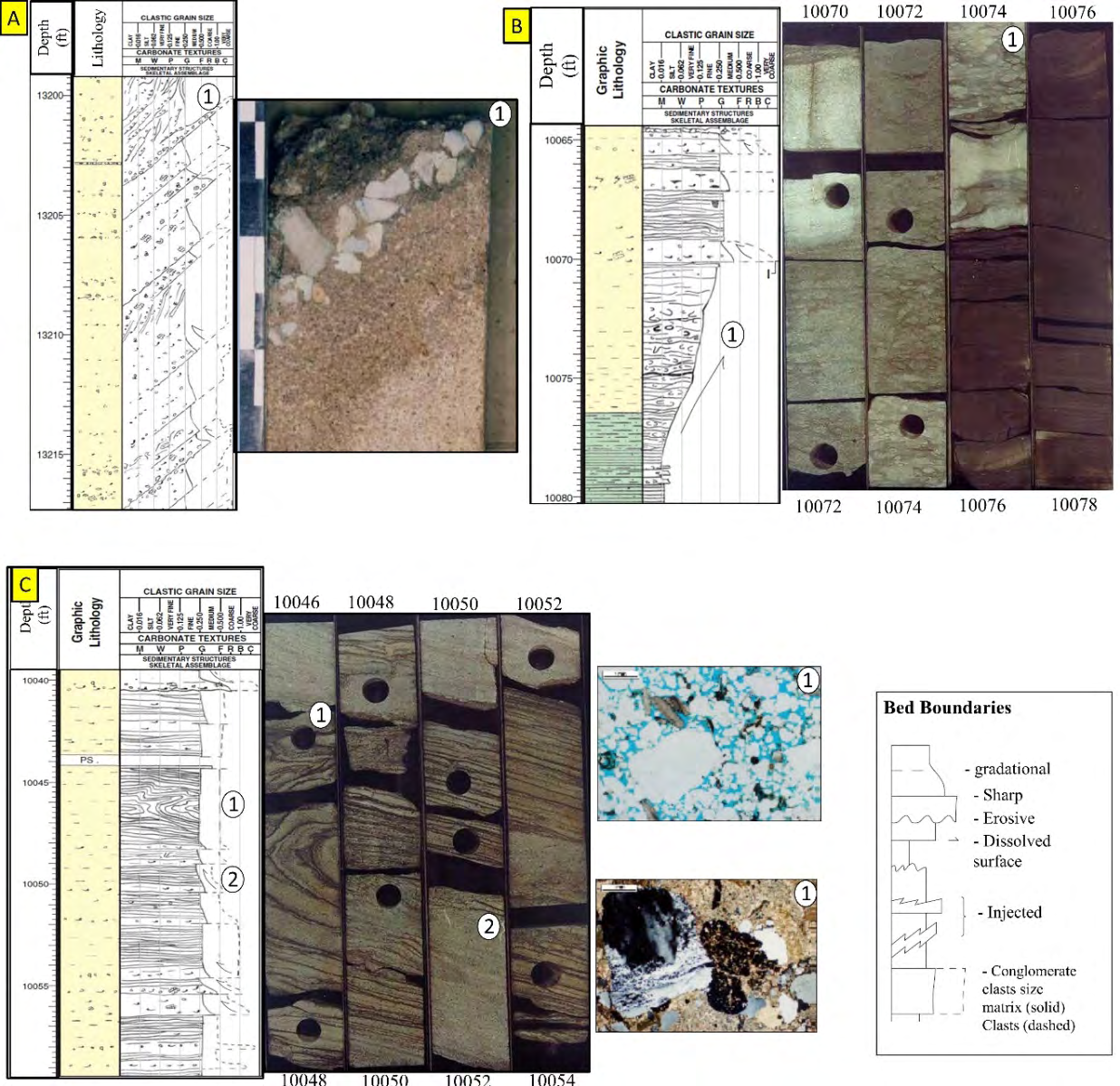

A thick conglomerate bed occurs at the well OCT-F3B (Figure 5A). It is located adjacent to the main bounding fault controlling the deposition and composed of sub-rounded quartz pebble (Figure 5A). Planar laminated bed tops locally display convolution (Figure 5C) and larger scale, chaotic soft- sediment deformation slumping features are observed in the overlaying coarse-grained sandstone (Figure 5).

Shale Lithofacies: This lithofacies (2ft thick, Figure 4) represents the sole occurrence of shale within the Asl core and has a lithological resemblance to the underlying Hawara pelagic shale (Figure 6B; Figure 5B). Because of this resemblance and position between rapidly deposited sandstone, this shale is interpreted as a slump deposit. This interpretation favors high-energy conditions throughout the Asl deposition. An alternative explanation would be slow pelagic shale deposition between high-energy sand-bearing turbidity flows.

Carbonate lithofacies: Carbonate lithofacies (C) range in color from off-white to light brown and can be classified as skeletal grainstone, packstone, and wackestone (Figure 9). The carbonate lithofacies are typically allochems and calcite cement supported with varying amounts of siliceous framework grains, i.e., quartz and feldspar. They are texturally and compositionally immature compared to the sandstones (Figure 9). The fabric is disorganized and variable. Constituents are medium to very coarse sand size, poor to moderately sorted, and angular to subrounded (Figure 9). Broken fossil fragments (5-75%) of benthic and planktonic foraminifera, bryozoans, echinoderms, algae, botryoidal grains and gastropods are recorded (Figure 9).

Silica framework grains account for 5 to 50% of the rock. Other minerals present in the carbonates include primary and allochthonous glauconite and secondary pyrite (Figure 9E). Scattered white to light brown pebble to cobble size carbonate fragments rich in planktonic foraminifera are interbedded within the limestone (Figures 4, 6, 7). The bioclast sizes range from fine-grained fragments to bivalves and bryozoan fronds that are several centimeters. The size variations reflect the bioclast source more than transport distance or mechanism [15, 16]. Bioclasts are frequently completely cemented with non-ferroan calcite cement (Figure 9). The most common pore types are relatively isolated moldic (from the dissolution of bioclasts) and intraparticle (within the bioclasts) types (Figure 9A and D).

Click to enlarge

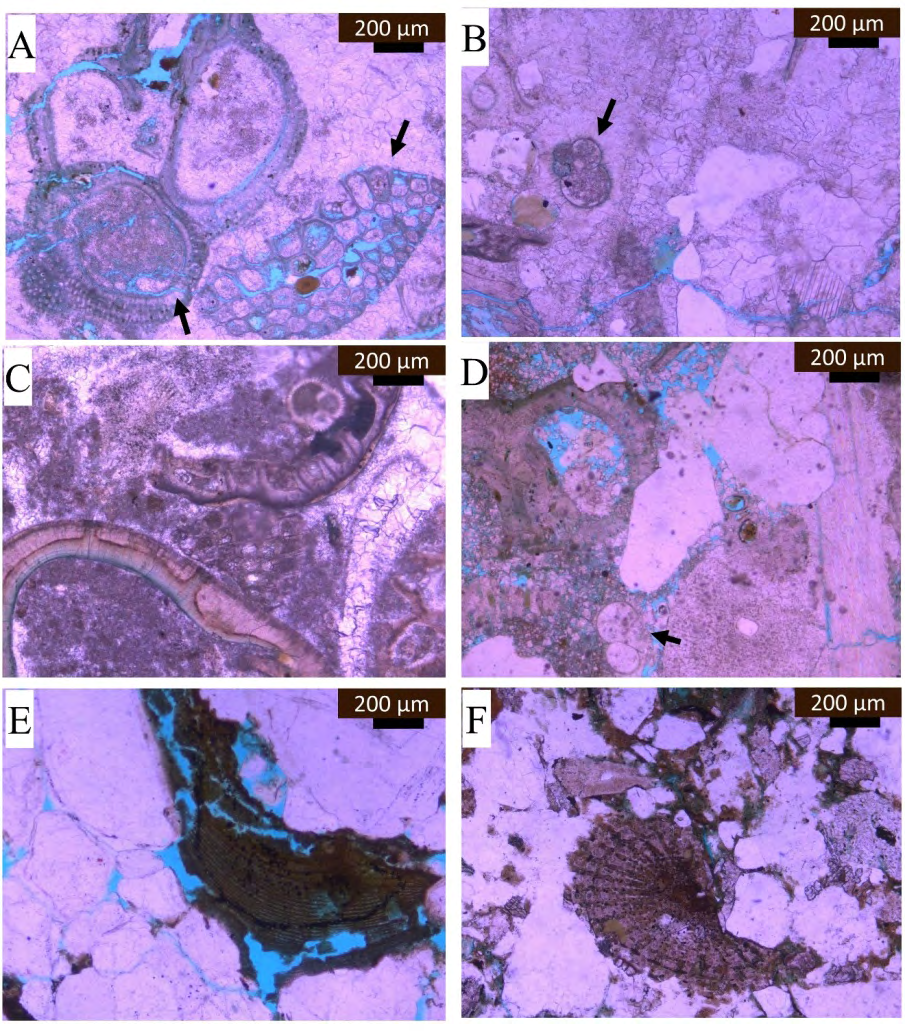

Figure 9: (A) Intraclasts grainstone. The intraclasts of botryoidal grains with intraparticle porosity (black arrows). Reworked green algae with dissolution porosity. Note the spar cement has filled the intergranular pores (PPL). (B) Foraminiferal wack- packstone with spar calcite filling the pores. Reworked blue-green algae of stromatolite and secondary dissolution porosity (PPL). (C) Pelecypod and shell fragment packstone, calcite has been micritized and the shell fragments filling with with spar calcite in parts (PPL). (D) Packstone of reworked algae with quartz grains. The algae have been dissolved to form secondary porosity enhancement (PPL). (E) Reworked algal fragments with preserved aragonite and shallow burial glauconitization with selective pyrite crystals filled the cast in parts. Intergranular primary porosity with secondary dissolved porosity exists (PPL). (F) Reworked foraminiferal shell with partially glauconitized (PPL).

Diagenesis in Sandstones (Lithofacies A)

Three main processes have acted to reduce primary intergranular porosity and reservoir quality over time. These are, in order from most to least influential:

• Formation of late-stage dolomite cement (Figure 10 A-D),
• Formation of quartz overgrowth cement (Figure 10 E-F),
• Formation of authigenic kaolinite clays (Figure 10D and 10A).

Click to enlarge

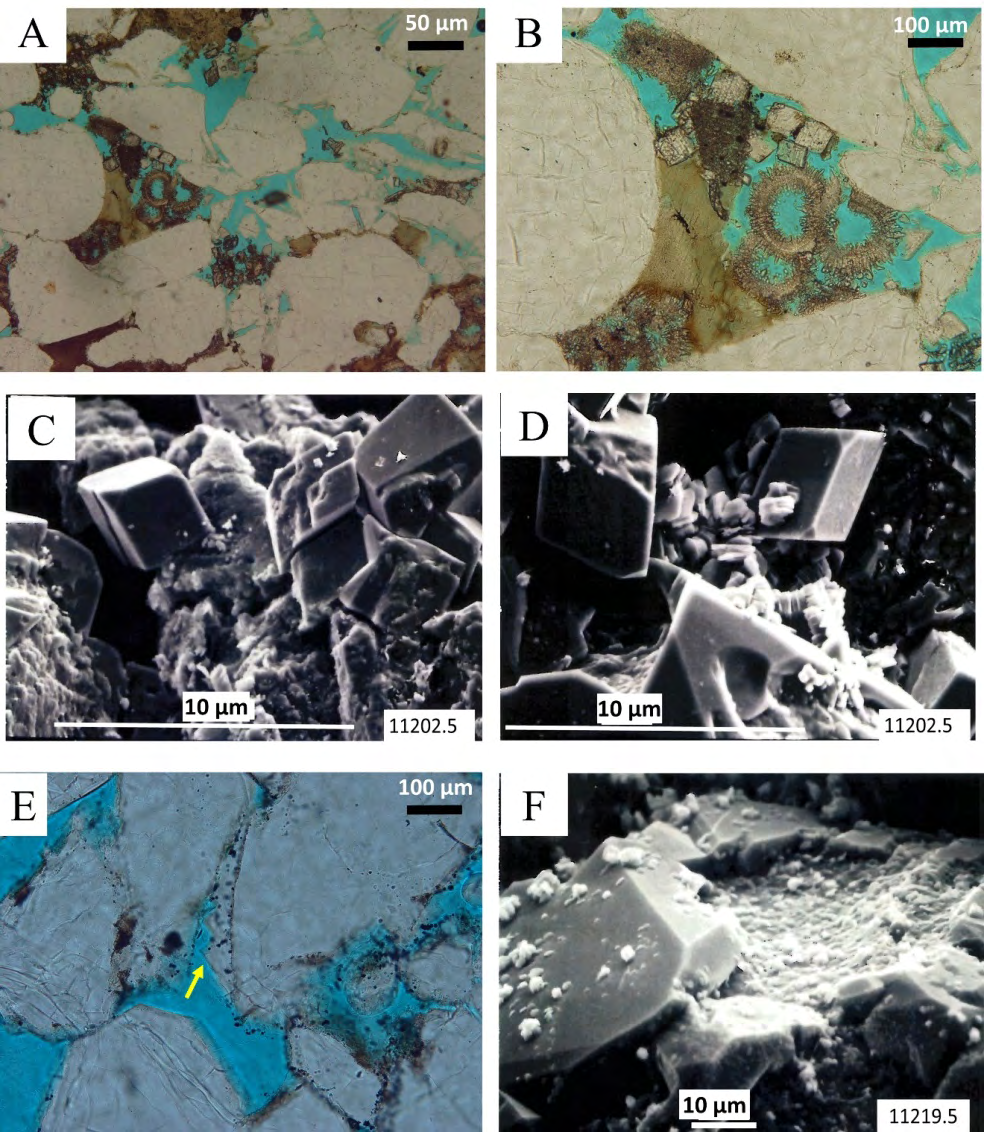

Figure 10: (A) and (B) Quartz arenite with primary intergranular and secondary intragranular porosity. Note the idiotopic form of the rhombic dolomite crystals at the late diagenetic stage. Glauconitization has partially occurred to reduce the porosity and reservoir quality (PPL). (C) SEM photomicrograph of the idiotopic dolomite rhombic crystals filling the primary pores and collapses the permeability at the late stage of diagenesis. (D) SEM photomicrograph of the idiotopic dolomite rhombic crystals with vermicular kaolinite precipitation that reduces the porosity and reservoir quality. (E) Intergranular porosity has been reduced by the syntaxial silica overgrowth (yellow arrow) with clay film around the quartz grains (PPL). (F) SEM of quartz overgrowth cementation in the sandstone.

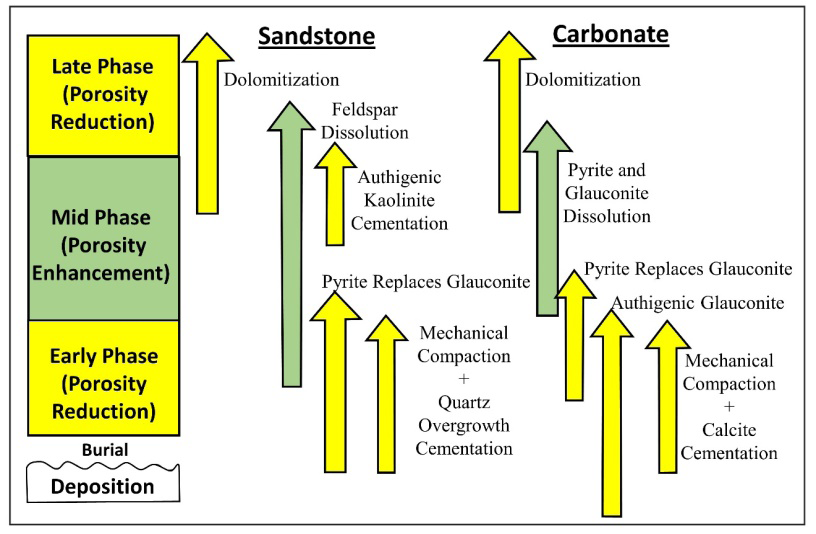

The order of occurrence of these processes is based on textural relationships observed in thin sections and scanning electron microscope (Figure 11).

Click to enlarge

Overall, the sandstones have retained very high primary intergranular porosity since deposition. This is concluded from the abundance of clean, open pore space and the lack of residual cement (Figure 7). Following deposition, silica- rich fluids, causing nucleation of syntaxial overgrowths onto existing quartz grains, first affected the grains. Overgrowth textures are shown in OCT-J5 well only by the preservation of grain dust rims in thin sections (Figure 10E) and by three- dimensional preservation of terminated quartz crystal faces under SEM (Figure 10F).

Click to enlarge

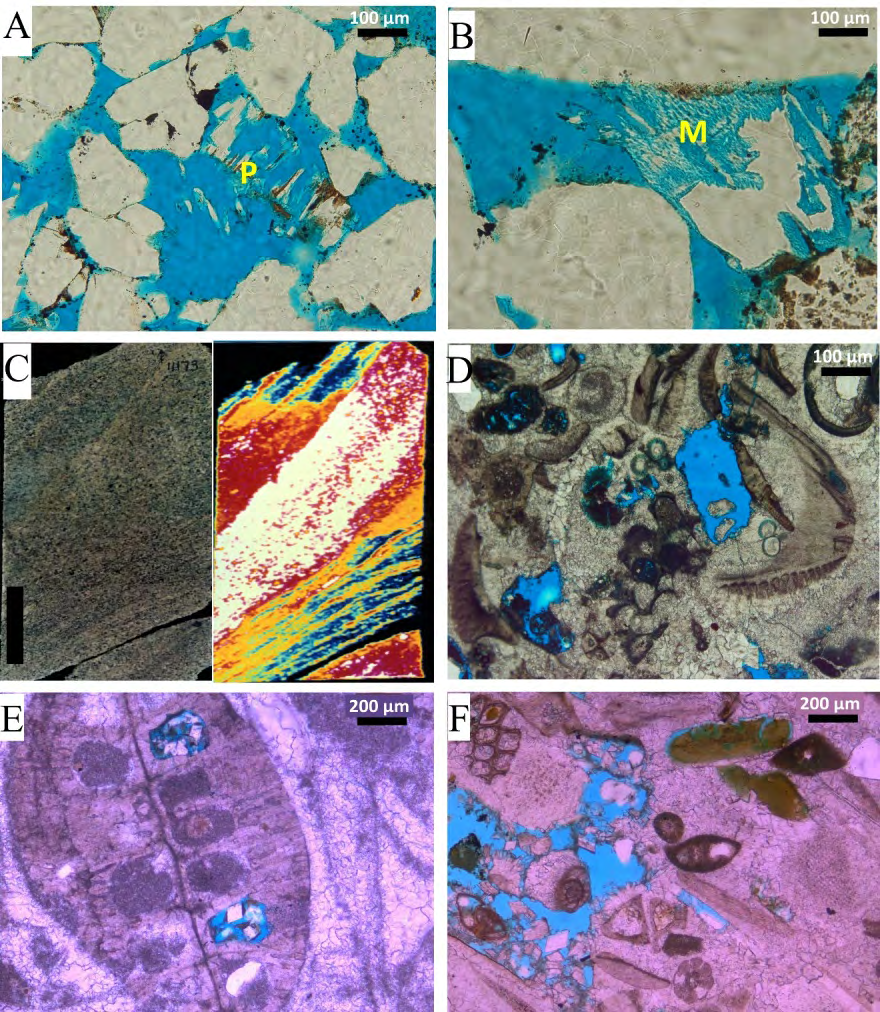

Figure 12: (A) Coarse-grained sandstone with enlarged porosity due to mineral degradation. Plagioclase (P) has been dissolved to form secondary porosity (PPL). (B) Dissolved labile microcline grain (M) and formation of secondary porosity (PPL). (C) X-radiograph image presents the high dense dolomite penetration in the sandstone. (D) Skeletal grainstone with botryoidal grains intraclasts. Intercrystalline porosity enhances the reservoir quality (PPL). (E) Reworked large foraminifera with quartz grains in the internal structure. Spar calcite act as late diagenetic cement with dolomite crystals filling the open cavities (PPL). (F) Grainstone with idiotypic crystal rhombs manifest the late-stage of dolomitization. Intraclasts of Bryozoa grains on the upper left hand. Glauconitized green algae (green pellets) (PPL).

Preferred dissolution of plagioclase and potassium feldspar along twinning surfaces is observed (Figure 12A and B). In the more feldspar-rich rocks (5%-10%), porosity enhancement is estimated to be an additional 1% to 3%. Secondary pores created by feldspar dissolution are typically clean, showing no secondary pore-filling minerals (Figure 12A and B).

The formation of authigenic kaolinite, accounting for typically less than 5% of the rock, is observed (Figure 10D). It likely formed as a product of feldspar hydrolysis and played a minor role in further reducing primary porosity. The most recent phase in the diagenetic history of the sandstones is a porosity-reducing process of dolomite cementation (Figure 11). The selected zones within the sandstone interval show evolving stages of dolomitization ranging from a few isolated dolomite rhombs occupying the pores (Figure 10B-D) to partially filled primary pores and significantly reducing permeability (Figure 10A and B). These dolomite rhombs are euhedral in form and grow outward into open pores after nucleating on a preferred grain surface (Figure 10C-D). The white-pink zone in the sandstone image (Figure 12C) represents high density, tight dolomitized laminations. Diagenesis in Carbonate (Lithofacies C) The carbonate interval of the OCT-J5 well is a mix of fossil fragments, intraclasts, silicate grains, and rock fragments that have been significantly altered since deposition (Figure 12D-F). Processes acting to both reduce and enhance primary porosity in the carbonate are shown in Figure 14 in their relative order of occurrence. The order of most to least influential processes acting to reduce the reservoir quality:

• Formation of Late-stage dolomitization (Figure 12E and F),
• Formation of Early calcite cementation (Figure 12D),
• Formation of glauconitization in fossil fragments (Figure 13A and B),
• Pyritization of both autochthonous and allochthonous glauconite (Figure 13C to E).

Click to enlarge

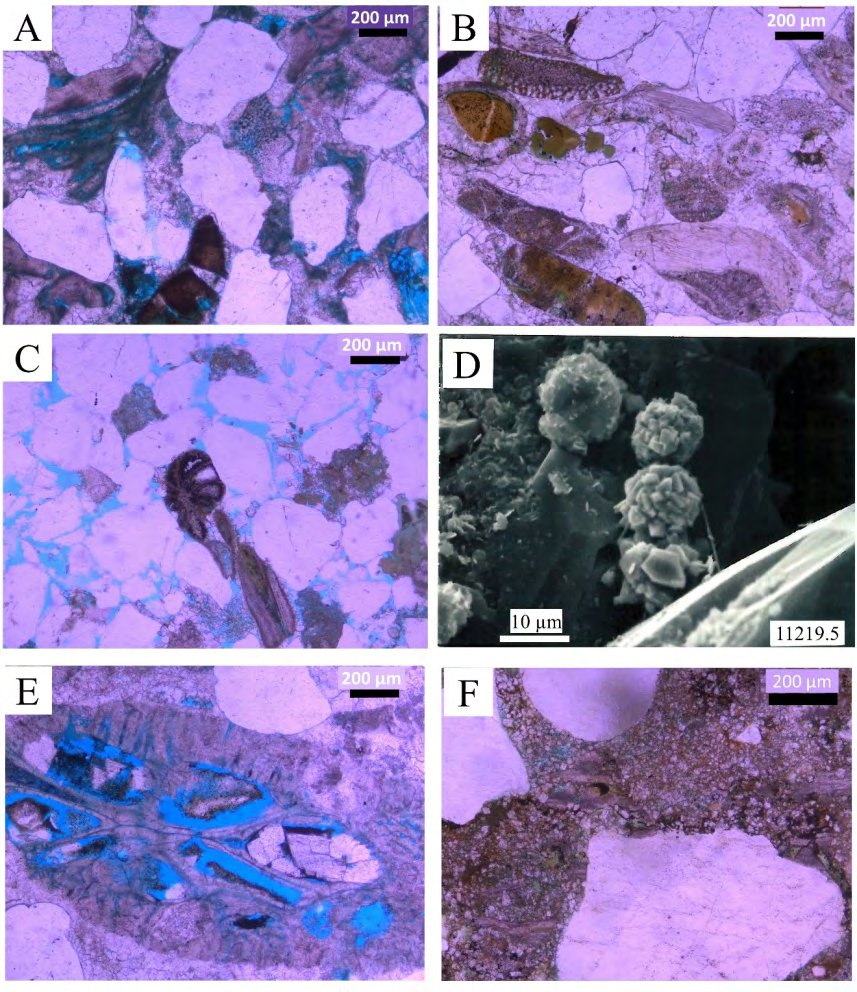

Figure 13: (A) Carbonate lithofacies with reworked sandstone and algae (PPL). (B) Skeletal and non-skeletal grainstone with reworked glauconitized red and green algae (PPL). (C) Sandstone with benthic foraminifera and shell fragments. Note the foraminifera have been partially pyritized calcite cementation fills the pores to reduce the reservoir quality in addition to the glauconite precipitation in parts (PPL). (D) SEM micrograph presents the pyrite precipitation around the quartz grains (PPL). (E) Reworked macroforaminifera with intraparticle secondary porosity and rhombic dolomite precipitation (PPL). (F) Late stage dolomitization fill the pore spaces and reduce the primary porosity (PPL).

The paragenetic sequence of these processes are in three stages. The first stage of diagenesis in the studied carbonate facies is the early porosity reduction by calcite cementation (Figure 11). On the other hand, fossil fragments bryozo, green algae, and foraminifera show body chambers completely or partially filled with glauconite, which reduce primary porosity (Figure 13B). The presence of glauconite, a potassium iron aluminosilicate, witness a marine depositional environment with close association with organic material [17, 18, 19]. This fact is consistent with the current interpretation of the Asl Member sediments. Afterthought pyritization the glauconite occurred and lead to further porosity reduction. The formation of pyrite crystals are seen either disseminated throughout a fossil fragment or growing as a coating around the glauconite pellets (Figure 13B-D). The second stage of diagenesis of the carbonate is the porosity-enhancing dissolution of the glauconite and pyrite associated with the fossil material. Moldic pores (Figures 12 & 13) were formed through different stages of dissolution including early dissolution, where only a portion of the fossil has been dissolved, and late dissolution when practically the entire fossil has been dissolved.

The third phase of diagenesis in the carbonate is dolomitization. This process significantly reduces porosity and thus, reservoir quality (Figure 12E & F), whereas euhedral rhombs of dolomite occupy open pore spaces in varying stages of abundance. Dolomitization is a late-stage process because rhombs typically occupy moldic pores where the original organic matter and/or the secondary glauconite and pyrite have been dissolved away (Figure 13E). In more advanced stages of dolomitization, the original rock fabric has been obscured by interpenetrating dolomite rhombs in the OCT-J5 well, which in some cases reduces all primary pores and reservoir quality (Figure 13F). Paragenetic Sequence The sequence of diagenetic events in the Asl Member can be broadly subdivided into near-surface (Early-phase), shallow burial (Mid-phase), and deep burial (Late-Phase) phases (Figure 11). These phases are part of a continuum, and diagenetic events occurring within them will necessarily overlap to some degree. The events listed below are the dominant ones for each phase:

Near-surface diagenesis (Early-Phase): The pore-filling and intraparticle fibrous cement were originally precipitated in the marine realm as aragonite. This aragonite cement has been converted with time to non-ferroan calcite. The calcite cement occurs within the chambers of the bioclasts but occluded only the small pores (Figures 10-13).

Mechanical compaction occurred after deposition by rapid burial as a result of high rate of sedimentation (Figure 11). These conditions were favored by the accommodation space created at the hanging wall of the rotated tilted fault blocks at the propagation stage of rifting.

The syntaxial quartz overgrowth observed in the sandstone lithofacies of the OCT-J5 well. It was generated earlier in the paragenetic sequence in sizes ranging from 5-15 μm of lithofacies (A) [20]. The source of silica overgrowth was suggested as the effect of pressure solution that was supposed to be initiated during the Clysmic fault propagation phase as interpreted from burial history modeling. In addition, the quartz overgrowth has not been recognized in the Tanka-3 well, which is more basinal with thermal heating below 100 °C [20].

Shallow burial diagenesis: The dissolution of aragonitic bioclasts has contributed extensively and originally to enhancing the reservoir quality (Figures 12 & 13). Such dissolution occurs by pore fluids that are under-saturated with calcite and is commonly later expelled due to overburden pressure. Subsequent pore-filling cementation destroyed reservoir quality.

Deep burial diagenesis: The pore filling by dolomite and calcite cement is an important diagenetic event because it fills most of the inter and intraparticle secondary macropores (Figures 12 & 13) in both carbonate and siliciclastic dominated lithofacies. Mechanical compaction is remarkable through the sedimentary burial history and has reduced primary intergranular pores, especially in siliciclastic lithofacies (A) (Figure 10).

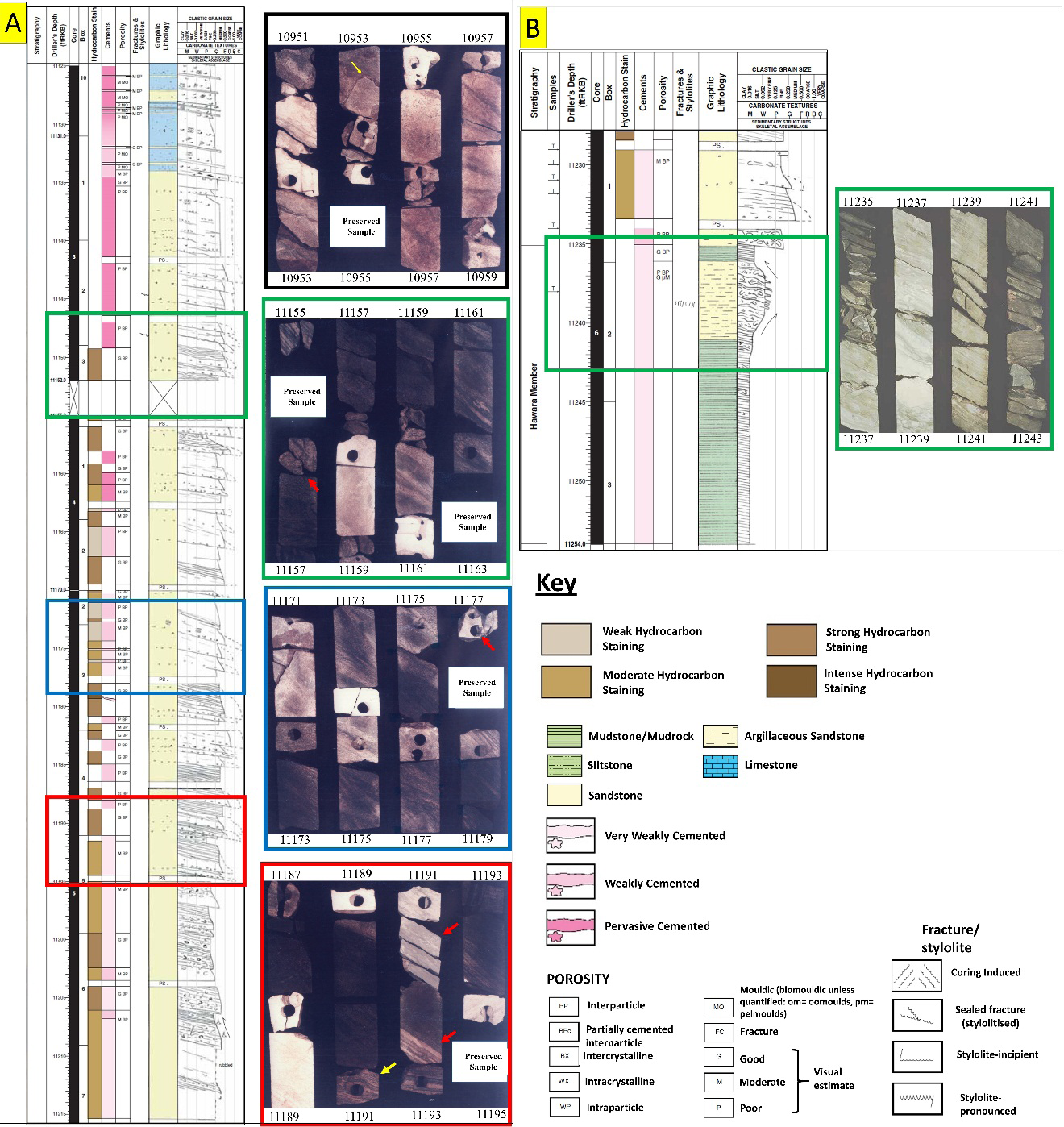

The cores show a range of hydrocarbon stains (Figure 6), from pervasive and intense, to minor or none. As the majority of cementation occurred late in the diagenetic history and hence absence of hydrocarbons in the cemented lithologies, the main charge is considered to have post-dated the deep burial of the reservoir.

Impact of Diagenesis on Reservoir Quality

The reservoirs occur in the ~ 200 ft-thick-lower part of the Asl Member and consist of fine- to coarse-grained turbidite sandstones. They are locally derived heterogeneous with variable porosity and permeability ranging from 17- 27% and 30-3000 mD, respectively. The carbonates are also heterogeneous, ranging from skeletal grainstones to packstones, with porosity and permeability of 3-17% and 0.01-90 mD, respectively. Based on core and thin section investigation, three main processes have acted to reduce primary intergranular porosity and reservoir quality over time in the sandstone lithofacies (A). These are, in order from most to least influential Formation of late-stage dolomite cement, quartz overgrowth cement, and authigenic kaolinite clays, while the dissolution of feldspars, contributes to enhancing the pore system. For the carbonate lithofacies (C), the formation of late-stage dolomite, early calcite cement, glauconite in fossil fragments, and pyrite crystals after both autochthonous and allochthonous glauconite. On the other side, porosity enhancement in carbonates occurred through the dissolution of detrital and the replacement of glauconite within the fossil fragments.

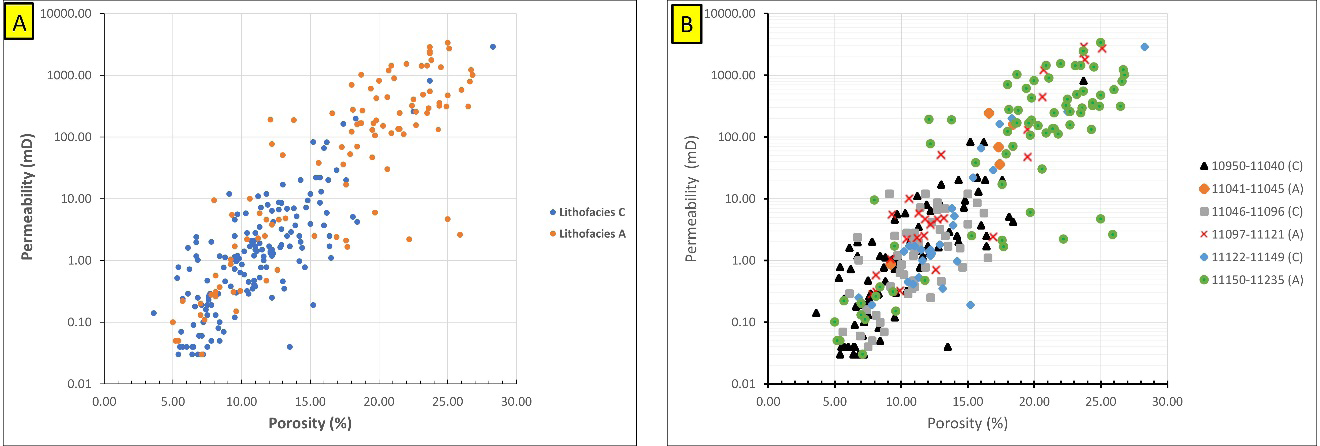

The reservoir quality varies between the lithofacies in the studied wells. Sandstone lithofacies (A) is in general more porous and permeable than carbonate packstones and grainstones lithofacies (C). Measured porosity and permeability of lithofacies (A) are notably high, ranging from 15 to 28% and 10 to 4000mD, respectively (Figure 14A). Discriminating the OCT-J5 well based on the porosity permeability variables, the lithofacies (A) found in higher porosity-permeability values than lithofacies (C) (Figure 14B). The Pore filling, non-ferroan calcite, and dolomite cement, in addition to silica overgrowth, are the major factors control the reservoir quality degradation in the cored intervals (Figures 10-13). The above-mentioned cement occurs in bioclast body cavities, interparticle pores, moldic pores, and fractures. It is the dominant cement phase in carbonate, in mixed carbonate-siliciclastic and siliciclastic lithofacies. Thinner sandstone units that are surrounded by carbonate-rich lithologies may be completely cemented by calcite (Figure 6). In addition to calcite cement, bioclast fragments, ductile grains (e.g., glauconite) deform with the matrix and occlude interparticle pores in sandstones (Figures 7F & 9). This type of material tends to occur in layers and can have a detrimental effect on vertical permeability, especially where compaction is extensive. Fine-grained sandstones are often more adversely affected by abundant matrix material and compaction than coarse sandstones and have a correspondingly increased reduction in porosity and permeability [20].

To sum up, the ability to predict the presence and distribution of reservoir properties is vital to the successful exploitation of a reservoir. In the Asl Member, porosity and permeability values vary greatly in both carbonate- dominated and siliciclastic-dominated lithofacies in vertical and lateral dimensions. Although packstones and grainstones may have good porosity values (10-20%), the moldic and intraparticle pores tend to be poorly connected. Hence, permeability values are rarely greater than 10mD (Figure 14). The distribution of these lithofacies is complex and difficult to predict, but they seem to be most common on shallower portions of rotated fault blocks. The thickness of carbonate-dominated units thins away from the fault blocks and the detrimental effects of calcite cementation should decrease. Other factors such as sandstone thickness must be taken into consideration when evaluating the influence of cementation.

Click to enlarge

Fine-grained, distal sandstones may have good reservoir properties, but the coarse-grained sandstones contribute to the bulk products from the Asl reservoir. The thicker the sandstone interval, the greater the chance that a significant proportion of the interval will be only lightly cemented and that connected interparticle porosity has been preserved. However, the majority of even 50ft intervals may be moderate to extensively cement (e.g., Tanka-3, 9963-10013ft, Figures 5 & 6), and thinner intervals are usually adversely affected by calcite cement. Thick, proximal to mid-fan sandstones located close to rift faults, and to their intersections with cross faults will provide the best combination of depositional and diagenetic characteristics for preserving good reservoir quality.
